1. Aluminum alloy frame sandblasting oxidation process, anti-UV and anti-discoloration treatment, Full IP67 waterproof, narrow frame design, Gimble Mount design, support side M10 bracket installation
2. Industrial-grade LCD screen, full viewing angle, 1500 brightness visible in the sun, knob to adjust brightness
3. Touch button OSD
4. Isolated power input, support DC9-36V
5. 10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface AG anti-glare treatment
6. EETI touch control solution, normal touch when there are water droplets on the touch screen
7. Adopt industrial-grade components, 7x24 hours work, support wide temperature operation -20℃~70℃
8. Optical bonding between LCD and touch screen
9. With dimmer design, can adjust the brightness from 100% to 0
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 7'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1024(H)*600(V) | ||||
| Aspect Ratio | 16：10 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |

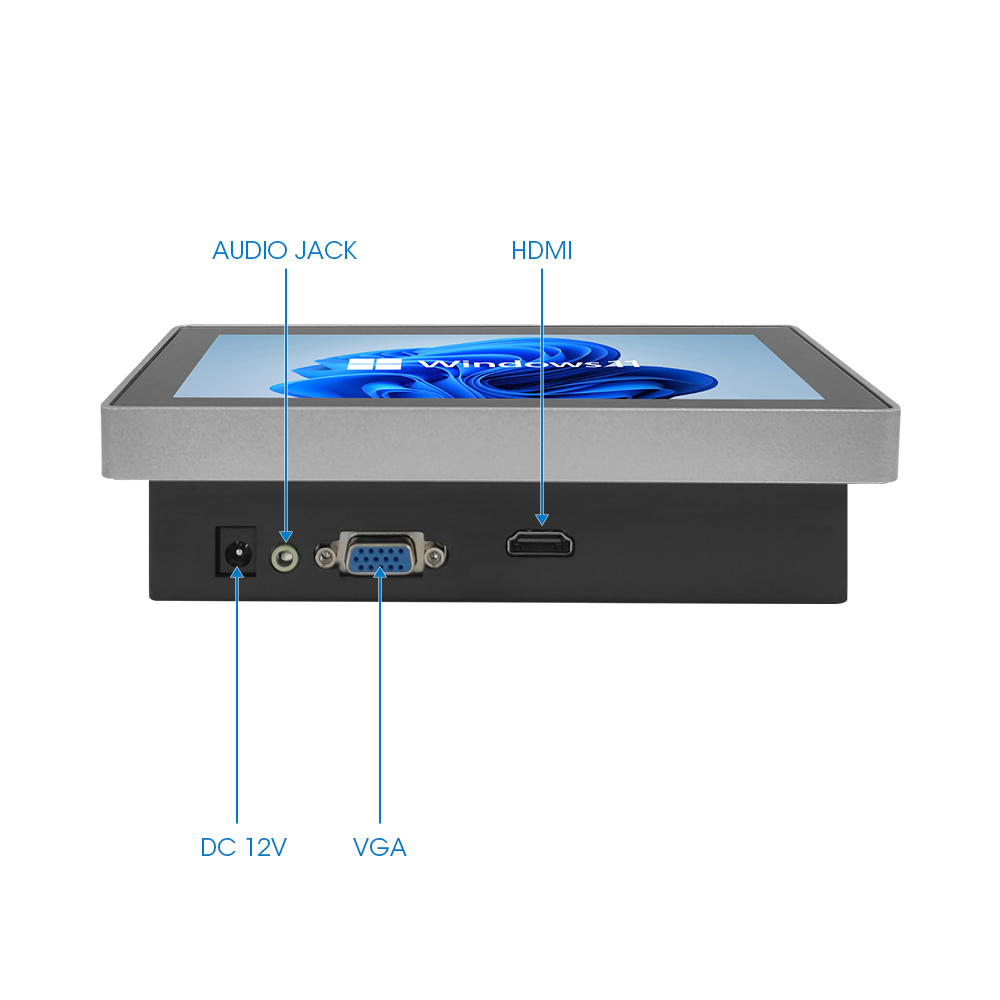

| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 1KG | ||||

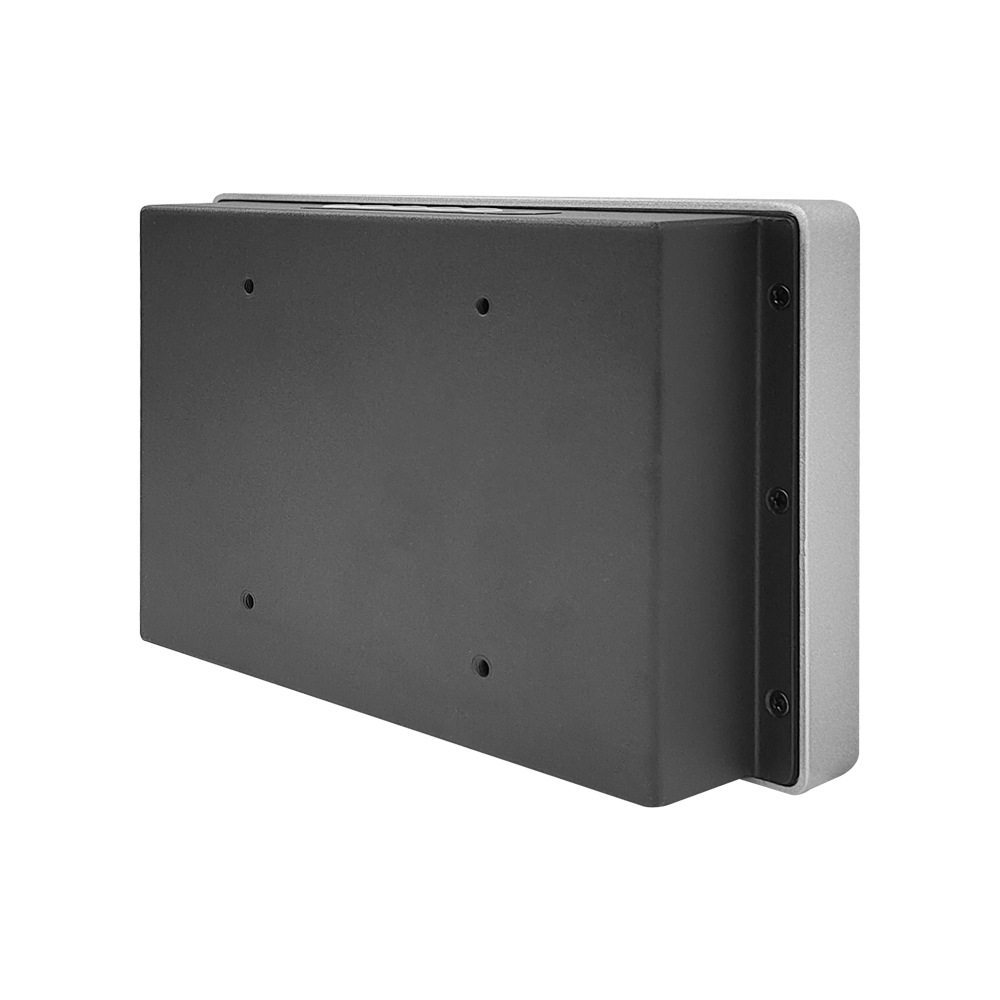

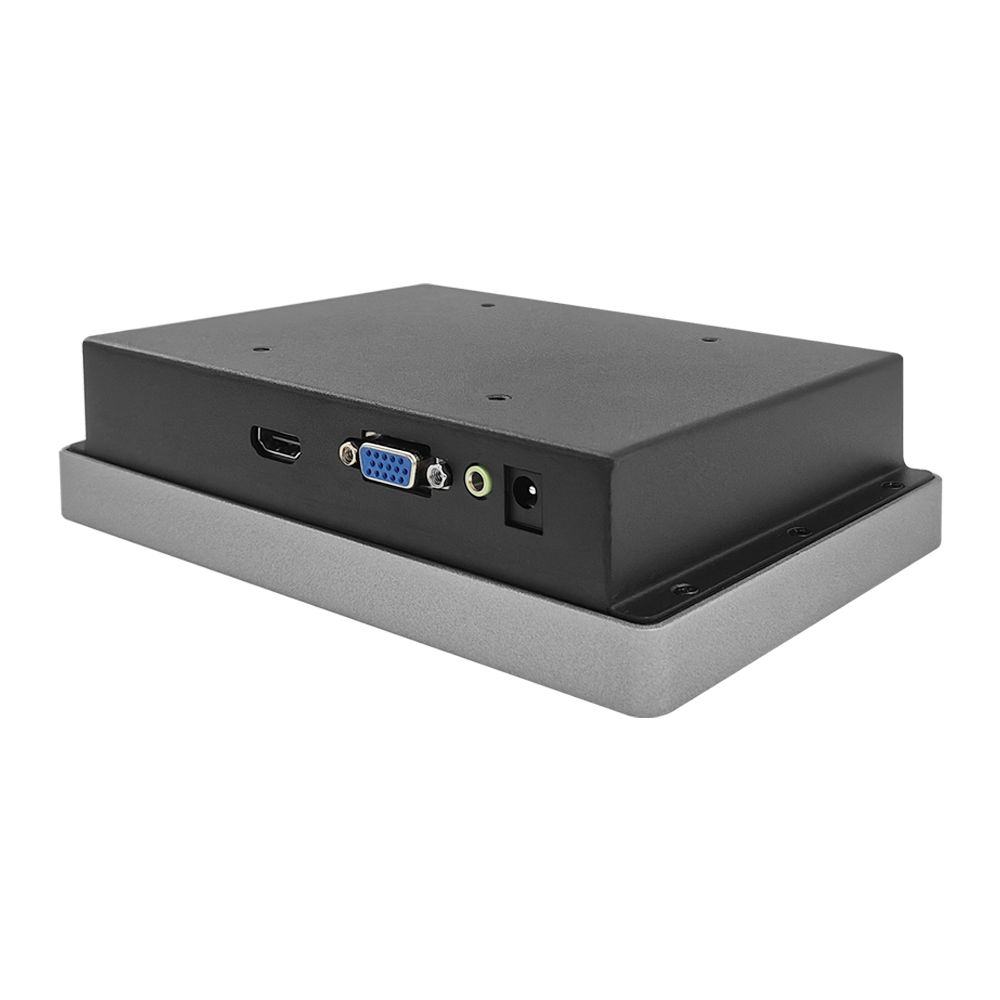

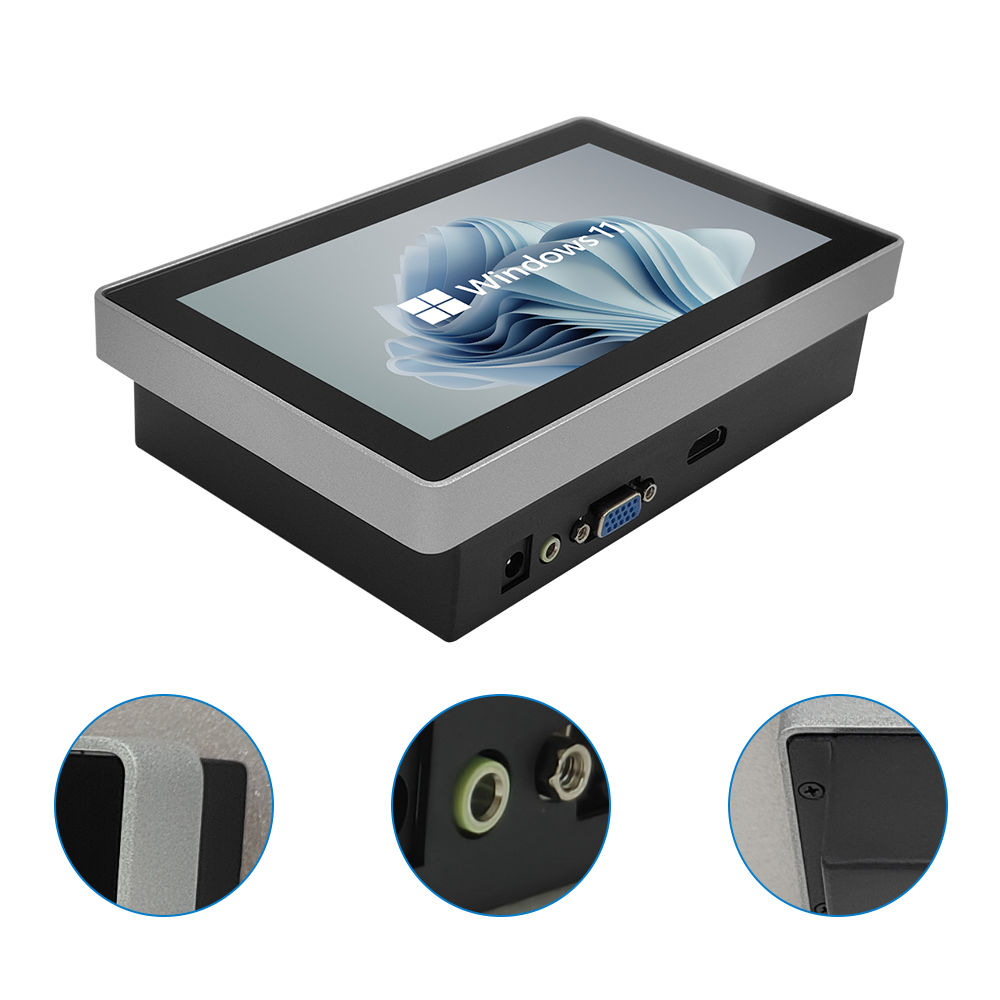

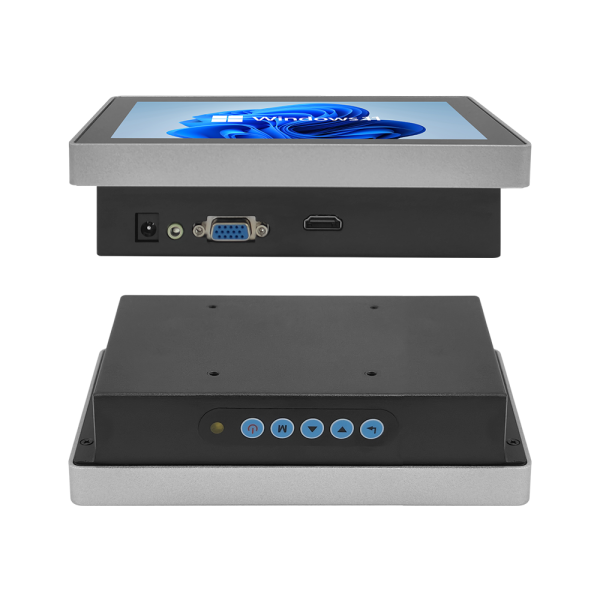

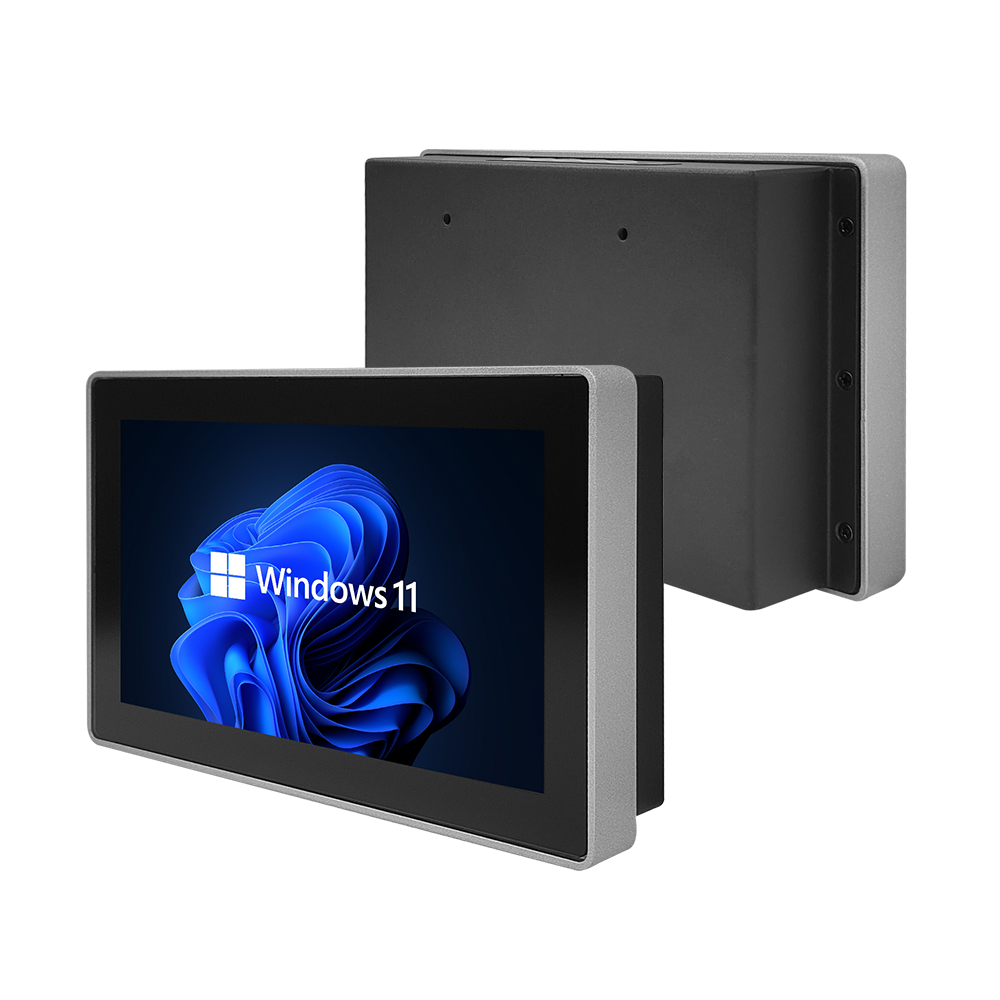

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Industrial Touch Monitor is a top-of-the-line product designed for various industrial applications, offering exceptional functionality and durability. With a screen size of 7 inches, this industrial monitor is compact yet powerful, providing a clear and detailed display for all your needs.
One of the key features of the Industrial Touch Monitor is its high-resolution display, boasting a resolution of 1024*600. This ensures that you can view images and data with crisp clarity, making it ideal for detailed work in industrial settings. Whether you are analyzing complex diagrams or viewing intricate schematics, the resolution of this industrial monitor will not disappoint.
In addition to its impressive resolution, the Industrial Touch Monitor also offers a wide range of brightness levels, ranging from 250 to 1000cd/m2. This flexibility allows you to adjust the brightness based on your specific requirements, ensuring optimal visibility in various lighting conditions. Whether you are working in a brightly lit factory or a dimly lit warehouse, this industrial monitor can adapt to provide the best viewing experience.
Another standout feature of the Industrial Touch Monitor is its capacitive multi-touch screen technology. This advanced touch screen allows for precise and responsive touch input, making navigation and interaction with the monitor a breeze. Whether you are swiping through data, zooming in on detailed graphs, or tapping on icons, the capacitive multi-touch screen of this industrial monitor delivers a seamless and intuitive user experience.
The Industrial Touch Monitor is specifically designed to meet the demands of industrial environments, making it a reliable and robust choice for your industrial applications. Its sturdy construction and durable components ensure that it can withstand the rigors of daily use in industrial settings, providing long-lasting performance and reliability.
Overall, the Industrial Touch Monitor is a versatile and high-performance display solution that is well-suited for a wide range of industrial applications. With its compact size, high-resolution display, adjustable brightness levels, and advanced touch screen technology, this industrial monitor offers everything you need to enhance productivity and efficiency in your industrial operations.
Features:
- Product Name: Touch Screen Monitor
- Touch Screen: Capactive Multi Touch Screen
- Size: 7 Inch
- Resolution: 1024*600
- Brightness: 250-1000cd/m2
- Material: Aluminum Alloy Frame
Technical Parameters:
| Product name | Industrial Touch Monitor |
| Material | Aluminum Alloy Frame |
| Resolution | 1024*600 |
| Size | 7 Inch |
| Touch Screen | Capacitive Multi-Touch Screen |
| Brightness | 250-1000cd/m2 |
Applications:
INNODA's IND070M Industrial Touch Monitor is a versatile and cutting-edge product that is suitable for a wide range of application occasions and scenarios. With its Point Touch Screen technology and interactive features, this touch screen monitor offers a seamless user experience.
Manufactured in Shenzhen, China, the IND070M Touch Monitor is designed to meet the highest standards of quality and performance. It comes with certifications such as CE, RoHS, FCC, and IP65, ensuring its reliability and safety in various environments.
Whether it is for industrial automation, digital signage, interactive kiosks, or gaming applications, the INNODA Touch Monitor is the perfect choice. Its compact 7-inch size and high resolution of 1024*600 make it ideal for displaying clear and crisp visuals.
The aluminum alloy frame of the monitor not only provides durability but also gives it a sleek and modern look. The Capactive Multi Touch Screen technology enables precise and responsive touch control, enhancing the user's interaction with the monitor.
With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, the IND070M Touch Monitor offers flexibility and scalability for various projects. The packaging details ensure safe transportation, with each monitor weighing 7kgs and dimensions of 45×35×12cm.
Customers can expect a delivery time of 25 working days upon receiving payment, with multiple payment options available including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram.
Customization:
Product Customization Services for the Industrial Touch Screen Monitor:
Brand Name: INNODA
Model Number: IND070M
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Brightness: 250-1000cd/m2
Resolution: 1024*600
Product name: Industrial Touch Monitor
Material: Aluminum Alloy Frame
Size: 7 Inch
Key Features: industrial monitor, Point Touch Screen, Industrial Touch screen monitor
Support and Services:
Our Touch Screen Monitor product comes with comprehensive Product Technical Support and Services to ensure that you have a seamless experience. Our team of experts is available to assist you with any technical issues, troubleshooting, and setup guidance. You can rely on our dedicated support to address any concerns and provide solutions promptly.
Packing and Shipping:
Product Packaging:
The touch screen monitor is carefully packed in a sturdy cardboard box with protective foam inserts to prevent any damage during transportation. The box is labeled with product information and handling instructions to ensure safe delivery.
Shipping:
Once the touch screen monitor is securely packaged, it will be shipped using a reputable carrier service such as UPS or FedEx. Customers will receive a tracking number to monitor the status of their shipment and can expect timely delivery to their specified address.
