18.5-inch CNC fully waterproof IP66 67 68 touch 1000 high-brightness AG glass 2-way AV channel AHD conversion industrial monitor
- Aluminum alloy frame sandblasting oxidation process, anti-UV and anti-discoloration treatment, Full IP67 waterproof, narrow frame design, Gimble Mount design, support side M10 bracket installation
- Industrial-grade LCD screen, full viewing angle, 1500 brightness visible in the sun, knob to adjust brightness
- Touch button OSD
- Isolated power input, support DC9-36V
10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface AG anti-glare treatment
EETI touch control solution, normal touch when there are water droplets on the touch screen
Adopt industrial-grade components, 7x24 hours work, support wide temperature operation -20℃~70℃
Optical bonding between LCD and touch screen
With dimmer design, can adjust the brightness from 100% to 0
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 15.6 18.5 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 5KG | ||||

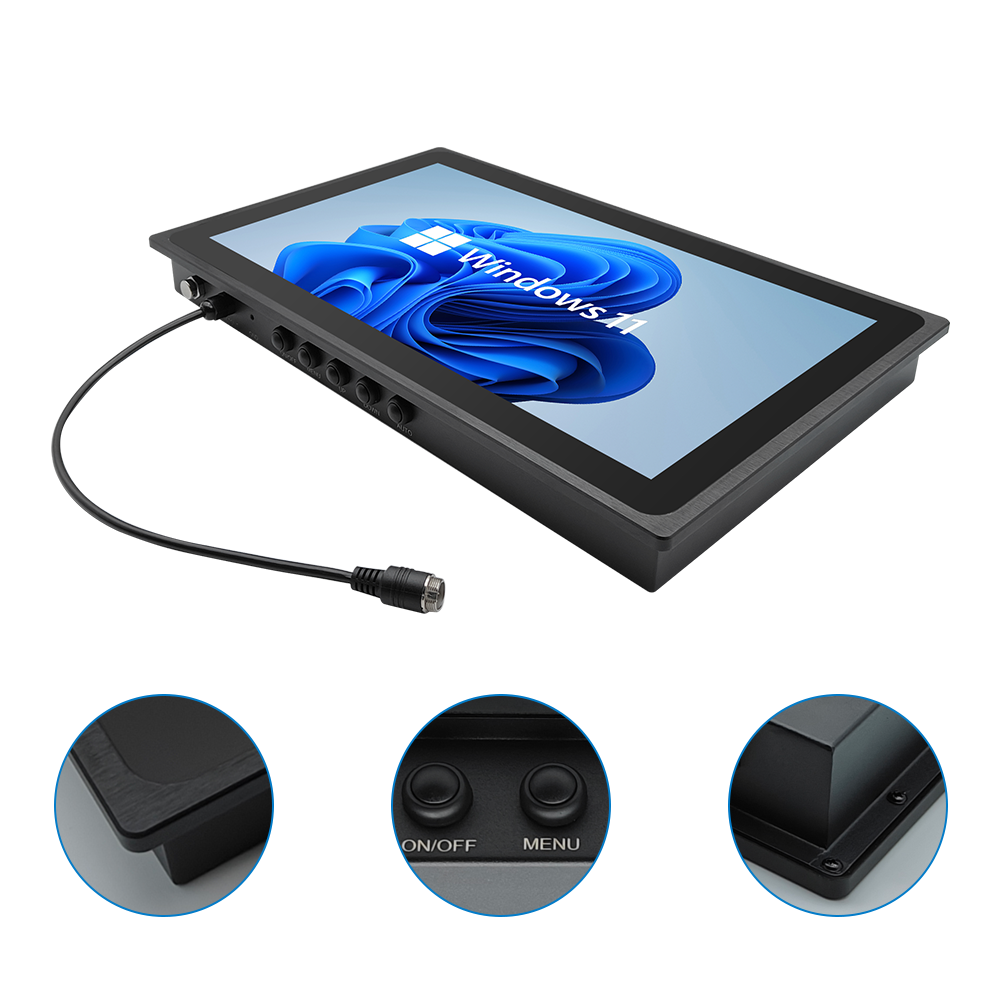

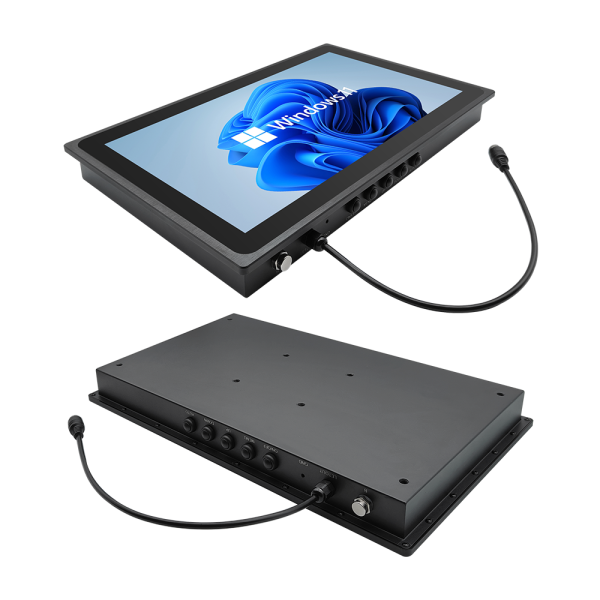

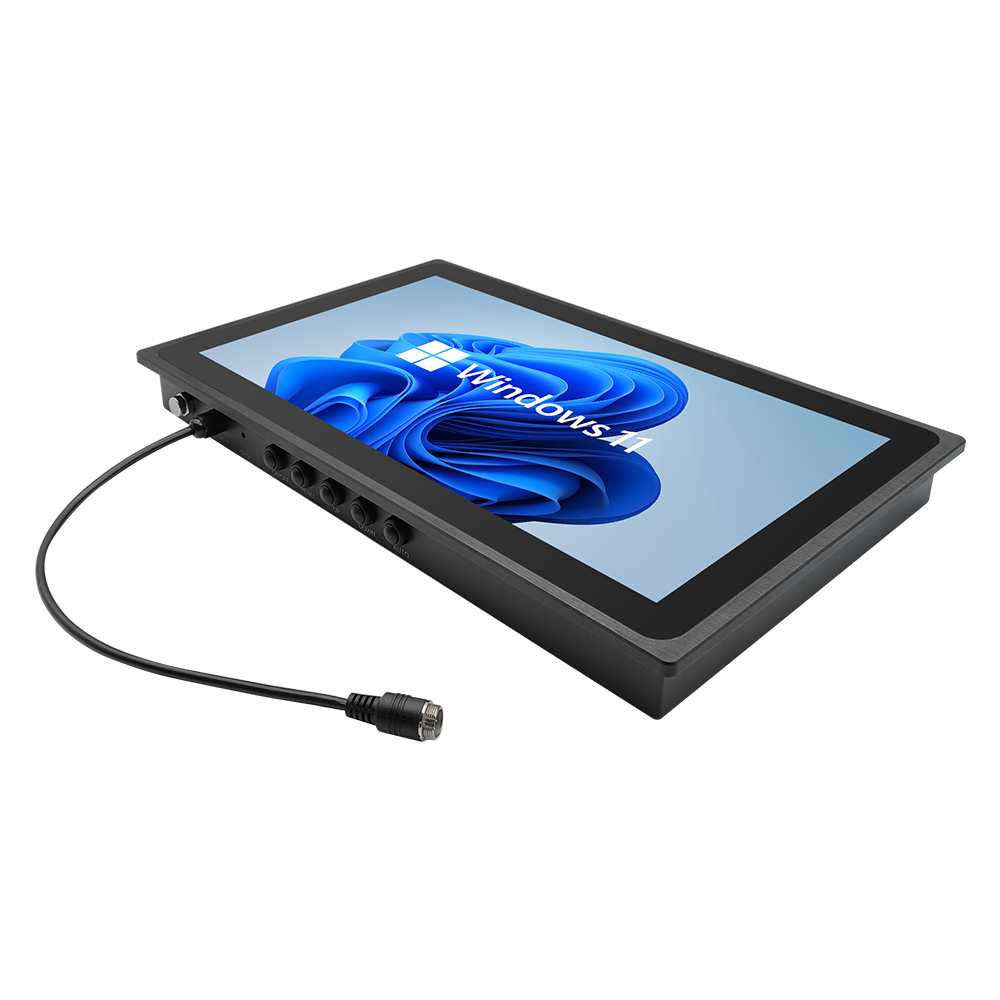

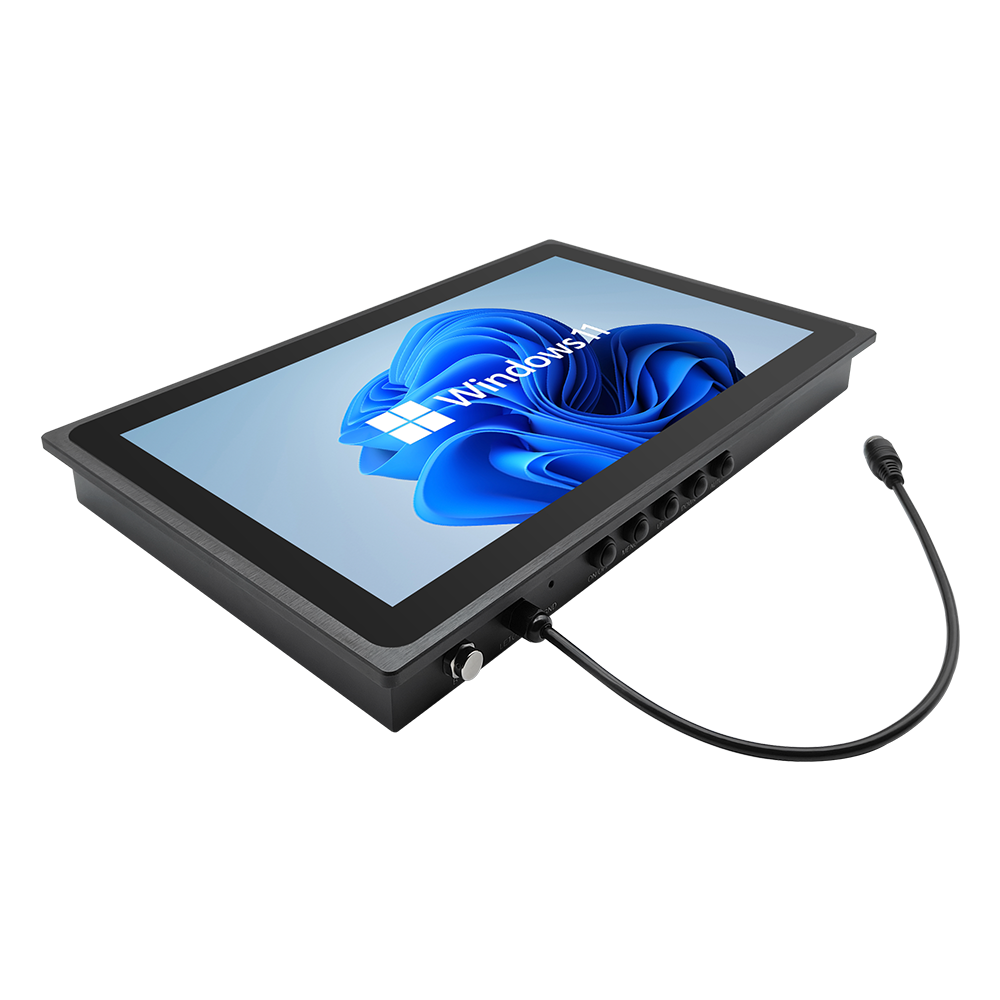

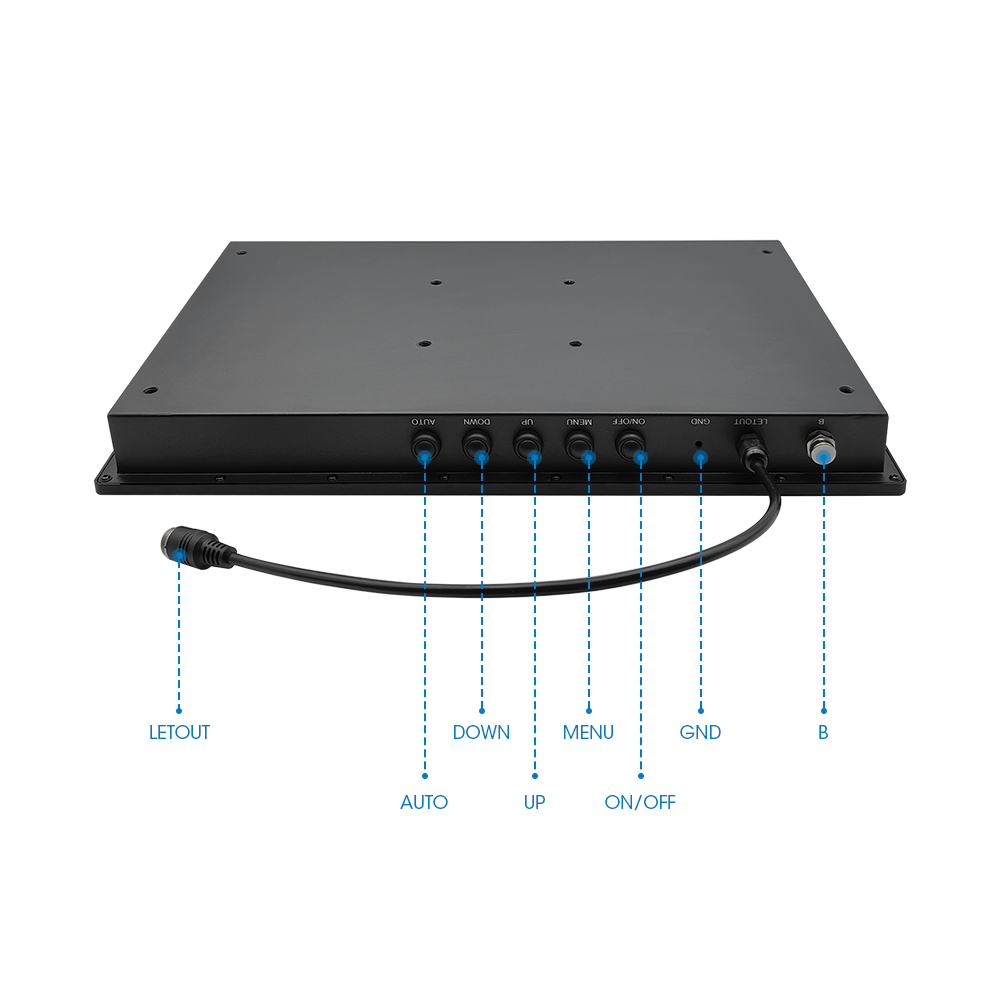

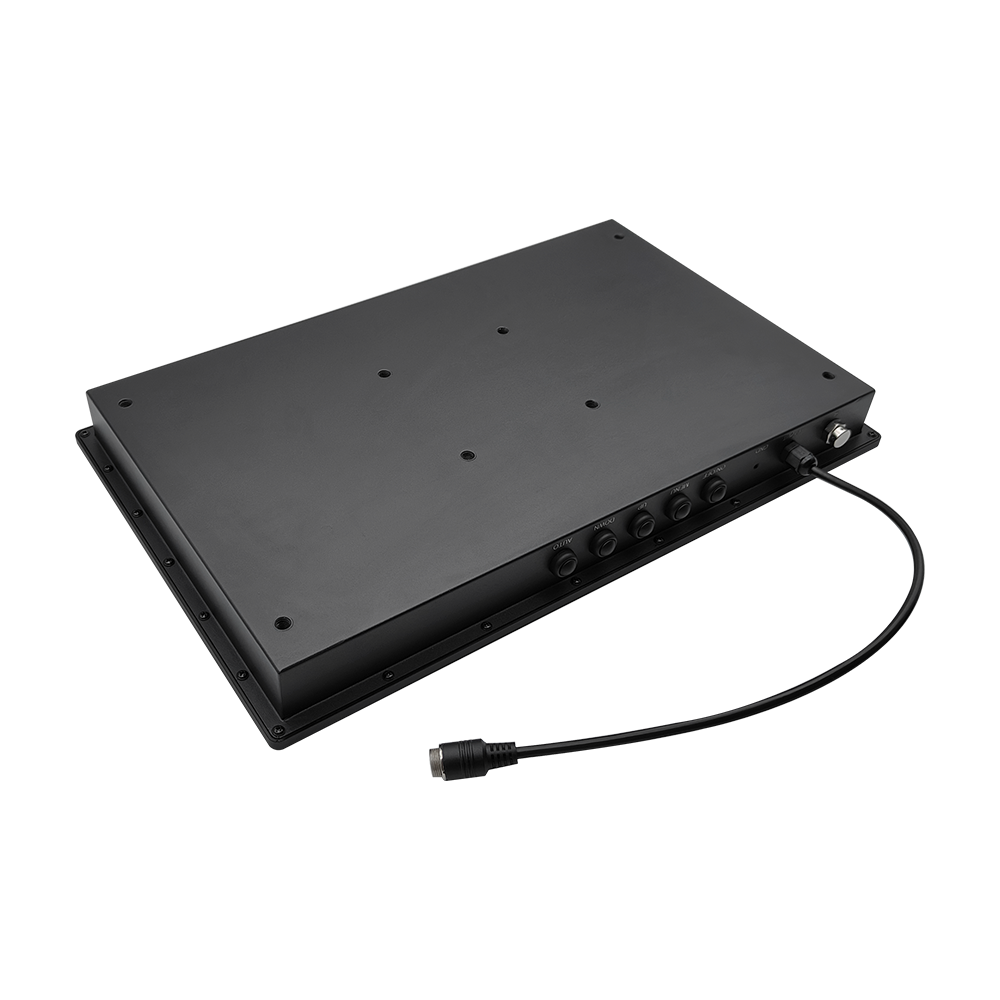

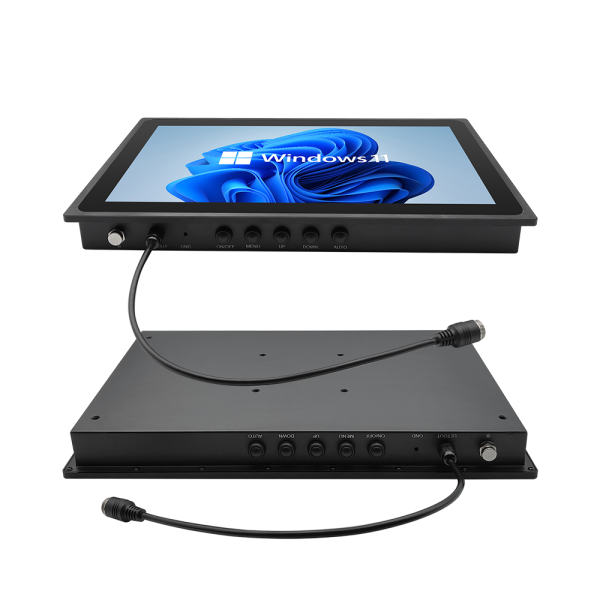

PRODUCT PICTURE
