Aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, Full IP67 waterproof and dustproof.
10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H.
EETI touch control solution, can touch when water dropl on the touch screen.
The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature -20 to 70ºC.
Optical bonding between touch screen and LCD screen
The front frame and back shell are sealed with waterproof adhesive strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | RK3288/3399/3566/3568 |
| Memory | 2GB/4/8/16 DDR3/DDR4 |
| Storage | 8G/16G/32G/64G |
| Operation System | Android6.0/7.1/8.1/9.0/11.0 |
| I/O Ports | 1*USB,1*HDMI,1*RJ45 |
| Function | WIFI&BT integrated (3/4G,GPIO,Canbus,Webcam,NFC,RFID is supported ) |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 21.5'' LCD Panel Screen |
| Touchscreen Type | 10 Points Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*(RGB)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm(optional) |
| Weight | 7KG |

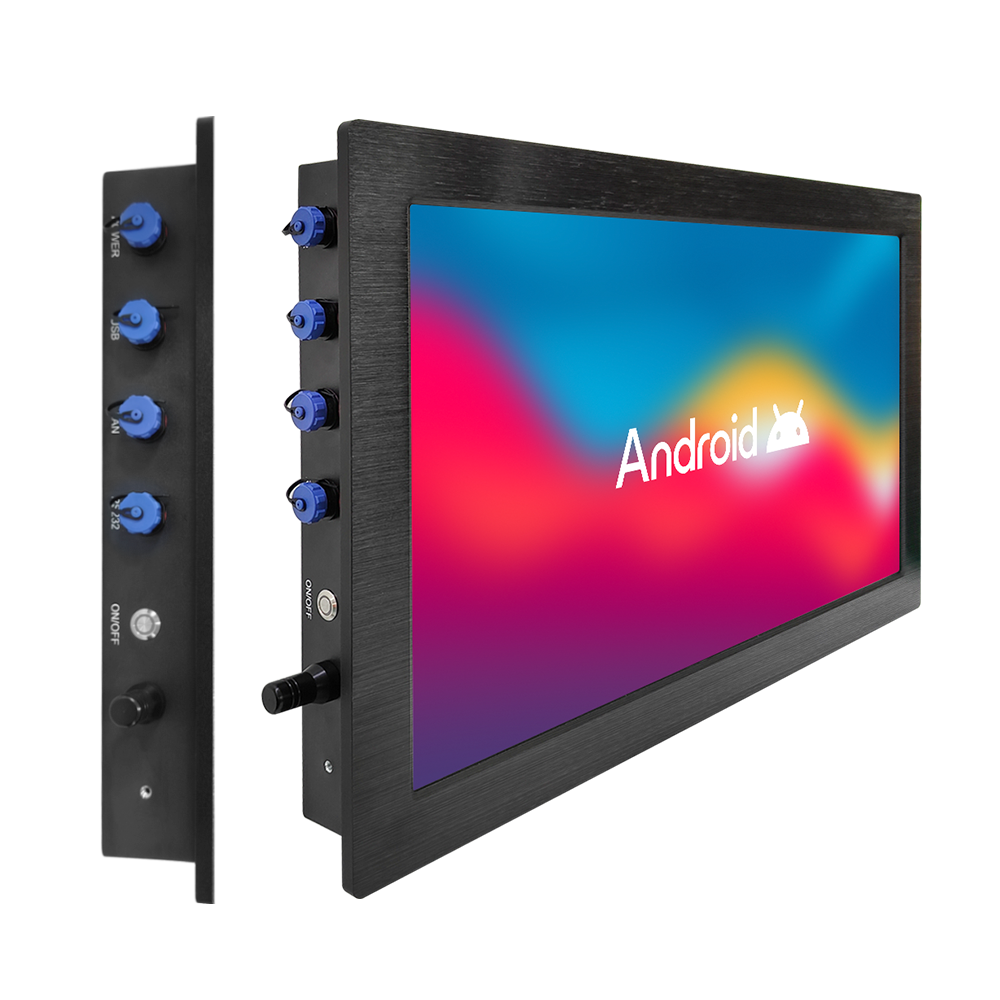

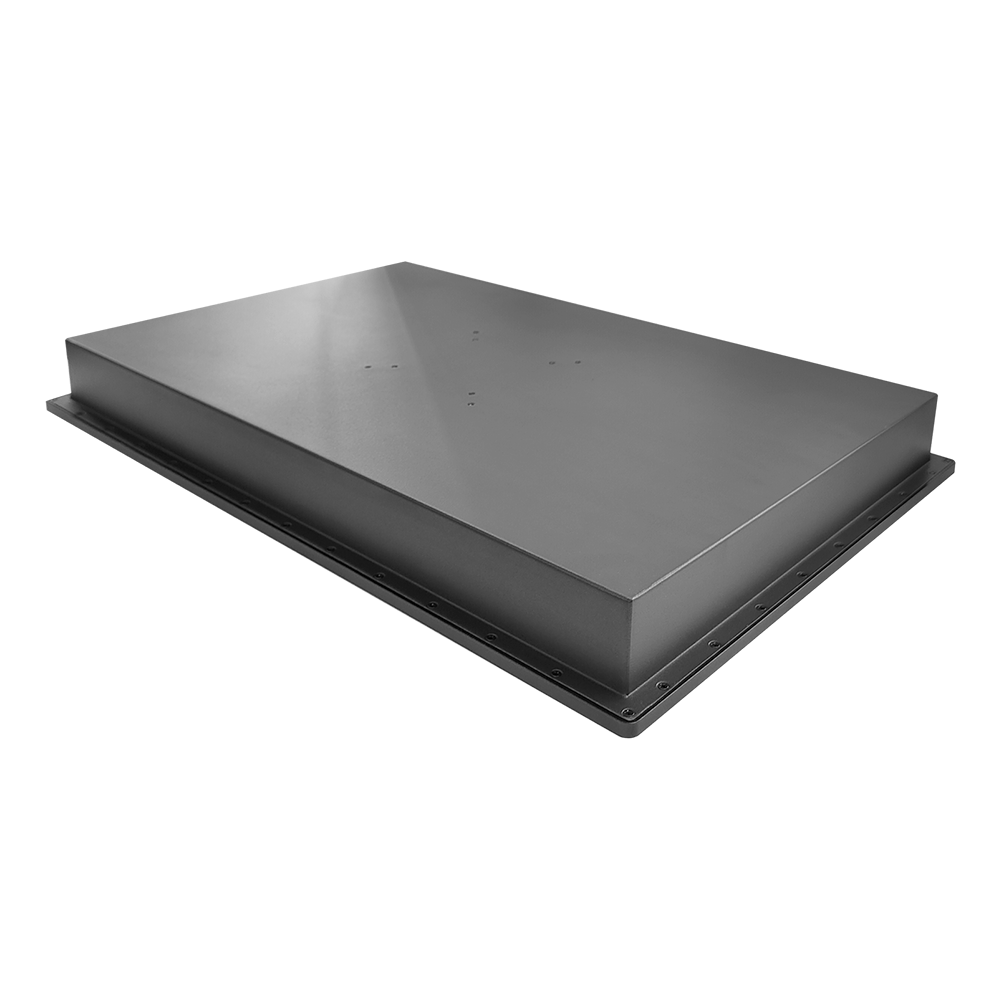

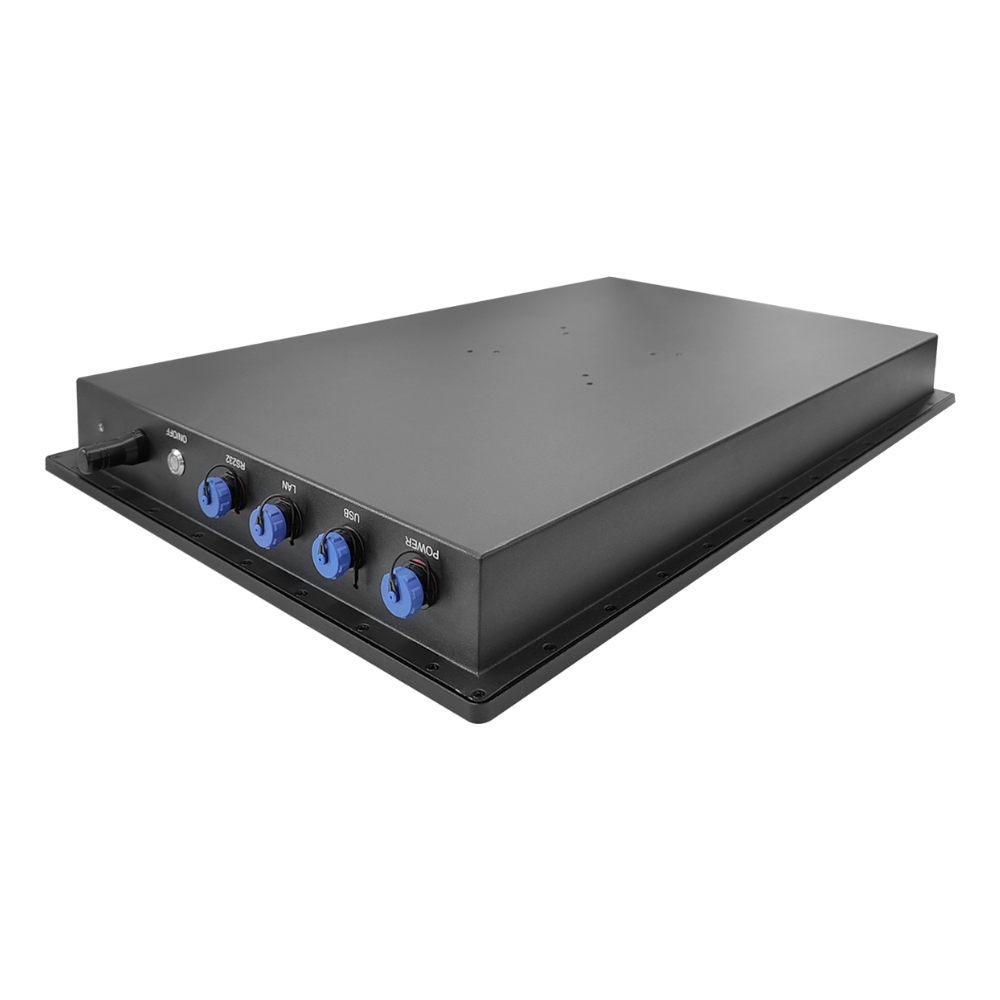

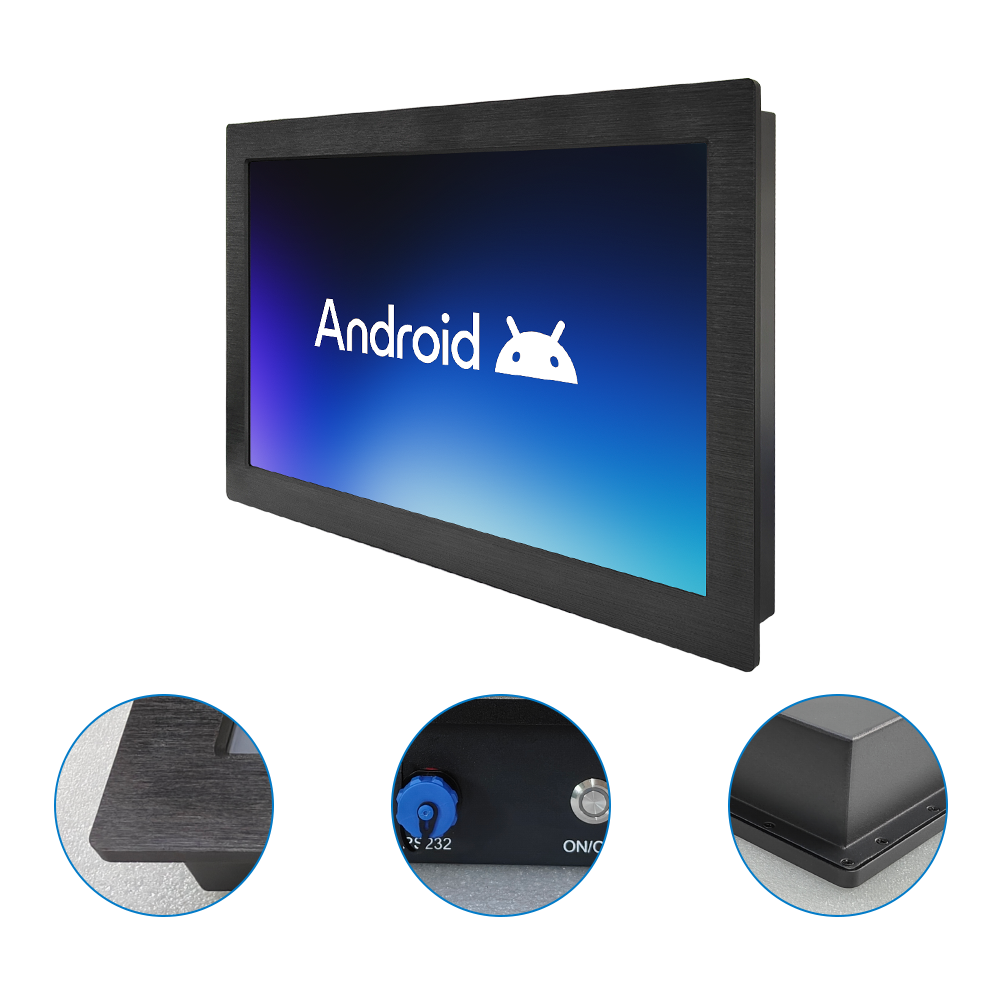

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Android Touch Panel PC is a versatile and powerful device that combines the functionality of a traditional PC with the convenience of a touch screen interface. With a large 21.5-inch screen size, this Android Touch Panel Display offers users ample space to interact with applications and content in a seamless and intuitive manner.

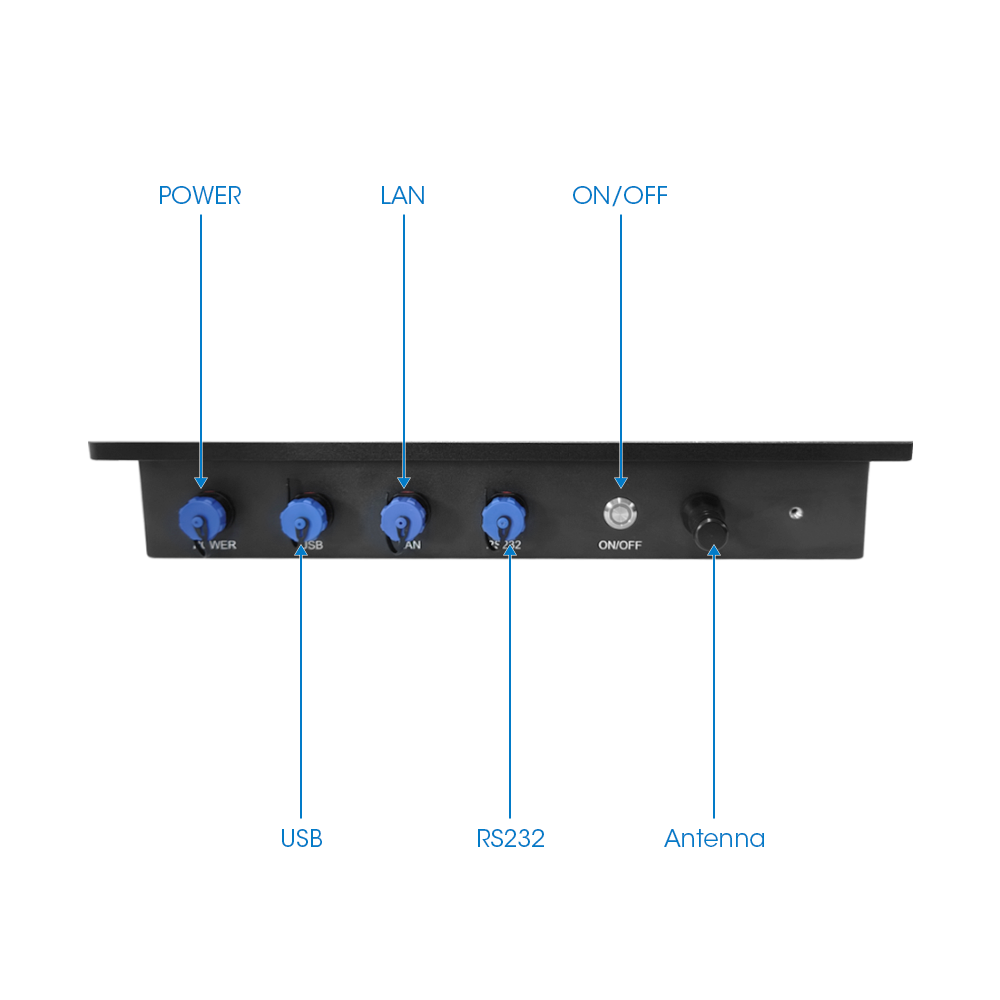

Equipped with a variety of interfaces including Audio, HD MI, RJ45, TF Card Slot, OTG, 2*USB, and COM, the Android panel pc ensures easy connectivity to various external devices and peripherals for enhanced productivity and flexibility.
Operating on a DC 12V input voltage, this Portable Android Panel PC is designed to be energy-efficient and reliable for continuous usage in various settings. Whether for professional use in offices, retail environments, or educational institutions, this Android Touch Panel PC delivers consistent performance and responsiveness.
Powered by a range of CPU options including RK3288, RK3399, RK3566, and RK3568, users can choose the model that best suits their processing needs and performance requirements. These CPUs provide the necessary speed and efficiency to handle multitasking, multimedia playback, and other computing tasks with ease.
With a high-resolution display of 1920x1080, the Android Touch Panel Display ensures crisp and clear visuals for an immersive viewing experience. Whether watching videos, viewing photos, or working on detailed graphics, users can enjoy sharp and vibrant images on the screen.
Overall, the Android Touch Panel PC is a reliable and feature-rich device that offers a seamless blend of performance, connectivity, and convenience. Its large screen size, versatile interfaces, energy-efficient design, powerful CPU options, and high-resolution display make it a valuable tool for various applications and environments.
Features:
- Product Name: Portable Android Panel PC
- Warranty: 1 Year
- Resolution: 1920*1080
- Interface: Audio/HD MI/RJ45/TF Card Slot/OTG/2*USB/COM
- Operating System: Android 10/11/12
- CPU: RK3288/ RK3399/ RK3566/ RK3568
Technical Parameters:
| Screen Size | 21.5 Inch |
| Storage | 32GB/64GB/128GB/256GB |
| Input voltage | DC 12V |
| Interface | Audio/HD MI/RJ45/TF Card Slot/OTG/2*USB/COM |
| Warranty | 1 Year |
| Operating System | Android 10/11/12 |
| CPU | RK3288/ RK3399/ RK3566/ RK3568 |
| Resolution | 1920*1080 |
| Memory | 2GB/4GB/8BG |
Applications:
The Android Touch Panel PC is ideal for various industries and settings due to its diverse features and specifications. Its minimum order quantity of 1 piece makes it accessible for individual users, small businesses, and large enterprises alike. The packaging details ensure safe delivery, with each unit weighing 5kgs and measuring 45×35×12cm.
Whether used in retail, hospitality, healthcare, education, or industrial environments, the Android Touch Panel PC provides a seamless user experience. The delivery time of 25 working days allows for timely deployment upon payment, while flexible payment terms such as T/T, Western Union, L/C, and others cater to different customer preferences.
With a supply ability of 5000 pieces per month, businesses can rely on a consistent availability of the product. The one-year warranty offers peace of mind, and the various storage options (32GB, 64GB, 128GB, 256GB) cater to different storage needs.
Running on Android 10, 11, or 12, the device boasts a high-resolution display of 1920*1080 for crisp visuals. The multiple interfaces including Audio, HDMI, RJ45, TF Card Slot, OTG, 2*USB, and COM enhance connectivity and functionality.
Overall, the INNODA Android Touch Panel PC is a powerful and adaptable device suitable for various applications, making it an excellent choice for those in need of an Android Touch Panel Display, Android tablet pc, or Android Touch Panel Display with top-notch features and performance.
Customization:
Product Customization Services for the Android Touch Panel PC:
Brand Name: INNODA
Model Number: IND215APC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Interface: Audio/HD MI/RJ45/TF Card Slot/OTG/2*USB/COM
Memory: 2GB/4GB/8GB
Operating System: Android 10/11/12
Warranty: 1 Year
Screen Size: 21.5 Inch
Support and Services:
Our Android Touch Panel PC product comes with comprehensive Product Technical Support and Services to ensure a smooth user experience. Our team of experts is dedicated to assisting customers with any technical issues or inquiries they may encounter while using the product.
Our Technical Support includes troubleshooting assistance, software updates, and guidance on product usage. Additionally, we offer repair services for any hardware-related issues that may arise during the product's lifespan.
Customers can rely on our knowledgeable support team to provide timely and effective solutions to enhance their overall experience with our Android Touch Panel PC.
Packing and Shipping:
Product Packaging:
The Android Touch Panel PC is carefully packaged in a durable cardboard box to ensure safe delivery. The product is securely wrapped in protective bubble wrap to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping options for the Android Touch Panel PC. Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your package.
