Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

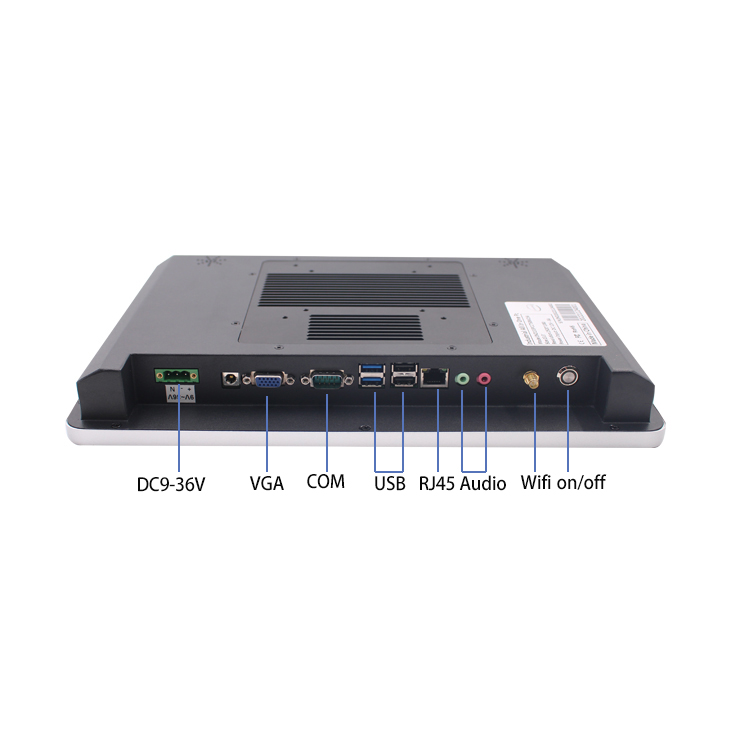

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 13.3'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 6KG |

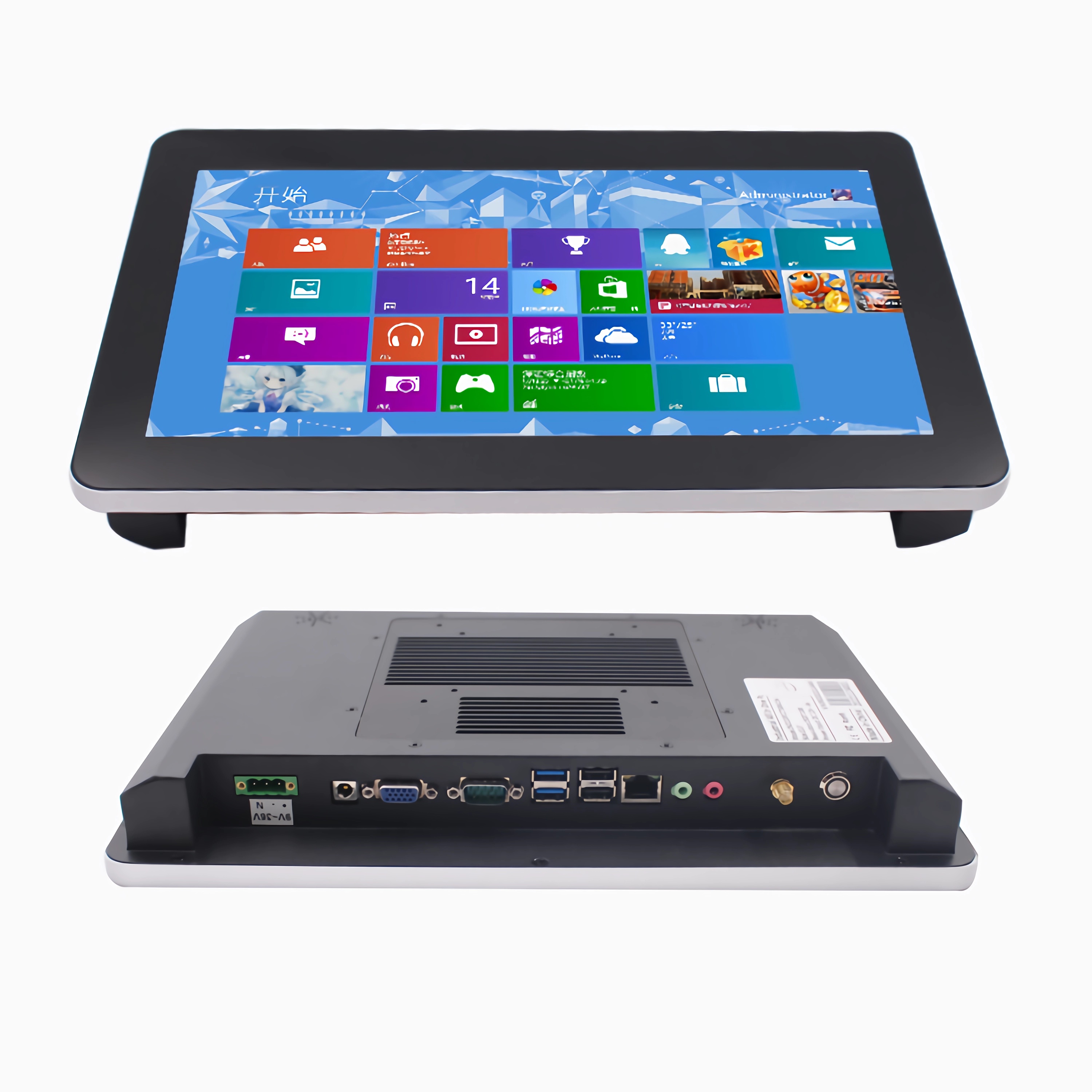

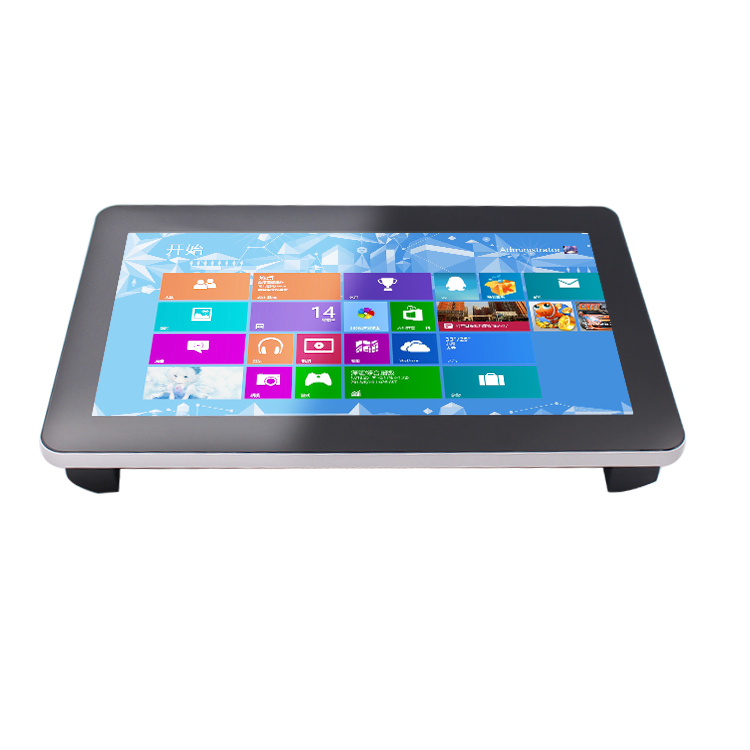

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Features:
· Product Name: Industrial Touch Panel PC
· Memory: 8GB/16GB/32GB
· Touch screen: Capacitive Touch Screen
· Brightness: 350-1500 Nits
· Interface Type: HDMI/COM/USB/RJ45/Audio JACK/DP
· Resolution: 1920*1080
Technical Parameters:
Warranty | 1 Year |
Product name | Industrial Touch Panel PC |
Resolution | 1920*1080 |
Brightness | 350-1500 Nits |
Storage | 128G/256G/512BG/1TB SSD |
Memory | 8GB/16GB/32GB |
Touch screen | Capacitive Touch Screen |
Interface Type | HDMI/COM/USB/RJ45/Audio JACK/DP |
Operating System | Win 10/11/Linux |
Screen size | 13.3 Inch |
Applications:
The INNODA IND133PC Industrial Touch Panel PC is a versatile and reliable device designed for a wide range of industrial applications. With its robust construction and advanced features, this panel PC is suitable for various occasions and scenarios in the industrial sector.
Whether it's in manufacturing plants, warehouses, control rooms, or any other industrial environment, the IND133PC excels in providing a responsive and efficient user interface. Its 13.3-inch Industry Touch Display PC offers a clear and vivid viewing experience, making it ideal for monitoring processes, controlling equipment, and accessing data in real-time.
Thanks to its certifications including CE, RoHS, FCC, IP65, IP66, and IP67, the INNODA Industrial Touchscreen Panel PC ensures compliance with industry standards and regulations, guaranteeing safety and reliability in demanding industrial settings.
With a wide range of storage options from 128GB to 1TB SSD and memory configurations ranging from 8GB to 32GB, the IND156PC can handle complex applications and data-intensive tasks with ease. Its brightness levels of 350-1500 Nits ensure optimal visibility even in challenging lighting conditions.
Whether used for process automation, machine control, data collection, or HMI applications, the INNODA IND156PC Industrial Touch Panel PC delivers exceptional performance and durability. The minimum order quantity of 1 piece and a supply ability of 3000 pieces per month make it accessible for businesses of all sizes.
When it comes to delivery, the product originates from Shenzhen, China, and has a delivery time of 25 working days upon receipt of payment. Customers can choose from various payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram. The packaging details ensure safe transit, with each unit weighing 7kgs and measuring 45×35×12cm.
Customization:
INNODA offers Product Customization Services for the Industrial Touch Panel PC. The model number IND133PC is designed and manufactured in Shenzhen, China, ensuring high quality and reliability.
Our Industrial Touch Panel PC is certified with CE, RoHS, FCC, IP65, IP66, and IP67 ratings, meeting industry standards for performance and durability.
Customers can customize their orders with a minimum quantity of 1 piece. Each unit is carefully packaged in a carton weighing 7kgs with dimensions of 45×35×12cm for secure delivery.
With a supply ability of 3000 pieces per month, we ensure timely delivery within 25 working days upon receiving payment. Payment terms accepted include T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram.
The Industrial Touch Panel PC comes with storage options ranging from 128G to 1TB SSD, providing ample space for data storage and retrieval. The brightness levels of the panel PC range from 350-1500 Nits, offering clear visibility in various environments.
Our product, the Industrial Touch Panel PC, is backed by a 1-year warranty for customer satisfaction. Memory configurations of 8GB, 16GB, and 32GB are available to meet diverse operational needs.
Support and Services:
Our Product Technical Support and Services for the Industrial Touch Panel PC include:
- 24/7 technical assistance via phone or email
- On-site product installation and troubleshooting
- Firmware and software updates
- Product training and tutorials for users
- Warranty support and repairs
- Customization services to meet specific industrial requirements
Packing and Shipping:
Product Packaging:
Our Industrial Touch Panel PC is carefully packaged to ensure safe delivery to our customers. Each unit is wrapped in protective foam and placed in a sturdy cardboard box. The packaging is designed to withstand any rough handling during transit, providing peace of mind that your product will arrive in perfect condition.
Shipping Information:
Once your order is placed, our team will process it promptly and ship the Industrial Touch Panel PC to your designated address. We partner with reliable shipping carriers to ensure timely delivery. You will receive a tracking number so you can monitor the progress of your shipment every step of the way.
