Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 27'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

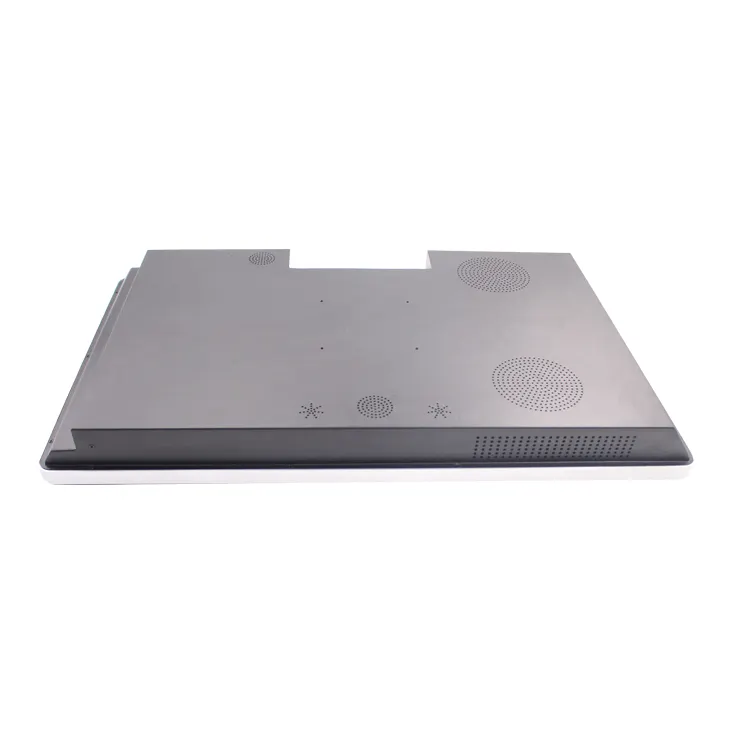

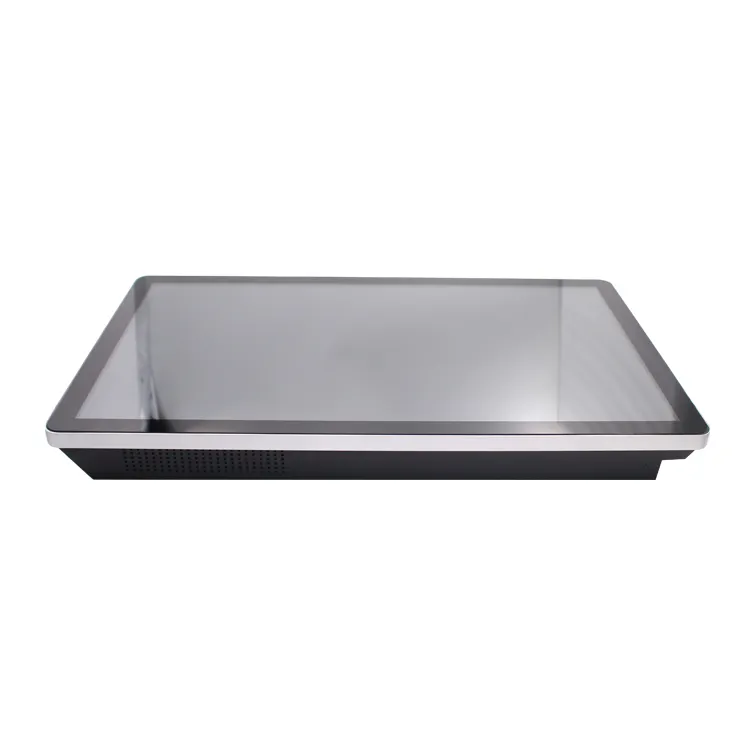

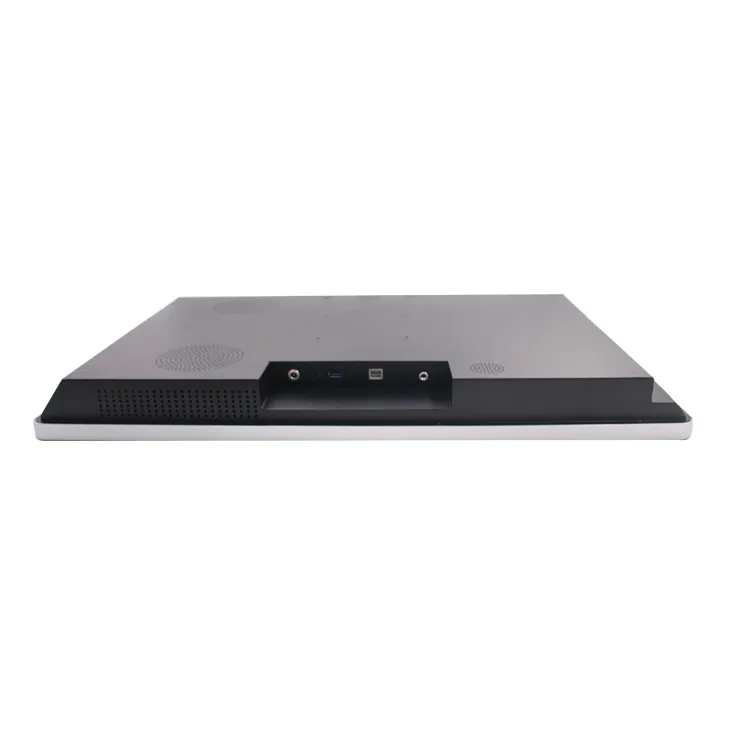

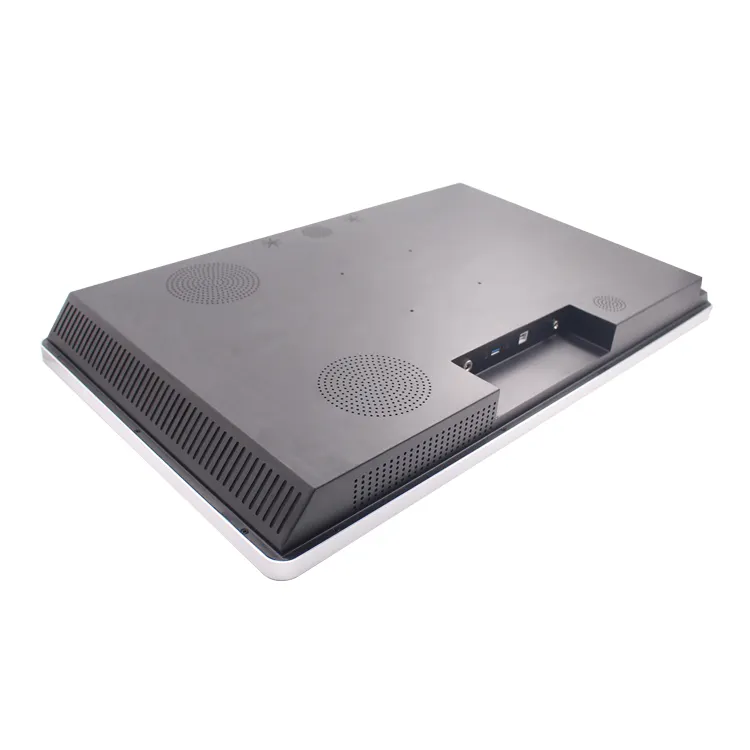

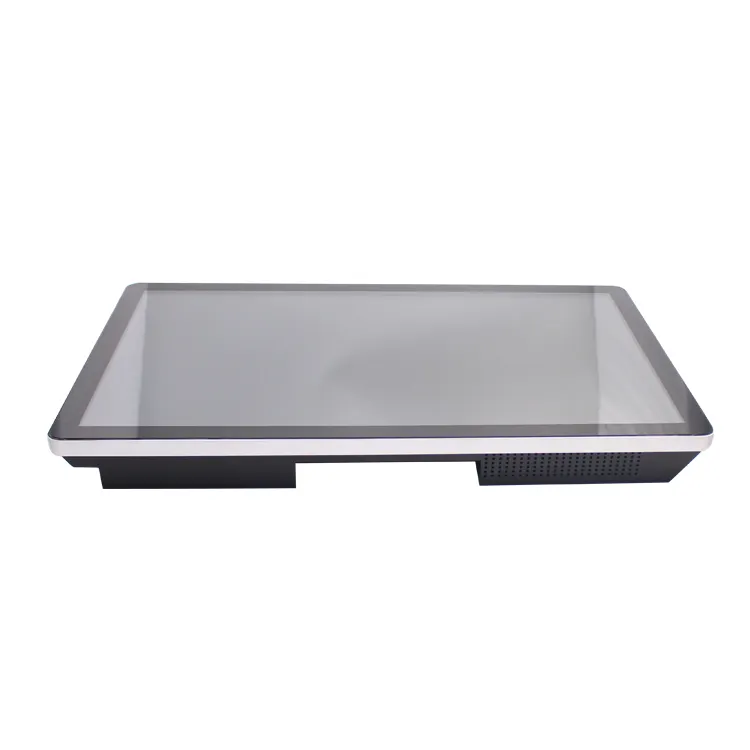

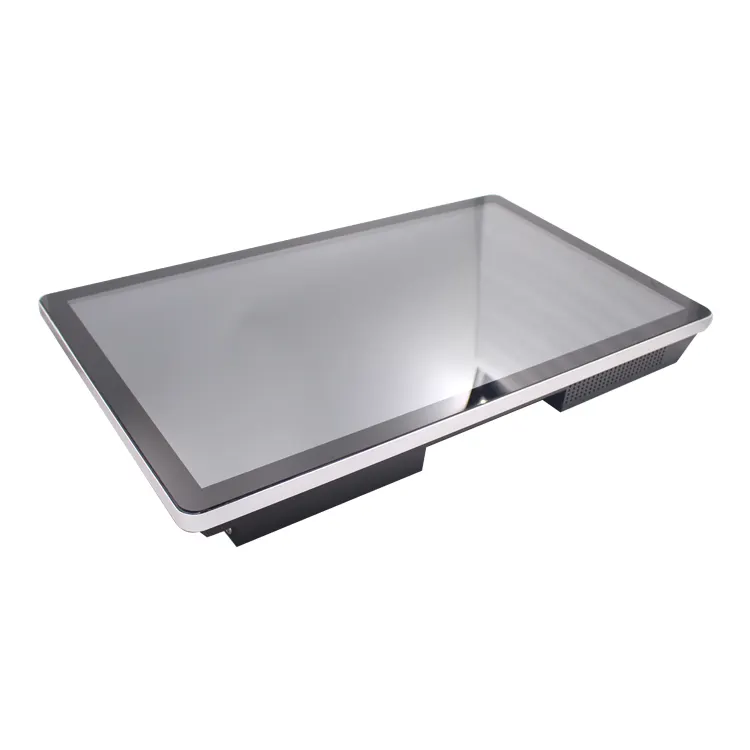

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Industrial Touch Panel PC is a cutting-edge product designed for industrial applications that demand reliability, durability, and high performance. With its advanced features and robust construction, this Industrial Touch Panel PC is the ideal solution for various industrial environments.
One of the key features of this Industrial Touch Panel PC is its impressive brightness range of 350-1500 Nits, ensuring excellent visibility even in bright lighting conditions. This makes it suitable for use in diverse industrial settings where visibility is crucial for operations.
Equipped with a choice of 8GB, 16GB, or 32GB memory options, this Industrial Touch Panel PC offers flexibility to meet different performance requirements. Whether you need to run multiple applications simultaneously or handle data-intensive tasks, this panel PC has the memory capacity to support your needs.
The Industrial Touch Panel PC comes with a responsive capacitive touch screen, providing users with a seamless and intuitive interface for interacting with the device. The touch screen technology enhances usability and efficiency, making it easier to navigate through applications and input commands.
Backed by a 1-year warranty, this Industrial Touch Panel PC offers peace of mind and assurance of quality. In the rare event of any issues or defects, customers can rely on the warranty for support and replacement, ensuring uninterrupted operation in industrial environments.
Featuring multiple interface types including HDMI, COM, USB, RJ45, Audio JACK, and DP, this Industrial Touch Panel PC offers versatile connectivity options for seamless integration with various devices and peripherals. Whether you need to connect to monitors, serial devices, networking equipment, or audio devices, this panel PC provides the necessary interfaces for easy connectivity.
In conclusion, the Industrial Touch Panel PC is a reliable and high-performance solution for industrial applications that require a durable and efficient computing device. With its bright display, ample memory options, capacitive touch screen, warranty coverage, and versatile interface types, this panel PC is designed to meet the demanding requirements of industrial environments. Invest in the Industrial Touch Panel PC for a reliable and efficient computing solution tailored for industrial use.
Features:
· Product Name: Industrial Touch Panel PC
· Resolution: 1920*1080
· Screen Size: 27 Inch
· Touch Screen: Capacitive Touch Screen
· Brightness: 350-1500 Nits
Technical Parameters:
Interface Type | HDMI/COM/USB/RJ45/Audio JACK/DP |
Product name | Industrial Touch Panel PC |
Storage | 128G/256G/512GB/1TB SSD |
Brightness | 350-1500 Nits |
Warranty | 1 Year |
Memory | 8GB/16GB/32GB |
Operating System | Win 10/11/Linux |
Screen Size | 27 Inch |
Touch Screen | Capacitive Touch Screen |
Resolution | 1920*1080 |
Applications:
INNODA Industrial Touch Panel PC (Model: IND270PC) is a versatile and reliable device designed for a wide range of industrial applications. With its durable construction and advanced features, this touch screen panel PC is suitable for various occasions and scenarios.
Industrial Touch Panel PC from INNODA is ideal for use in manufacturing plants, control rooms, industrial automation, warehouse management, and other industrial settings where a rugged and high-performance computing solution is required. The touch screen panel PC is equipped with a capacitive touch screen, providing intuitive and responsive user interaction.
Whether you need to monitor and control machinery, manage inventory, analyze data, or run complex software applications, the INNODA Industrial Touch Panel PC is up to the task. Its high resolution of 1920*1080 ensures crisp and clear visuals, while the Win 10/11/Linux operating system offers flexibility and compatibility with a variety of software programs.
With multiple interface options including HDMI, COM, USB, RJ45, Audio JACK, and DP, the Industrial Touch Panel PC can easily connect to different peripherals and devices, making it a versatile solution for various industrial environments.
INNODA Industrial Touch Panel PC is certified with CE, RoHS, FCC, IP65, IP66, and IP67 ratings, ensuring compliance with industry standards and regulations. The product is manufactured in Shenzhen, China, and has a minimum order quantity of 1 piece.
For customers' convenience, the Industrial Touch Panel PC is packed securely in a carton with dimensions of 45×35×12cm and a weight of 7kgs per piece. The delivery time is 25 working days upon receipt of payment, and payment terms include T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram.
INNODA has a supply ability of 3000 pieces per month, making it a reliable partner for industrial businesses seeking a high-quality and efficient touch screen panel PC solution. Choose INNODA Industrial Touch Panel PC for your industrial computing needs and experience the power of advanced technology in a rugged and reliable package.
Customization:
Product Customization Services for the Industrial Touch Panel PC:
Brand Name: INNODA
Model Number: IND270PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65, IP66, IP67
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 3000 pieces per month
Touch screen: Capacitive Touch Screen
Storage: 128G/256G/512BG/1TB SSD
Memory: 8GB/16GB/32GB
Operating System: Win 10/11/Linux
Warranty: 1 Year
Keywords: industrial panel pc, Industrial Touch screen panel pc
Support and Services:
The Industrial Touch Panel PC product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our support services include:
- 24/7 technical support hotline for troubleshooting and assistance
- Remote support services for quick problem resolution
- On-site technical assistance for complex issues
- Regular software updates and patches to enhance functionality and security
- Training programs for users and IT staff to maximize product utilization
Our dedicated team of technical experts is committed to providing prompt and effective support to address any product-related concerns and ensure smooth operation.
Packing and Shipping:
Product Packaging:
The Industrial Touch Panel PC is carefully packaged to ensure its safe delivery. It is wrapped in protective material and placed in a sturdy cardboard box to prevent any damage during transit.
Shipping:
Once your order is placed, the Industrial Touch Panel PC will be shipped within 1-2 business days. We use reliable shipping services to deliver your product safely and on time. You will receive a tracking number to monitor the status of your shipment.
