Rugged and durable all-metal shell, shockproof, excellent heat dissipation
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-point infrared touch screen, tempered glass, anti-destruction, high stability.
High-performance motherboard, 7x24 continuous operation.
Support wall mounting, embedded mounting, desktop bracket
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 6KG |

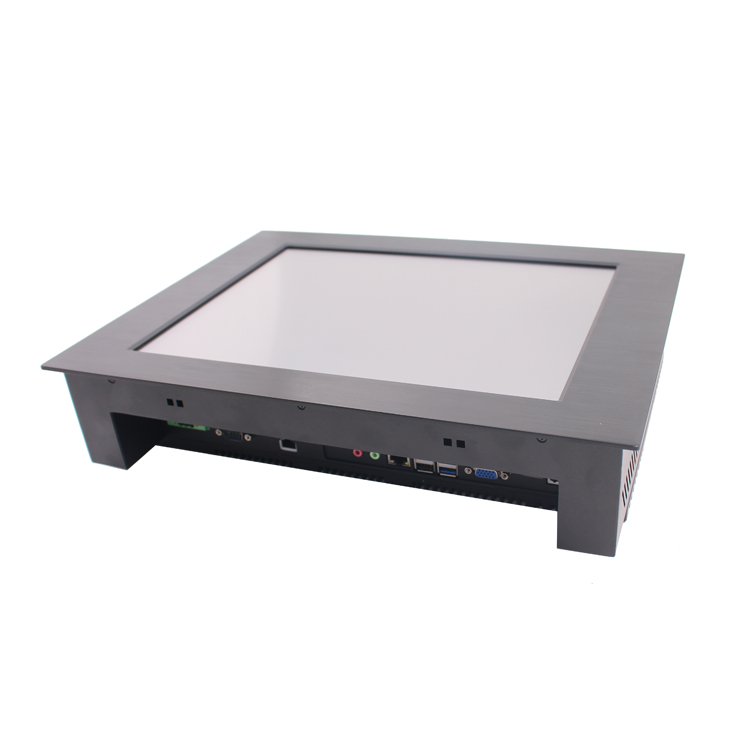

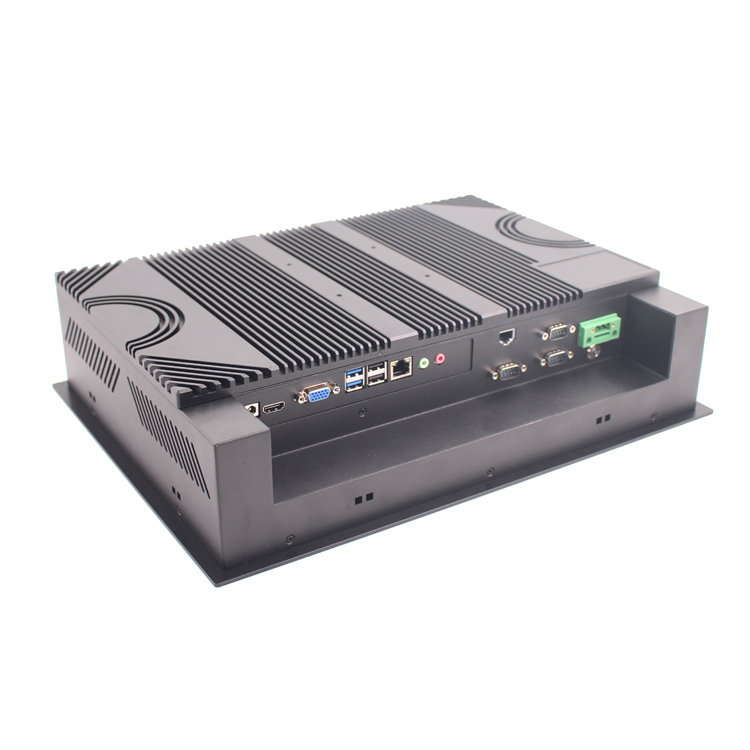

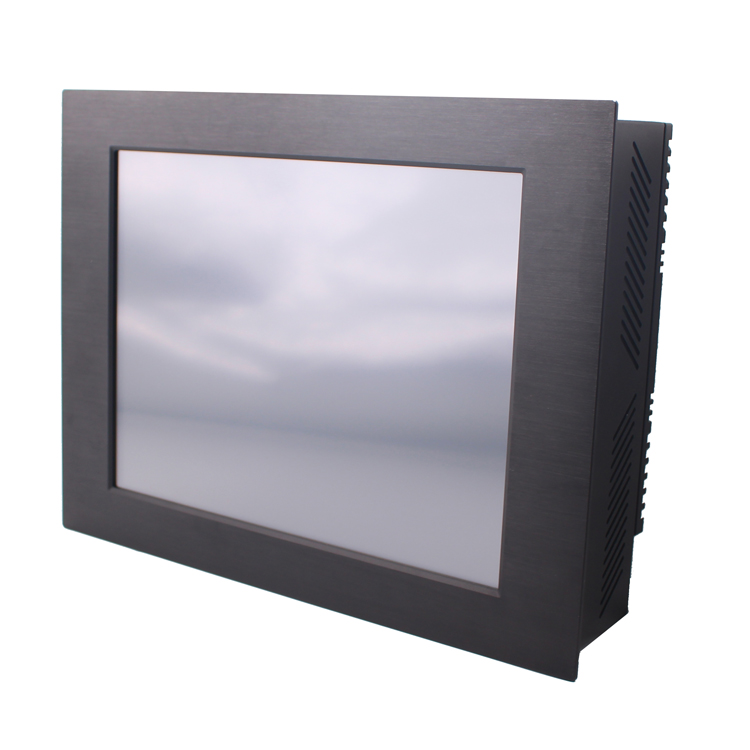

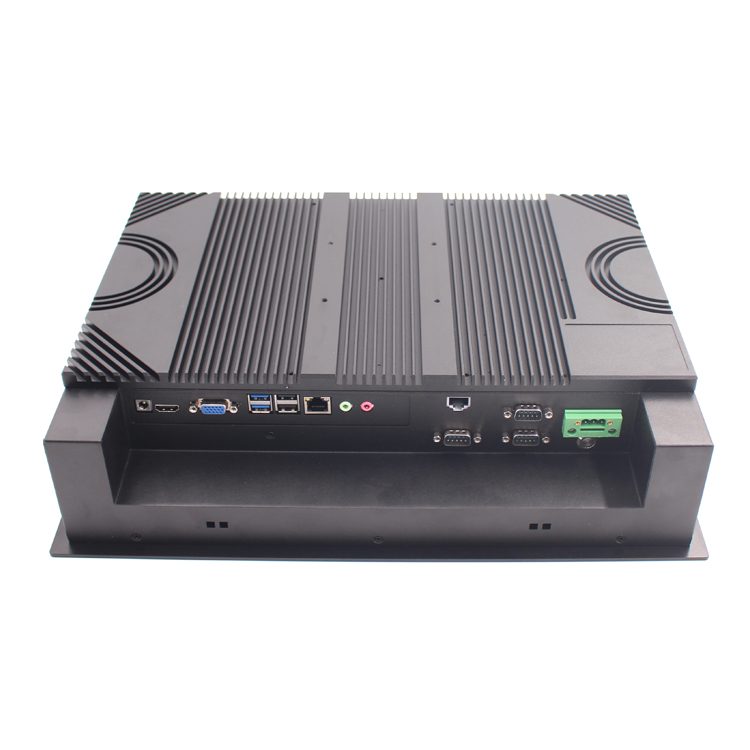

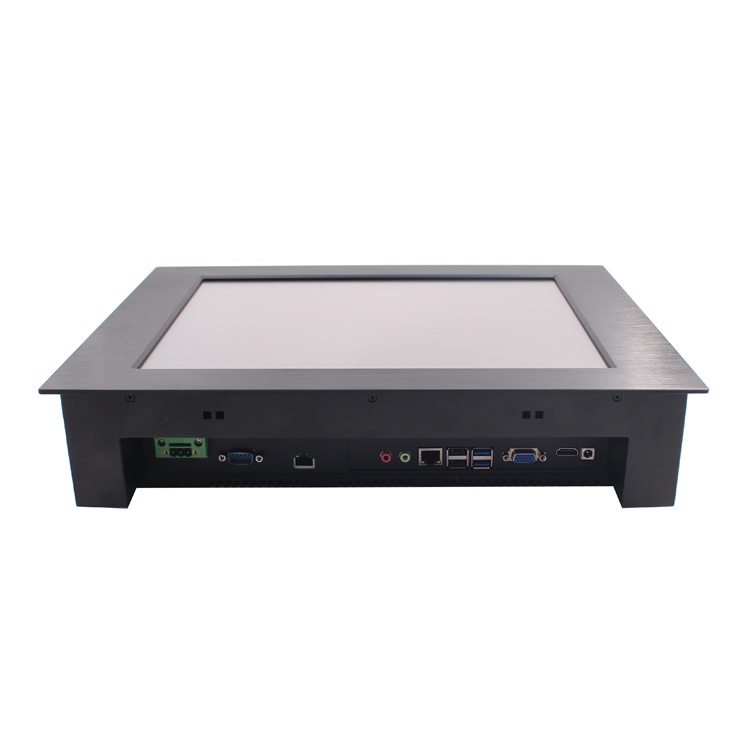

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Featuring storage options ranging from 128G up to 1TB SSD, this Industry Touch Display PC ensures ample space for storing important data and applications. Whether you need a smaller capacity for basic operations or a larger storage size for extensive data requirements, the Industrial Touch Panel PC provides flexible storage solutions to meet your needs.
With a variety of interface types including HDMI, COM, USB, RJ45, Audio JACK, and DP, this Touch Screen Panel PC offers seamless connectivity with a wide range of devices and peripherals. Whether you need to connect to external displays, industrial equipment, or audio devices, the Industrial Touch Panel PC has you covered with its versatile interface options.
The bright and vivid display of this Industry Touch Display PC ensures clear visibility in various lighting conditions. With brightness levels ranging from 350 to 1500 Nits, the 15-inch screen size provides ample viewing space for viewing critical information and interacting with applications. Whether you are working in a dimly lit environment or under bright industrial lighting, the Industrial Touch Panel PC delivers a crisp and clear display for optimal visibility.
Backed by a 1-year warranty, the Industrial Touch Panel PC offers peace of mind and assurance of quality. In the event of any manufacturing defects or issues, you can rely on the warranty coverage to protect your investment and ensure the continued performance of your Touch Screen Panel PC.
In conclusion, the Industrial Touch Panel PC is a reliable and efficient computing solution for industrial settings. With its flexible storage options, versatile interface types, bright display, and warranty coverage, this Industry Touch Display PC is designed to meet the demands of industrial applications and provide a seamless user experience. Upgrade your industrial computing capabilities with the Industrial Touch Panel PC today.
Features:
· Product Name: Industrial Touch Panel PC
· Memory: 8GB/16GB/32GB
· Storage: 128G/256G/512BG/1TB SSD
· Interface Type: HDMI/COM/USB/RJ45/Audio JACK/DP
· Screen Size: 15 Inch
· Touch Screen: Capacitive Touch Screen
Technical Parameters:
Product name | Touch Panel PC |
Interface Type | HDMI/COM/USB/RJ45/Audio JACK/DP |
Screen Size | 15 Inch |
Memory | 8GB/16GB/32GB |
Brightness | 350-1500 Nits |
Storage | 128G/256G/512GB/1TB SSD |
Operating System | Win 10/11/Linux |
Touch Screen | Capacitive Touch Screen |
Warranty | 1 Year |
Resolution | 1280*1024 |
Applications:
INNODA IND150PC Industrial Touch Panel PC is a versatile and reliable device designed for a wide range of industrial applications. With its rugged construction and advanced features, this product is suitable for various occasions and scenarios in industrial settings.
One of the key application occasions for the INNODA IND150PC Industrial Touch Panel PC is in manufacturing facilities. The durable design of the device, along with its IP65, IP66, and IP67 certifications, make it ideal for use in harsh industrial environments where dust, moisture, and debris are present. The 15-inch screen size and 1280*1024 resolution provide clear and crisp visuals for operators to monitor processes and control equipment effectively.
Another important scenario for the INNODA IND150PC Industrial Touch Panel PC is in automation systems. The device's touchscreen interface and reliable performance make it a valuable tool for controlling and monitoring automated processes in factories and warehouses. The compatibility with operating systems such as Win 10/11 and Linux ensures seamless integration with existing systems.
Warehousing and logistics are also key areas where the INNODA IND150PC Industrial Touch Panel PC can be utilized. The device's compact size and rugged construction make it suitable for mounting on forklifts, conveyor belts, and other equipment for real-time tracking and management of inventory. The 8GB/16GB/32GB memory options ensure smooth operation of warehouse management software.
Overall, the INNODA IND150PC Industrial Touch Panel PC is a reliable and efficient solution for various industrial application occasions and scenarios. With its robust design, advanced features, and certifications, this product offers high performance and durability in demanding industrial environments.
Customization:
Product Customization Services for the Industrial Touch Panel PC:
Brand Name: INNODA
Model Number: IND150PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65, IP66, IP67
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 3000 pieces per month
Brightness: 350-1500 Nits
Warranty: 1 Year
Touch screen: Capacitive Touch Screen
Product Name: Touch Panel PC
Screen Size: 15 Inch
Support and Services:
Our Industrial Touch Panel PC product comes with comprehensive Product Technical Support and Services to ensure smooth operation and optimal performance. Our team of experts is dedicated to providing troubleshooting assistance, software updates, and technical guidance to address any issues that may arise.
We offer a range of services such as installation support, warranty coverage, and maintenance assistance to help you make the most out of your Industrial Touch Panel PC. Our goal is to deliver exceptional customer service and ensure your satisfaction with our product.
Packing and Shipping:
Product Packaging:
Our Industrial Touch Panel PC is carefully packaged to ensure safe delivery to our customers. It is packed in a sturdy cardboard box with ample cushioning to protect it from any potential damage during transit.
Shipping:
We offer reliable shipping options for our Industrial Touch Panel PC product. Orders are typically processed within 1-2 business days and shipped using reputable carriers to ensure timely delivery. Customers can track their orders and receive updates on the shipping status.
