Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 12.1'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1024(H)*768(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

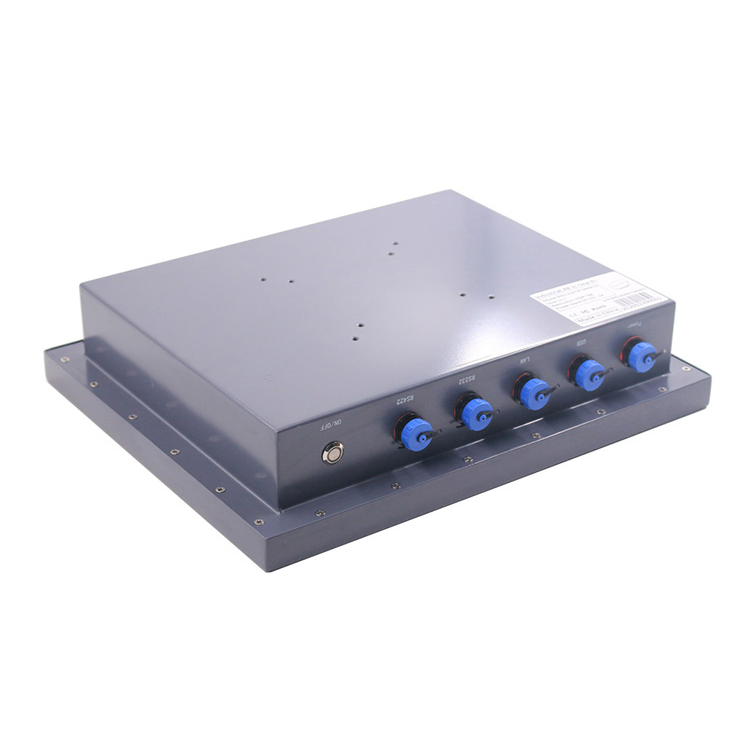

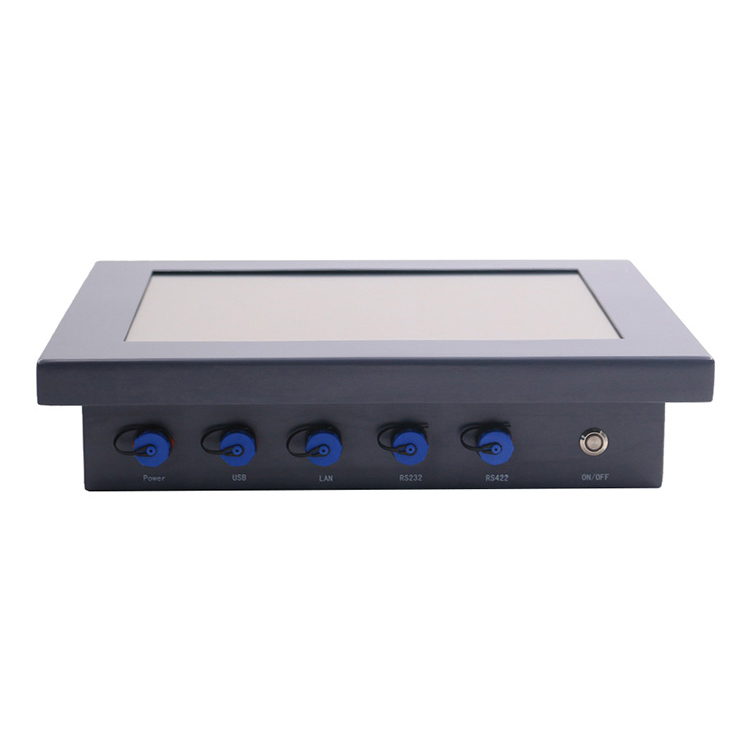

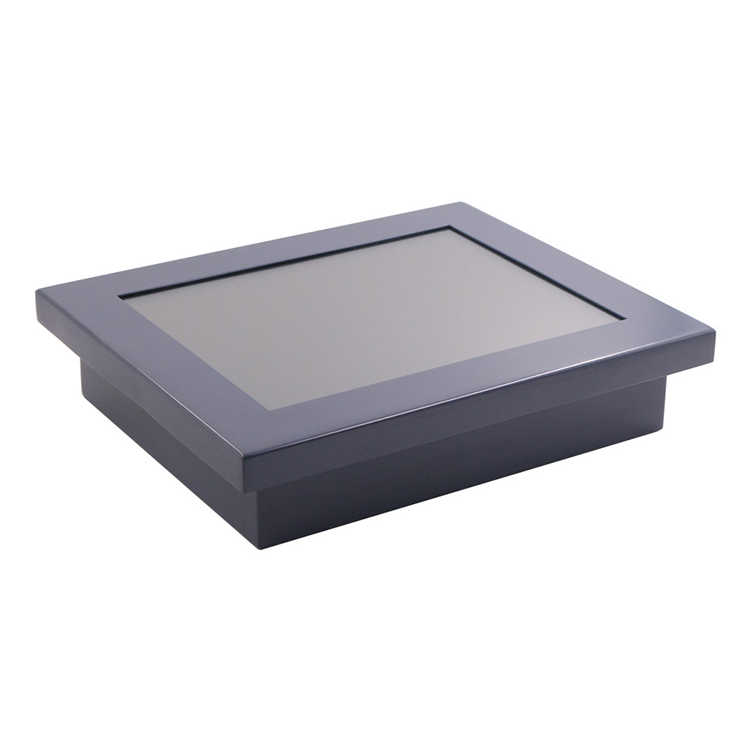

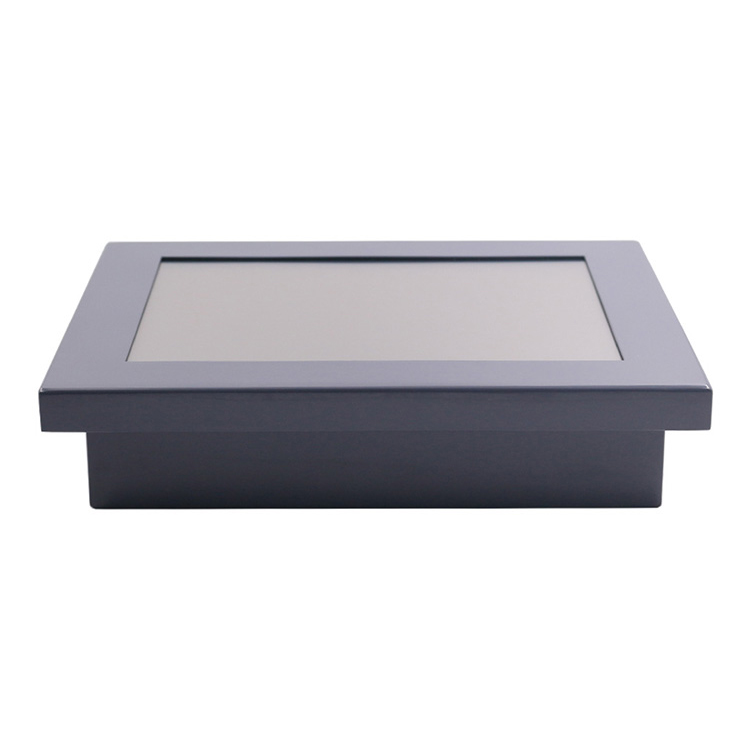

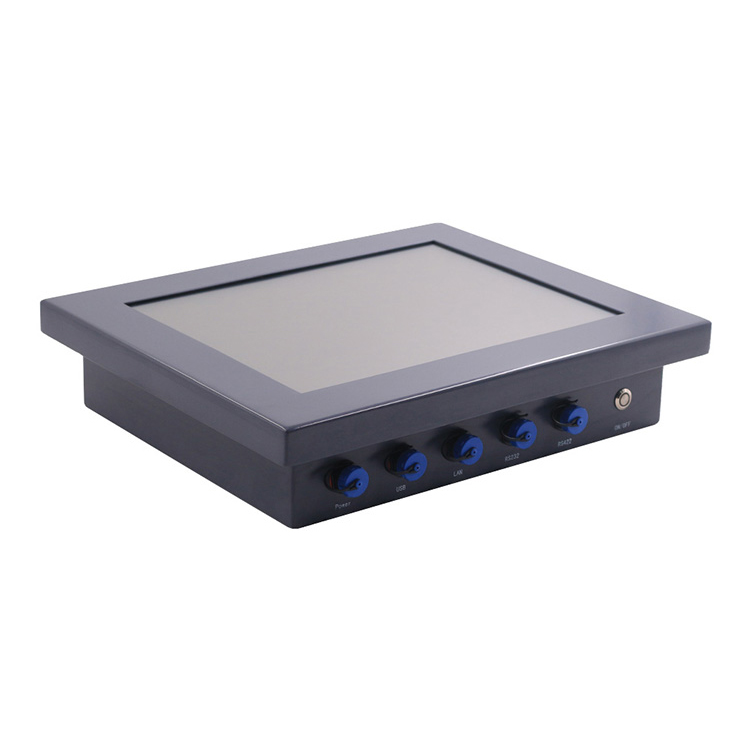

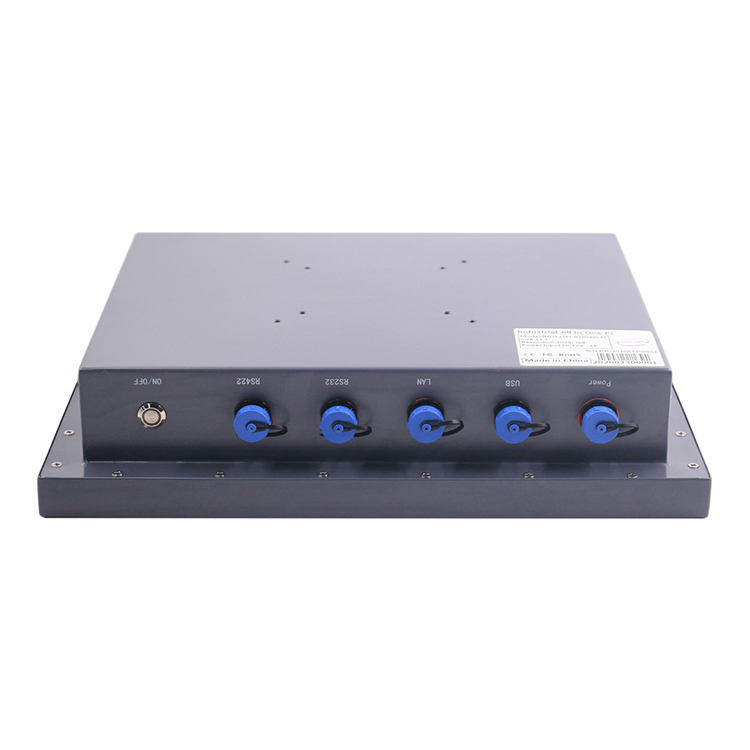

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Featuring a waterproof IP67/68/69K rating, this Stainless Steel Panel PC is designed to withstand harsh environments where exposure to moisture and dust is a concern. This robust protection ensures reliable performance in challenging conditions, making it ideal for use in factories, food processing plants, outdoor kiosks, and other demanding settings.
Equipped with a range of Intel processors including the J6412, J6413, i3, i5, and i7, this Industrial Panel PC delivers powerful computing performance to handle complex tasks efficiently. Whether it's running advanced applications, managing data-intensive processes, or multitasking across various programs, this panel PC is up to the challenge.
The Stainless Steel Panel PC boasts a 15-inch capacitive touchscreen, providing a user-friendly interface for intuitive interaction and seamless operation. The capacitive touchscreen technology offers responsive touch controls and supports multi-touch gestures, enhancing the overall user experience and productivity.
Designed for reliability and longevity, this Stainless Steel Panel PC is built to withstand the rigors of industrial environments. The stainless steel construction not only offers durability and resistance to corrosion but also ensures easy cleaning and maintenance, making it an ideal solution for environments with strict hygiene requirements.
Whether used for monitoring production processes, controlling machinery, displaying information, or running specialized software, this Industrial Panel PC provides a robust and dependable platform for industrial automation and control applications. Its rugged design, high-performance capabilities, and versatile features make it a valuable asset in enhancing operational efficiency and productivity in various industrial settings.
Features:
· Product Name: Stainless Steel Panel PC
· Memory: 16G/32G/64G
· CPU: Intel J6412/6413/I3/I5/I7
· Resolution: 1280*1024
· Touchscreen Type: Capacitive Touchscreen
· Client Logo: Acceptable
Technical Parameters:
CPU | Intel J6412/6413/I3/I5/I7 |
Size of screen | 15 Inch |
Touchscreen Type | Capacitive Touchscreen |
Client Logo | Acceptable |
WIFI | Optional |
Interface | USB/RJ45/COM |
Resolution | 1280*1024 |
Hard disk | 128G/256G/512G/ |
IP Grade | Waterproof IP67/68/69K |
Memory | 16G/32G/64G |
Applications:
With certifications including CE, RoHS, FCC, and IP65, this panel PC guarantees high-quality performance and reliability. The minimum order quantity is just 1 piece, making it accessible for various needs. Each unit is carefully packaged in a single carton, weighing 6kgs with dimensions of 45×35×12cm.
The delivery time for the Stainless Touch Screen Panel PC is 25 working days upon receipt of payment. Flexible payment terms such as T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram are accepted, ensuring convenience for customers. The supply ability is 2000 pieces per month, ensuring consistent availability.
Equipped with a high-resolution 15-inch screen with a resolution of 1280*1024, this panel PC offers clear and detailed display. Customers can choose from various hard disk options including 128G, 256G, or 512G, and CPU options ranging from Intel J6412 to I7, catering to different processing needs.
The Stainless Touch Screen Panel PC also offers optional WIFI connectivity for added convenience. Its robust stainless steel enclosure ensures durability and reliability in industrial environments. Whether used in manufacturing, automation, retail, or other industries, this panel PC is designed to meet the demands of diverse applications.
Customization:
Product Customization Services for INNODA Stainless Steel Panel PC:
Brand Name: INNODA
Model Number: IND150PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 2000 pieces per month
IP Grade: Waterproof IP67/68/69K
Size of screen: 15 Inch
Memory: 16G/32G/64G
Resolution: 1280*1024
Touchscreen Type: Capacitive Touchscreen
Keywords: Steel Enclosure Industrial Computer, Stainless Steel All-in-One PC, Stainless Steel Touch Panel PC
Support and Services:
Our Stainless Steel Panel PC product comes with comprehensive technical support and services to ensure smooth operation and customer satisfaction. Our team of dedicated experts is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. Additionally, we offer installation services, customization options, and training programs to optimize the use of our Stainless Steel Panel PC in various applications.
Packing and Shipping:
Product Packaging:
The Stainless Steel Panel PC will be carefully packaged in a sturdy cardboard box with ample protective cushioning to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping services for your convenience. Once your order is confirmed, the Stainless Steel Panel PC will be dispatched promptly and delivered to your doorstep within the specified time frame.
