With the help of our technicians and workers,Shenzhen Innoda Technology Co., Ltd. has finally developed the quality-guaranteed product. The product is called 10.1 inch IPS 1280x800 Landscape LCD module with full viewing angle LVDS interface. Compared with other similar Taiwan, China products in the market, Shenzhen Innoda Technology Co., Ltd. it can be very stable and long-lasting when applied in the field(s) of LCD Module. Shenzhen Innoda Technology Co., Ltd. will always be led by market demand and respect customers' wishes. Based on the feedback given by customers, we will make changes accordingly in our product development so as to manufacture the most satisfying and profitable products.

Type:TFT-LCdDisplay Size:10inch
Supplier Type:Wholesale and retailPlace of Origin:Taiwan, China
Model Number:M101GWWFBrand Name:IVO
Brightness:350 cd/m2(Typ.)Aspect Ratio:16:9 (H:V)
Contrast:800:1 (Typ.)View angle:85/85/85/85 (Typ.)(CR≥10)
Resolution:1280(RGB)x800,WSVGADisplay area:216.96(W)x135.6(H) mm
Display mode:IPS,normally black,transmission typeSignal type:LVDS (1 ch,6/8-bit)
Backlight:WLEDWorking temperature:-20-70 degree

Product Description

10.1 inch IPS 1280x800 Landscape LCD module with full viewing angle LVDS interface


Features

1. Original Brand New Panel

2. Original technology support

3. Industrial Wide working temperature -20-70C

4. LED driver integrated

5. RoHS compliance

6. 12months warranty




Production Parameter
Module number
M101GWWF
Screen Diagonal
10inch
Pixels H x V
1280(RGB) X 800
Aspect Ratio
16:9
White luminance
350 cd/m2
Contrast
800:1
Pixel pitch
0.1695×0.1695 mm
Active Area
216.96(W)×135.6(H) mm
Pixel Arrangement
R.G.B. Vertical Stripe
Display Mode
Normally white
Response time
25ms
Input Voltage
3.3V
Outline Dimension
229.46(W)×149.1(H) mm
Electrical Interface(Logic)
LVDS
Surface treatment
Hard coating(3H)
Operation life
30,000(Min.) Hrs
RoHs
RoHS compliance

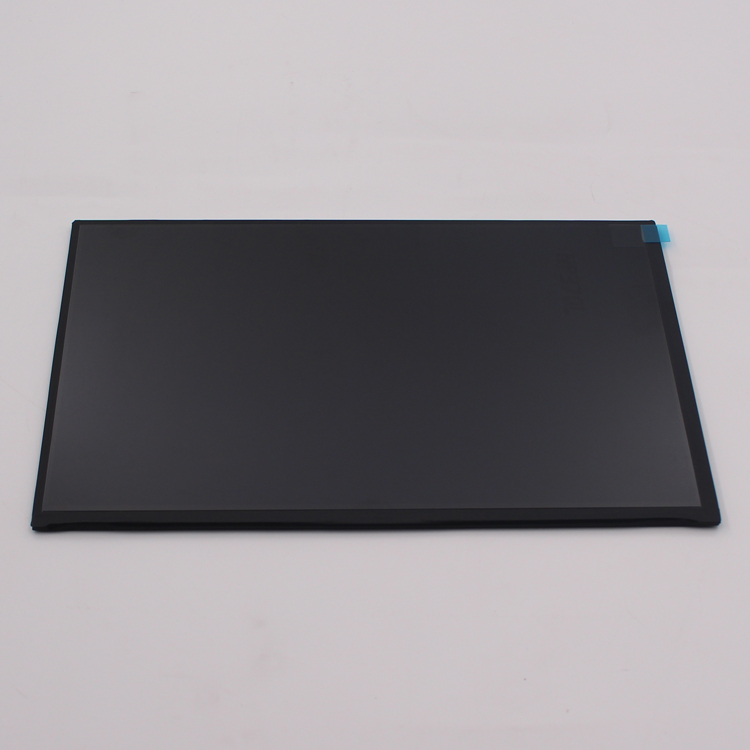

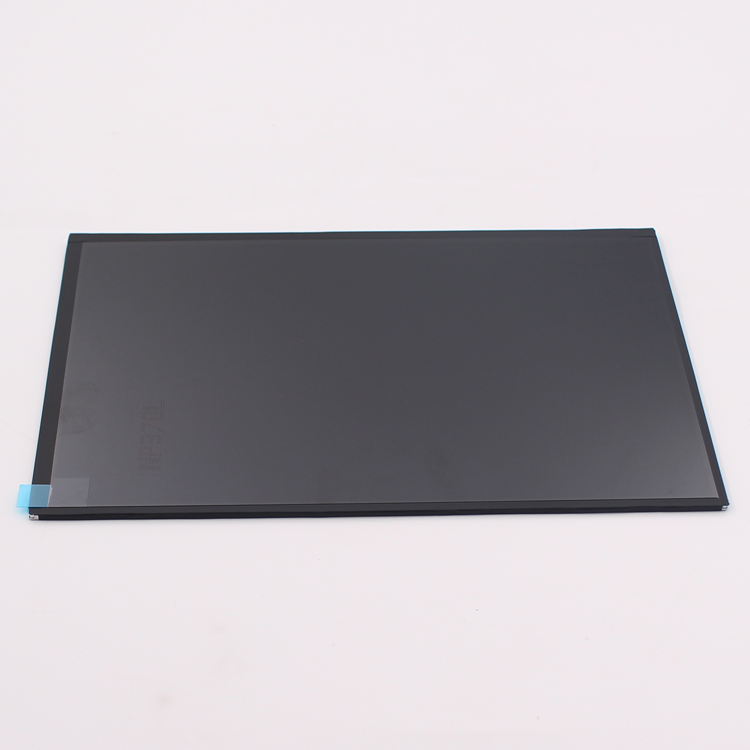

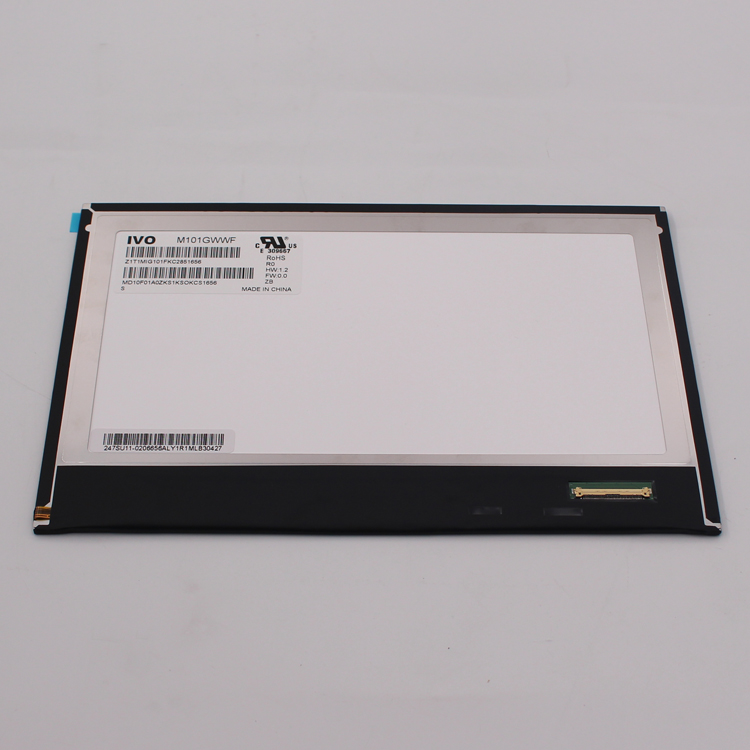

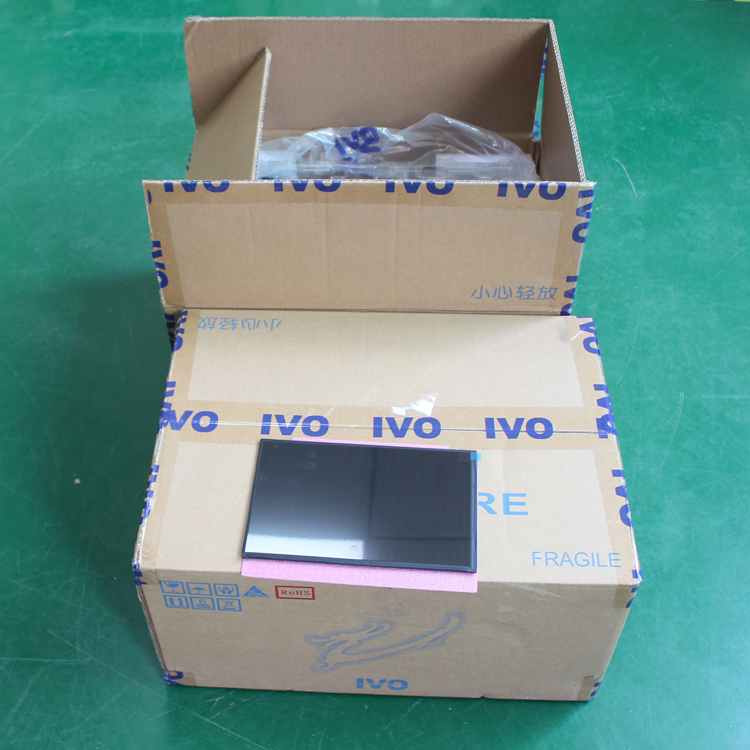

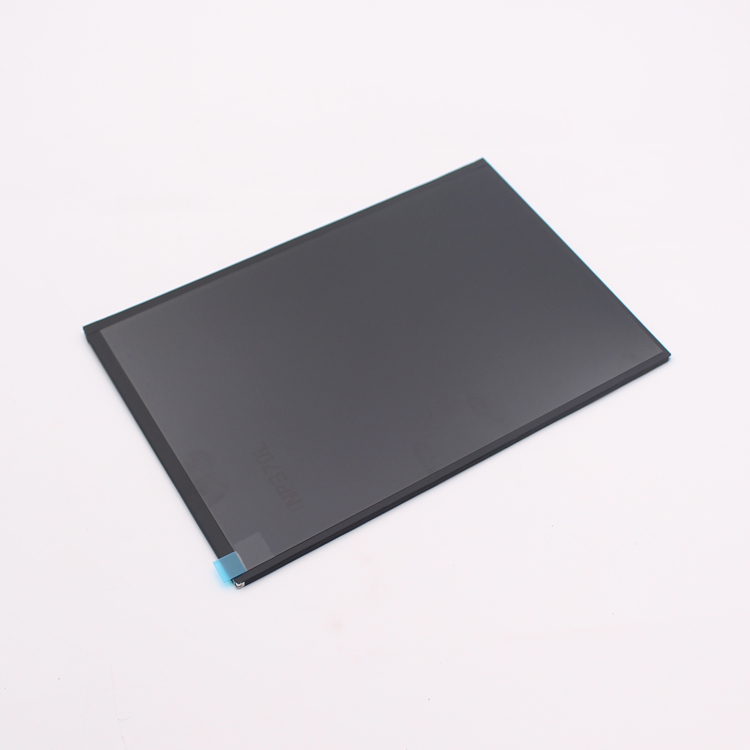

Detailed Images
