1. Original Brand New Panel
2. Original technology support
3. Industrial Wide working temperature -20-70C
4. LED driver integrated
5. RoHS compliance
6. 12months warranty

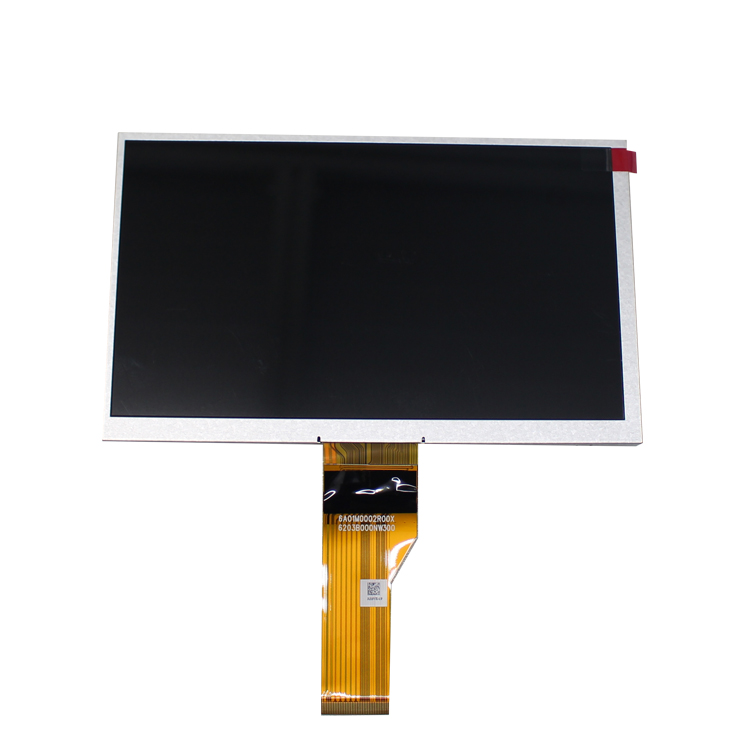

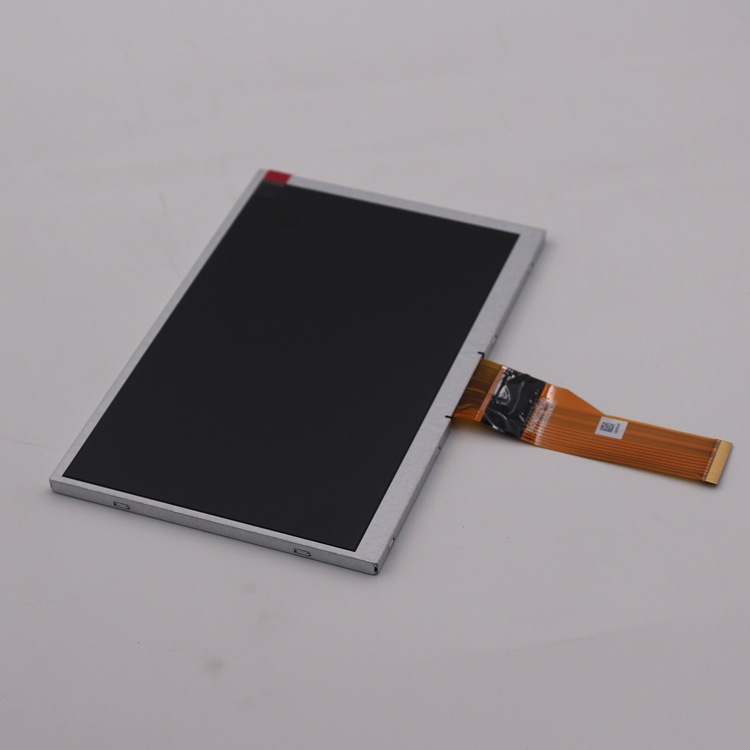

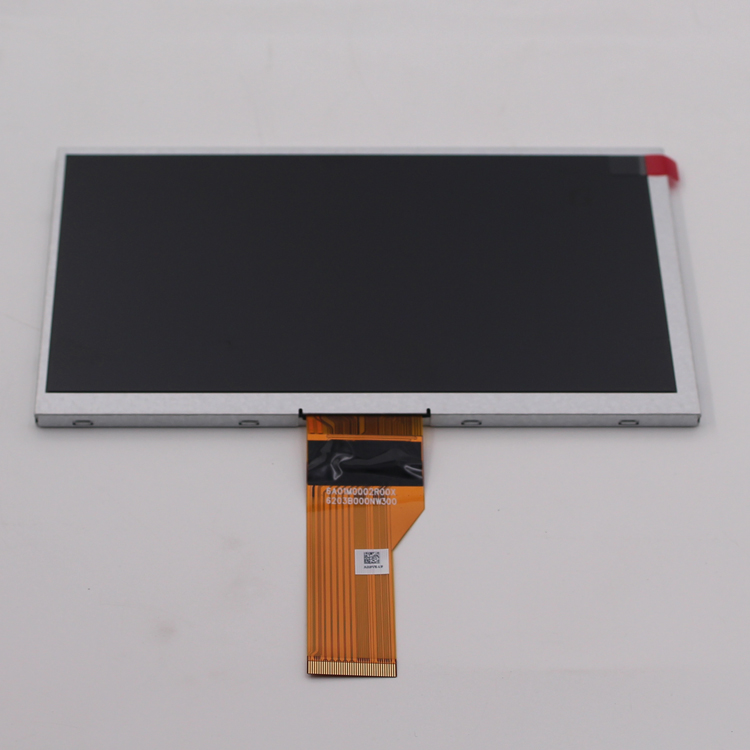

To maintain our competitiveness in the market,Shenzhen Innoda Technology Co., Ltd. has strengthened our R&D capabilities to speed up the progress of new product development. Now, we announce that we have independently developed Original Brand-New Innolux 7'' 1024x600 LCD Panel Display Module With LED Backlight which is more competitive. Our product can be tailored to suit you perfectly. In the future,Original Brand-New Innolux 7'' 1024x600 LCD Panel Display Module With LED Backlight will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.
Type: | TFT-LCd | Display Size: | 7inch |
Supplier Type: | Wholesale and retail | Place of Origin: | Taiwan, China |
Model Number: | NJ070NA-23A | Brand Name: | Innolux |
Brightness: | 500 cd/m2(Typ.) | Aspect Ratio: | 16:9 (H:V) |
Contrast: | 800:1 (Typ.) | View angle: | 75/75/70/75 (Typ.)(CR≥10) |
Resolution: | 1024(RGB)x600,WSVGA | Display area: | 154.214(H)x85.92(V) |
Display mode: | TN,normally white,transmission type | Signal type: | LVDS (1 ch,6/8-bit) |
Backlight: | WLED | Working temperature: | -20-70 degree |
1. Original Brand New Panel
2. Original technology support
3. Industrial Wide working temperature -20-70C
4. LED driver integrated
5. RoHS compliance
6. 12months warranty
Module number | NJ070NA-23A | ||||
Screen Diagonal | 7inch | ||||
Pixels H x V | 1024(RGB) X 600 | ||||
Aspect Ratio | 16:9 | ||||
White luminance | 500 cd/m2 | ||||
Contrast | 800:1 | ||||
Pixel pitch | 0.1506×0.1432 (H×V) [170PPI] | ||||
Active Area | 154.214(H) × 85.92(V) | ||||
Pixel Arrangement | R.G.B. Vertical Stripe | ||||
Display Mode | Normally white | ||||
Response time | 15ms | ||||
Input Voltage | 3.3V | ||||
Outline Dimension | 164.9(H) × 100(V) x 4.8mm | ||||
Electrical Interface(Logic) | LVDS | ||||
Support color | 262K/16.7M (6-bit / 8-bit) | ||||
Surface treatment | Hard coating | ||||
Operation life | 30,000(Min.) Hrs | ||||
RoHs | RoHS compliance |
OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
