Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Shenzhen Innoda Technology Co., Ltd. is always dedicated to the research and development, production and sale of the Industrial Computer Monitor 12Inch 12V LED DC Voltage Monitor Display. Our technical team has many years of experience in this field and can provide professional opinions, suggestions and solutions experience. When customers encounter technical problems, they can provide door-to-door service. Under the leadership of our company's board of directors, Shenzhen Innoda Technology Co., Ltd. have constantly upgraded our technologies and introduced high-end machines to continuously drive the market trend and improve product quality so as to satisfy every customer. Our aim is to become one of the most trustworthy enterprises in the market.
| Warranty(Year): | 1-Year | Color: | Black |
| Display Ratio: | 4:3 | Series: | For Business |
| Aspect Ratio: | 4:3 | Screen Type: | LED |
| Pixel Pitch: | 0.276mm | Horizontal Viewing Angle: | 80° |
| Built-in Speaker: | Yes | Vertical Viewing Angle: | 80° |
| After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair | Products Status: | New |
| Application: | Desktop | Response Time: | 6ms |
| Brightness: | 250cd/m | Interface Type: | HDMI, VGA, usb |
| Contrast Ratio: | 750:1 | Widescreen: | NO |
| Panel Type: | TFT | Brand Name: | INNODAPC |
| Place of Origin: | China | Feature: | Touch Screen |
| Use: | For Business | Size: | 12.1inch |
| Touch Type: | IR touch | Resolution: | 1024*768 |
| Input voltage: | 12V DC | Material: | Aluminum Alloy Frame |
| Interface: | VGA,H-D-MI,USB | Type: | medical grade monitors |
| Logo: | Acceptable | Waterproof: | Front IP65 |
| Product name: | Industrial Computer Monitor 12Inch 12V LED DC Voltage Monitor Display | Certification: | ce, RoHS |
1.7''-42'' size optional
2.IR touch option
3.VGA,HDMI,USB for touch use
4.Front IP65
5.Metal case
LCD Panel Charateristics | ||||||
Screen Size | 12.1'' industrial grade Panel | |||||
Touchscreen Type(optional) | IR touch/Resistive touch/Capacitive Touch | |||||
Resoltuion | 1024(H)*(RGB)*768(V) | |||||
Aspect Ratio | 4:3 | |||||
High Brightness | 250cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 | |||||

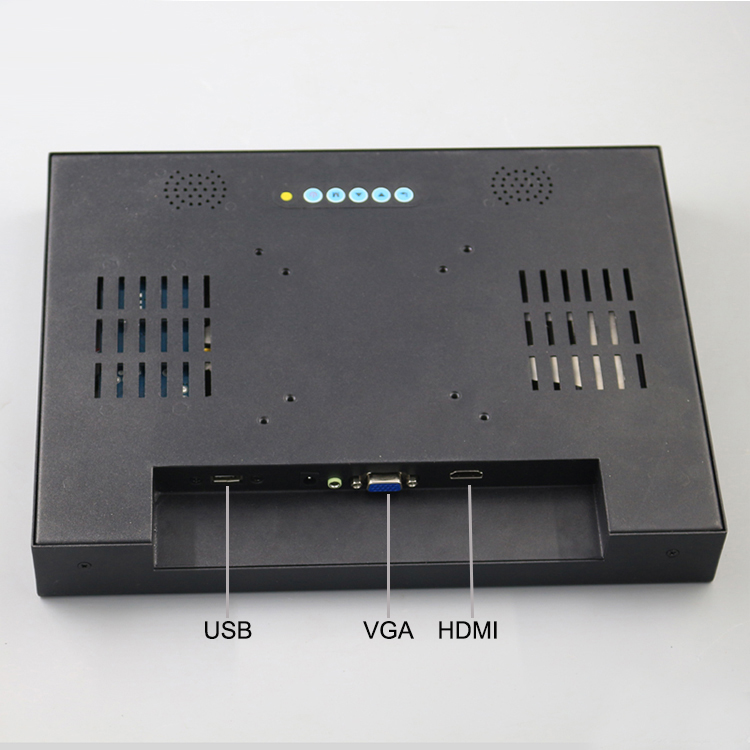

I/O Interface | ||||||
1 x USB2.0(for touch use) | 1x VGA | |||||
1xH-D-MI | 1 x DVI(optional) | |||||
Functions | ||||||
Front IP65 | ||||||
Other Information | ||||||
Frame Material | Aluminum Alloy/Stainless Steel | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||

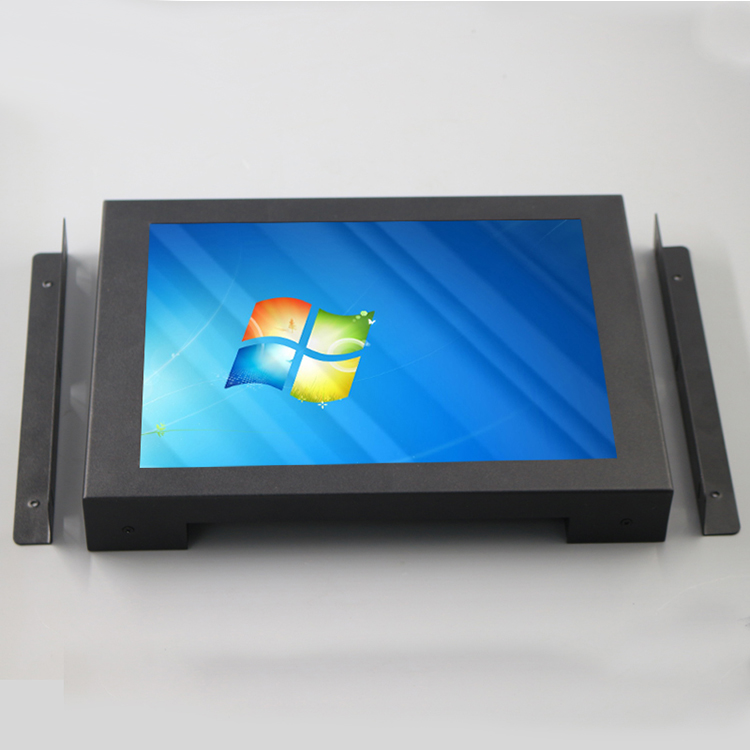

VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default balck,also can choose white,silvery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD | |||||
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
