Type:TFT-LCdDisplay Size:7inch
Supplier Type:Wholesale and retailPlace of Origin:Taiwan, China
Model Number:NJ070NA-23ABrand Name:Innolux
Aspect Ratio:16:9 (H:V)Contrast:800:1 (Typ.)
Brightness:500 cd/m2(Typ.)View angle:75/75/70/75 (Typ.)(CR≥10)
Resolution:1024(RGB)x600,WSVGADisplay area:154.214(H)x85.92(V)
Touchscreen:10points capacitive touch screenSignal type:LVDS (1 ch,6/8-bit)
Backlight:WLEDWorking temperature:-20-70 degree

Product Description

1024x768 Brand New 7 inch TFT Lcd Module With Capacitive Touch Screen


Features

1. Original Brand New Panel and touch screen

2. Original technology support

3. Industrial Wide working temperature -20-70C

4. LED driver integrated

5. RoHS compliance

6. 12months warranty




Production Parameter
Module number
NJ070NA-23A
Touchscreen
10points capacitive touchscreen
Screen Diagonal
7inch
Pixels H x V
1024(RGB) X 600
Aspect Ratio
16:9
White luminance
500 cd/m2
Contrast
800:1
Pixel pitch
0.1506×0.1432 (H×V) [170PPI]
Active Area
154.214(H) × 85.92(V)
Pixel Arrangement
R.G.B. Vertical Stripe
Display Mode
Normally white
Response time
15ms
Input Voltage
3.3V
Outline Dimension
164.9(H) × 100(V) x 4.8mm
Electrical Interface(Logic)
LVDS
Support color
262K/16.7M (6-bit / 8-bit)
Surface treatment
Hard coating
Operation life
30,000(Min.) Hrs
RoHs
RoHS compliance

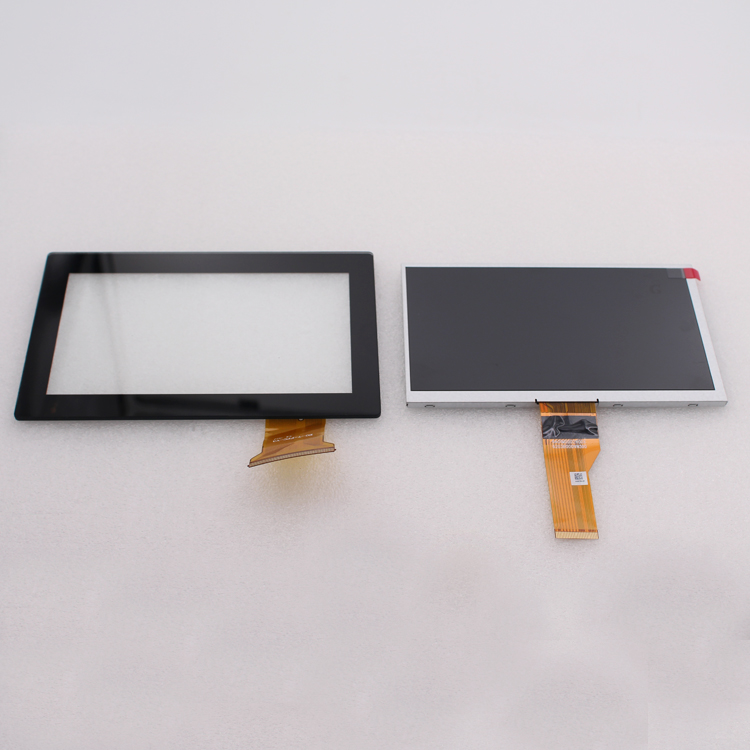

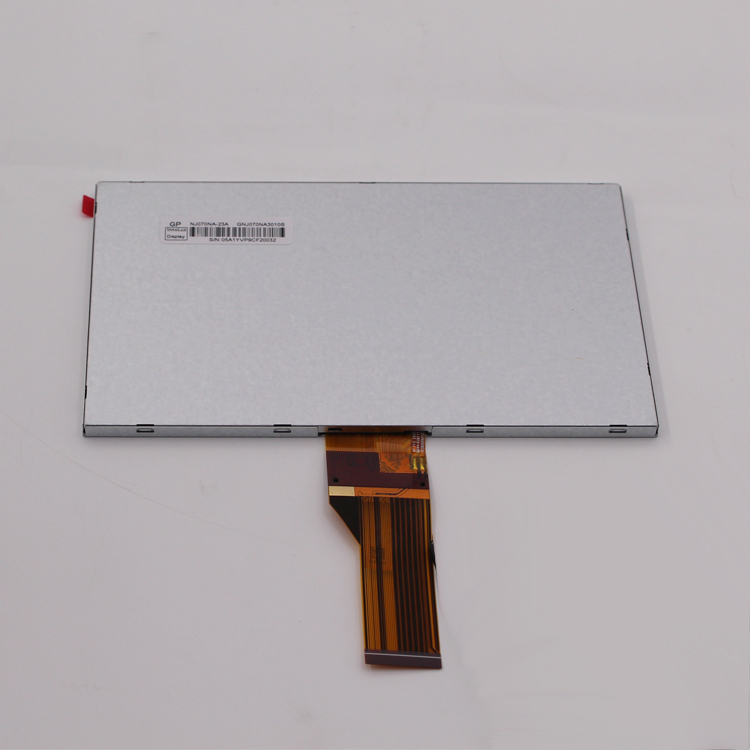

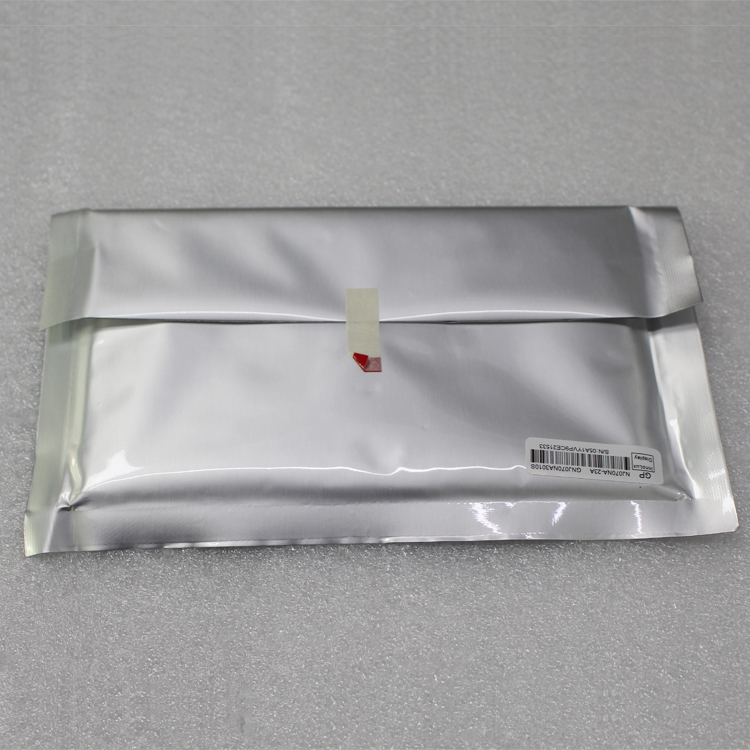

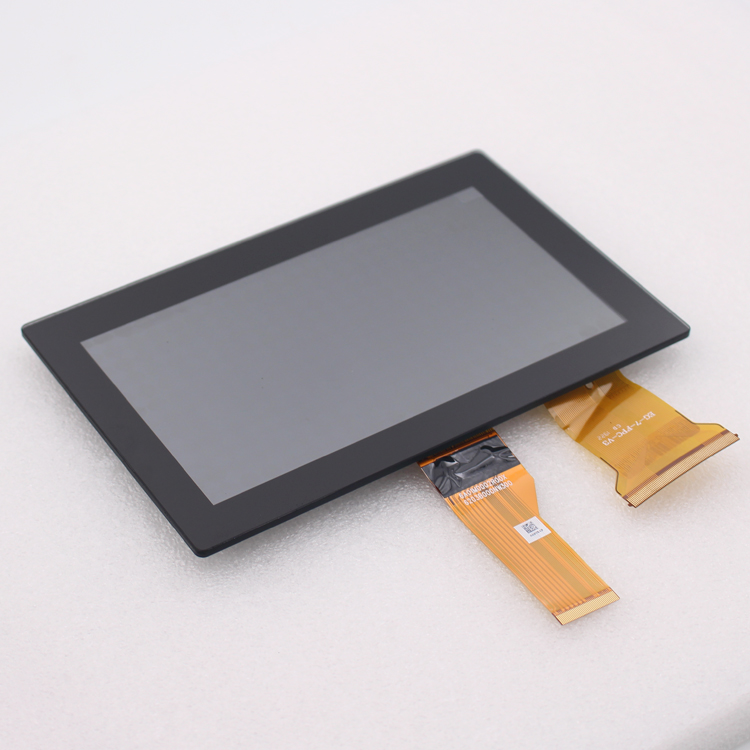

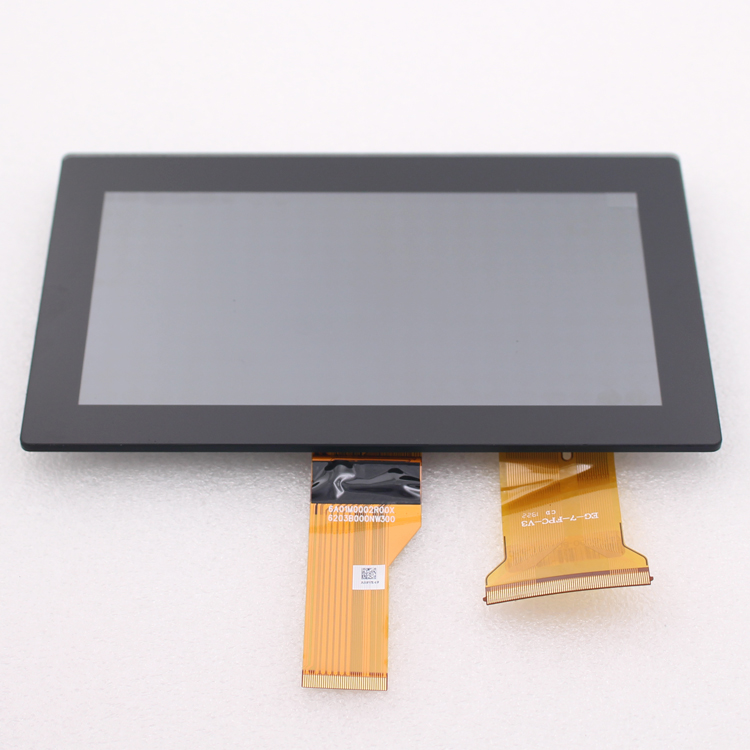

Detailed Images
