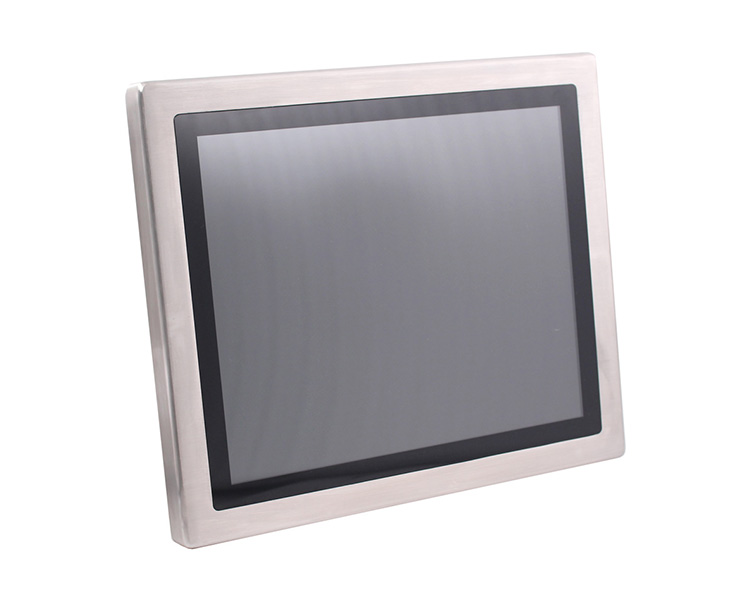

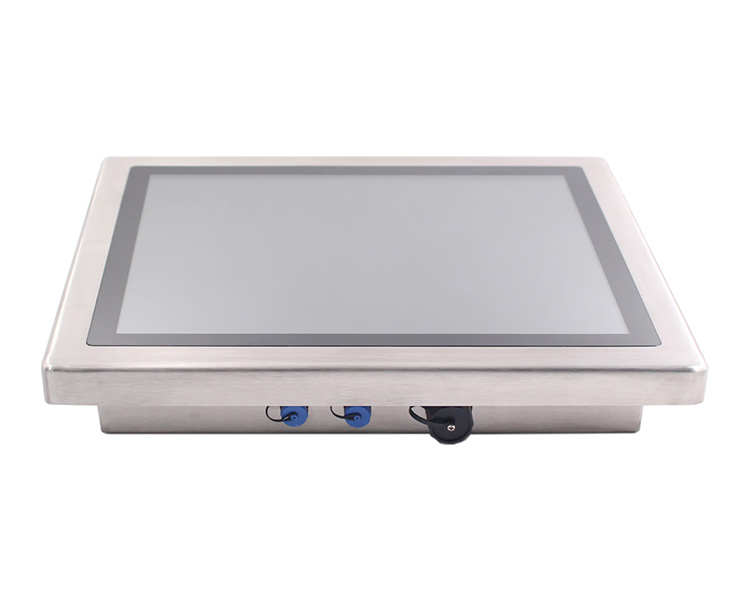

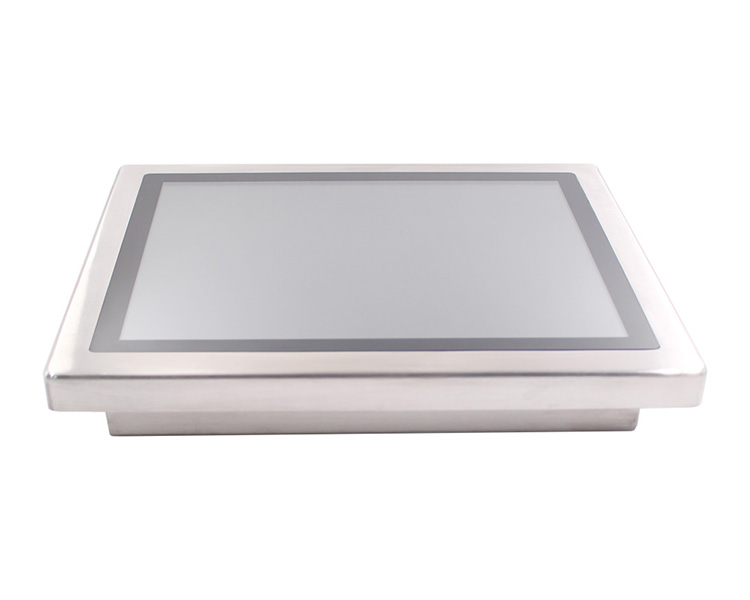

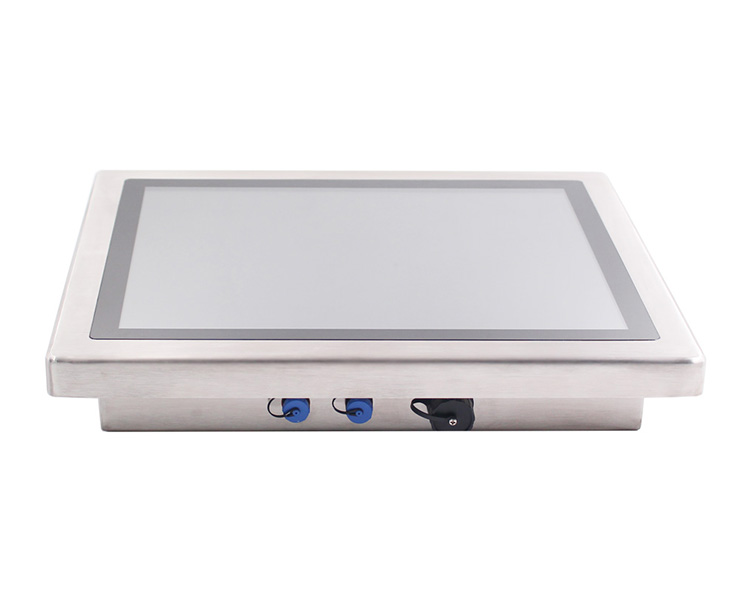

As an innovation-driven company,Shenzhen Innoda Technology Co., Ltd. has been devoted to product development for years. We are proud and excited as well to announce that we have successfully developed 15inch stainless steel ip67 waterproof rounded angle display marine monitor with vesa standard mounting fully sealed connector. The measured data indicates that meets the market requirements. Thanks to the multiple characteristics that have been tested by our QC inspectors,Shenzhen Innoda Technology Co., Ltd. has a wide application in different fields mainly including 15''.We hold a firm belief that the broad application of the product will drive the industry to develop and advance rapidly.
| Warranty(Year): | 1-Year | Color: | Silver |
| Display Ratio: | 4:3 | Series: | For Business |
| Aspect Ratio: | 4:3 | Screen Type: | LCD |
| Pixel Pitch: | 0.276mm | Horizontal Viewing Angle: | 85° |
| Built-in Speaker: | No | Vertical Viewing Angle: | 85° |
| After-sales Service: | Call Center and on-line Technical Support, Return and Replacement | Products Status: | New |
| Application: | Desktop | Response Time: | 3ms |
| Brightness: | 350cd/m, 550 cd/m | Interface Type: | usb |
| Contrast Ratio: | 500:1, 1200:1, 1200:1 | Widescreen: | Yes |
| Panel Type: | IPS | Brand Name: | innoda |
| Place of Origin: | Guangdong, China | Feature: | Touch Screen, Building in Camera, Touch Screen |
| Use: | Industrial | Product Name: | ip67 stainless steel waterproof display |
| Backlight: | IPS LED | Viewing Angle: | 85/85/85/85 |

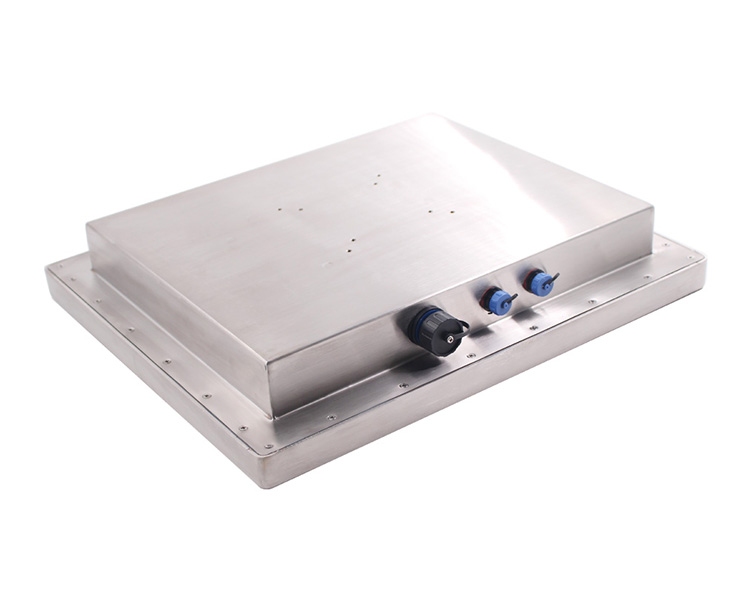

| Connector: | waterproof connector | Power Supply: | DC12V |
| Screen Size: | 15" Monitor | Keyword: | fully sealed connector |
| Type: | LCD+Touch Screen Panel+frame | Certification: | ce, RoHS |
LCD Panel Parameters | ||
Screen Size | 15inch LED Panel(7-43inch is supported) | |
Resolution | 1024(H)*(RGB)*768(V) | |
Aspect Ratio | 4:3 | |
Brightness | 500cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 500:1 | |
Voltage | 12V DC input | |
Power Comsumption | < 20W | |
Operating Temperature | -20~60° C (-4~140° F) | |
Humidity | 5~95% @ 40° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Material | Stainless Steel | |
Color | Black/Silver/White | |
VESA Mounting | 75*75mm 100*100mm (optional) | |
Touchscreen Characteristics (Optional) | ||||||||||
Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch | |||||
Surface Hardness | 3H | 4H | 7H | 7H | 7H | |||||
Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times | |||||
Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) | |||||
IO Interface(Optional) | ||
VGA | 1 x VGA | |
USB | 1 x USB | |
Power | 12V DC | |
