1.10.1'' size
2.Open frame
3.Touch Screen
Shenzhen Innoda Technology Co., Ltd. is considered one of the leading suppliers of INNODA 10.1inch industrial open frame touch screen display monitor with VGA. The technology greatly improves product performance and accelerates the manufacturing process.It has a considerably expanded application range and is popular in the field(s) of LCD Monitors. Shenzhen Innoda Technology Co., Ltd. will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.
Warranty(Year): | 1-Year | Color: | Black, black |
Display Ratio: | 16:9 | Series: | For Business |
Aspect Ratio: | 16:9 | Screen Type: | LED |
Pixel Pitch: | 0.276mm | Horizontal Viewing Angle: | 80° |
Built-in Speaker: | Yes | Vertical Viewing Angle: | 80° |
After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair | Products Status: | New |
Application: | LAPTOP | Response Time: | 6ms |
Brightness: | 350cd/m, 350d/m2 | Interface Type: | VGA |
Contrast Ratio: | 500:1 | Widescreen: | Yes |
Panel Type: | TFT | Brand Name: | INNODAPC |
Place of Origin: | Guangdong, China | Feature: | Touch Screen |
Use: | Industrial | Size: | 10.1inch |
Resolution: | 1280*800 | Interface: | VGA |
Power Supply: | 110V-240V,12V DC Input | Working temperature: | -20~70℃ |
Voltage: | 8~36V wide range voltage | Enclosure: | Metal/Aluminum/Stainless Steel(optional) |

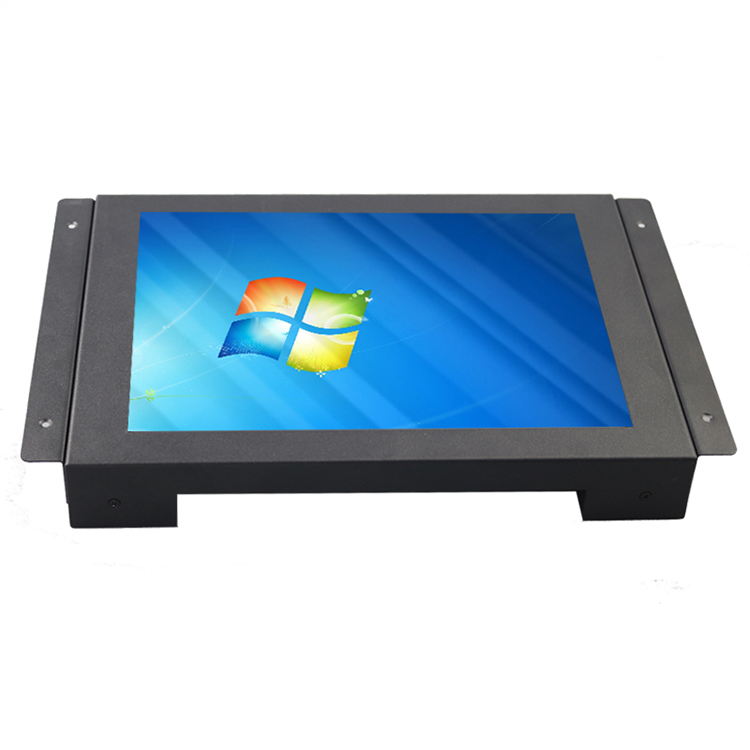

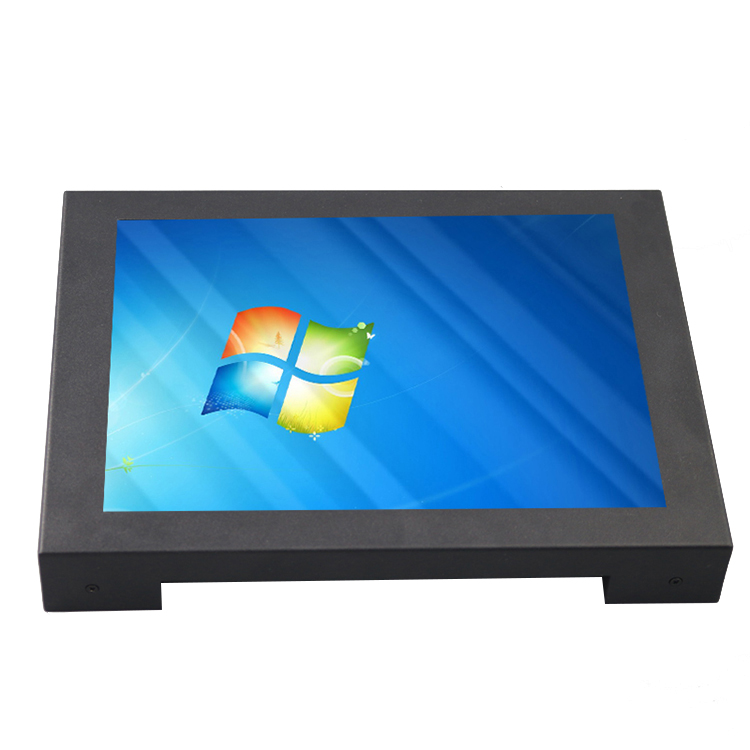

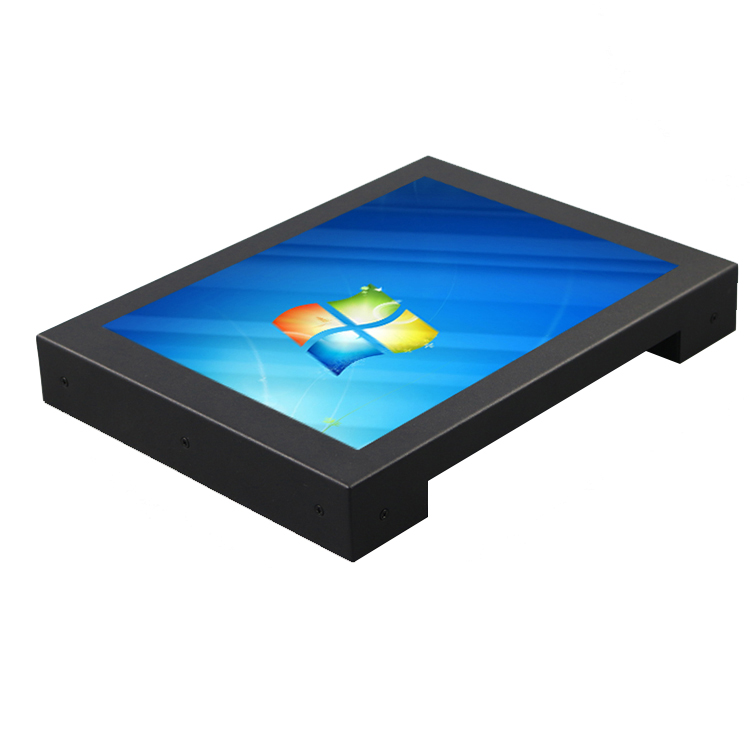

Product Name: | INNODA 10.1inch industrial open frame touch screen display monitor | Certification: | ce, RoHS |
1.10.1'' size
2.Open frame
3.Touch Screen
LCD Panel Charateristics | ||||||
Screen Size | 10.1'' industrial grade Panel | |||||
Touchscreen Type(optional) | Resistive touch/Capacitive Touch/SAW Touch/IR Touch | |||||
Resolution | 1280H)*(RGB)*800(V) | |||||
Aspect Ratio | 16:9 | |||||
High Brightness | 350cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 |

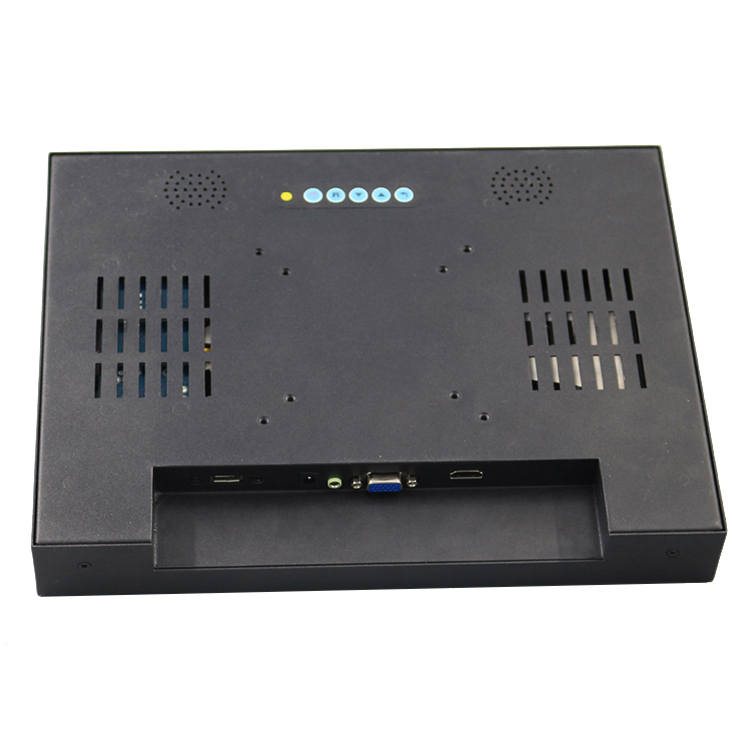

I/O Interface | ||||||
1 x VGA |
Other Information | ||||||
Frame Material | Aluminum Alloy/Stainless Steel | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||

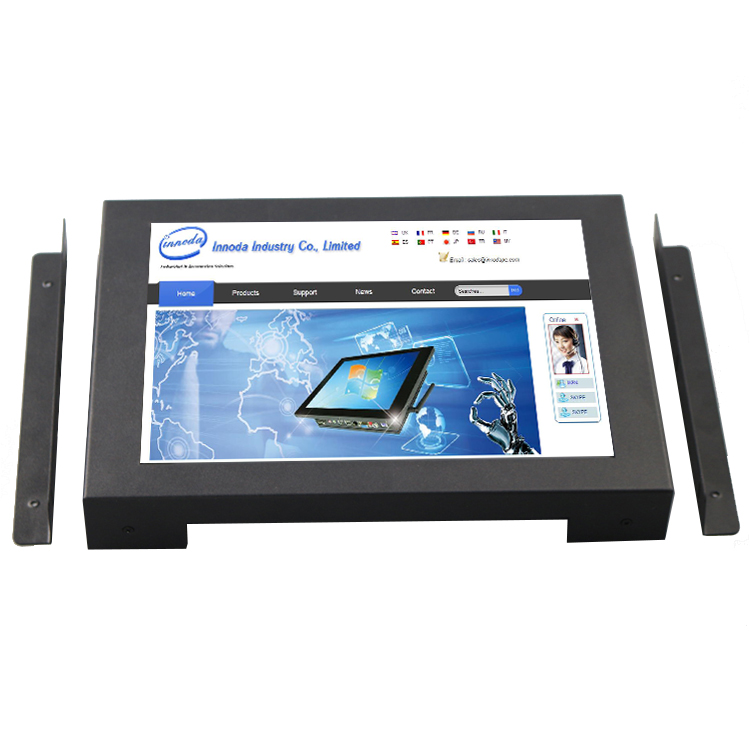

VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default black,also can choose white,slivery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
