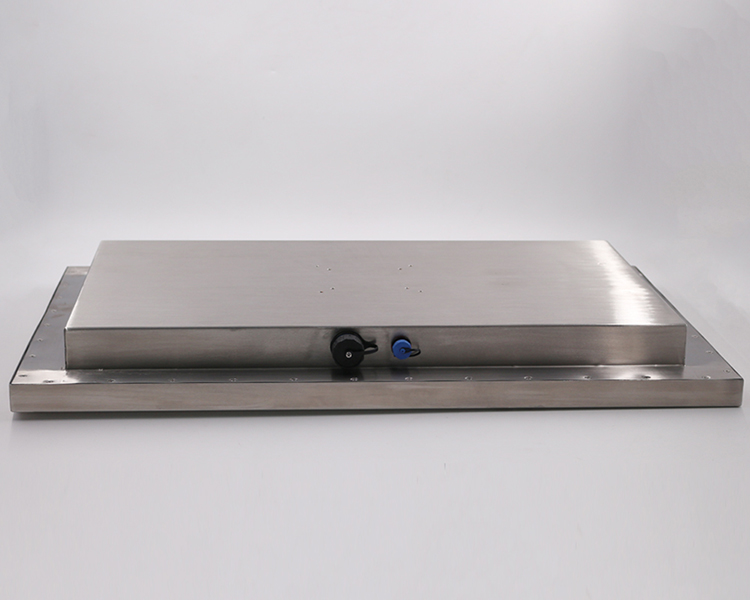

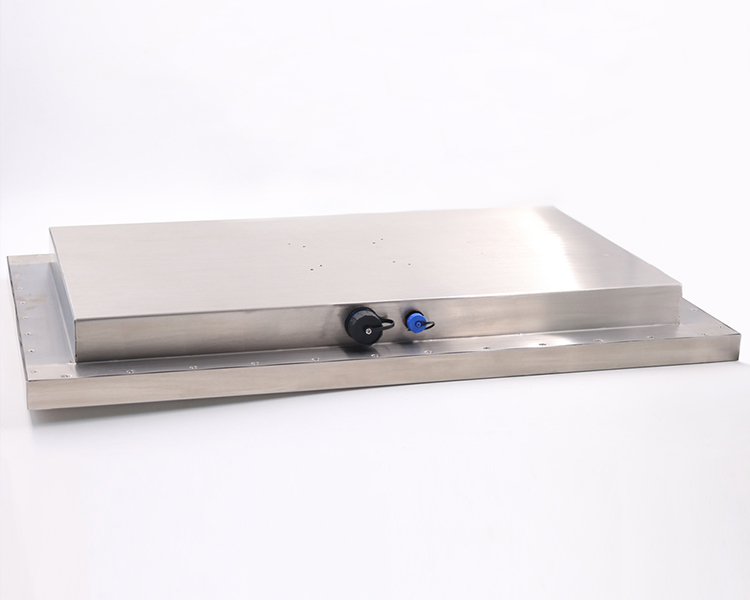

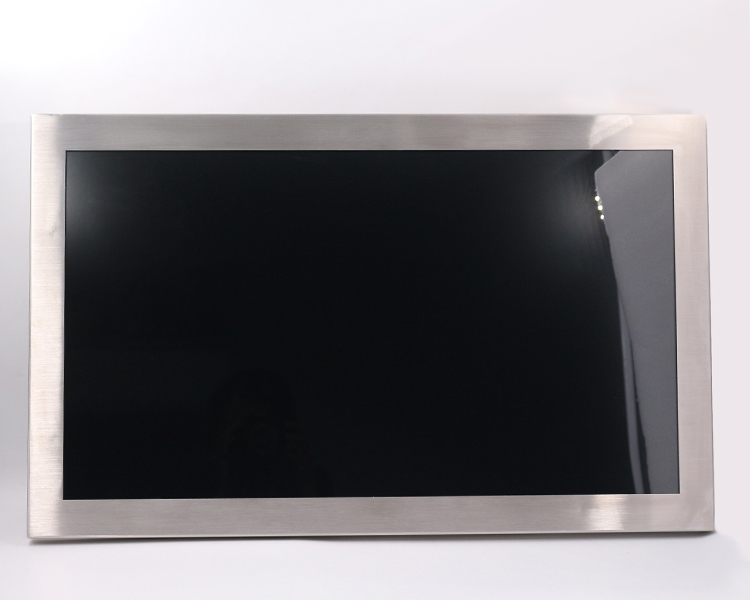

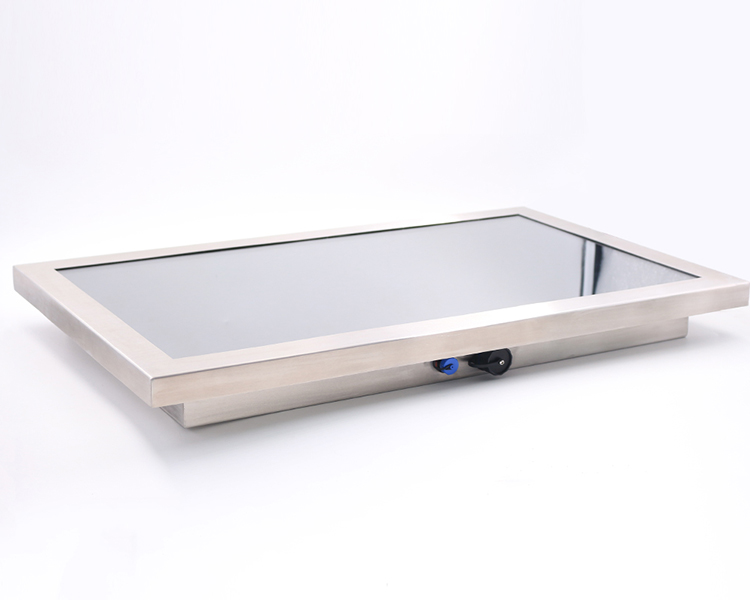

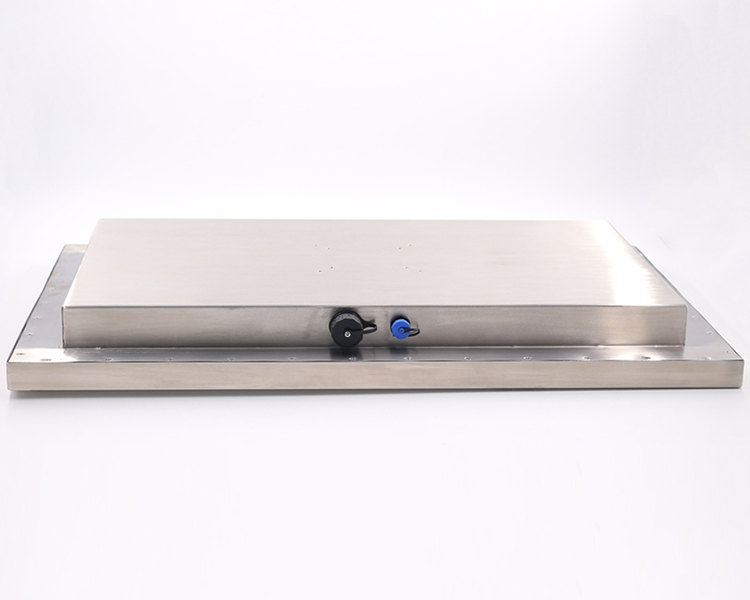

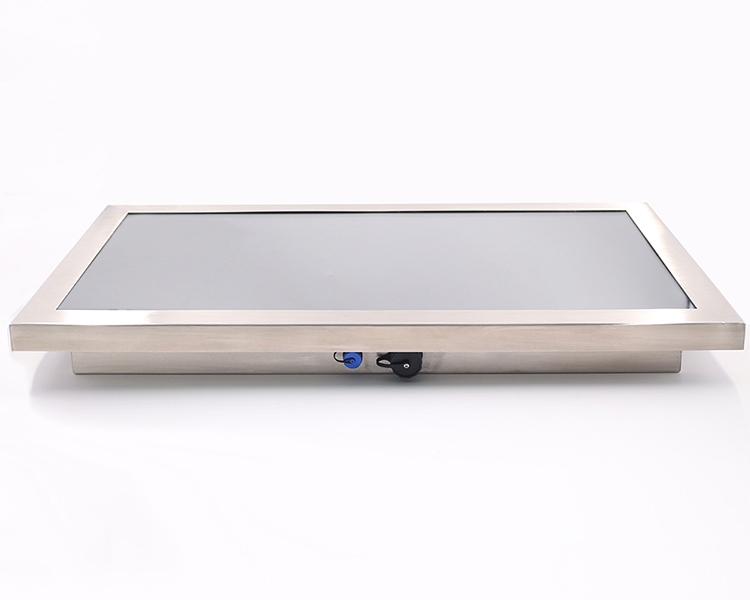

With the help of our technicians and workers,Shenzhen Innoda Technology Co., Ltd. has finally developed the quality-guaranteed product. The product is called 27inch ip67 stainless steel waterproof marine monitor vesa standard mounting fully sealed connector display. After 27inch ip67 stainless steel waterproof marine monitor vesa standard mounting fully sealed connector display launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Innoda is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.
| Warranty(Year): | 1-Year | Color: | Silver |
| Display Ratio: | 16:9 | Series: | For Business |
| Aspect Ratio: | 16:9 | Screen Type: | LCD |
| Pixel Pitch: | 0.276mm | Horizontal Viewing Angle: | 85° |
| Built-in Speaker: | No | Vertical Viewing Angle: | 85° |
| After-sales Service: | Return and Replacement | Products Status: | New |
| Application: | Desktop | Response Time: | 3ms |
| Brightness: | 350cd/m, 550 cd/m | Interface Type: | usb |
| Contrast Ratio: | 500:1, 1200:1, 1200:1 | Widescreen: | Yes |
| Panel Type: | IPS | Brand Name: | innoda |
| Place of Origin: | Guangdong, China | Feature: | Touch Screen, Building in Camera, Building in Camera |
| Certification: | ce, RoHS | Product Name: | waterproof marine monitor |
| Backlight: | IPS LED | Viewing Angle: | 85/85/85/85 |
| Connector: | waterproof connector | Power Supply: | DC12V |
| Screen Size: | 27" Monitor | Keyword: | fully sealed connector |
| Type: | LCD+Touch Screen Panel+frame |
LCD Panel Parameters | ||
Screen Size | 27inch LED Panel(7-43inch is supported) | |
Resolution | 1920(H)*(RGB)*1080(V) | |
Aspect Ratio | 16:9 | |
Brightness | 500cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 500:1 | |
Voltage | 12V DC input | |
Power Comsumption | < 20W | |
Operating Temperature | -20~60° C (-4~140° F) | |
Humidity | 5~95% @ 40° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Material | Stainless Steel | |
Color | Black/Silver/White | |
VESA Mounting | 75*75mm 100*100mm (optional) | |
Touchscreen Characteristics (Optional) | ||||||||||
Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch | |||||
Surface Hardness | 3H | 4H | 7H | 7H | 7H | |||||
Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times | |||||
Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) | |||||
IO Interface(Optional) | ||
VGA | 1 x VGA | |
USB | 1 x USB | |
DVI | 1 x DVI | |
