1.7''-42'' size optional
2.1000nits sunlight readable
3.Open frame design

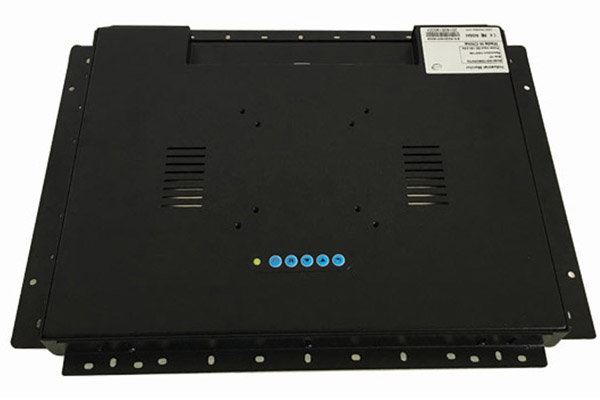

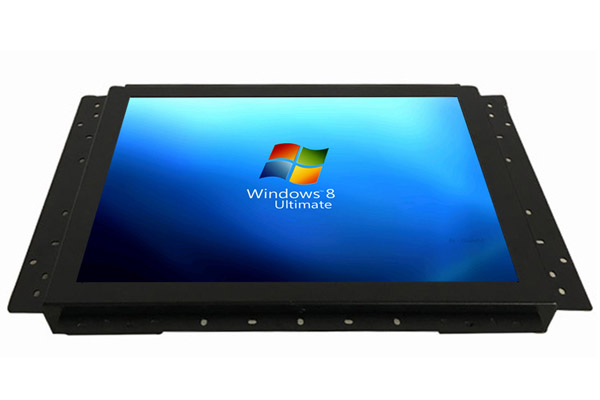

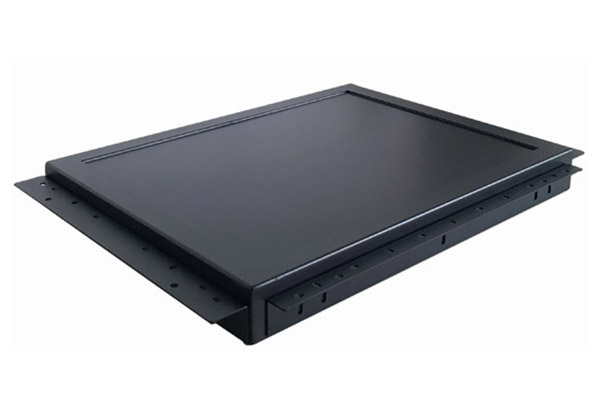

Shenzhen Innoda Technology Co., Ltd. can provide the most efficient services and rack mount open frame sunlight readable high brightness monitor 17inch with the highest quality and most affordable price. rack mount open frame sunlight readable high brightness monitor 17inch with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. Relying on our excellent products and sensible marketing strategy,Shenzhen Innoda Technology Co., Ltd. hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.
Warranty(Year): | 1-Year | Color: | Black, Black/White/Slivery...etc |
Display Ratio: | 4:3 | Series: | For Business |
Aspect Ratio: | 4:3, 4:3 | Screen Type: | LCD |
Pixel Pitch: | 0.276mm | Horizontal Viewing Angle: | 85° |
Built-in Speaker: | Yes | Vertical Viewing Angle: | 85° |
After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair | Products Status: | New |
Application: | embedded/desktop/wall mount | Response Time: | 5ms |
Brightness: | ≥500cd/m2, 1000cd/m2, 1000cd/m | Interface Type: | support HDMI input, VGA, usb |
Contrast Ratio: | 1000:1, 1200:1, 1200:1 | Widescreen: | NO |
Panel Type: | TFT | Brand Name: | INNODAPC |
Place of Origin: | Guangdong, China | Feature: | Touch Screen, Touch Screen |
Use: | Industrial | Touchscreen Type: | IR touchscreen |
Warranty: | 12 Months | Interface: | VGA |
Material: | Metal/Aluminum | Logo: | Your Logo is acceptable |
Support os: | Windows/linux/Android | Product Name: | rack mount open frame sunlight readable high brightness monitor 17inch |
Certification: | ce, RoHS |
1.7''-42'' size optional
2.1000nits sunlight readable
3.Open frame design
LCD Panel Charateristics | ||||||
Screen Size | 17'' industrial grade Panel | |||||
Touchscreen Type(optional) | Resistive touch/Capacitive Touch/SAW Touch/IR Touch | |||||
Resoltuion | 1280(H)*(RGB)*1024(V) | |||||
Aspect Ratio | 4:3 | |||||
High Brightness | 350cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 |

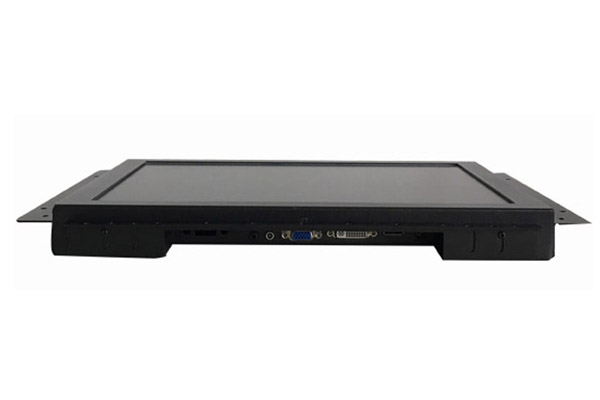

I/O Interface | ||||||
1 x USB for touch use | 1xVGA | |||||
DVI |
Other Information | ||||||
Frame Material | Aluminum Alloy/Stainless Steel | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||
VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default balck,also can choose white,silvery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
