Innoda has a collection of Innoda latest micro pc 12v mini computer with linux os system available from manufacturers around the world so if you'd like to buy some, do give a look. Our product can be tailored to suit you perfectly. After assessing the needs of customers and the market, we have successfully made Innoda latest micro pc 12v mini computer with linux os system have some wanderful advantages, all of which can help make it stand out in the market. Moreover, its appearance is highly emphasized as well. Our creative designers make the product unique in its appearance by keeping close up with the latest industry trends.

Memory Capacity:2gbProducts Status:Stock
Type:ALL-IN-ONEScreen Size:8-inch
Processor Brand:IntelHard Drive Capacity:500GB
Graphics Card Type:Integrated CardDisplay Type:LED
Widescreen:NOOptical Drive Type:CD-ROM
Processor Main Frequency:2.0GHzBrand Name:INNODAPC
Model Number:IND080PCPlace of Origin:Guangdong, China
CPU:intel quad core J1900Resolution:1024*768
Touchscreen Type:capacitive touchVoltage:12V DC
Warranty:1yearOperating System:Linux/Ubuntu 14.04 LTS/Win 7/8/10
USB:4*USB2.0Material:Aluminum
Logo:Your Logo is acceptableProduct Name:Innoda latest micro pc 12v mini computer with linux os system

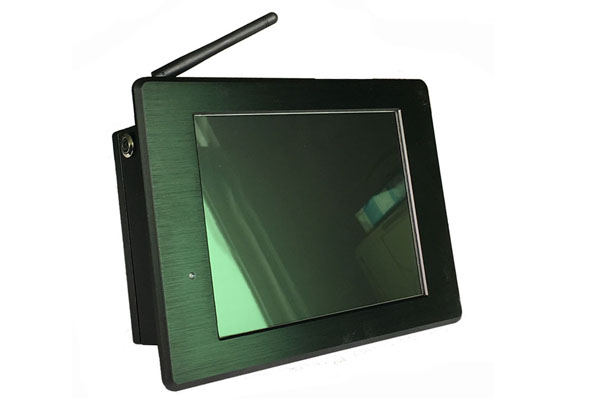

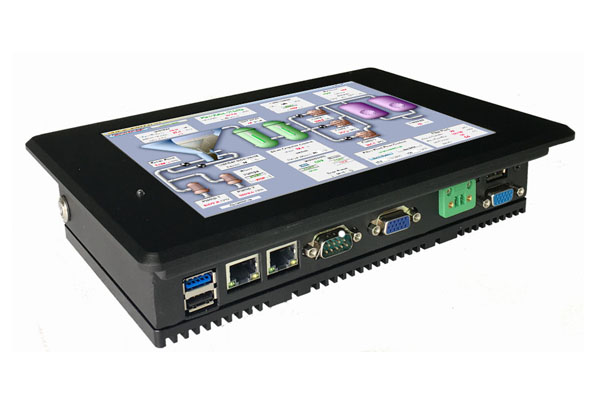

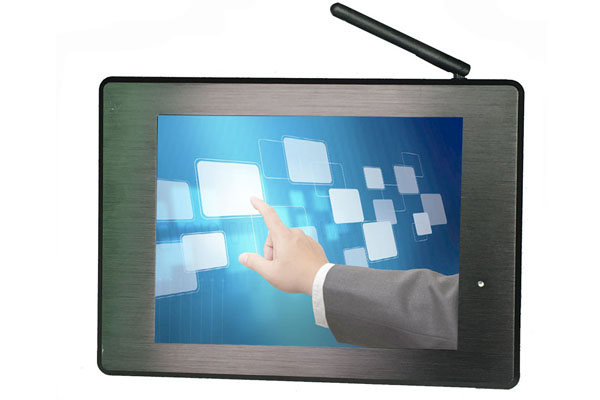

Innoda latest micro pc 12v mini computer with linux os system



Features

1.8-inch mini pc computer

2.Intel J1900/2.0Ghz Dual Core Processor

3.Aluminum shell

4. Unique ventilation design,Efficient heat dissipation

5.Installtion:panel type embedded,embedded,wall-mounted,desktop,rack-mounted



Detailed Images



Product Description
Computer Configurations
CPUIntel Celeron® Processor J1900 Quad Core 2.0GHz
Memory2GB DDR3(Max. 8GB)
Storage32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win 7/8/10

Default with Win 7 OS Testing Version is preloaded.

CoolingFan / Fanless for optional
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size8'' LCD/LED Panel
Touchscreen TypeCapacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion1024(H)*(RGB)*768(V)
Aspect Ratio4:3
Brightness250cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio500:1



I/O Interface
USB3xUSB2.0,1xUSB3.0
VGA1xVGA
Serial Port(RS232)1-2xRS232
LAN(RJ45)1-2xRJ45
Other Function(Optional)
WIFI3G/4G Module
GPIO Connector8-36V wide range voltage
BluetoothWebcam
Brightness Control in Manual and Auto RF/NFC Reader



Other Information
Frame MaterialMetal Case/Aluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm
Product Dimension(LxWxH)TBD
Packing Dimension(LxWxH)TBD
Weight6KG
Customer Comment

Customized Function

Application

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

FAQ

1.What is the MOQ?

---1pc sample is ok.



2. Could we have our own design?

----Yes, ODM/OEM is acceptable. Just tell us your request of the product,our R&D team will try to meet your needs.



3. Can i have my brand name(logo) on the product?

----No problem, just send us your logo design and pay the cost.



4.What about the after-service?

----1 year warranty. If product have any problems, pls contact us, and take some photos,videos. It's better for our engineer to find the reason and solve it.



5.How to ship it to my country?

---Usually the goods will be ship by DHL/Fedex/UPS/TNT....and so on. 3-5 working days arrival.



6.How long is the delivery time?

-----10-15working days upon receive the payment.

Company Information

Innoda Technology  Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type monitors.Engineers have at least 6years experiance in all in one pc filed.



OEM/ODM is our strong points. Customized design is welcome.



Pls feel free to contact us as below methods, we will response to you in time.

Phone/whatsapp: 0086 134 28940129

Tel:       0086-0755-29108731

Skype:  innodapc1
