We are specialized in manufacturing Wall Hanging 10points IR Touch Screen 32 Inch All In One TV PC Computer, etc. for over many years. Processed by elaborate craft, the appearance of Wall Hanging 10points IR Touch Screen 32 Inch All In One TV PC Computer is vivid. Shenzhen Innoda Technology Co., Ltd. have always advocated the customer-centric business concept, aiming to provide customers with specialized, standardized, and diversified services. We focus on technology development and hope to make some innovations backed by strong technical strength.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND320PCProducts Status:New
Processor Main Frequency:1.6GHZWarranty(Year):1-Year
Graphics Card Type:Integrated CardOptical Drive Type:CD-ROM
Widescreen:YesScreen Size:32''
Display Type:LCDUse:Business
Processor Brand:IntelDisplay resolution:1920x1080
Plugs Type:US, JP, CN, AU, UK, EUSeries:For Business
Hard Drive Type:SSDVideo Memory Type:With the main memory
Power:230 WOperating System:Windows 10, Linux/Ubuntu 14.04 LTS/Windows 7/8/10
Graphics Card Chipset:Integrated CardRAM Type:DDR3
Chipset Type:Intel H110HDD Rotation Speed:7200 Rpm
Mouse & Keyboard:NoProcessor Core:Dual Core
Video Memory:16GBVideo Card:Intel HD Graphics 6000
After-sales Service:Call Center and on-line Technical Support, Onsite Training and Inspection, Free spare parts, Return and Replacement, RepairCPU:Intel I7-4510U
Touchscreen Type:10 points IR touch screenTV Function:Optional
Color:Default is black,white,silvery...WIFI:Optional
Certificate:CE,ROHSWarranty:12months
Logo:Your Logo is acceptableProduct Name:Wall Hanging IR Touch Screen 32 Inch All In One TV PC Computer
Certification:ce, RoHSDispaly Ratio:16:9
Type:Barebone System

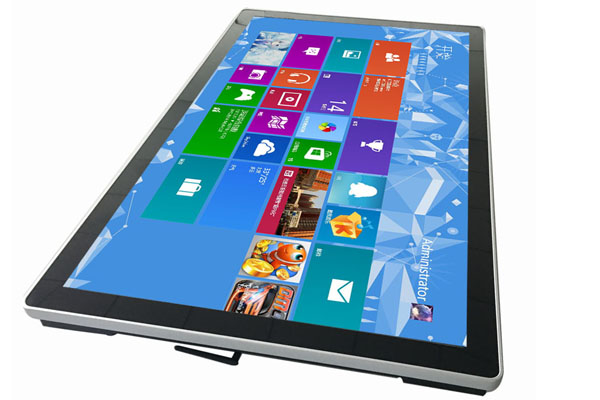

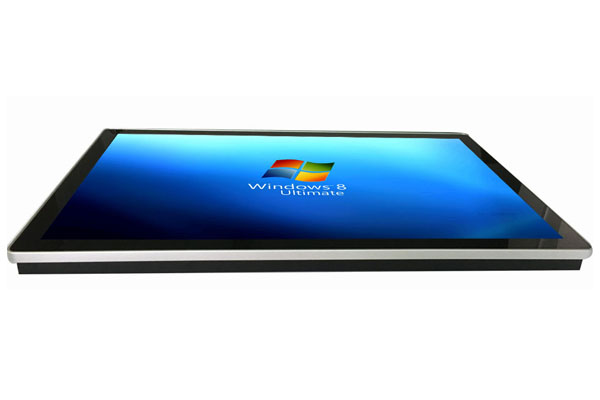

Wall Hanging 10points IR Touch Screen 32 Inch All In One TV PC Computer





Features

1.32'' touch all in one pc with sensitive IR touch

2.Stable panel work support 1080P high definition

3.TV function optional

4.Robust durable aluminum shell.Dustproof,shockproof,impact resistance

5. Unique ventilation design,Efficient heat dissipation

6.12months warranty

Detailed Images



Product Description
Computer Configurations
CPU Intel Core I7-4510U/1.6GHz
Memory 2GB to Max. 8GB, DDR3
Storage 320GB to 1TB, 32GB to 128GB SSD
Operation System

Support Linux/Ubuntu 14.04 LTS/Windows 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 32'' LCD/LED Panel
Touchscreen Type(optional) IR Touch
Resoltuion 1920(H)*(RGB)*1080(V)
Aspect Ratio 16:9
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 1000:1

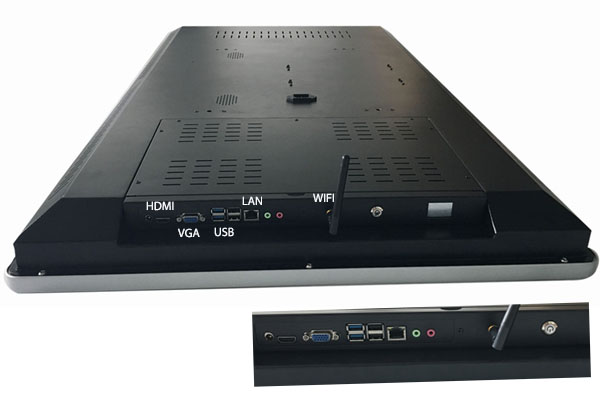

I/O Interface
USB 4xUSB2.0
VGA 1xVGA
Serial Port(RS232) 1-2xRS232
HDMI 1xHDMI
LAN(RJ45) 1-2xRJ45
Other Function(Optional)
WIFI 3G/4G Module
GPIO Connector 8-36V wide range voltage
TV function Webcam
Brightness Control in Manual and Auto  RF/NFC Reader



Other Information
Frame Material Aluminum Alloy/Metal Case/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour

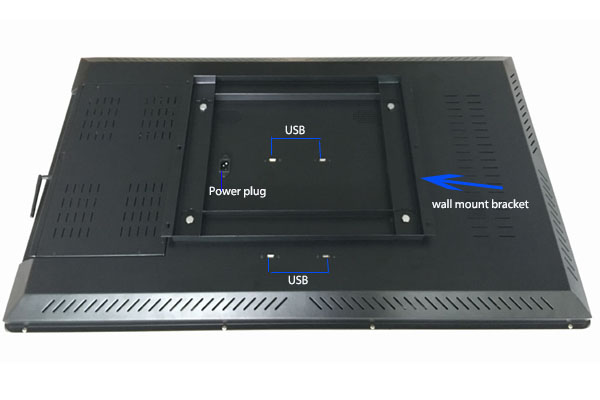

VASA Mounting 75*75 mm or 100*100 mm
Product Dimension(LxWxH) 992x585x67.2mm
Packing Dimension(LxWxH) 1012x595x78mm
Weight 45KG
Main Products
Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

FAQ

1.What is the MOQ?

---1pc sample is ok.



2. Could we have our onw design?

----Yes, ODM/OEM is acceptable. Just tell us your request of the product,our R&D team will try to meet your needs.



3. Can i have my brand name(logo) on the product?

----No problem, just send us your logo design and pay the cost.



4.What about the after-service?

----1 year warranty. If product have any problems, pls contact us, and take some photos,videos. It's better for our engineer to find the reason and solve it.



5.How to ship it to my country?

---Usually the goods will be ship by DHL/Fedex/UPS/TNT....and so on. 3-5 working days arrival.



6.How long is the delivery time?

-----10-15working days upon receive the payment.

Company Information

Innoda Technology  Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type monitors.Engineers have at least 6years experiance in all in one pc filed.



OEM/ODM is our strong points. Customized design is welcome.



Pls feel free to contact us as below methods, we will response to you in time.

Phone/whatsapp: 0086 134 28940129

Tel:       0086-0755-29108731

Skype:  innodapc1
