Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Language
Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Shenzhen Innoda Technology Co., Ltd. is capable of providing a quality range of PLC Industrial Fanless Embedded Cheap Mini Pc Win10. Our range of Mini PC are made with the best ingredient. The research and development of PLC Industrial Fanless Embedded Cheap Mini Pc Win10 has further improved the company's market competitiveness.
| Place of Origin: | Guangdong, China | Brand Name: | INNODAPC |
| Model Number: | IND101PC-D2550 | Products Status: | Stock |
| Memory Capacity: | 2gb | Hard Drive Capacity: | 500GB |
| Processor Brand: | Intel | Widescreen: | NO |
| Type: | Barebone System | Processor Main Frequency: | 1.86GHz |
| Optical Drive Type: | CD-ROM | Graphics Card Type: | Integrated Card |
| Display Type: | LED | Screen Size: | 10.1inch |
| CPU: | Intel D2550 | Touch Type: | 4-wires resistive touch |
| Input Voltage: | 12V DC | I/O port: | GPS,USB2.0,USB3.0,LAN,RS232...... |
| Material: | Aluminum alloy | Operating System: | Linux/Ubuntu/Win7,win8,win10 |
| Working Temperature: | -25-75℃ | Warranty: | 12 Months |
| Logo: | Your logo is accetpable | Product Name: | PLC Industrial Fanless Embedded Cheap Mini Pc Win10 |

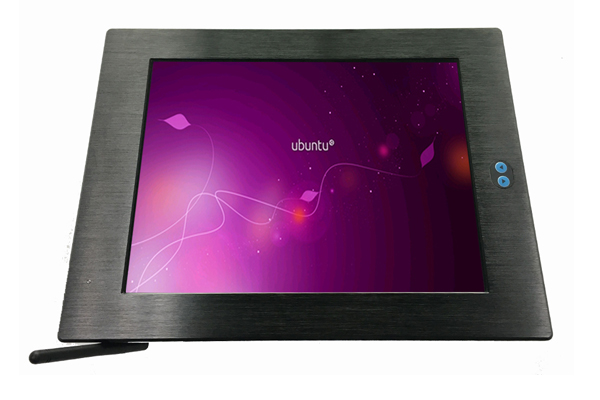

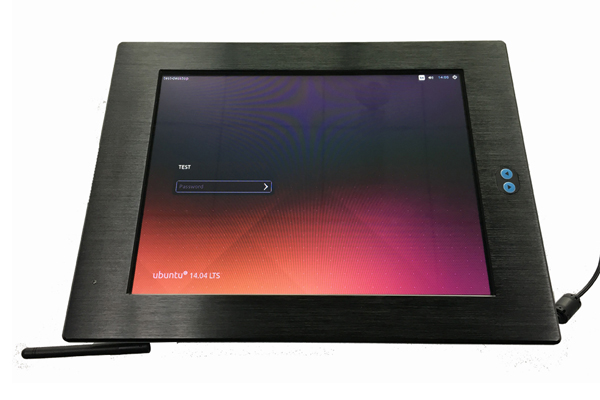

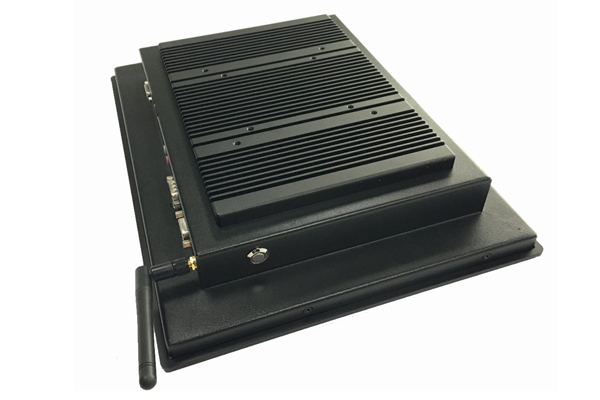

PLC Industrial Fanless Embedded Cheap Mini Pc Win10
1.Intel D2550/1.86Ghz CPU.
2. Robust durable aluminum shell.Dustproof,shockproof,impact resistance,fanless,fully sealed,resistance to harsh environment
3.Fanless design,Unique ventilation design,Efficient heat dissipation
4.Installtion:panel type embedded,embedded,wall-mounted,desktop,rack-mounted
Pls Noted, any configurations and hardware can be customized, the prouct price depends on your needs.
| Computer Configuration | |||||
| CPU | Intel® Atom™ Processor D2550 Quad Core 1.86GHz | ||||
| System Chipset | Intel NM10 | ||||
| Memory | 2GB to Max. 4GB, DDR3 | ||||
| Storage | 320GB to 1TB, 32GB to 128GB SSD | ||||
| Audio | High Definition Audio (HD), Line in, Line out | ||||
| Operation System | Support Linux/Ubuntu 14.04 LTS/Win 7/8/10 Default with Win 7 OS Testing Version is preloaded. | ||||
| Cooling | Fanless | ||||
| LCD Panel Characteristics | |||||
| Screen Size | 10.1 inch LED Panel | ||||
| Resolution | 1024(H)*(RGB)*600(V) | ||||
| Aspect Ratio | 16:9 | ||||
| Brightness | 350cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 500:1 | ||||
| Touchscreen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |

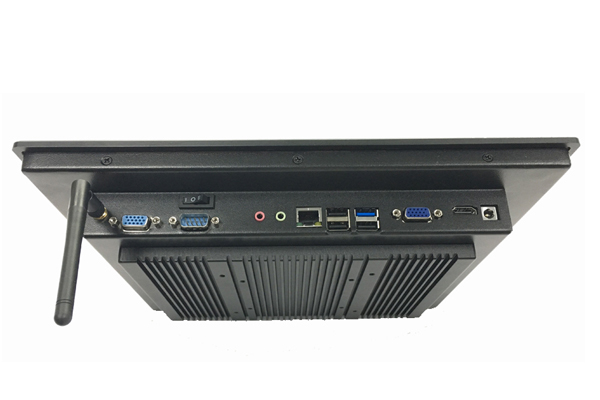

| I/O Interface (Optional) | |||||
| GPS | 1 x GPS | ||||
| USB | 3 x USB2.0 | ||||
| Serial Port(COM) | 1~2 x RS232 | ||||
| VGA | 1x VGA | ||||
| LAN(RJ45) | 1-2 x RJ45, Speed 10/100/1000 Mbps | ||||
| Expansion(optional) | MINI PCI-E | ||||
| Wireless (Optional) | |||||
| WIFI | Intel 4965 AGN,BCM943224 | ||||
| Other Function (Optional) | |||||
| Watchdog Timer | 1-255s,Programmable | ||||
| Brightness Control in Manual and Auto | Manual Selection through Hardware Key and in Hardware mode + - key for brightness, in Auto the brightness control is through light sensor | ||||
| Power Supply | |||||
| AC Input | 100V-240V, 12V 7A | ||||
| Wide Voltage (optional) | 8-36V power supply | ||||
| Power Consumption | Max 24W | ||||
| Operating Environment | |||||
| Operating Temperature | -20~60° C (-4~140° F) | ||||
| Humidity | 5~95% @ 40° C, non-condensing | ||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||
| Enclosure | |||||
| Material | Aluminum Bezel/Stainless Steel | ||||
| Color | Black/Silver/White | ||||
| VESA Mounting | 75*75 mm or 100*100 mm | ||||
| Product Dimensions | |||||
| Dimensions (L x W x H) | TBD | ||||
| Net Weight | TBD | ||||
| Packing Details | |||||
| Carton Size (L x W x H) | TBD | ||||
| Gross Weight | TBD | ||||
| Accessories | Power Adapter with cable | ||||
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
1.What is the MOQ?
---1pc sample is ok.
2. Could we have our own design?
----Yes, ODM/OEM is acceptable. Just tell us your request of the product,our R&D team will try to meet your needs.
3. Can i have my brand name(logo) on the product?
----No problem, just send us your logo design and pay the cost.
4.What about the after-service?
----1 year warranty. If product have any problems, pls contact us, and take some photos,videos. It's better for our engineer to find the reason and solve it.
5.How to ship it to my country?
---Usually the goods will be ship by DHL/Fedex/UPS/TNT....and so on. 3-5 working days arrival.
6.How long is the delivery time?
-----10-15working days upon receive the payment.
Innoda Technology Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type monitors.Engineers have at least 6years experiance in all in one pc filed.
OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
Phone/whatsapp: 0086 134 28940129
Tel: 0086-0755-29108731
Skype: innodapc1
