Shenzhen Innoda Technology Co., Ltd. is considered one of the leading suppliers of Desktop or Wall Mount Black Enclosure 10.1'' LED Panel Touch Screen All In One Pc. The continued success of our product has been built upon consistent and competitive pricing, quality workmanship, quick response time and outstanding customer service. Research and development are the pillars on which the future of our company rests. Shenzhen Innoda Technology Co., Ltd. will put more emphasis on improving our R&D strength in the future for developing more creative and competitive new products.
| Products Status: | Stock | Type: | Panel PC |
| Brand Name: | Innoda | Model Number: | IND101PC-J19 |
| Place of Origin: | Guangdong, China | Screen Size: | 10.1'' |
| Touchscreen Type: | 4-wires resistive | CPU: | Intel J1900/1.9GHz |
| Memory: | 2GB/4GB/8GB | Storage: | 320G-1TB HDD,32G-256G SSD |
| USB: | 3* USB 2.0,1*USB3.0 | Operating System: | Win7/8/10/linux |
| Key Words: | Industrial Pc,fanless computer,embedded panel pc | LAN: | Optional |
| Material: | Aluminum |

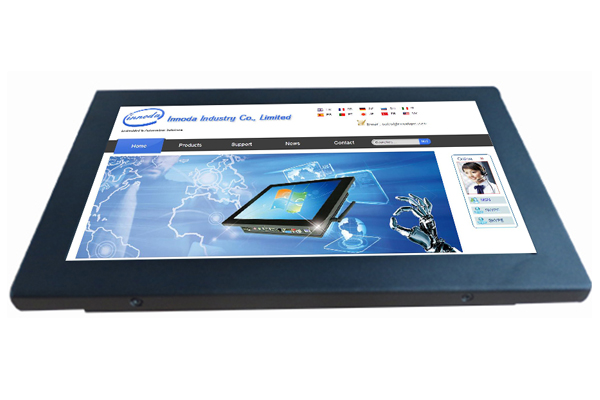

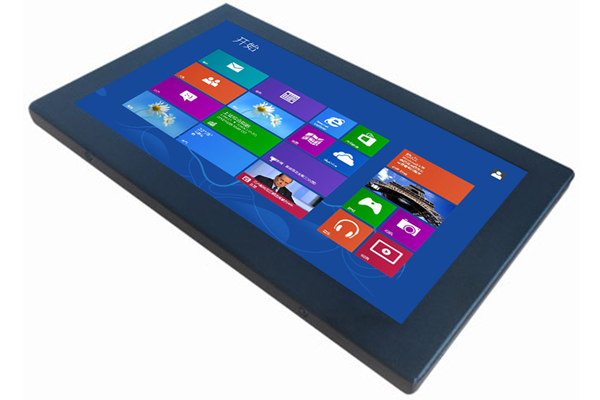

Desktop or Wall Mount Black Enclosure 10.1'' LED Panel Touch Screen All In One Pc
Feature
1.Touchscreen all in one pc
2.Industrial Board,J1900-1.9GHz processor
3.10.1-inch LED Panel
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz |
| Memory | 2GB DDR3(Max. 8GB) |
| Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 Default with Win 7 OS Testing Version is preloaded. |
| Cooling | Fan / Fanless for optional |
| Power Supply | 100V-240V,12V 7A AC Input,max 24W power consumption |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 10.1'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*600(V) |
| Aspect Ratio | 16:9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |

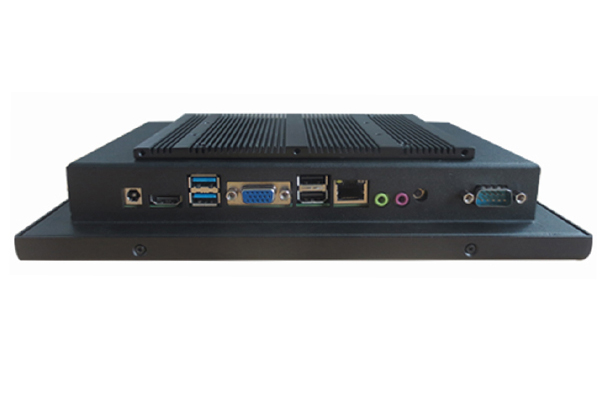

| I/O Interface | |
| USB | 3xUSB2.0,1xUSB3.0 |
| VGA | 1xVGA |
| Serial Port(RS232) | 1-2xRS232 |
| LAN(RJ45) | 1-2xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | TBD |
| Packing Dimension(LxWxH) | TBD |
| Weight | 6KG |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
