Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Concerning the industry development,Shenzhen Innoda Technology Co., Ltd. has been driven to develop new products to keep us competitive. 10.1inch intel J1900Ghz quad core industrial touch screen panel pc is of high quality and moderate price, so you can buy with confidence. We have been in the trade for over many years and are a well established business with a wealth of experience and expertise.
| Place of Origin: | Guangdong, China | Brand Name: | INNODAPC |
| Model Number: | IND101PC | Products Status: | New |
| Processor Main Frequency: | 2.0Ghz | Warranty(Year): | 1-Year |
| Graphics Card Type: | Integrated Card | Optical Drive Type: | No CD ROM |
| Widescreen: | Yes | Color: | Black |
| Screen Size: | 10.1" | Display Type: | LCD |
| Use: | Industrial | Processor Brand: | Intel |
| Display resolution: | 1280*800 | Plugs Type: | US, JP, CN, AU, UK, EU |
| Series: | For Business | Hard Drive Type: | SSD |
| Video Memory Type: | With the main memory | Power: | 230 W |
| Operating System: | Windows 10 | Graphics Card Chipset: | Integrated Card |
| RAM Type: | DDR3 | Chipset Type: | Intel H110 |
| HDD Rotation Speed: | 7200 Rpm | Mouse & Keyboard: | No |
| Processor Core: | Quad Core | Video Memory: | 2 GB |
| Video Card: | Intel HD graphics | After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair |
| CPU: | intel J1900Ghz quad core | Memory: | 2GB/4GB |
| Storage: | 32G/64G/128G SSD | Size: | 10.1inch |
| Resolution: | 1280*800 | Power Supply: | 110V~220V, 12V DC Input |
| Brightness: | 350cd/m2 | OS: | Window7/Window8/Window10 |

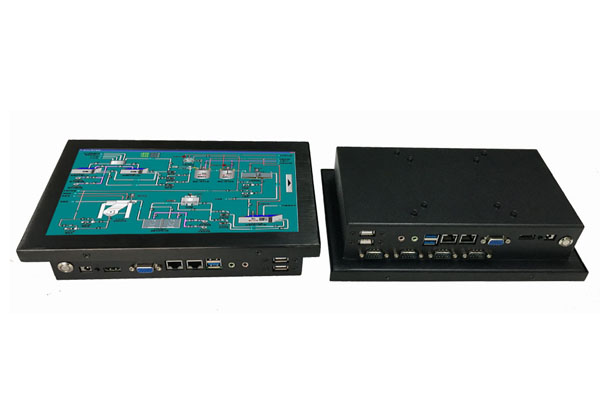

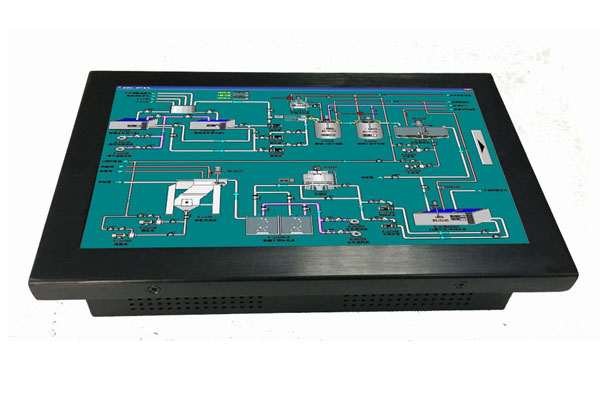

| Working temperature: | -20~70℃ | Product Name: | 10.1inch intel J1900Ghz quad core industrial touch screen panel pc |
| Certification: | ce, RoHS | Dispaly Ratio: | 16:9 |
| Type: | ALL-IN-ONE |
1.10.1'' size
2.CPU: intel J1900 quad core
3.Touch screen
Computer Configurations | ||||||
CPU | intel J1900Ghz quad core | |||||
Memory | 2GB to 4GB | |||||
Built-in Storage | 8GB/16GB/32G EMMC | |||||
Operation System | Window 7/8/10 | |||||
Power Supply | 12V DC power | |||||
Operating Temperature | -20~70° C | |||||
LCD Panel Charateristics | ||||||
Screen Size | 10.1'' industrial grade Panel | |||||
Touchscreen Type(optional) | Resistive touch/Capacitive Touch/SAW Touch/IR Touch | |||||
Resolution | 1280(H)*(RGB)*800(V) | |||||
Aspect Ratio | 16:9 | |||||
High Brightness | 350cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 | |||||

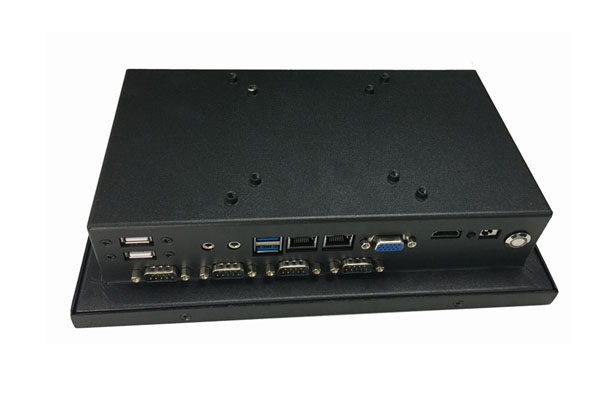

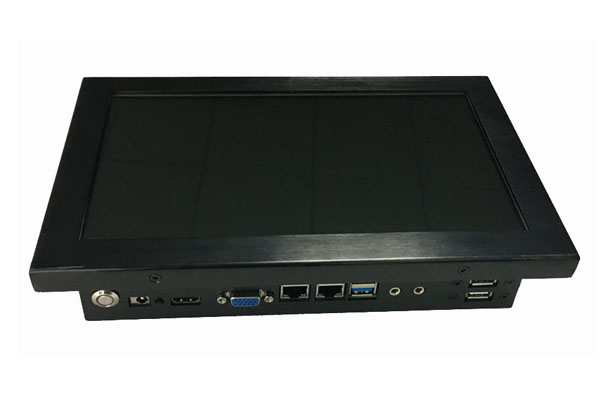

I/O Interface | ||||||
2 x USB2.0, 2 x USB3.0 | 2 x LAN(RJ45) | |||||
1 x VGA | 4 x COM | |||||
Other Information | ||||||
Frame Material | Aluminum Alloy/Stainless Steel | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||
VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default black,also can choose white,slivery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD | |||||
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
