We brought forth range of premium quality range of Shenzhen Innoda Technology Co., Ltd. which we supply and trade. It is designed to meet the industry standard. Shenzhen Innoda Technology Co., Ltd. will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND101PCProducts Status:New
Processor Main Frequency:2.0GhzPanel Type:TFT
Warranty(Year):1-YearContrast Ratio:500:1
Graphics Card Type:Integrated CardOptical Drive Type:No CD ROM
Widescreen:YesInterface Type:usb
Color:BlackDisplay Type:LCD
Use:IndustrialResponse Time:6ms
Processor Brand:IntelDisplay Ratio:16:9
Display resolution:1280*800Plugs Type:US, JP, CN, AU, UK, EU
Series:For BusinessHard Drive Type:SSD
Video Memory Type:With the main memoryPower:230 W
Operating System:Windows 10Feature:Touch Screen
Brightness:350cd/m2, 350cd/m2Screen Type:LCD
Processor Type:Intel CorePixel Pitch:0.276mm
Graphics Card Chipset:Integrated CardRAM Type:DDR3
Chipset Type:Intel H110HDD Rotation Speed:7200 Rpm
Vertical Viewing Angle:80°Mouse & Keyboard:NO
Processor Core:Quad CoreProcessor Series:Intel CORE I7
Video Memory:2 GBVideo Card:Intel HD graphics
After-sales Service:Call Center and on-line Technical Support, Free spare parts, Return and Replacement, RepairCPU:Intel core i7
Resolution:1280*800Memory:2G/4G/8G optional
Storage:32G/64G/128G SSDInterface:RJ-45/USB
OS:Window 10Working temperature:-20~70℃
Power Supply:110V-220V, 12V DC InputProduct Name:10.1inch intel core i7 waterproof touch screen embedded panel pc
Certification:ce, RoHS

Product Description




10.1inch intel core i7 waterproof touch screen embedded panel pc

Features

1.10.1'' size

2.Intel core i7

3.waterproof

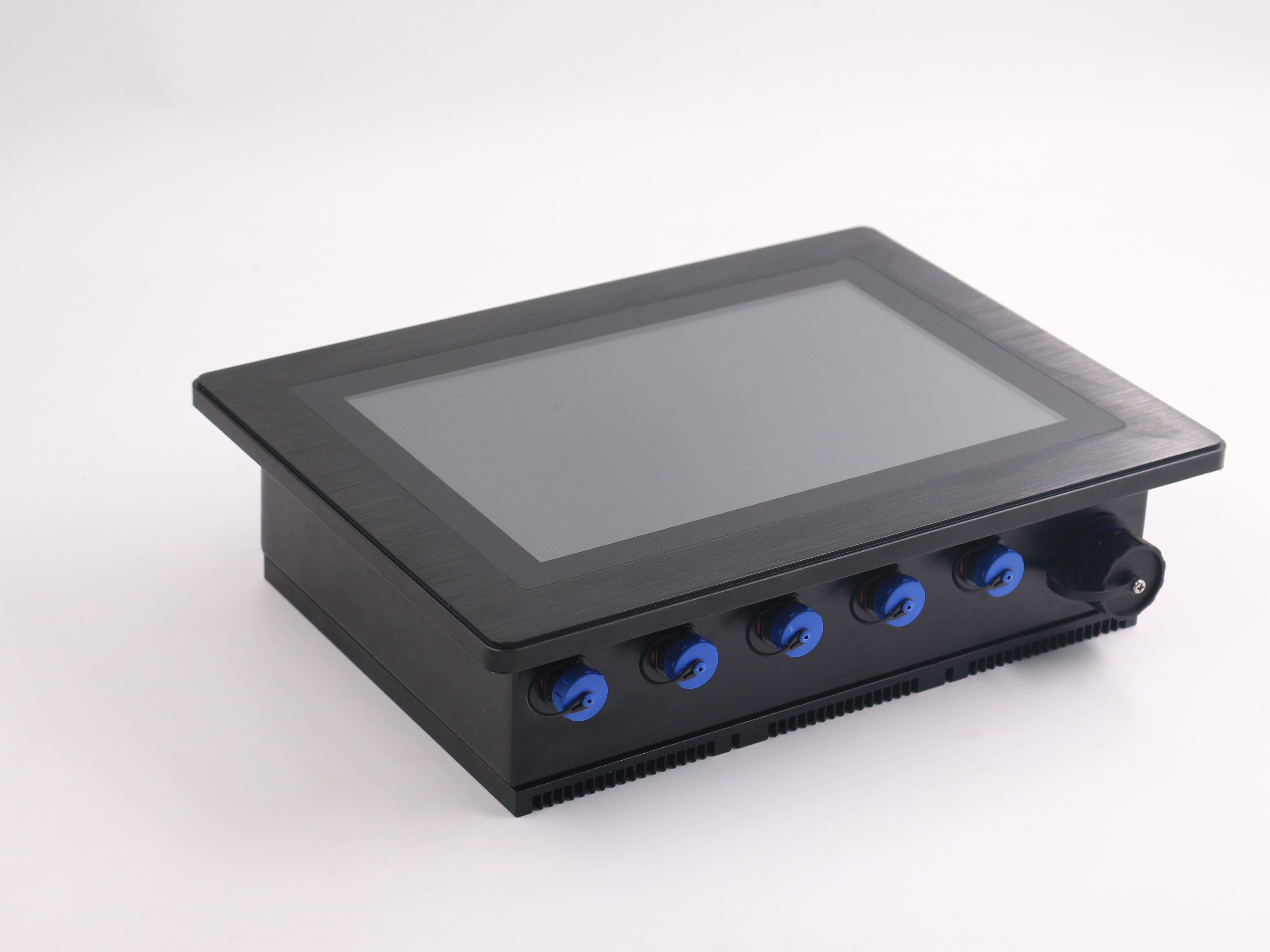

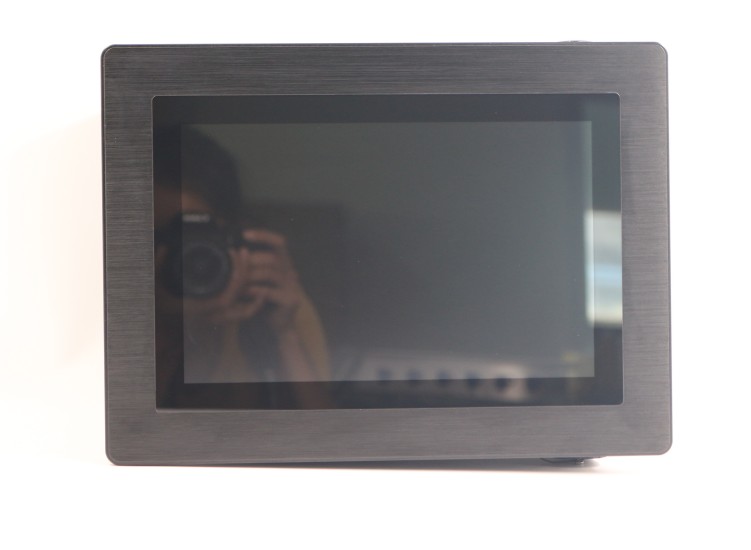

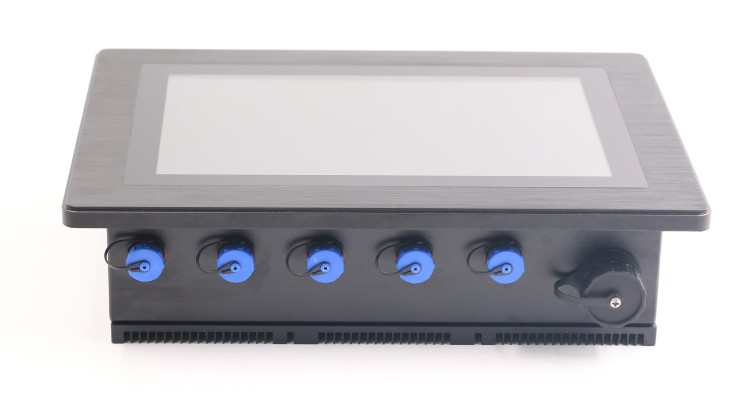

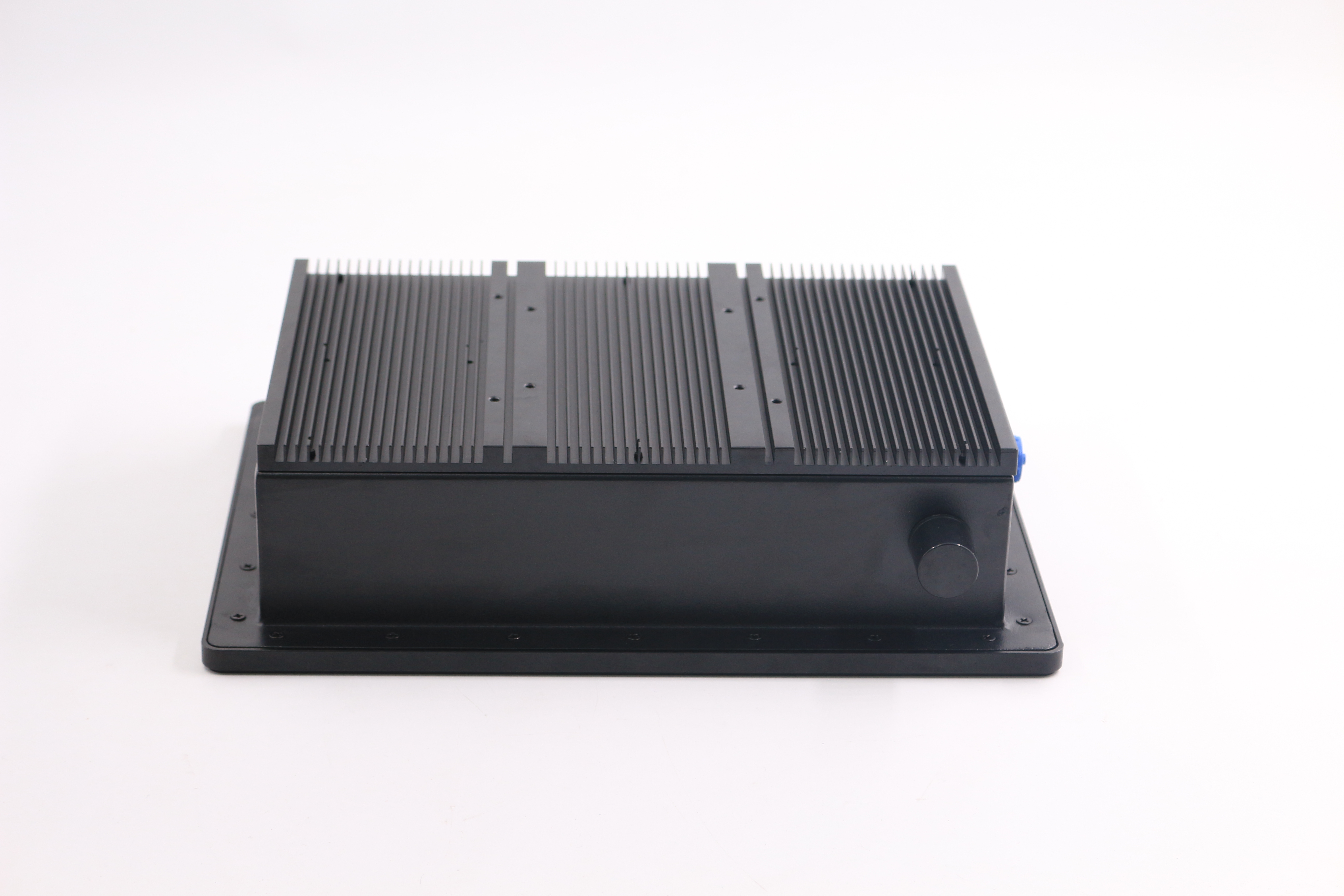

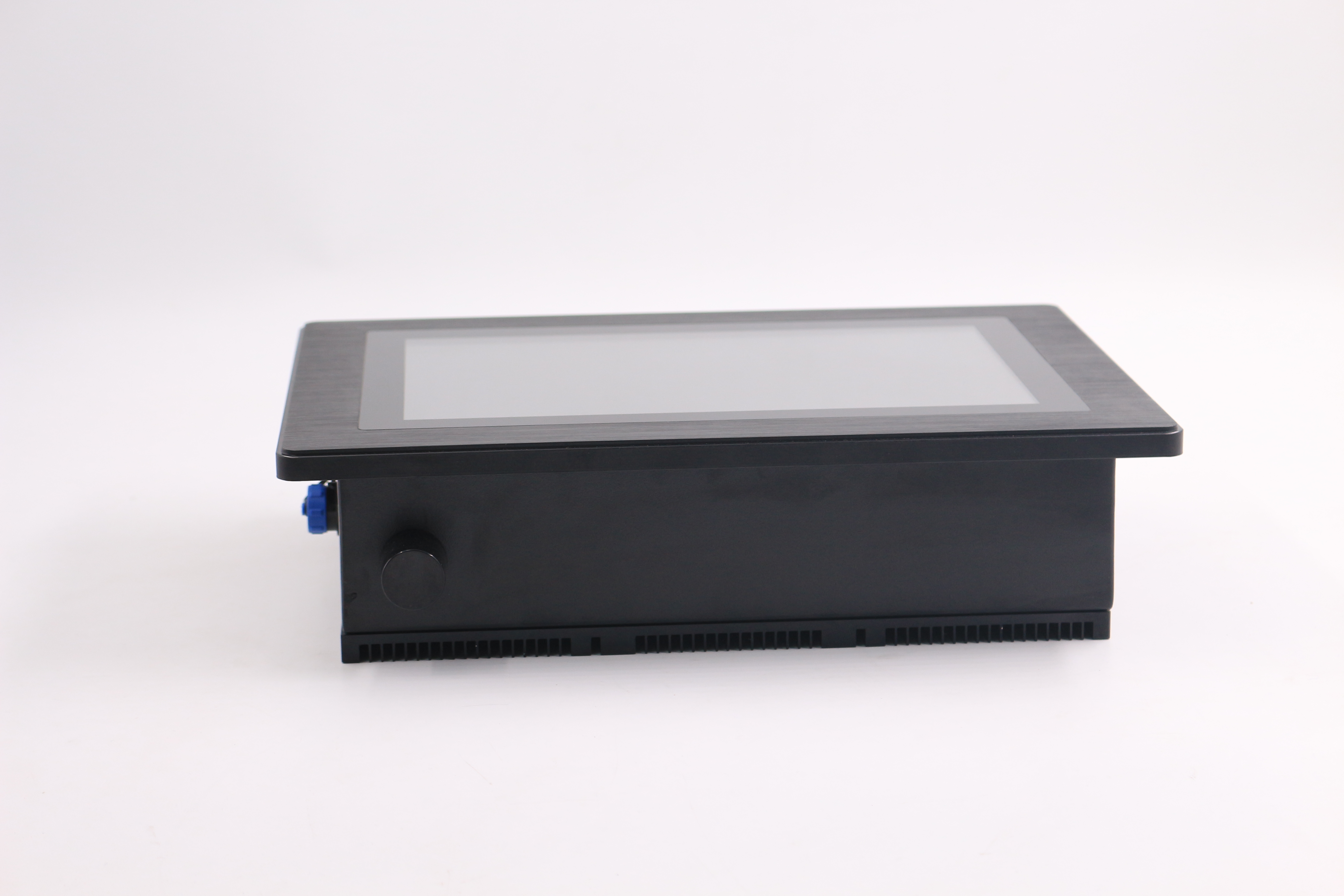

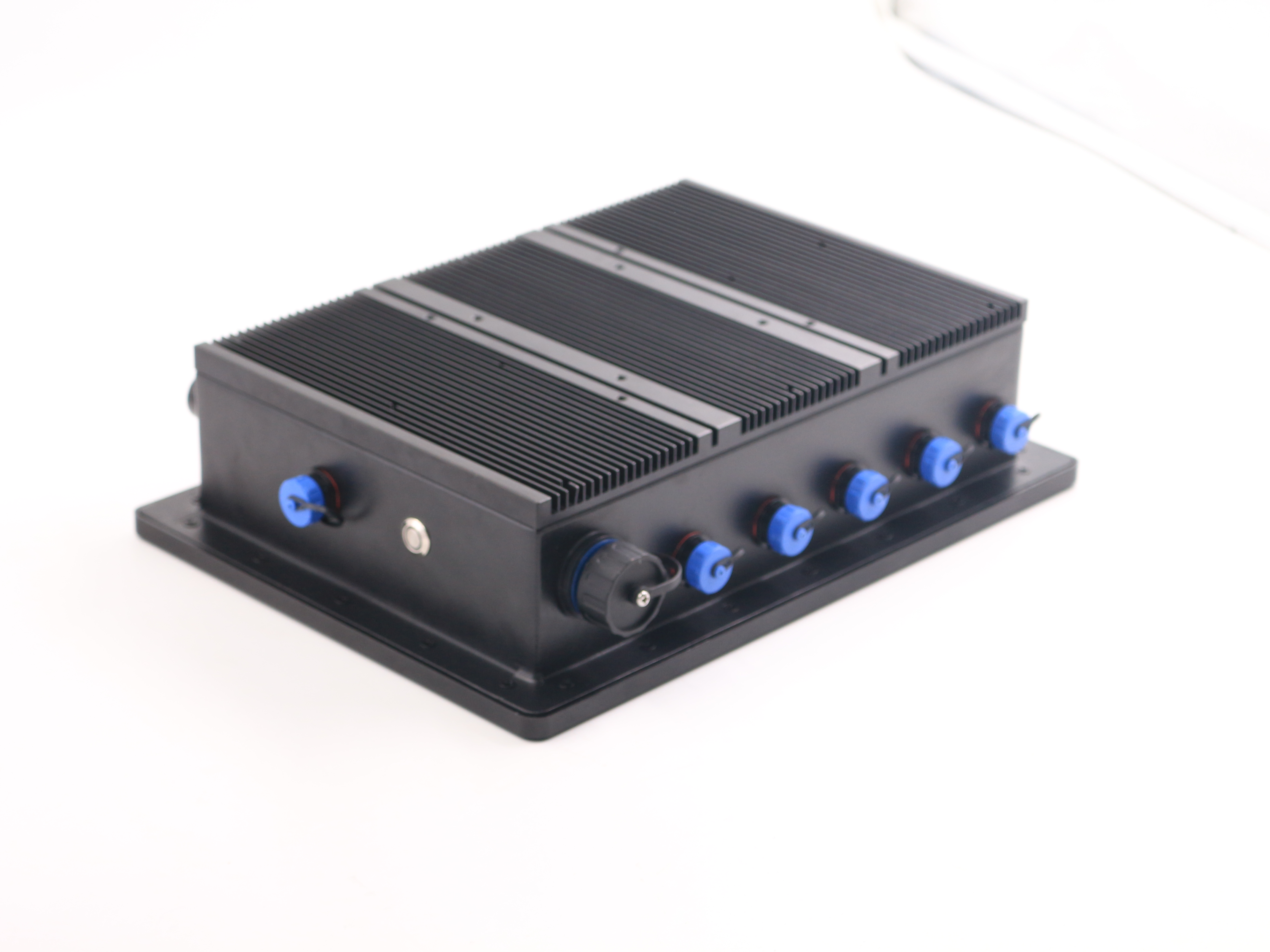

Detailed Images
https://imgbd.weyesimg.com/prod/moving/img/bb74f9dc6f5b06a41a9ad0de2d60258c/8cd971281ff9ac4b7a95eb7ab933bcd5.jpg" class="magic-13" />
Production Parameter
                                                                       Computer Configurations
CPU
Intel core i7
Memory
2GB to 8GB, DDR3
Built-in Storage
32G/64G/128G/1TB SSD
Operation System
win7/8/10,linux, ubuntu
Power Supply
12V DC power
Operating Temperature
-20~70° C
                                                                                   LCD Panel Charateristics
Screen Size
10.1'' industrial grade Panel
Touchscreen Type(optional)
Resistive touch/Capacitive Touch/SAW Touch/IR Touch
Resolution
1280(H)*(RGB)*800(V)
Aspect Ratio
16:9
High Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
700:1
                                                                                   I/O Interface
4 x USB
1xLAN(RJ45)
                                                                                  Other Information
Frame Material
Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft

VASA Mounting
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount

Color
Default black,also can choose white,slivery or other colour
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Customer Feedback
Recommend Products
Customized Function
Packing & Shipping

1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
