Since launched,Shenzhen Innoda Technology Co., Ltd. has been named as one of the best and popular products in our company. The use of the technology contributes to the perfect manufacturing of Innoda.Factory Oem Rs485/Rs232 All In One Desktop Intel J1900/I3/I5 13.3 Inch Touch Screen Fanless Industrial Pc is widely used in the field(s) of Industrial Computer & Accessories and the like. Shenzhen Innoda Technology Co., Ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.
| Products Status: | Stock | Type: | Embedded Computer |
| Brand Name: | INNODA | Place of Origin: | Guangdong, China |

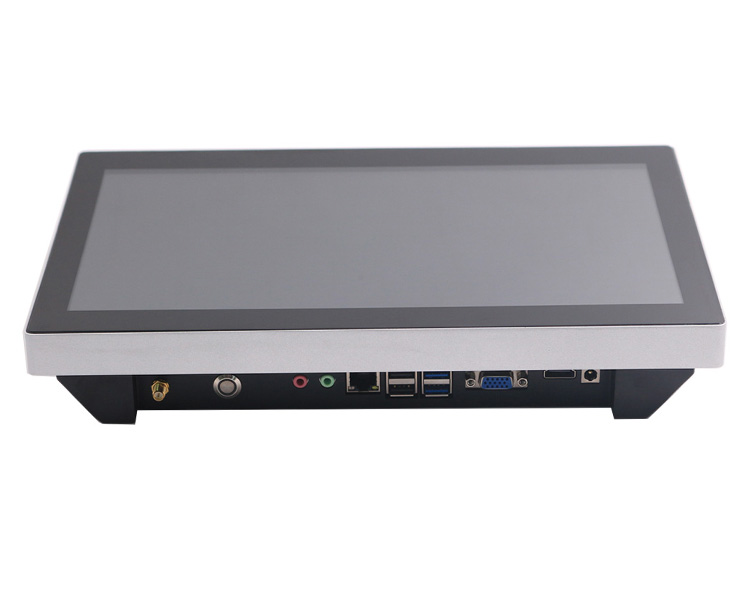

| Product name: | 13.3 Inch Industrial Panel Pc | screen size: | 13.3 inch |
| Operating System: | Win7/8/10/linux | CPU: | J1900 Quad Core |
| RAM: | 2GB/4GB/8GB DDR3 | Storage: | 32G/64G/128G/256G SSD |
| Interface: | VGA/HD MI/USB/RJ45/COM/Audio | input voltage: | 12V DC/9-36V Phoenix terminal |
| Warranty: | 1 Year | Key Words: | Rs485/Rs232 Industrial Panel Pc |
| Certification: | ce, RoHS |
Computer Configurations | ||
CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz | |
Memory | 2GB DDR3(Max. 8GB) | |
Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) | |
Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 | |
Cooling | Fan / Fanless for optional | |
Power Supply | 100V-240V,12V 7A AC Input,max 24W | |
Operating Temperature | -20~60° C (-4~140° F) | |
LCD Panel Charateristics | ||
Screen Size | 13.3'' LCD/LED Panel | |
Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | |
Resoltuion | 1366(H)*(RGB)*768(V) | |
Aspect Ratio | 16:9 | |
Brightness | 350cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 500:1 | |

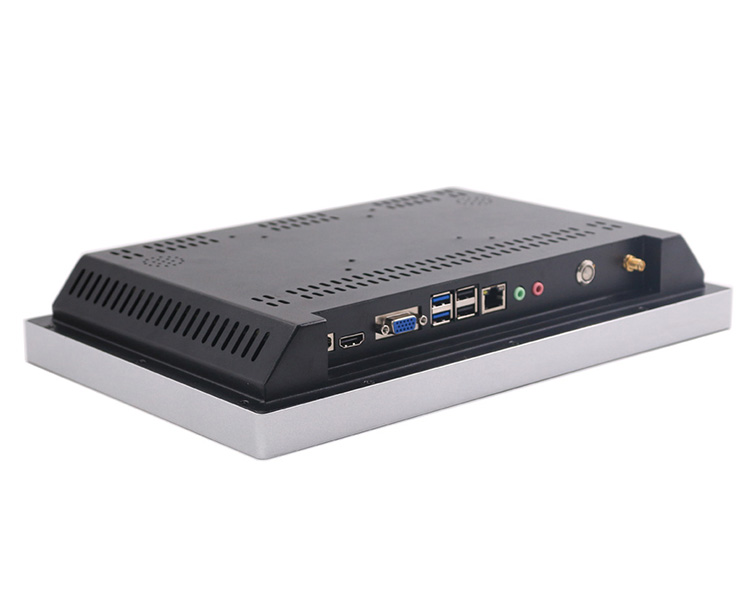

I/O Interface | ||
USB | 2xUSB2.0,2xUSB3.0 | |
VGA | 1xVGA | |
Serial Port(RS232) | 1-2xRS232 | |
LAN(RJ45) | 1-2xRJ45 | |
WIFI | Integrated | |
Powered | 12V DC/ Phoenix terminal 9-36v voltage input | |
Audio Output | Left and Right Chanel Output,8R/5W Loudspeaker | |
Other Function(Optional) | ||
WIFI | 3G/4G Module | |
GPIO Connector | 8-36V wide range voltage | |
CanBus | Webcam | |
Brightness Control in Manual and Auto | RF/NFC Reader | |
Other Information | ||
Frame Material | Aluminum Alloy/Metal Case/Stainless Steel | |
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |
Color | Default balck,also can choose white,silvery or other colour | |
VASA Mounting | 75*75 mm or 100*100 mm(optional) | |
Weight | 3.5KG | |
