Shenzhen Innoda Technology Co., Ltd. devotes many years to developing and producing superb 11.6-Inch Desktop Panel Pc Embedded Linux Ubuntu Touch Rj45 as well as offering professional customer service. It caters to the foreign markets. Our capable staff has been devoted to the improvement and upgrades of technology.In the Desktops,the product is widely used.

Memory Capacity:≥ 4GBProducts Status:Stock
Type:ALL-IN-ONEScreen Size:11.6''
Processor Brand:IntelHard Drive Capacity:500GB
Graphics Card Type:Integrated CardDisplay Type:LCD
Widescreen:YesOptical Drive Type:CD-ROM
Processor Main Frequency:1.6GHZBrand Name:INNODAPC
Model Number:IND116PCCTS4L64Place of Origin:Guangdong, China
CPU:Intel I7-4510UTouchscreen Type:Capacitive touchscreen/Resistive touch/IR
Working Voltage:12V DCLAN Port:2xRJ45
4G Module:YesCertificate:CE,ROHS
Warranty:12monthsOperating System:Linux/Ubuntu 14.04 LTS/Win 7/8/10
Logo:Your Logo is acceptableProduct Name:11.6-Inch Desktop Panel Pc Embedded Linux Ubuntu Touch Rj45

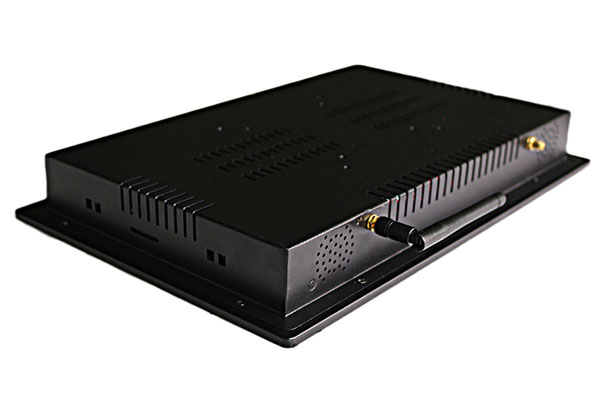

11.6-Inch Desktop Panel Pc Embedded Linux Ubuntu Touch Rj45





Features

1.11.6inch touch panel pc with Intel Core I7-4510U Processor

2.4G module built-in

3.Metal Sheel,Front panel adopt unique technic CNC

4.Robust durable aluminum shell.Dustproof,shockproof,impact resistance,fanless,fully     sealed,resistance to harsh environment

5. Unique ventilation design,Efficient heat dissipation

6.12months warranty

Detailed Images



Product Description
Computer Configurations
CPUIntel Core I7-4510U/1.6GHz
Memory2GB to Max. 8GB, DDR3
Storage320GB to 1TB, 32GB to 128GB SSD
Operation System

Support Linux/Ubuntu 14.04 LTS/Windows 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

CoolingFan / Fanless for optional
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size11.6'' LCD/LED Panel
Touchscreen Type(optional)4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch
Resoltuion1366(H)*(RGB)*768(V)
Aspect Ratio16:9
Brightness350cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio500:1



I/O Interface
USB3xUSB2.0,1xUSB3.0
VGA1xVGA
Serial Port(RS232)1-2xRS232
HDMI1xHDMI
LAN(RJ45)1-2xRJ45
Other Function(Optional)
WIFI3G/4G Module
GPIO Connector8-36V wide range voltage
BluetoothWebcam
Brightness Control in Manual and Auto RF/NFC Reader



Other Information
Frame MaterialAluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm
Product Dimension(LxWxH)340x220x42mm
Packing Dimension(LxWxH)43x18x36cm
Weight4.5KG
Customized Function

Main Products
Application

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

FAQ

1.What is the MOQ?

---1pc sample is ok.



2. Could we have our own design?

----Yes, ODM/OEM is acceptable. Just tell us your request of the product,our R&D team will try to meet your needs.



3. Can i have my brand name(logo) on the product?

----No problem, just send us your logo design and pay the cost.



4.What about the after-service?

----1 year warranty. If product have any problems, pls contact us, and take some photos,videos. It's better for our engineer to find the reason and solve it.



5.How to ship it to my country?

---Usually the goods will be ship by DHL/Fedex/UPS/TNT....and so on. 3-5 working days arrival.



6.How long is the delivery time?

-----10-15working days upon receive the payment.
