10'' rack-mount touch screen mini pc windowsed embedded industrial pc companies spend so much time coming up with various products to reach diverse consumer needs. 10'' rack-mount touch screen mini pc windowsed embedded industrial pc developed on the premise of market trends and customer pain points have become the new vane of the industry. In essence, product performance and its quality are largely decided by its raw materials. In terms of raw materials of 10'' rack-mount touch screen mini pc windowsed embedded industrial pc, they have gone through plenty of tests on their chemical components and performance. In this way, the Shenzhen Innoda Technology Co., Ltd. quality is guaranteed from the source.

Memory Capacity:2gbProducts Status:Stock
Type:ALL-IN-ONEScreen Size:10.1''
Processor Brand:IntelHard Drive Capacity:500GB
Graphics Card Type:Integrated CardDisplay Type:LCD
Widescreen:NOOptical Drive Type:CD-ROM
Processor Main Frequency:2.0GHzBrand Name:INNODAPC
Model Number:IND101PCPlace of Origin:Guangdong, China
Touch Type:capacitive touchResolution:1024*600
CPU:Intel J1900Voltage:12V DC
Material:Aluminum alloyColor:Black/white/silver...etc
I/O port:USB2.0,USB3.0,LAN,VGA......Logo:Your logo is accetpable
Operating System:Linux/Ubuntu/Win7,win8,win10Product Name:10'' rack-mount touch screen mini pc windowsed embedded industrial pc

10'' rack-mount touch screen mini pc windowsed embedded industrial pc



Features

1.10inch industrial pc with J1900/2.0Ghz CPu

2. Robust durable aluminum shell.Dustproof,shockproof,impact resistance,fanless,fully sealed,resistance to harsh environment

3.Fanless design,Unique ventilation design,Efficient heat dissipation

4.Installtion:panel type embedded,embedded,wall-mounted,desktop,rack-mounted

5.CE,ROHS

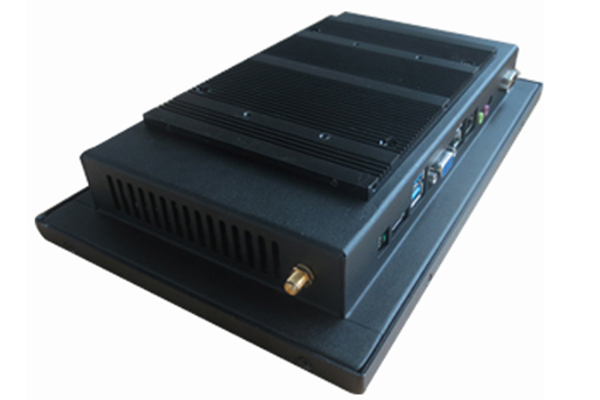

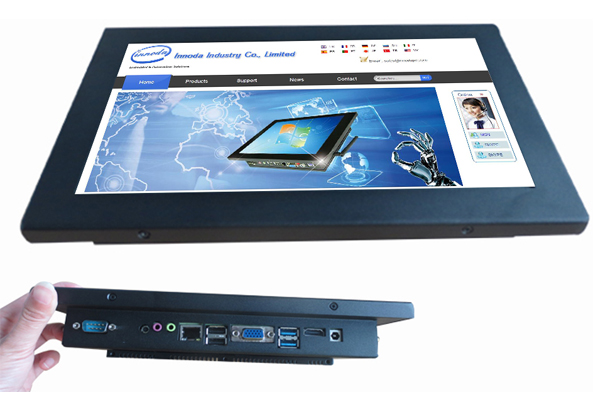

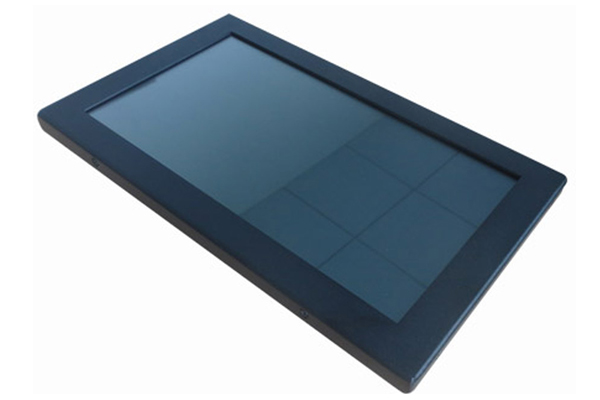

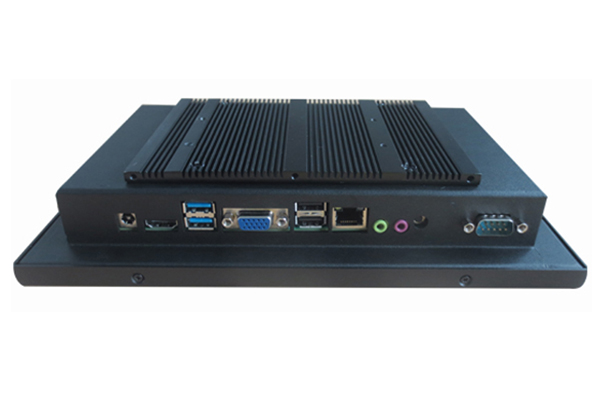

Detailed Images



Product Description
Computer Configurations
CPUIntel Celeron® Processor J1900 Quad Core 2.0GHz
Memory2GB DDR3(Max. 8GB)
Storage32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win 7/8/10

Default with Win 7 OS Testing Version is preloaded.

CoolingFan / Fanless for optional
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size10.1'' LCD/LED Panel
Touchscreen TypeCapacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion1024(H)*(RGB)*600(V)
Aspect Ratio4:3
Brightness350cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio500:1



I/O Interface
USB3xUSB2.0,1xUSB3.0
VGA1xVGA
Serial Port(RS232)1-2xRS232
LAN(RJ45)1-2xRJ45
Other Function(Optional)
WIFI3G/4G Module
GPIO Connector8-36V wide range voltage
BluetoothWebcam
Brightness Control in Manual and Auto RF/NFC Reader



Other Information
Frame MaterialMetal Case/Aluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm
Product Dimension(LxWxH)TBD
Packing Dimension(LxWxH)TBD
Weight6KG
Customized Function

Main Products
Application

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

FAQ

1.What is the MOQ?

---1pc sample is ok.



2. Could we have our own design?

----Yes, ODM/OEM is acceptable. Just tell us your request of the product,our R&D team will try to meet your needs.



3. Can i have my brand name(logo) on the product?

----No problem, just send us your logo design and pay the cost.



4.What about the after-service?

----1 year warranty. If product have any problems, pls contact us, and take some photos,videos. It's better for our engineer to find the reason and solve it.



5.How to ship it to my country?

---Usually the goods will be ship by DHL/Fedex/UPS/TNT....and so on. 3-5 working days arrival.



6.How long is the delivery time?

-----10-15working days upon receive the payment.

Company Information

Innoda Technology  Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type monitors.Engineers have at least 6years experiance in all in one pc filed.



OEM/ODM is our strong points. Customized design is welcome.



Pls feel free to contact us as below methods, we will response to you in time.

Phone/whatsapp: 0086 134 28940129

Tel:       0086-0755-29108731

Skype:  innodapc1
