In the past months,Shenzhen Innoda Technology Co., Ltd. has been devoted to serious design and innovative development of the new product. It is officially called Cheap Computer PC Embedded 10.4 inch 12.1inch Touch Screen Mini PC and releases to the market since today. The reason why products are loved by the market is the emphasis on high-tech research and development. Our featured Cheap Computer PC Embedded 10.4 inch 12.1inch Touch Screen Mini PC providers ensure top quality product that will be ideal for all kinds of applications.

Products Status:StockType:Industrial Computer
Brand Name:INNODAPCPlace of Origin:Guangdong, China
Product name:Cheap Computer PC Embedded 10.4 inch 12.1inch Touch Screen Mini PCTouchscreen Type:10 points capacitive touch sreen/resistive
CPU:Intel J1900 Quad core 2.0GhzVoltage:12V DC
LAN:1*RJ45USB:1* USB 3.0+3*USB 2.0
Operating System:Linux/Ubuntu 14.04 LTS/Win 8/10Warranty:12months
Key Words:Industrial Pc,touch screen pc,Intel CPU J1900Material:Aluminum shell / Stainless Steel
Certification:ce, RoHS



INNODA Cheap Computer PC Embedded 10.4 inch Touch Screen Integrated PC



1.Watchdog Timer

2.Intel J1900 2.0GHz processor

3.8bit GPIO / USB3.0 / RS232

4.Front panel IP65 standard

5.8-36V power supply for Vehicle

6.Enclosure adopt CNC Technic

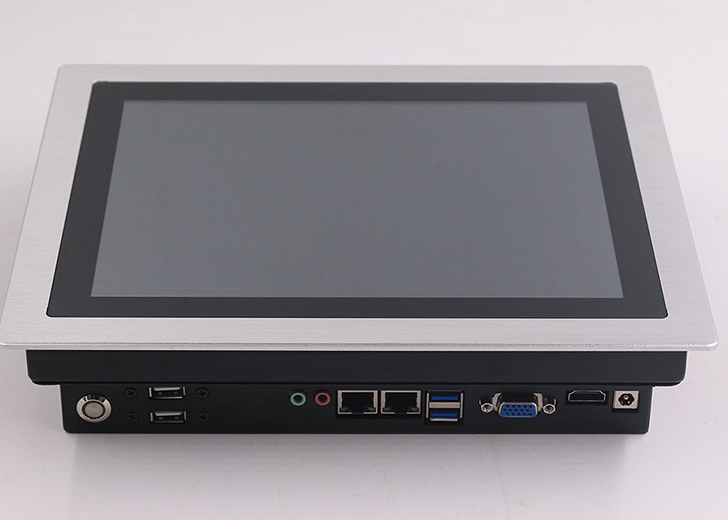

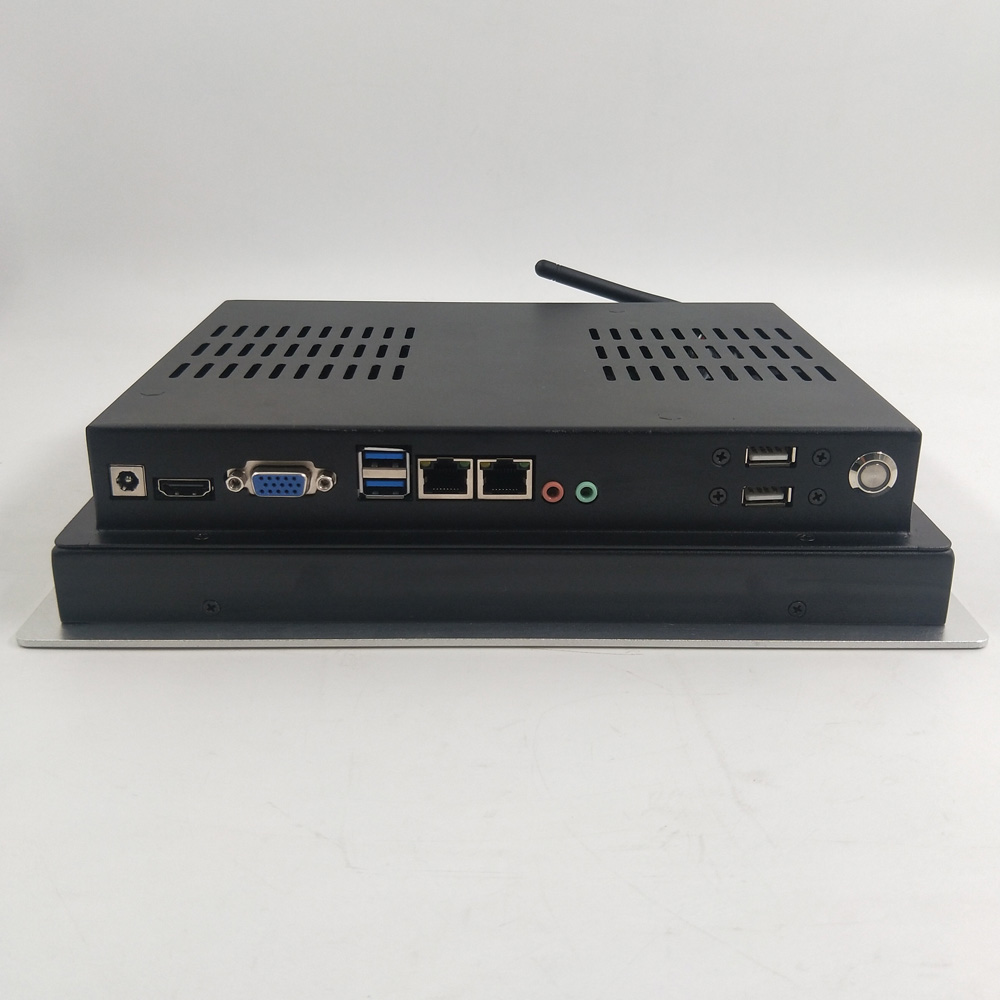

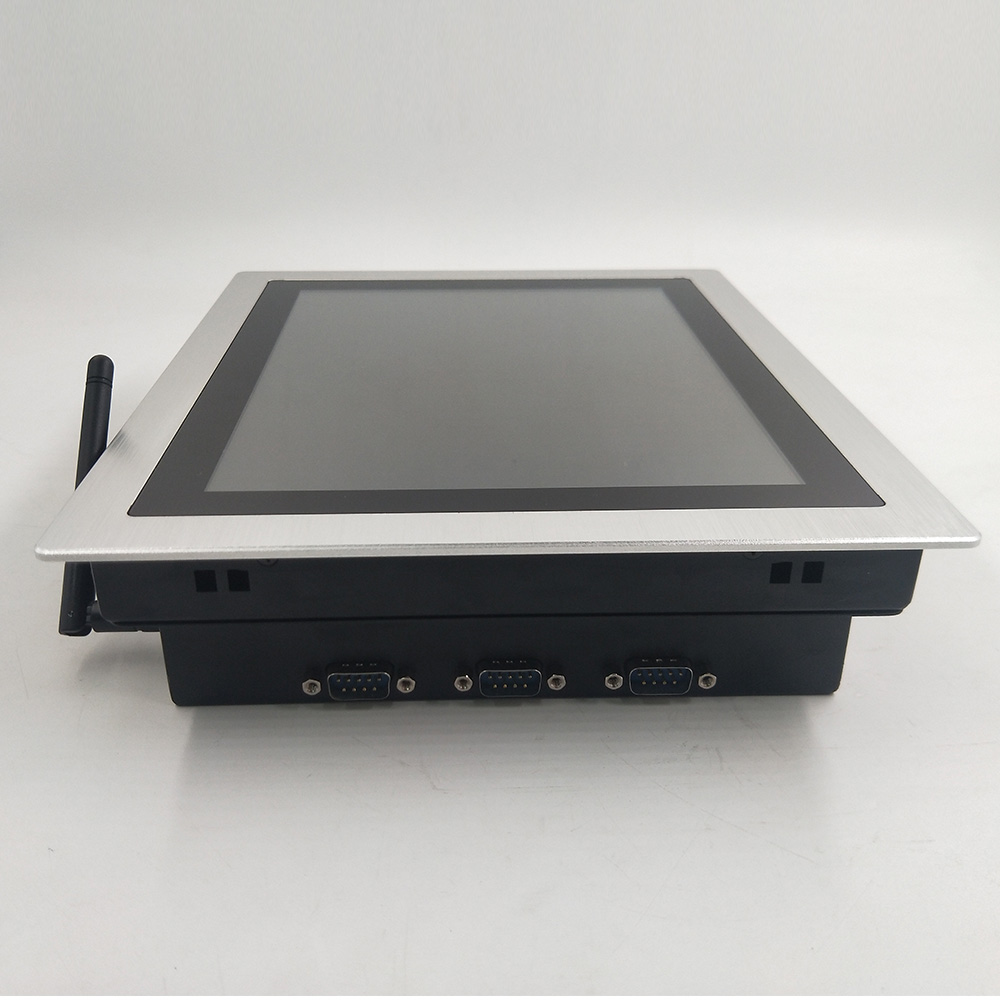

Detailed Images





Product Description
Computer Configurations
CPU Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory 2GB DDR3(Max. 8GB)
Storage 32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win 7/8/10

Default with Win 7 OS Testing Version is preloaded.

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 10.4'' LCD/LED Panel
Touchscreen Type Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion 1024(H)*(RGB)*768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 500:1



I/O Interface
USB 3xUSB2.0,1xUSB3.0
VGA 1xVGA
Serial Port(RS232) 1-2xRS232
LAN(RJ45) 1-2xRJ45
Other Function(Optional)
WIFI 3G/4G Module
GPIO Connector 8-36V wide range voltage
CanBus Webcam
Brightness Control in Manual and Auto  RF/NFC Reader



Other Information
Frame Material Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour
VASA Mounting 75*75 mm or 100*100 mm
Product Dimension(LxWxH) TBD
Packing Dimension(LxWxH) TBD
Weight 6KG



Customer Comments

Customized Function

Main Product

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

Application

Company Information

Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
