1.12.1'' size
2.Intel Processor i7-4510u Quad core 2.0GHz

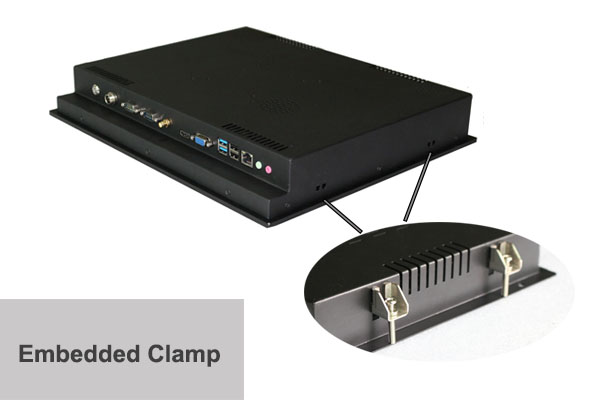

3.embedded clamp
4.I/O :VGA/H-D-MI/COM/LAN/USB/WIFI/DC
Thanks to the efforts of our staff,Shenzhen Innoda Technology Co., Ltd. can launch our 12.1inch Intel Processor i7 quad core industrial embedded panel pc release meeting as scheduled. Our Desktops is supplied with a competitive price . After 12.1inch Intel Processor i7 quad core industrial embedded panel pc launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Thanks to our creative designers,INNODAPC has the appearance which is designed to catch up with the latest industry trend. Adopting reliable raw materials which have passed the tests of our QC inspectors, 12.1inch Intel Processor i7 quad core industrial embedded panel pc has some reliable performance.
Warranty(Year): | 1-Year | Color: | Black |
Display resolution: | 1024x768 | Dispaly Ratio: | 4:3 |
Plugs Type: | US, JP, CN, AU, UK, EU | Series: | For Business |
Hard Drive Type: | SSD | Video Memory Type: | With the main memory |
Power: | 230 W | Operating System: | Windows 10, Window7/ 8/10 Linux |
Graphics Card Chipset: | Integrated Card | RAM Type: | DDR3 |
Chipset Type: | Intel H110 | HDD Rotation Speed: | 7200 Rpm |
Mouse & Keyboard: | No | Processor Core: | Quad Core |
Video Memory: | 2 GB | Video Card: | Intel HD graphics |
After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair | Products Status: | New |
Type: | ALL-IN-ONE | Screen Size: | 12.1" |
Processor Brand: | Intel | Graphics Card Type: | Integrated Card |
Display Type: | LCD | Widescreen: | NO |
Optical Drive Type: | No CD ROM | Processor Main Frequency: | 2.0ghz |
Brand Name: | INNODAPC | Model Number: | IND121PC |
Place of Origin: | Guangdong, China | Use: | Industrial |
CPU: | Intel processor i7-4510u Quad core 2.0Ghz | Size: | 12.1inch |
Resolution: | 1024*768 | Brightness: | 350cd/m2 |
Touch screen: | Resistive Touch Screen | I/O Ports: | VGA/H-D-MI/COM/LAN Port/USB/WIFI/DC |
Power Supply: | 110V-220V,12V DC Input | Working Temperature: | -20~70℃ |
Product Name: | 12.1inch Intel Processor i7 quad core industrial embedded panel pc | Certification: | ce, RoHS |
1.12.1'' size
2.Intel Processor i7-4510u Quad core 2.0GHz
3.embedded clamp
4.I/O :VGA/H-D-MI/COM/LAN/USB/WIFI/DC
Computer Configurations | ||||||
CPU | Intel Processor i7-4510u Quad core 2.0ghz | |||||
Memory | 2GB to 8GB, DDR3 | |||||
Built-in Storage | 32G/64G/128G/1TB SSD | |||||
Operation System | win7/8/10,linux | |||||
Power Supply | 12V DC power | |||||
Operating Temperature | -20~70° C |
LCD Panel Charateristics | ||||||
Screen Size | 12.1'' industrial grade Panel | |||||
Touchscreen Type(optional) | Resistive touchscreen | |||||
Resoltuion | 1024(H)*(RGB)*768(V) | |||||
Aspect Ratio | 4:3 | |||||
High Brightness | 350cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 |
I/O Interface | ||||||
4 x USB2.0 | 1xLAN(RJ45) | |||||
1xH-D-MI | 1xVGA | |||||
1 x WIFI | 1 x DC | |||||
1 x COM |
Other Information | ||||||
Frame Material | Aluminum Alloy/Stainless Steel | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||
VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default black,also can choose white,silvery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
