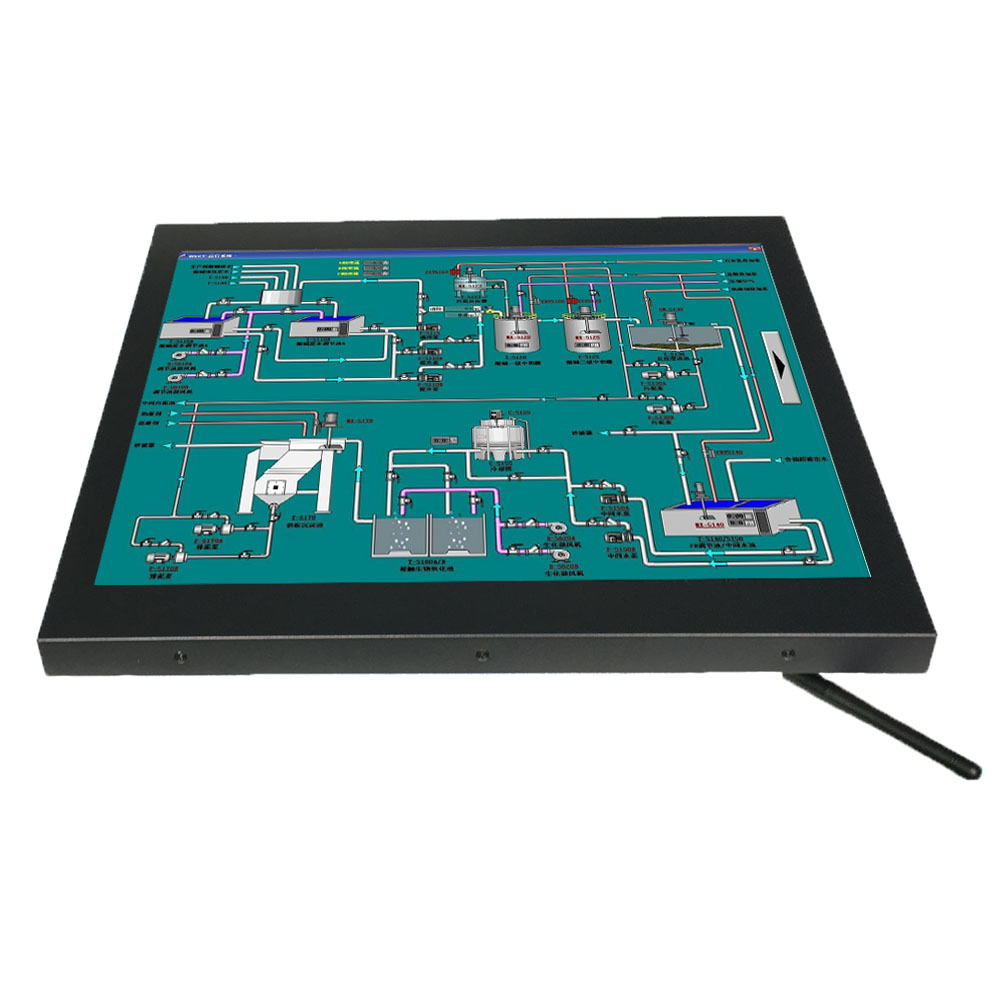

At present, the basic rules of design in our company are to keep customer-oriented and industry-driven. Our 17 inch fanless industrial Square display panel pc sunlight readable all in one computer with 3g WIFI HD capacitive touchscreenhas a look that is unique enough to grab the attention of most of the customers. Moreover, it has the tested performance and so on. These aspects can prove the value of the product. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of All in One Computers. Shenzhen Innoda Technology Co., Ltd. always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.

Place of Origin:Guangdong, ChinaBrand Name:INNODA
Model Number:IND170PCSI2COMProducts Status:New
Processor Main Frequency:1.8GhzWarranty(Year):1-Year
Graphics Card Type:Integrated CardOptical Drive Type:No CD ROM
Widescreen:NOColor:Black
Screen Size:17"Display Type:LCD
Use:IndustrialProcessor Brand:Intel
Display resolution:1280*1024Plugs Type:US, JP, CN, AU, UK, EU
Series:For BusinessHard Drive Type:SSD+HDD
Video Memory Type:With the main memoryPower:350 W
Operating System:Windows 10, Win10/LinuxGraphics Card Chipset:Integrated Card
RAM Type:DDR3Chipset Type:Intel H55
HDD Rotation Speed:5400 RPMMouse & Keyboard:Yes
Processor Core:Quad CoreVideo Memory:Other
Video Card:NVIDIA GeForce GT 650MAfter-sales Service:Return and Replacement
Certification:ce, RoHSDispaly Ratio:5:4
Type:ALL-IN-ONEProduct Name:industrial panel pc sunlight readable all in one computer
CPU:J1900 Quad CoreMemory:4GB
Storage:32G/64G/128G/256G SSDTouch screen:4/5 Wire Resistive Touch/Capacitive/IR/SAW
LAN:2 LANCOM:2xRS232
USB:2*USBWarranty:1 Year

Recommend Products
Product Paramenters
Computer Configurations
CPU
Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory
2GB DDR3(Max. 8GB)
Storage
32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System
Linux/Ubuntu 14.04 LTS/Win 7/8/10
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W
Operating Temperature
-20~60° C (-4~140° F)
LCD Panel Charateristics
Screen Size
17'' LCD/LED Panel
Touchscreen Type
4/5Resistive Touch(Capacitive/IR/SAW option)
Resoltuion
1280(H)*(RGB)*1024(V)
Aspect Ratio
4:3
Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
1000:1
I/O Interface
USB
3xUSB2.0,1xUSB3.0
VGA
1xVGA
Serial Port(RS232)
1-2xRS232
LAN(RJ45)
1-2xRJ45
LVDS/EDP Output
Up to 1920*1200
Audio Output
Left and Right Chanel Output,8R/5W Loudspeaker
Other Function(Optional)
WIFI
3G/4G Module
GPIO Connector
8-36V wide range voltage
CanBus
Webcam
RF/NFC Reader
optional
Other Information
Frame Material
Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft
Color
Default balck,also can choose white,silvery or other colour
VASA Mounting
75*75 mm or 100*100 mm(optional)
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Weight
6KG
Details Images

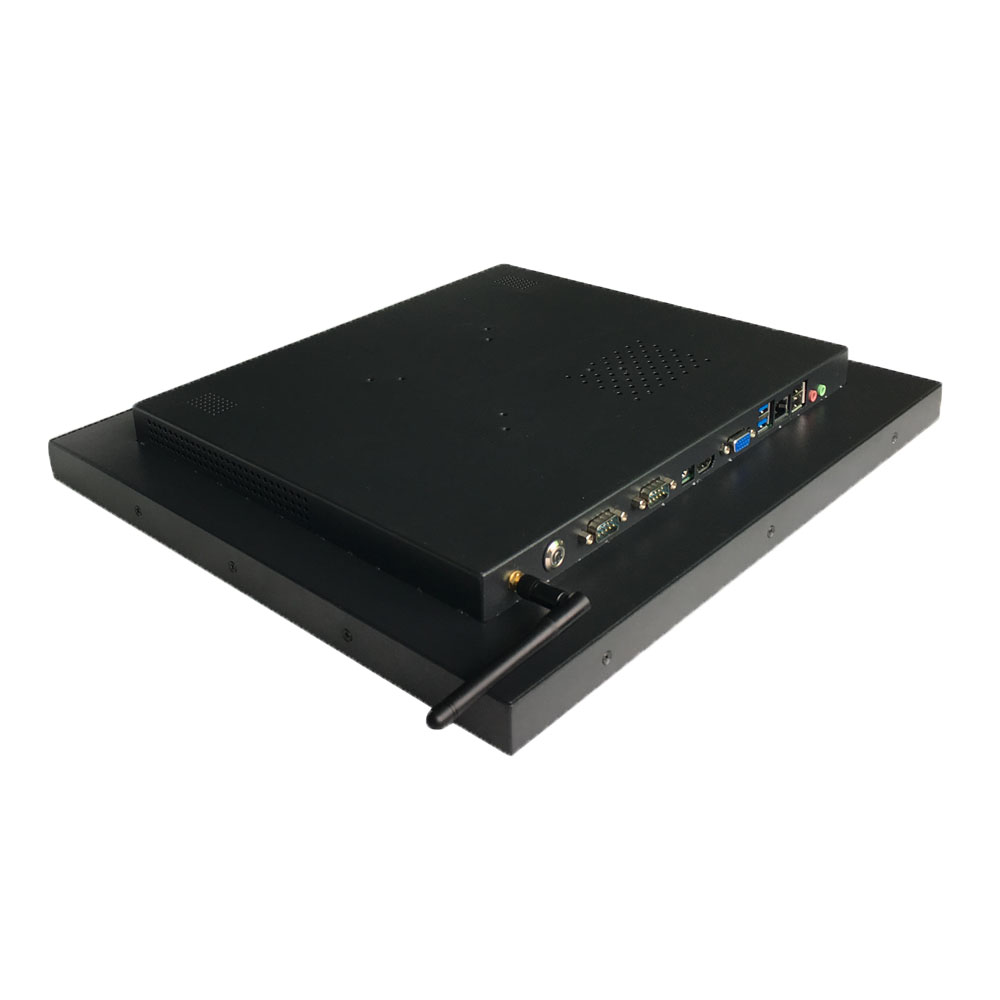

https://imgbd.weyesimg.com/prod/moving/img/bb74f9dc6f5b06a41a9ad0de2d60258c/33a97d47405d9ebec241ef24330de6cd.jpg" class="magic-22" />
Customizied Function
Main Products

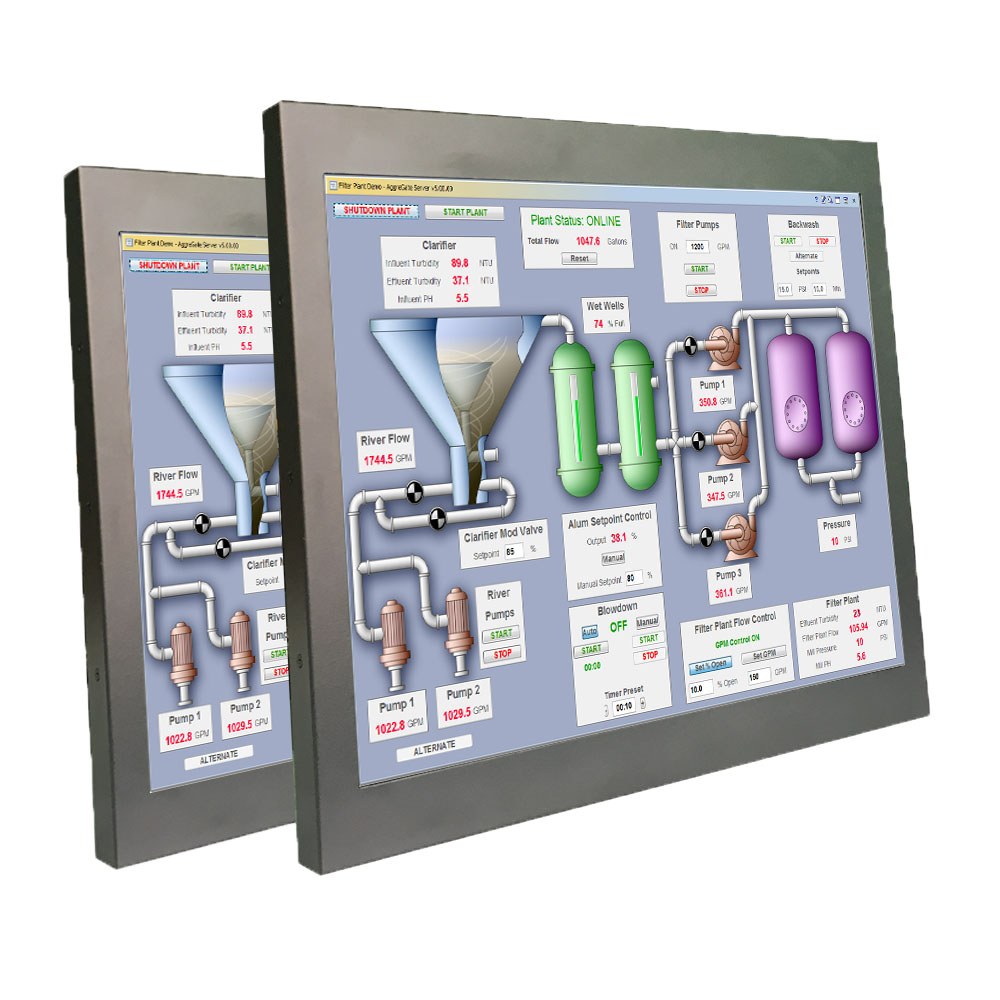

Industrial Panel PC
All In One PC
CNC Technical PC
Industrial Monitor

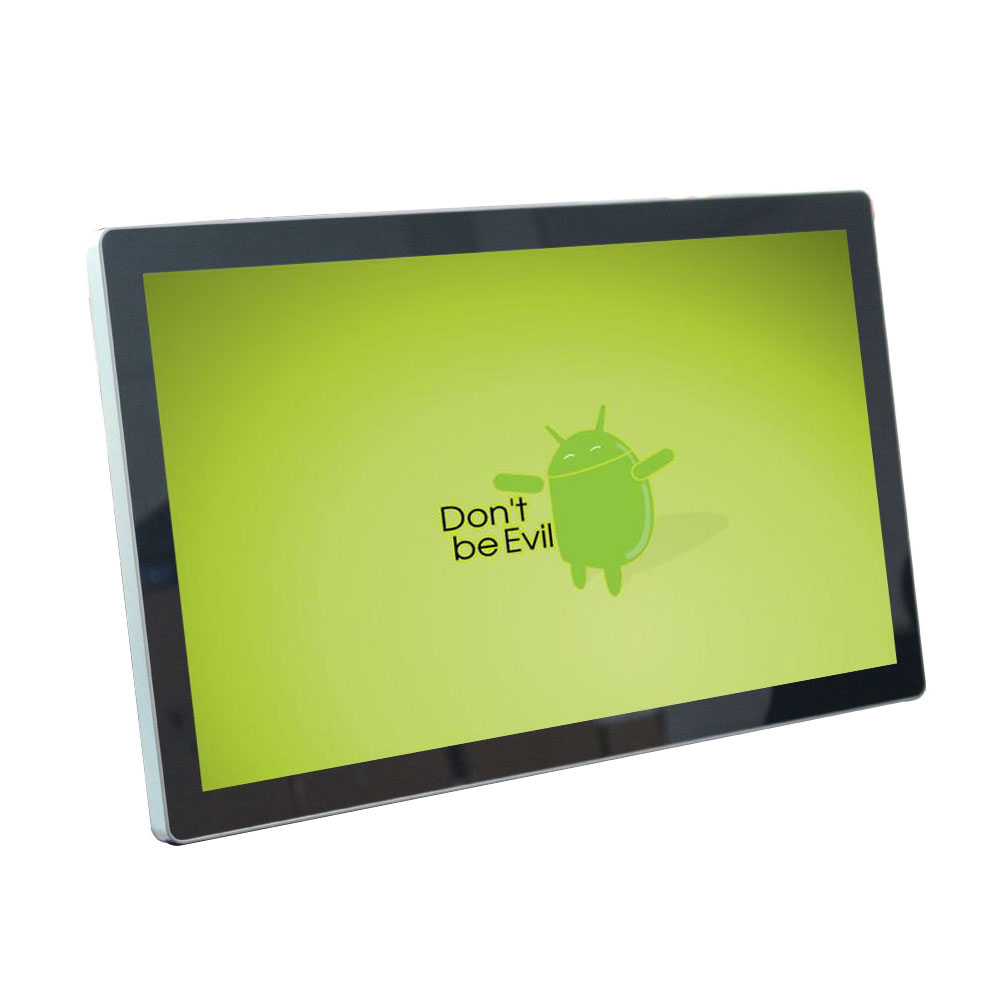

Android Panel PC
Application
Product packaging
Company Profile
Innoda Technology Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type
monitors.Engineers have at least 6years experiance in all in one pc filed.


OEM/ODM is our strong points. Customized design is welcome.
