It is the utilization of technology that contributes to the high-efficiency manufacturing of the product. In the field(s) of Industrial Computer & Accessories , it is highly accepted and widely used. Since launched, 10.4 inch embedded touch screen all-in-one panel pc with 4G DDR3 2*LAN 3*COM has been receiving mounting acclaim from customers. Influenced by the market trends and customers' requirements, the design of Shenzhen Innoda Technology Co., Ltd. is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Products Status:StockType:Panel PC
Brand Name:INNODAPlace of Origin:Guangdong, China
Product name:embedded touchscreen Windows panel pcscreen size:10.4inch
Operating System:Win7/8/10/linuxCPU:J1900/I3/I5/I7
RAM:2GB/4GB/8GB DDR3Storage:32G/64G/128G/256G SSD
Interface:VGA/USB/RJ45/COM/Audioinput voltage:12V DC
Warranty:1 YearCertification:ce, RoHS

Product Paramenters
Computer Configurations
CPU
Intel J1900
Memory
4GB DDR3(Max. 16GB)
Storage
64G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System
Linux/Ubuntu 14.04 LTS/Win 7/8/10
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W
Operating Temperature
-20~60° C (-4~140° F)
LCD Panel Charateristics
Screen Size
10.4' LCD/LED Panel
Touchscreen Type
Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion
1024(H)*(RGB)*768(V)
Aspect Ratio
4:3
Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
500:1
I/O Interface
USB
2*USB3.0(optional )
VGA
1*VGA
Serial Port(RS232)
3*RS232
LAN(RJ45)
2*RJ45
WIFI
Integrated
Powered
12V DC/ Phoenix terminal 9-36v voltage input
RFID
1*RFID
Other Function(Optional)
WIFI
3G/4G Module
GPIO Connector
8-36V wide range voltage
CanBus
Webcam
Brightness Control in Manual and Auto
RF/NFC Reader
Other Information
Frame Material
Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft
Color
Default balck,also can choose white,silvery or other colour
VASA Mounting
75*75 mm or 100*100 mm(optional)
Weight
3.5KG

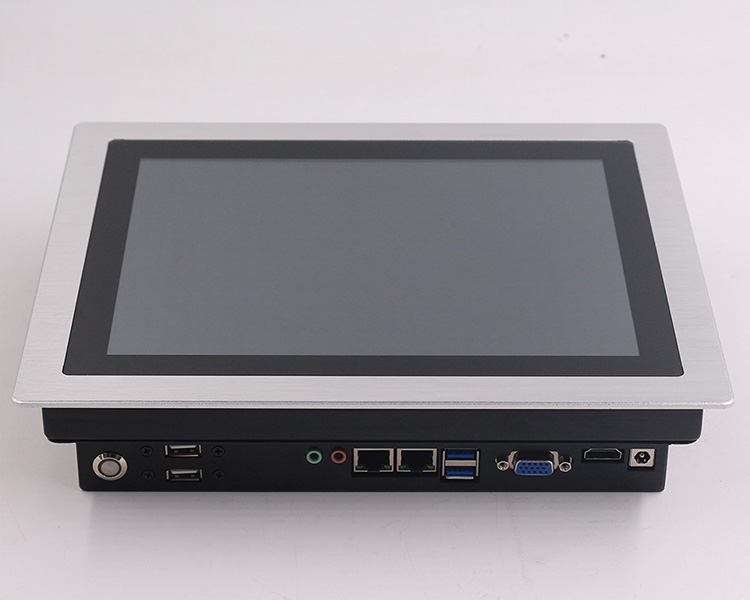

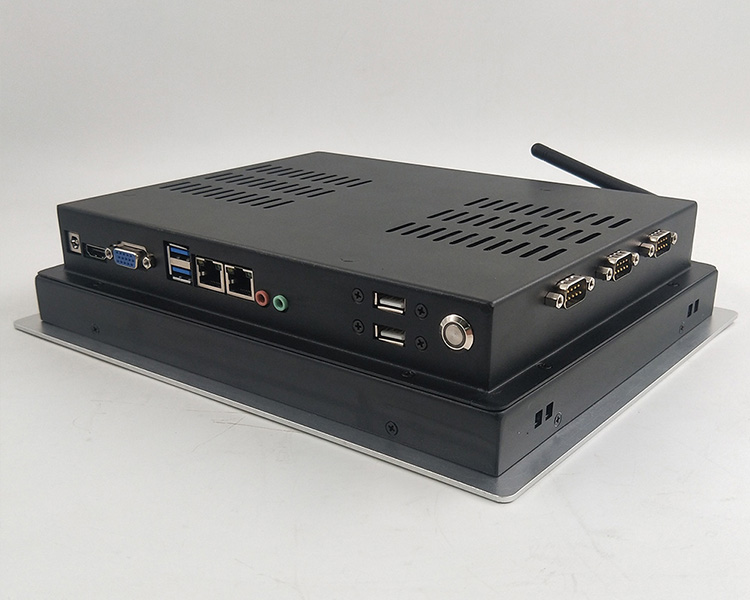

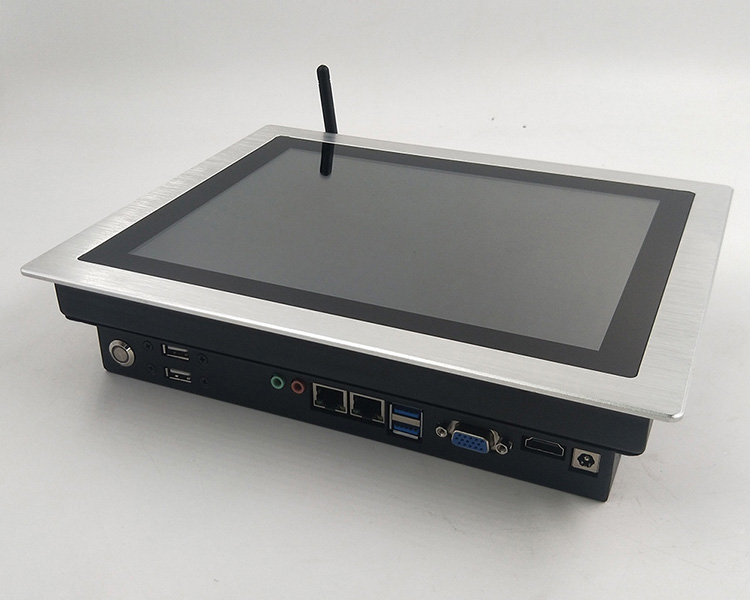

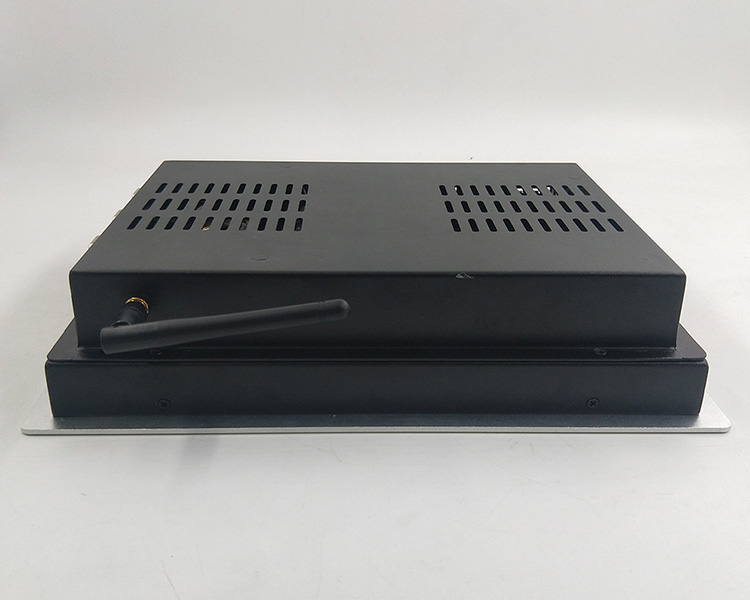

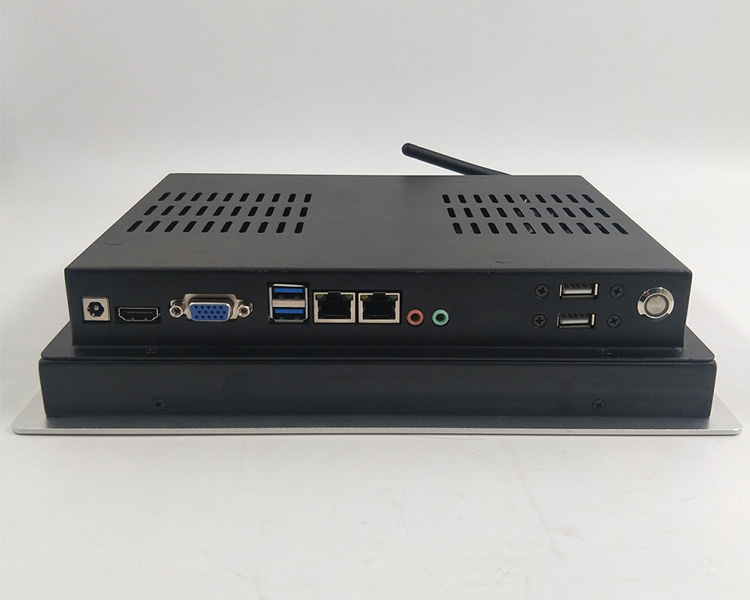

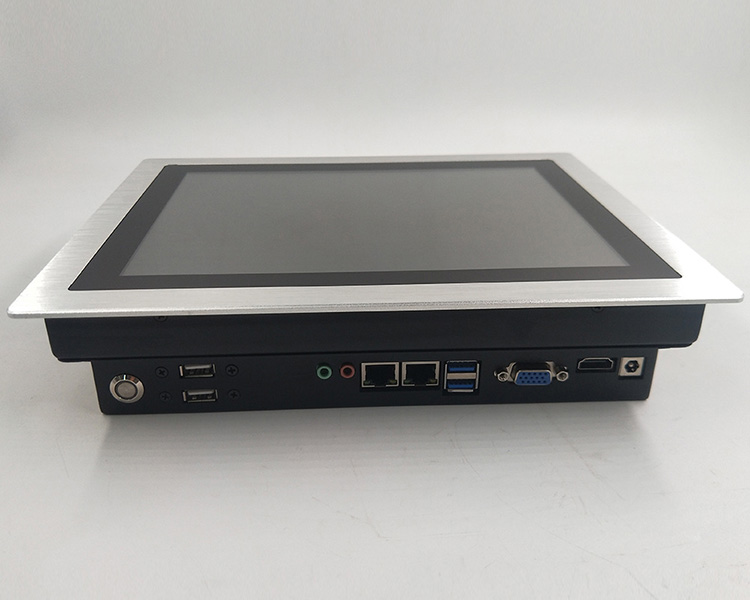

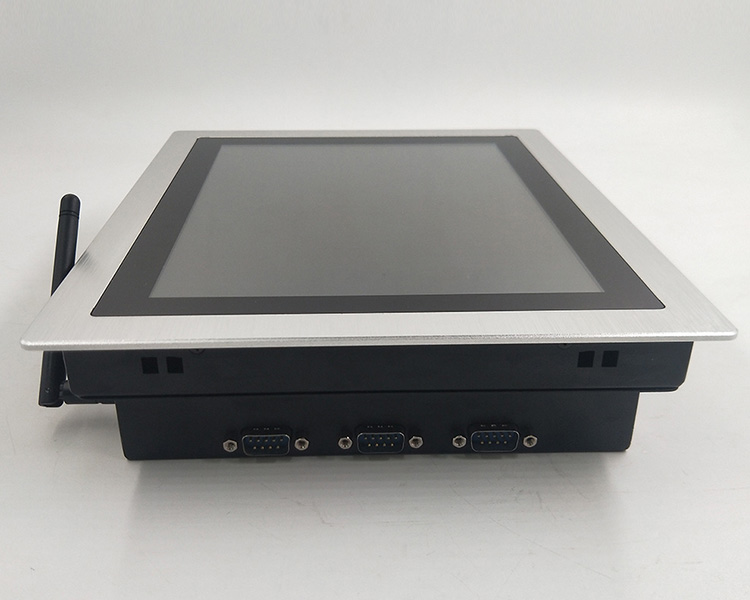

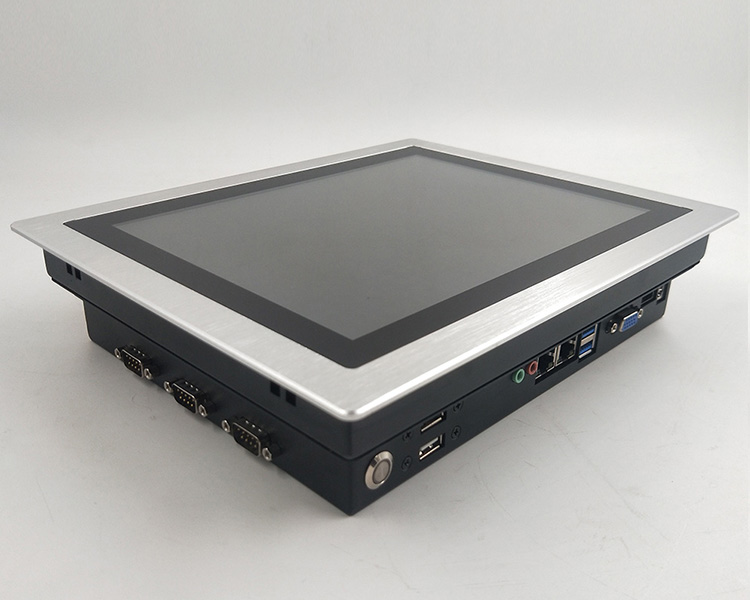

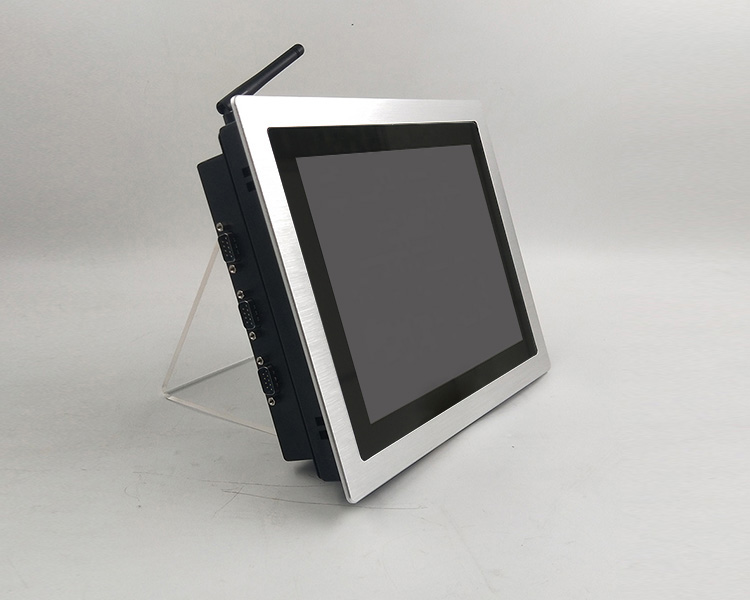

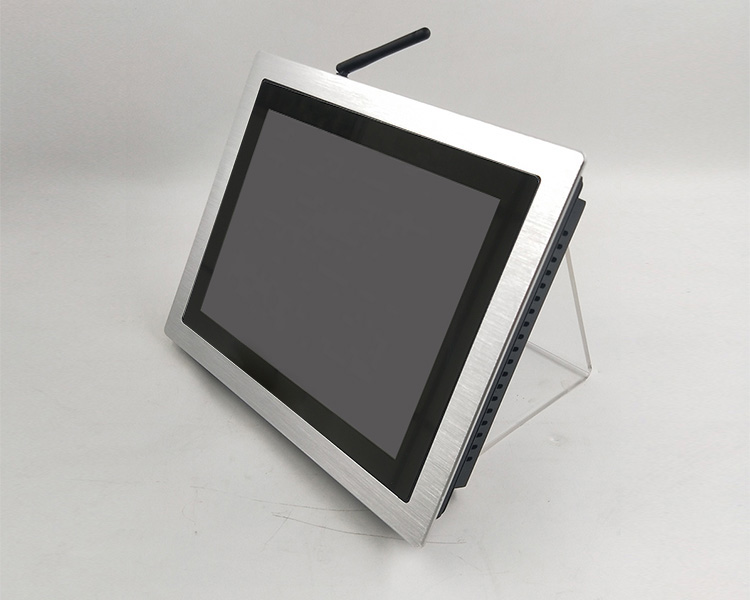

Details Images
Recommend Products
Customizied Function
Main Products
CNC Technical PC
Industrial Monitor
Android Panel PC
Application
Product packaging
Company Profile
Innoda Technology Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type
monitors.Engineers have at least 6years experiance in all in one pc filed.


OEM/ODM is our strong points. Customized design is welcome.
