Today is a great day that Shenzhen Innoda Technology Co., Ltd. plans to introduce our newest product to the public. It has an official name called innoda and is supplied at a competitive price. We pride ourselves on our personalized and efficient service. Shenzhen Innoda Technology Co., Ltd. have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Warranty(Year):1-YearScenarios:For Professional
Feature:Shockproof, 3G/WIFI/Bluetooth/FM/GPS/Recordcharging interface:Proprietary
Drive Interface:usbAfter-sales Service:Return and Replacement
Products Status:NewProcessor Manufacture:Intel
Processor Type:Quad CoreProcessor Main Frequency:2.0GHz
Memory Capacity:≥ 4GBTouch Screen Type:Capacitive Screen
Display resolution:1024x768Operating System:Windows 10
Weight:3.5kgPlace of Origin:Guangdong, China
Brand Name:innodaModel Number:IND080PCCTS2W32
Type:Tablet PC, Industrial TabletUse:Industrial
Certification:ce, RoHSCamera:Front Camera
Product name:GPS tracking Capacitive Touch Industrial Panel PcCPU:J1900/i3/i5/i7
RAM:2GB/4GB/8GStorage:128G SSD (Optional)
OS:Windows 10Color:Black White(optional)

Product Paramenters
Computer Configurations
CPU
Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory
4GB DDR3(Max. 8GB)
Storage
32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System
Linux/Ubuntu 14.04 LTS/Win 7/8/10
Cooling
Fan / Fanless for optional
Power Supply
100V-240V,12V 7A AC Input,max 24W
Operating Temperature
-20~60° C (-4~140° F)
LCD Panel Charateristics
Screen Size
8'' LCD/LED Panel(7-21.5inch is supported)
Touchscreen Type
Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion
1024(H)*(RGB)*600(V)
Aspect Ratio
4:3
Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
500:1
I/O Interface
USB
3xUSB2.0,1xUSB3.0
VGA
1xVGA
Serial Port(RS232)
1-2xRS232
LAN(RJ45)
1-2xRJ45
WIFI
Integrated
LVDS/EDP Output
Up to 1920*1200
Audio Output
Left and Right Chanel Output,8R/5W Loudspeaker
Other Function(Optional)
WIFI
3G/4G Module
GPIO Connector
8-36V wide range voltage
CanBus
Webcam
Brightness Control in Manual and Auto
RF/NFC Reader
Other Information
Frame Material
Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft
Color
Default balck,also can choose white,silvery or other colour
VASA Mounting
75*75 mm or 100*100 mm(optional)
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Weight
6KG

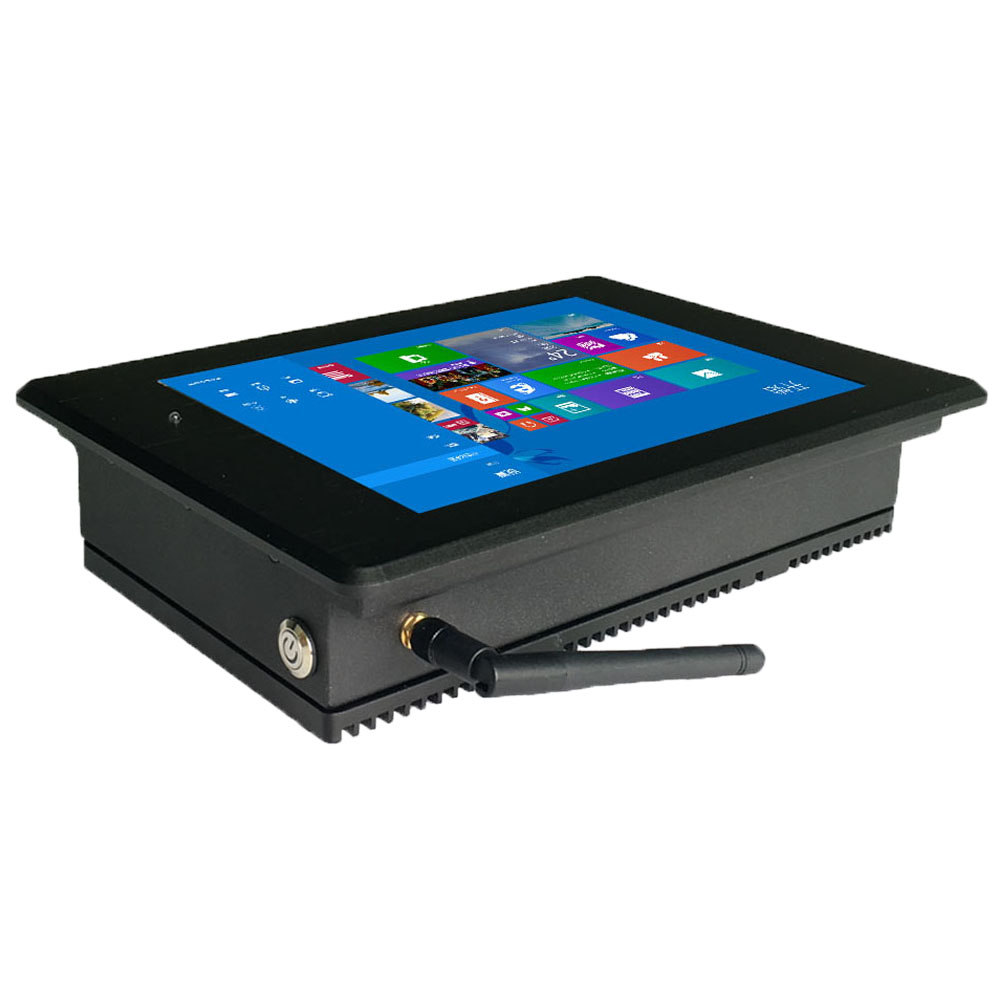

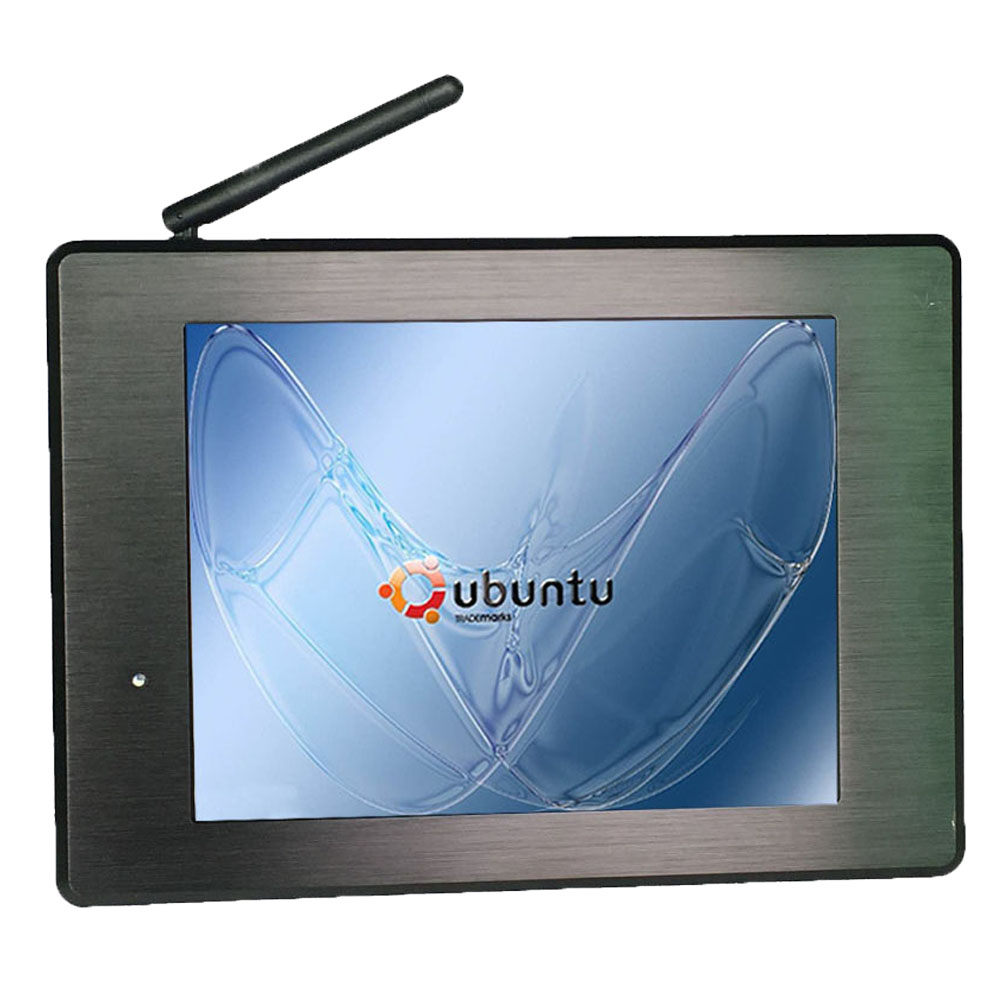

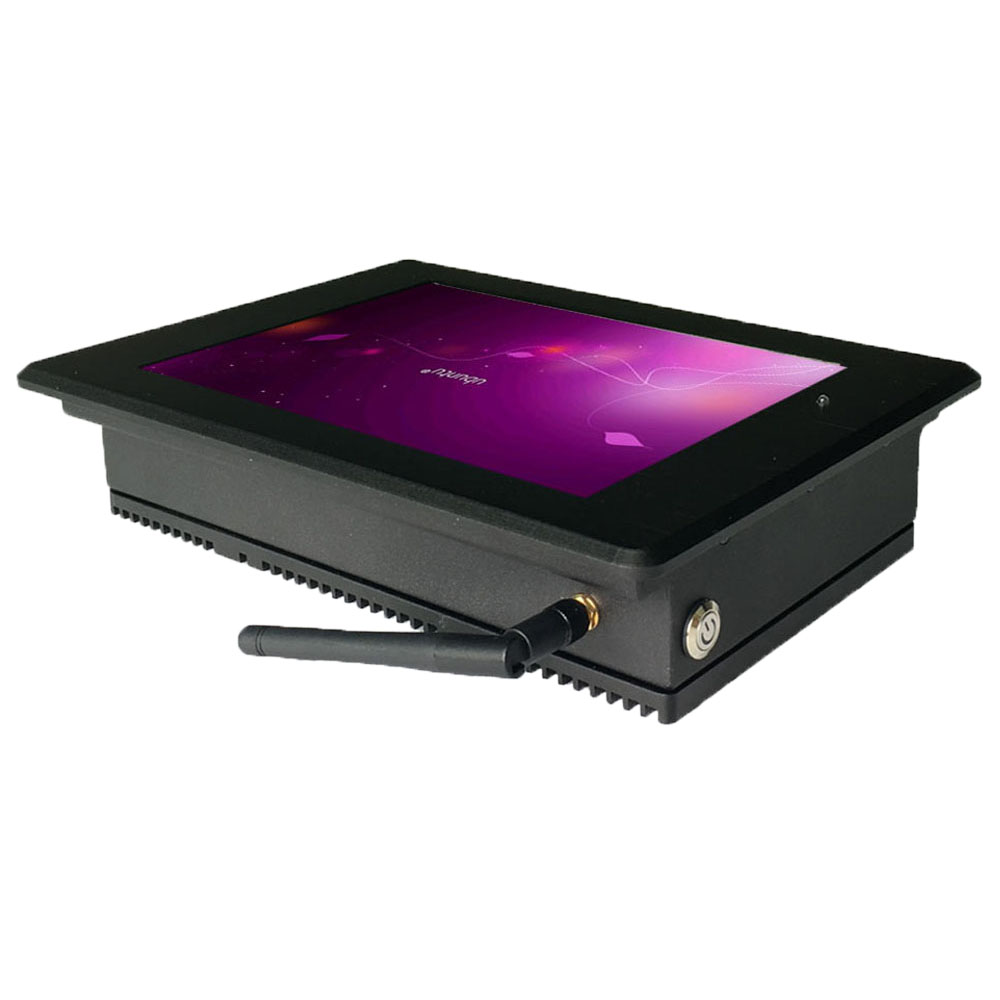

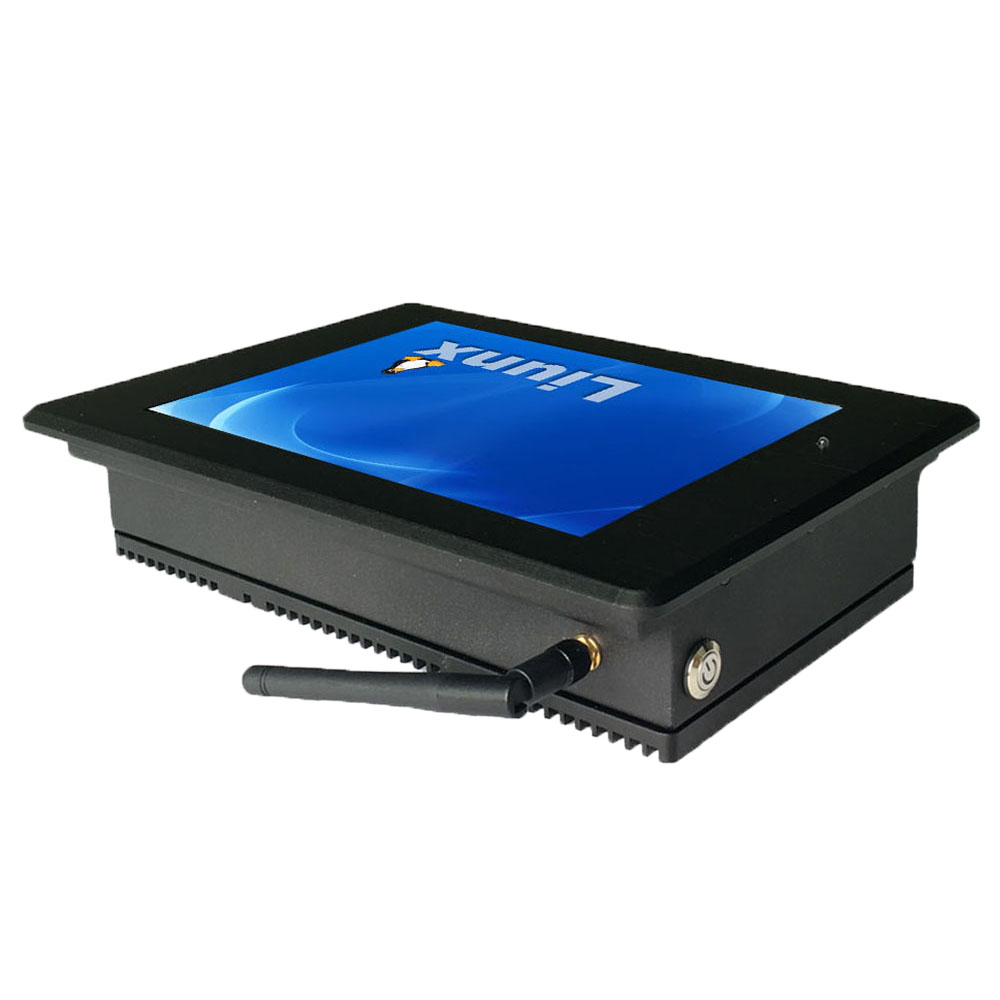

Details Images
Recommend Products
Customizied Function
Main Products
Industrial Panel PC
All In One PC
CNC Technical PC
Industrial Monitor
Android Panel PC
Application
Product packaging
Company Profile
Innoda Technology Co.,Limited supplied embedded computer, inudstrail panel pc, touchscreen computer,different type
monitors.Engineers have at least 6years experiance in all in one pc filed.


OEM/ODM is our strong points. Customized design is welcome.
