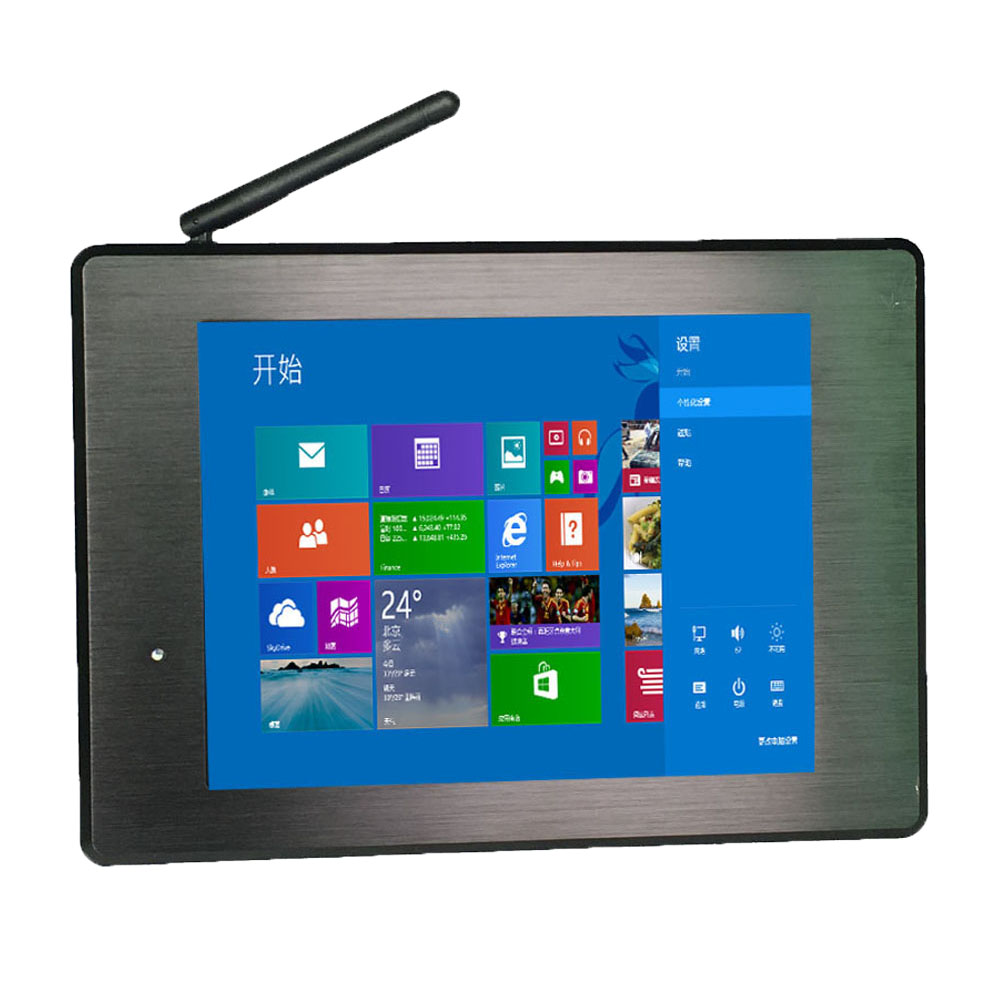

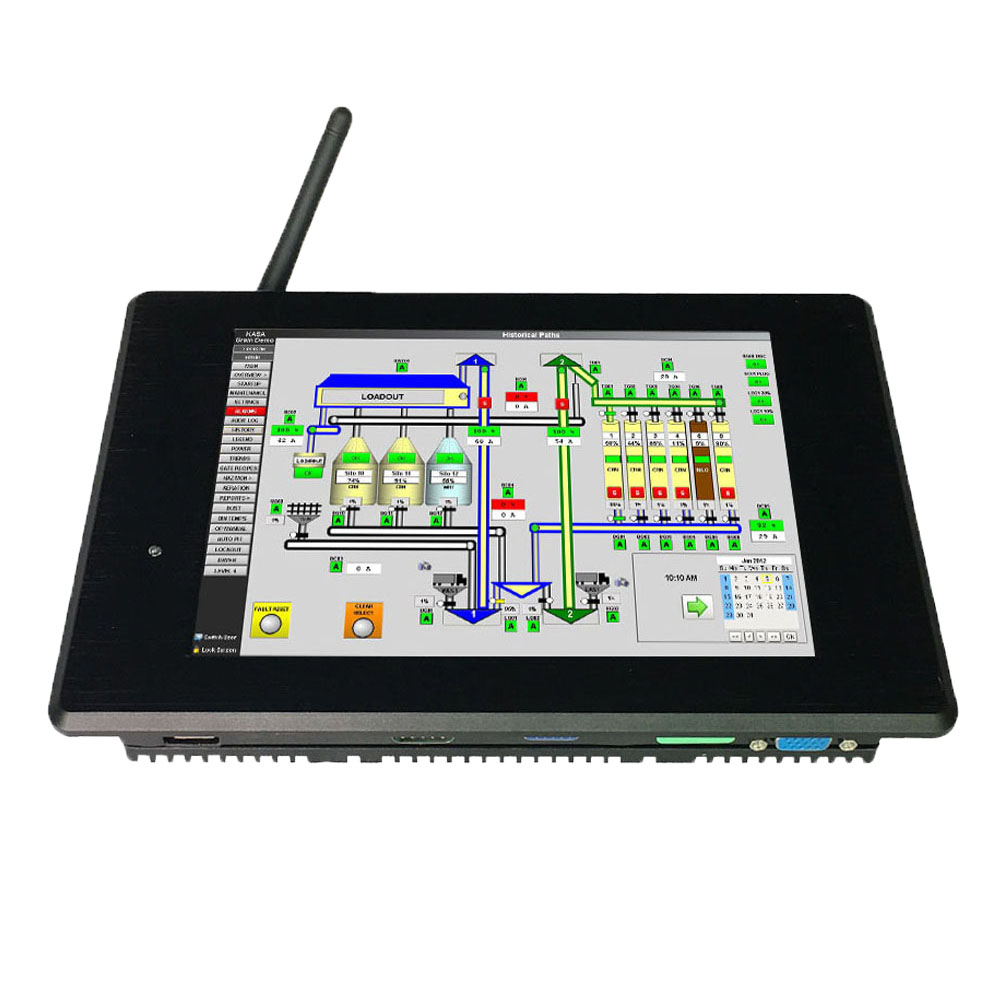

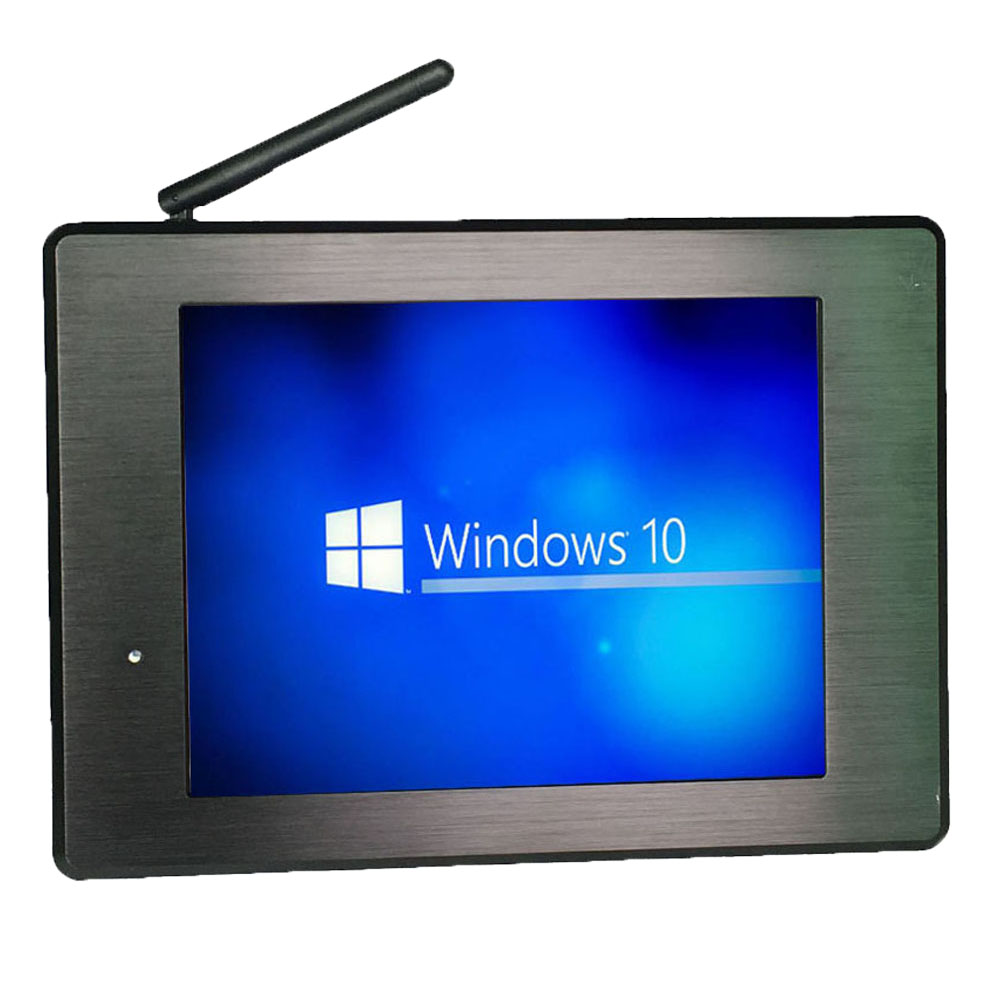

Thanks to the efforts of our employees including technicians and designers, Shenzhen Innoda Technology Co., Ltd. is able to introduce our .Industrial AIO 1000nits sunlight readable IP65 thin black alloy frame Intel J1900 CPU 7 to 21 inch panel pc to the public. Our range of Tablet PC are made with the best ingredient. Shenzhen Innoda Technology Co., Ltd. hope that we can respond more rapidly to changes in the industry with a deeper understanding of the market needs. We believe that we will stand out in the global market with our finest-quality products and unparalleled services.
Warranty(Year): | 1-Year | Scenarios: | For Professional |
Feature: | Hard | charging interface: | Proprietary |
Drive Interface: | usb | After-sales Service: | Return and Replacement |
Products Status: | New | Processor Manufacture: | Intel |
Processor Type: | Intel Celeron J1900 | Processor Main Frequency: | 1.8Ghz |
Memory Capacity: | 4GB | Touch Screen Type: | Capacitive Screen |
Display resolution: | 1024x768 | Operating System: | Android 6.0 |
Weight: | 3KG | Place of Origin: | Guangdong, China |
Brand Name: | INNODAPC | Model Number: | IND080PCS-434 |
Type: | Tablet PC, Industrial Tablet, All in one | Use: | Industrial |
Certification: | ce, RoHS | Product name: | embedded industrial computer |
Keywords: | rugged tablet | Material: | Aluminum |
Display: | LCD | Widescreen: | No |
Graphics Card Type: | Integrated Card | Fan: | No |
Custom made: | Yes |
Computer Configurations | ||
CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz | |
Memory | 2GB DDR3(Max. 8GB) | |
Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) | |
Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 | |
Cooling | Fan / Fanless for optional | |
Power Supply | 100V-240V,12V 7A AC Input,max 24W | |
Operating Temperature | -20~60° C (-4~140° F) |
LCD Panel Charateristics | ||
Screen Size | 8'' LCD/LED Panel | |
Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | |
Resoltuion | 1024(H)*(RGB)*600(V) | |
Aspect Ratio | 4:3 | |
Brightness | 350cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 500:1 |
I/O Interface | ||
USB | 3xUSB2.0,1xUSB3.0 | |
VGA | 1xVGA | |
Serial Port(RS232) | 1-2xRS232 | |
LAN(RJ45) | 1-2xRJ45 | |
WIFI | Integrated | |
LVDS/EDP Output | Up to 1920*1080 | |
Audio Output | Left and Right Chanel Output,8R/5W Loudspeaker |
Other Function(Optional) | ||
WIFI | 3G/4G Module | |
GPIO Connector | 8-36V wide range voltage | |
CanBus | Webcam | |
Brightness Control in Manual and Auto | RF/NFC Reader |
Other Information | ||
Frame Material | Metal Case/Aluminum Alloy/Stainless Steel | |
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |
Color | Default balck,also can choose white,silvery or other colour | |
VASA Mounting | 75*75 mm or 100*100 mm(optional) | |
Product Dimension(LxWxH) | TBD | |
Packing Dimension(LxWxH) | TBD | |
Weight | 6KG |
