Several tests prove that our Shenzhen Innoda Technology Co., Ltd. is a kind of product combining aesthetics, functions, and practicality. With its characteristics, it is able to be used in the application field(s) of All in One Computers and so on. Customers can be worry-free because the tests prove that the product is stable and excellent when being used in those fields. After 7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45 launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Shenzhen Innoda Technology Co., Ltd. has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND070PCProducts Status:New, Stock
Processor Main Frequency:1.58GHzPanel Type:TFT
Warranty(Year):1-YearContrast Ratio:500:1
Graphics Card Type:Integrated CardOptical Drive Type:CD-ROM
Widescreen:YesInterface Type:HDMI, VGA, usb
Color:BlackDisplay Type:LED
Use:IndustrialResponse Time:6ms
Processor Brand:IntelDisplay Ratio:16:9
Display resolution:1024x600Plugs Type:US, JP, CN, AU, UK, EU
Series:For BusinessHard Drive Type:SSD
Video Memory Type:With the main memoryPower:250 W
Operating System:Windows 10Feature:Touch Screen
Brightness:500 cd/mScreen Type:LED
Processor Type:Intel CeleronPixel Pitch:0.276mm
Graphics Card Chipset:Integrated CardRAM Type:DDR3
Chipset Type:intel H110HDD Rotation Speed:7200 Rpm
Vertical Viewing Angle:75°Mouse & Keyboard:NO
Processor Core:Quad CoreProcessor Series:Intel Celeron
Video Memory:4GBVideo Card:Intel UHD Graphics
After-sales Service:Call Center and on-line Technical Support, Free spare parts, Return and Replacement, RepairType:Barebone System
CPU:Intel Dual Core N2807Voltage:12V DC
Touchscreen Type:Capacitive touchscreenWIFI:Optional
USB:3*USB2.0,1*USB3.0Material:Aluminum/stainless steel
Product Dimension:202.6x152.6x53.1mmProduct Name:7 inch WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45
Certification:ce, RoHS

7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45



Features

1.7-inch Industrial embedded Android computer

2.Intel N2807-1.58Ghz Dual Core Processor

3.Metal case/Aluminum Sheel option

4.2*RS232,1*USB2.0,1*USB3.0,2*RJ45,VGA

5.Installtion:panel type embedded,embedded,wall-mounted,desktop,rack-mounted

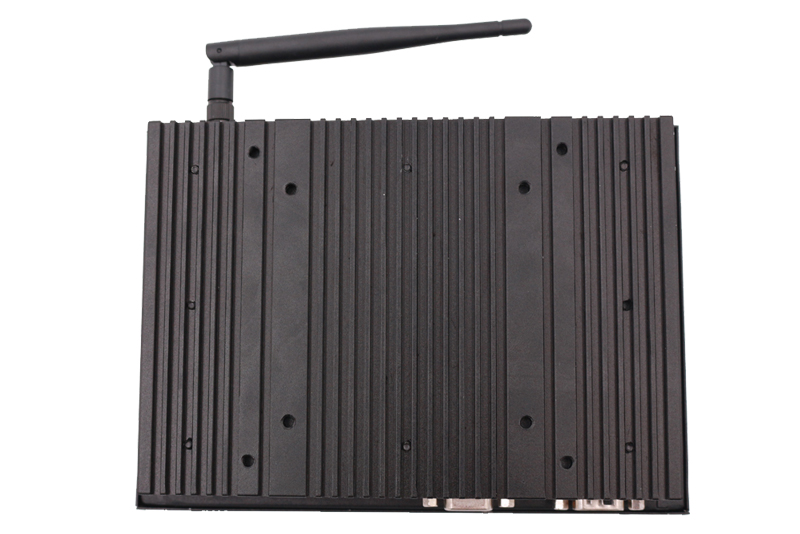

Detailed Images

7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ457 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ457 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45

Noted,all hardware and configurations can be customized,so industrial computer price despneds on your needs.

Product Description
Computer Configurations
CPU Intel Celeron® Processor N2807 Dual Core 1.58GHz
Memory 2GB DDR3(Max. 8GB)
Storage 32G SSD(320GB to 1TB, 32GB to 128GB SSD)
Operation System

Support Linux/Ubuntu 14.04 LTS/Win 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 7'' LCD/LED Panel
Touchscreen Type(optional) Capacitive Touch(4 /5wire Resistive/Capacitive/SAW /IR Touch)
Resoltuion 800(H)*(RGB)*480(V)
Aspect Ratio 4:3
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 500:1



I/O Interface
USB 1xUSB2.0,1xUSB3.0
VGA 1xVGA
Serial Port(RS232) 1xRS232
LAN(RJ45) 1-2xRJ45
Other Function(Optional)
WIFI 3G/4G Module
GPIO Connector 8-36V wide range voltage
BT Webcam
2D Barcode Scanner RF/NFC Reader



Other Information
Frame Material Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour
VASA Mounting 75*75 mm or 100*100 mm
Product Dimension(LxWxH) 26.5x16.5x4.9cm
Packing Dimension(LxWxH) 36x26x8cm
Weight 4.5KG
Customer Comments

7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45

Customized Function



Main Products
Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45

Application

7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45

Company Information

7 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ457 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ457 inch Wireless WIFI AIO PC/Rugged Embedded Industrial Computer With 2RJ45

Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
