Shenzhen Innoda Technology Co., Ltd. keeps introducing technology to manufacture Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure. High-end technologies helps us ensure Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of Industrial Computer & Accessories. Shenzhen Innoda Technology Co., Ltd. will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Products Status:StockType:Embedded Computer
Brand Name:INNODAPCPlace of Origin:Guangdong, China
Screen Size:21''led screenResolution:1920*1080
Touchscreen Type:capacitive touchCPU:Quad-core intel J1900
COM port:1-2xRS232Waterproof grade:IP65/66/67 optional
Operating System:Linux/Ubuntu 14.04 LTS/Wins7/8/10Material:Aluminum/metal case/stainless steel
Logo:Your Logo is acceptableProduct name:waterproof 21'' industrial computer ip68 with stainless steel
Certification:ce, RoHS

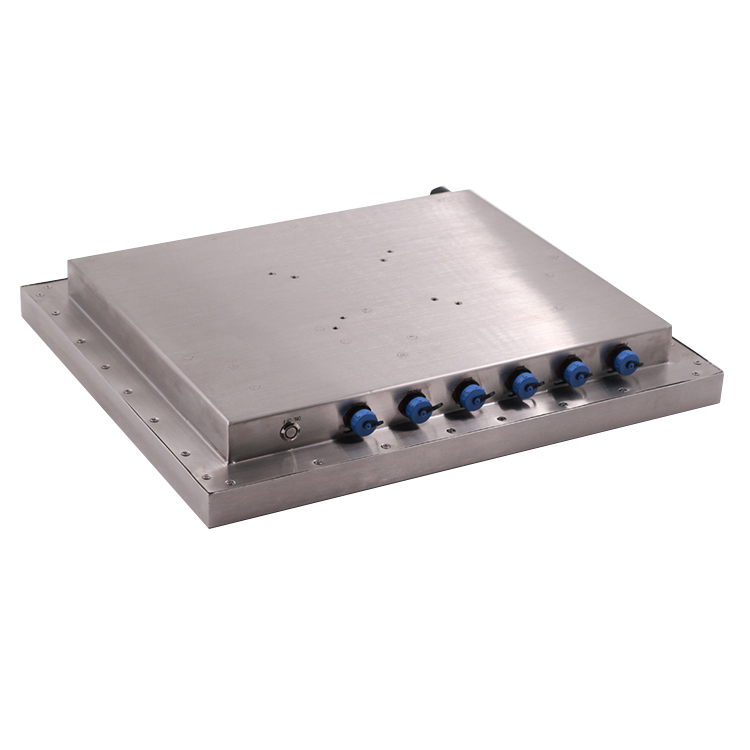

Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure



Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure

Features



1.SUS304 Stainless Steel, SUS306 optioanl

2.Intel J1900/2.0GHz Quad-Core/I3/I5/I7 Processor

3.RJ45,1-2xRS232 ports

  Wifi optional

4.anti-stealing bar cover ports

5.Product Dimension:530x330x57mm

5.12months Warranty



SUS304 stainless steel is the standard housing used for each IP66 or IP67 computer. This steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to bacterial growth. In chemical factories or places where stronger industrial solvents are used, SUS316 stainless steel can be used which enhances corrosion resistance



Detailed Images

 Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosureOutdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosureOutdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure

Product Description
Computer Configurations
CPU Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory 2GB DDR3(Max. 8GB)
Storage 32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Windows 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 21.5'' LCD/LED Panel
Touchscreen Type Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion 1920(H)*(RGB)*1080(V)
Aspect Ratio 16:9
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 500:1



I/O Interface
USB 2xUSB2.0
VGA ------
Serial Port(RS232) 1-2xRS232
LAN(RJ45) 1xRJ45
Other Function(Optional)
WIFI 3G/4G Module
GPIO Connector 8-36V wide range voltage
Bluetooth Webcam
Brightness Control in Manual and Auto  RF/NFC Reader



Other Information
Frame Material Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour
VASA Mounting 75*75 mm or 100*100 mm
Product Dimension(LxWxH) 530x330x57mm
Packing Dimension(LxWxH) 630x430x140mm
Weight 12.5KG
Customer Comment

Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure

Customized Function

Main Products
Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure

Application

Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure

Our Company

Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosureOutdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure

Outdoor Use full waterproof 21'' industrial computer ip68 with stainless steel enclosure





 OEM/ODM is our strong points. Customized design is welcome.
