Shenzhen Innoda Technology Co., Ltd. has a number of elite teams in management, design, R&D, and production. At Shenzhen Innoda Technology Co., Ltd.,customer satisfaction and professional service as well as competitive prices are very important to us, a happy customer is what we strive to achieve. Following scientific and advanced production standards, we have successfully made 17 inch Industrial Grade 3G All-in-One Computer with intel J1900 excellent in its performance. Through multiple times of tests, the Shenzhen Innoda Technology Co., Ltd. is proved to be of great and so on. Before its launch, it has passed the certifications of several international and national authorities.

Products Status:StockType:Industrial Computer Accessories
Brand Name:INNODAPCPlace of Origin:Guangdong, China
Certification:ce, RoHSScreen Size:17-inch
Touchscreen:5-wires resistive touchCPU:intel J1900/2.0Ghz
Voltage:12V DC3G Modem:yes
Material:AluminumWarranty:12months
Operating System:Linux/Ubuntu 14.04 LTS/Win7/8/10Logo:Your Logo is acceptable
Product Name:17 inch Industrial Grade 3G All-in-One Computer with intel J1900



17 inch Industrial Grade 3G All-in-One Computer with intel J1900



Features

1.17inch industrial panel pc

2.Intel J1900/2.0Ghz Quad Core Processor

3.Aluminum shell

4. Unique ventilation design,Efficient heat dissipation

5.Installtion:panel type embedded,embedded,wall-mounted,desktop,rack-mounted

6.12months warranty

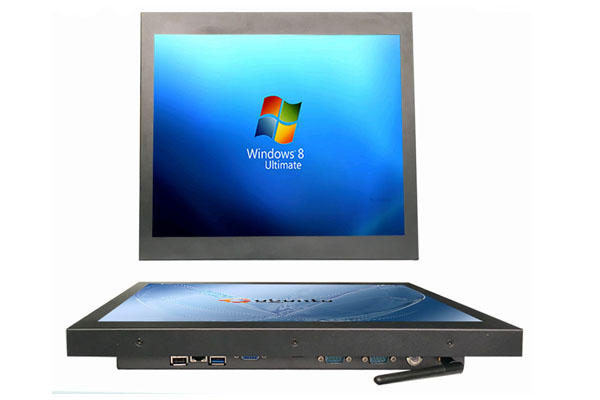

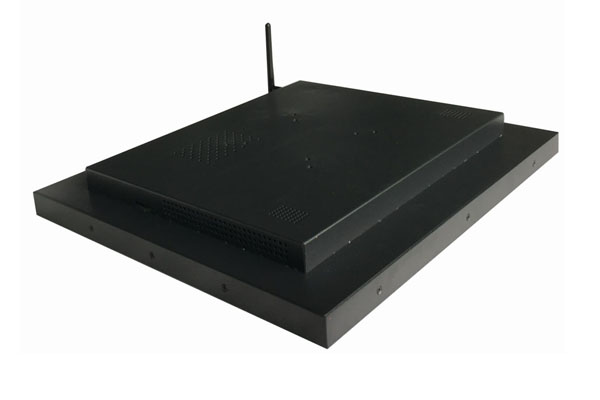

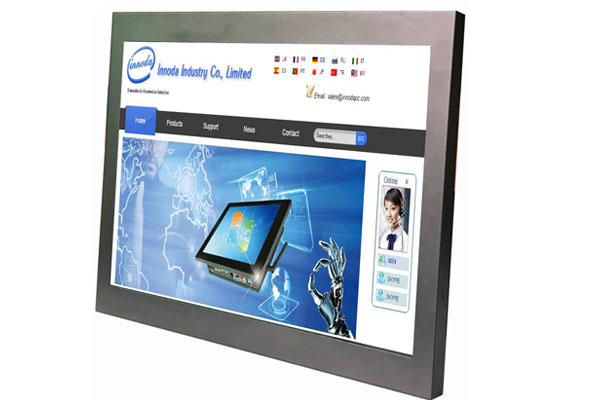

Detailed Images



Product Description
Computer Configurations
CPUIntel Celeron® Processor J1900 Quad Core 2.0GHz
Memory2GB to Max. 8GB, DDR3
Storage320GB to 1TB, 32GB to 128GB SSD
Operation System

Support Linux/Ubuntu 14.04 LTS/Windows 7/8/10

Default with Win7 OS Testing Version is preloaded.

CoolingFan / Fanless for optional
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size17'' LCD/LED Panel
Touchscreen Type(optional)4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch
Resoltuion1280(H)*(RGB)*1024(V)
Aspect Ratio4:3
Brightness350cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio1000:1

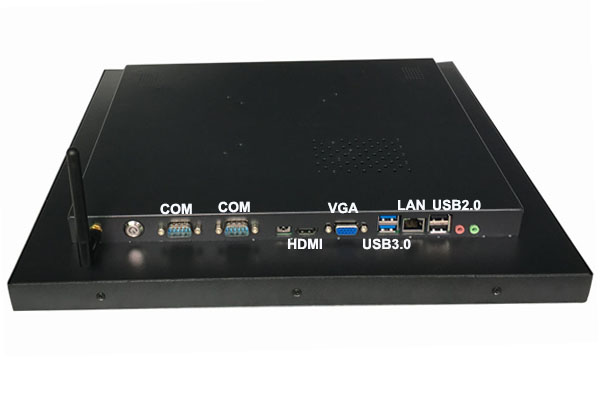

I/O Interface
USB3xUSB2.0,1xUSB3.0
VGA1xVGA
Serial Port(RS232)2xRS232
LAN(RJ45)1xRJ45
Other Function(Optional)
WIFI3G Module
GPIO ConnectorPhoenix Connector 8-36V wide range power supply
BluetoothWebcam
Brightness Control in Manual and Auto Watchdog Timer



Other Information
Frame MaterialAluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm
Product Dimension(LxWxH)TBD
Packing Dimension(LxWxH)TBD
Customer Comment

Customized Function

Main Products
Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
