The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like Tablet PC, our product is widely used for its versatility and guaranteed quality. Shenzhen Innoda Technology Co., Ltd. is dedicated to ensuring that you receive a top class service, every time. rugged 7 inch embedded Industrial all in one Computer flat panel pc with touch screen panel mini pc intel j1900,as one of our best and latest products, deserved to be noticed widely and displayed to customers around the world.

Warranty(Year):1-YearScenarios:For Professional
Feature:Shockproof, 4G/WIFI/BT/GPS/FMcharging interface:Proprietary
Drive Interface:usbAfter-sales Service:Return and Replacement
Products Status:NewProcessor Manufacture:Intel
Processor Type:Quad CoreProcessor Main Frequency:1.8GHZ
Memory Capacity:4GBTouch Screen Type:Capacitive Screen
Display resolution:1024x600Operating System:Andriod & Windows
Weight:3.5KGPlace of Origin:Guangdong, China
Brand Name:INNODAModel Number:IND070PCCTS2W32
Type:Tablet PC, Industrial TabletUse:Industrial
Product name:Window Tablet PcSystem:Win10(7/8 Optional)
CPU:J1900RAM:2GB/4GB
Storage:128G SSD Optional)Certification:CE ROHS, ce, RoHS
Camera:Front Camera

7 inch Industrial Computer & Accessories all in one embedded touch screen panel pc

Product Description
Computer Configurations
CPU Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory 2GB DDR3(Max. 8GB)
Storage 32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win 7/8/10

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 7'' LCD/LED Panel
Touchscreen Type Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion 1024(H)*(RGB)*768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 500:1



I/O Interface
USB 3xUSB2.0,1xUSB3.0
VGA 1xVGA
Serial Port(RS232) 1-2xRS232
LAN(RJ45) 1-2xRJ45
Other Function(Optional)
WIFI 3G/4G Module
GPIO Connector 8-36V wide range voltage
Canbus/PoE Webcam
Brightness Control in Manual and Auto  RF/NFC Reader



Other Information
Frame Material Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour
VASA Mounting 75*75 mm or 100*100 mm
Weight 3.5KG



Feature

1.Sensistive and fast response touch function.

2.High performance -Industrial fanless board,7x24hours of continuous work.

3.Can be customized according to customer needs.

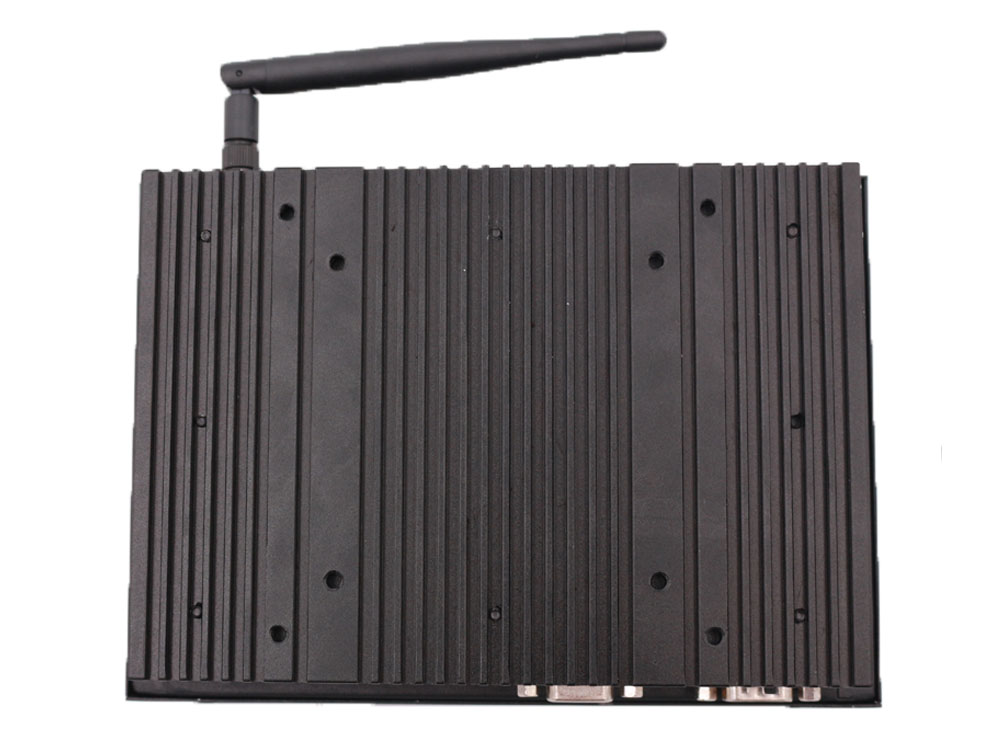

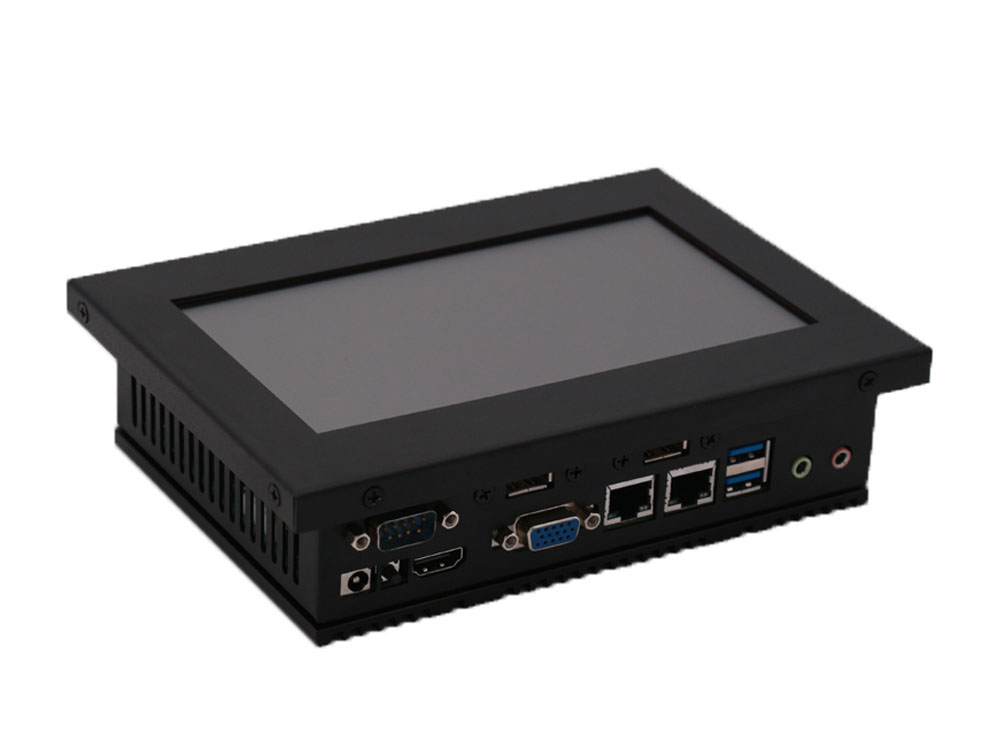

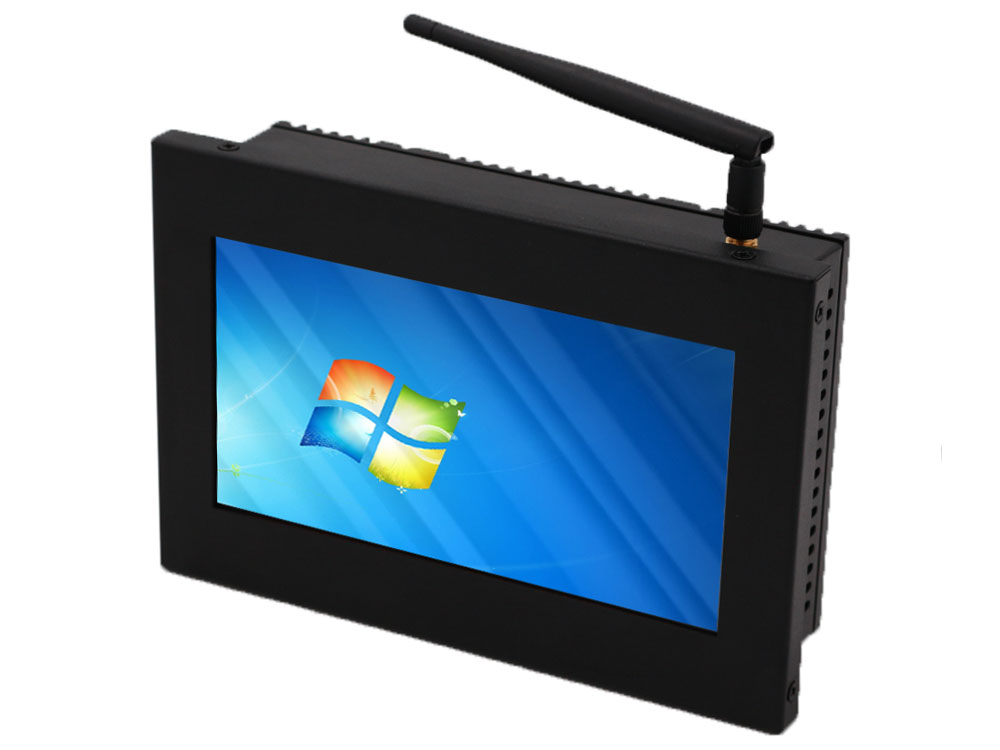

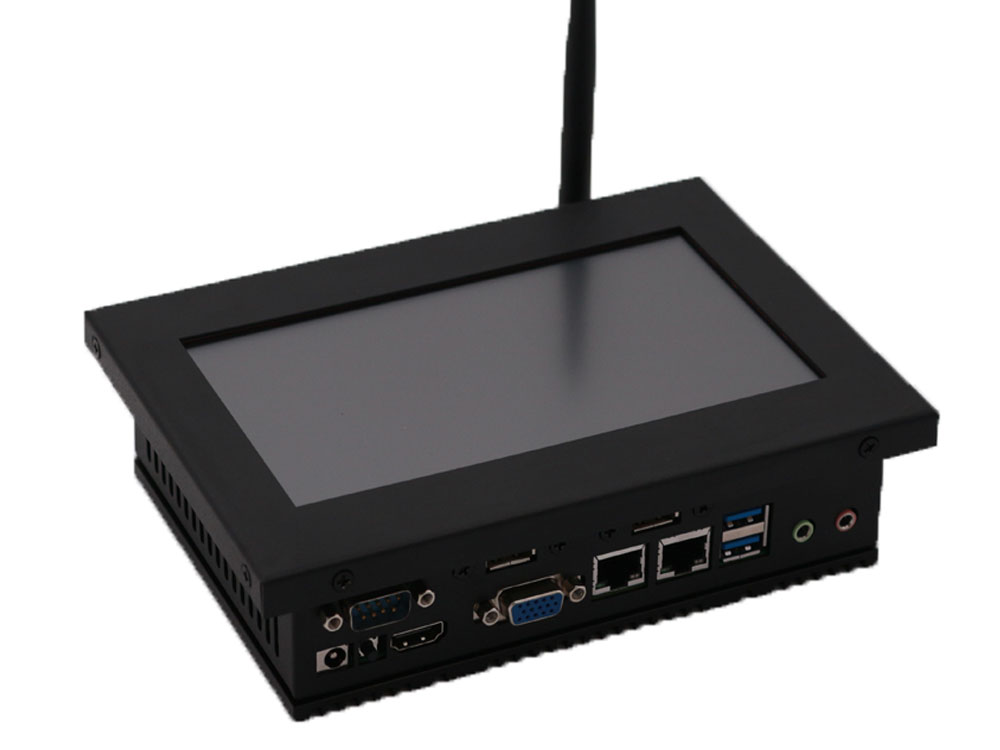

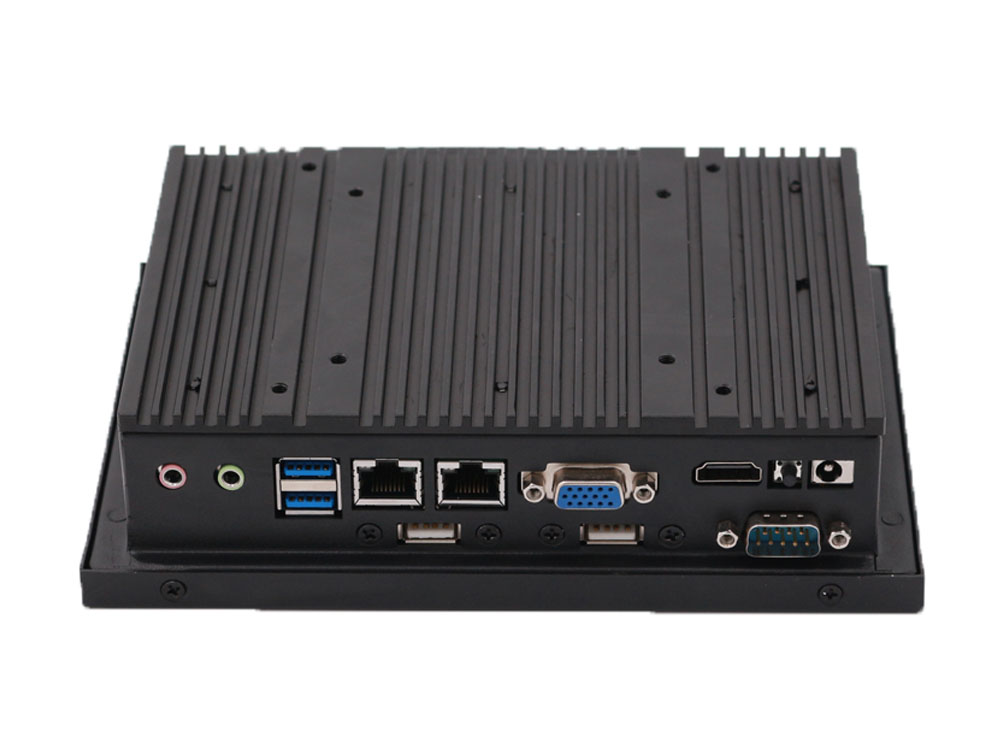

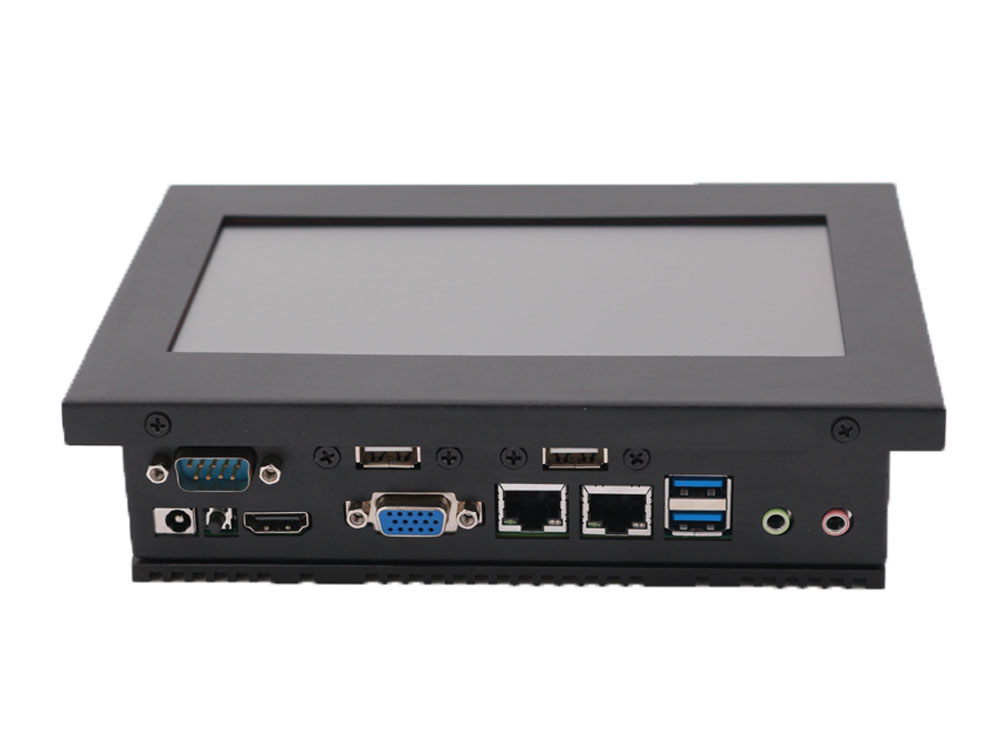

Detailed Images
