Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Language
Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Relying on professional technicians,Shenzhen Innoda Technology Co., Ltd. has rich experience in researching and developing products, one of which is our Wide Voltage Android Industrial Touch Screen High Brightness LED Panel PC. It is developed based on the latest industry trend and customers' needs. We can provide you with the highest quality products within your budget. Shenzhen Innoda Technology Co., Ltd. have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.
| Products Status: | Stock | Type: | Embedded Computer |
| Brand Name: | INNODAPC | Model Number: | IND150PC-N26 |
| Place of Origin: | Guangdong, China | Product Name: | industrial touch panel pc |
| Screen Size: | 15'' | Touchscreen Type: | 5-wires touch screen |
| CPU: | Intel N2600 | Graphics Card: | Integrated HD |
| Memory: | 2GB/4GB/8GB | Storage: | 320-1TB HDD,16G/32G/64G/128G SSD |
| Operating System: | Linux/Ubuntu 14.04 LTS/Win 7/8/10 | Keywords: | touch computer,industrial panel pc,panel pc |
| Material: | Aluminum |

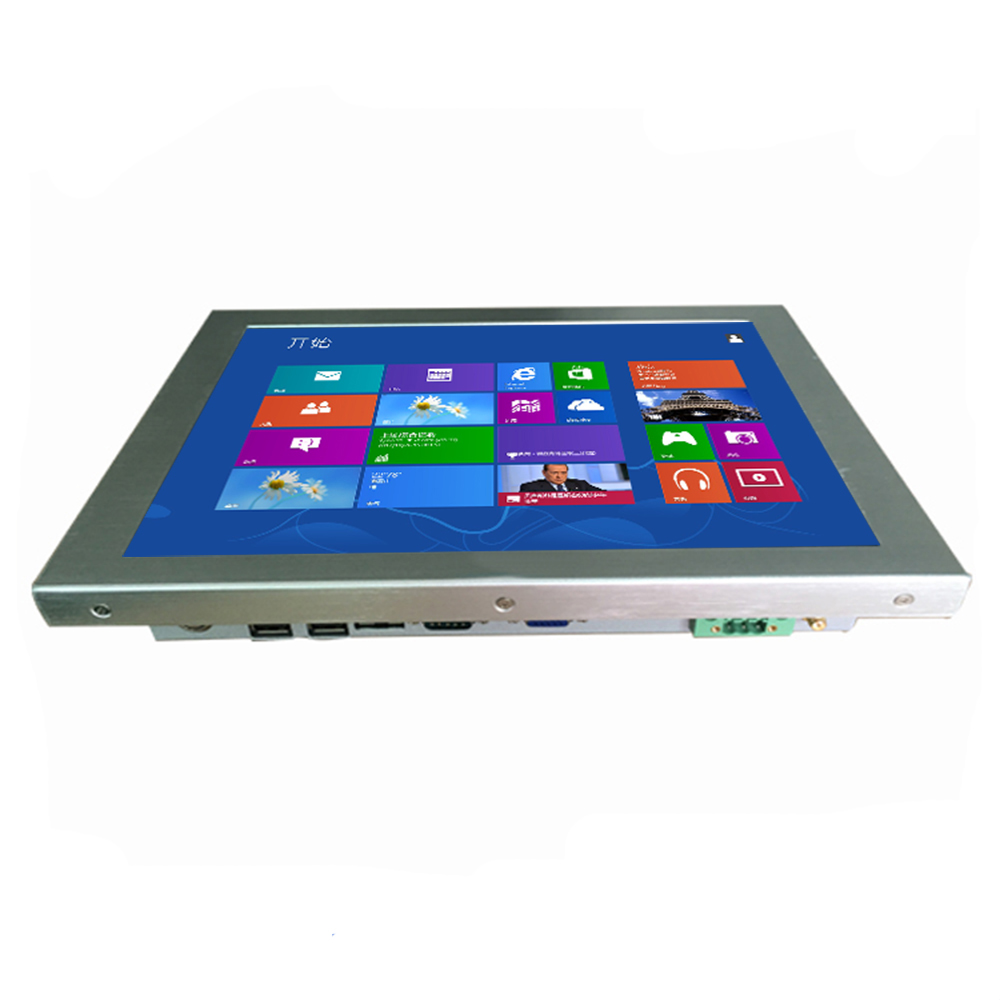

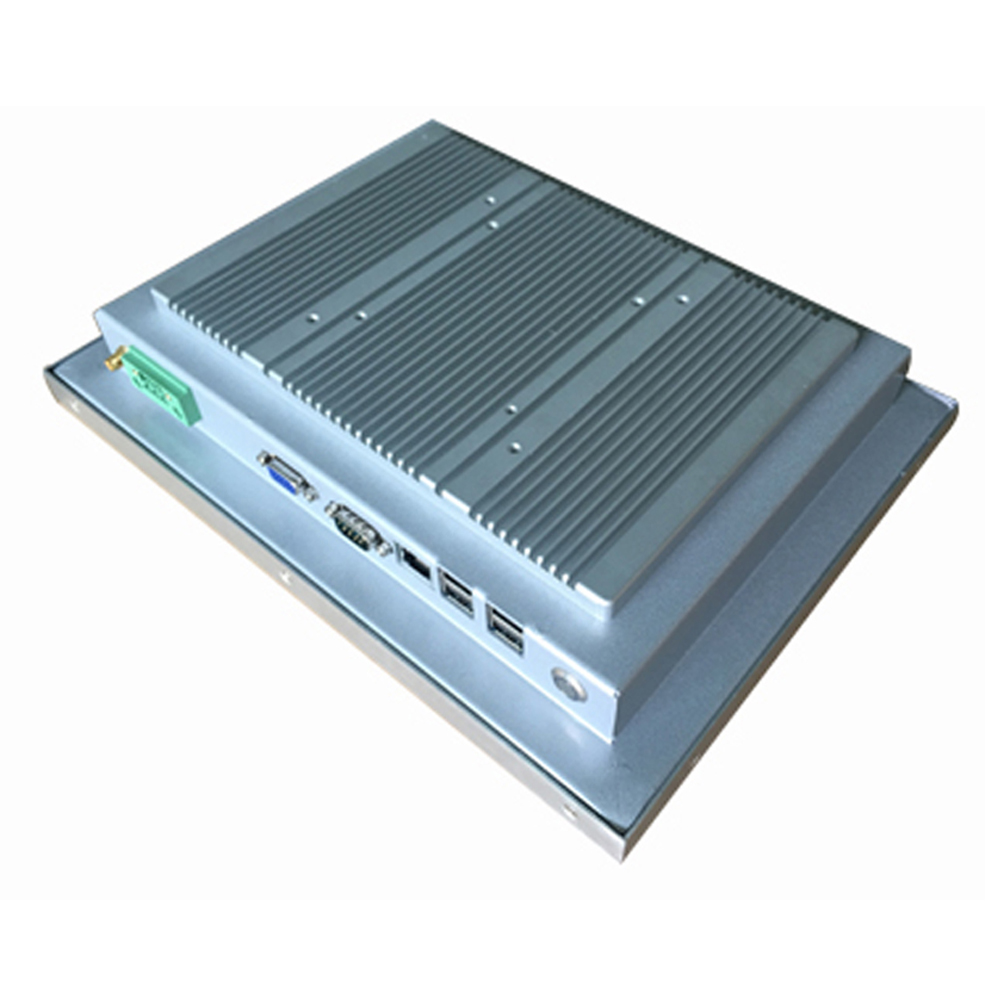

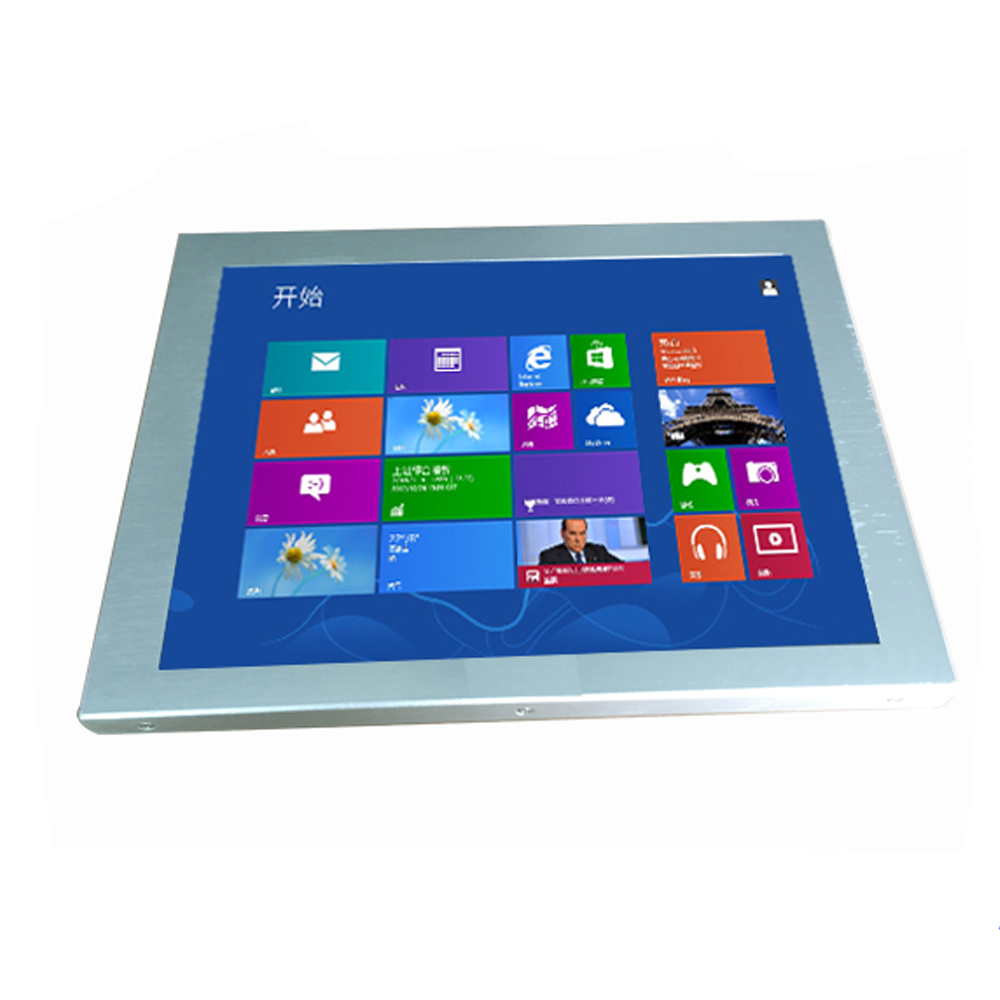

Wide Voltage Android Industrial Touch Screen High Brightness LED Panel PC
1.Robust durable aluminum shell ,dustproof and shockproof.
2.5-wires resistive touch screen
3.Industrial motherboard,long working time
4. Wall mount,embedded or desktop and rackmount as you need.
5.Phoenix connector,8-36V wide voltage supply
| Computer Configurations | |
| CPU | Intel Atom N2600 2.1GHz |
| Memory | 2GB DDR3(Max. 8GB) |
| Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 Default with Win 7 OS Testing Version is preloaded. |
| Cooling | Fan / Fanless for optional |
| Power Supply | 100V-240V,12V 7A AC Input,max 24W power consumption |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |

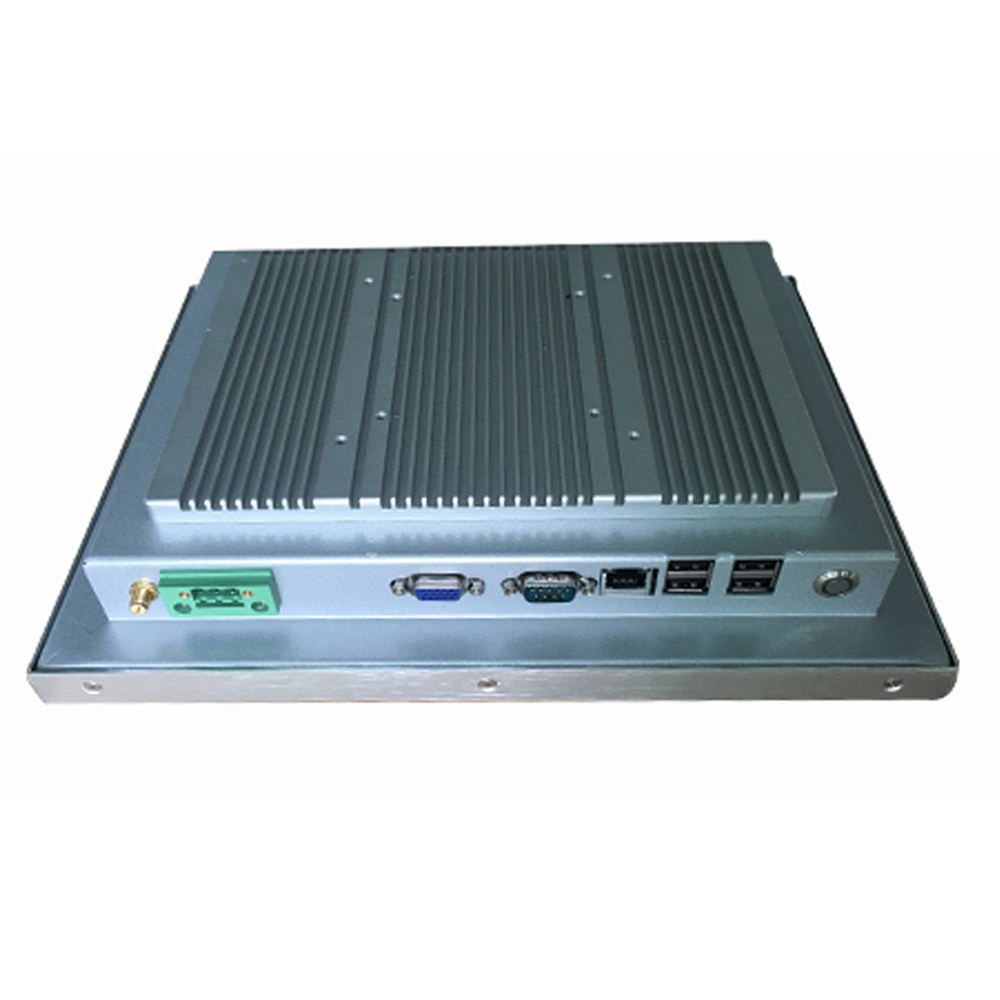

| I/O Interface | |
| USB | 3xUSB2.0,1xUSB3.0 |
| VGA | 1xVGA |
| Serial Port(RS232) | 1-2xRS232 |
| LAN(RJ45) | 1-2xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | TBD |
| Packing Dimension(LxWxH) | TBD |
| Weight | 6KG |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
Contact: Sunny
Tel: 0086-0755-29108731
Skype: sunnytech24
Mobile/WatsApp: 0086 13554782291
