The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like All in One Computers, our product is widely used for its versatility and guaranteed quality. It is delicately designed to comply with the industry standard. The design is the most striking aspect of Innoda. Its design comes from our designers who are sensitive to fashion and are know the commercial needs of the market very well. Also, Shenzhen Innoda Technology Co., Ltd. made of well-selected raw materials.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND190PCProducts Status:New
Processor Main Frequency:2.0GHzPanel Type:TFT
Warranty(Year):1-YearContrast Ratio:400:1
Graphics Card Type:Integrated CardOptical Drive Type:No CD ROM
Widescreen:NOInterface Type:RS232C, usb
Color:BlackDisplay Type:LCD
Use:IndustrialResponse Time:6ms
Processor Brand:IntelDisplay Ratio:4:3
Display resolution:1280x1024Plugs Type:US, JP, CN, AU, UK, EU
Series:For BusinessHard Drive Type:SSD
Video Memory Type:With the main memoryPower:250 W
Operating System:Windows 10, Window 7/10( trial version)Feature:Touch Screen
Brightness:350 cd/mScreen Type:LCD
Processor Type:Intel CorePixel Pitch:0.276mm
Graphics Card Chipset:Integrated CardRAM Type:DDR3
Chipset Type:Intel H55HDD Rotation Speed:7200 Rpm
Vertical Viewing Angle:80°Mouse & Keyboard:NO
Processor Core:Dual CoreProcessor Series:Intel Celeron
Video Memory:4GBVideo Card:Intel HD graphics
After-sales Service:Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair, OthersPrivate Mold:Yes
Size of screen:19''Resolution:1280*1024
CPU:Intel core J1900Touchscreen Type:Capacitive touchscreen
IP Grade:Waerproof IP65/67/68WIFI:Optional
Interface:USB/RJ45/COMClient Logo:Acceptable
Product Name:Rugged PC IP65 Waterproof Fanless Industrial Touch Screen Panel Pc

Product Description








Dustproof Rugged Tablet PC IP65 Waterproof Fanless Industrial Touch Screen Panel Pc With Rj45 RS422 and RS232


Features

1. 7''-42'' size optional

2. CPU:Intel I3-4010U/1.7Ghz

3. 1*RS232, 1*RS422, 2*USB,2*RJ45

4. Waterproof IP65/67/68

5. ALuminum +Metal chassis

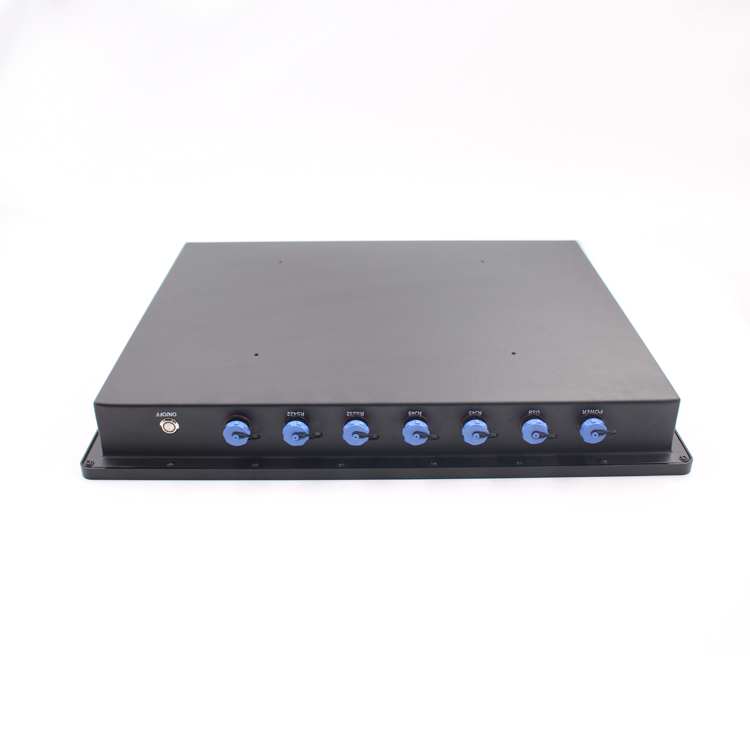

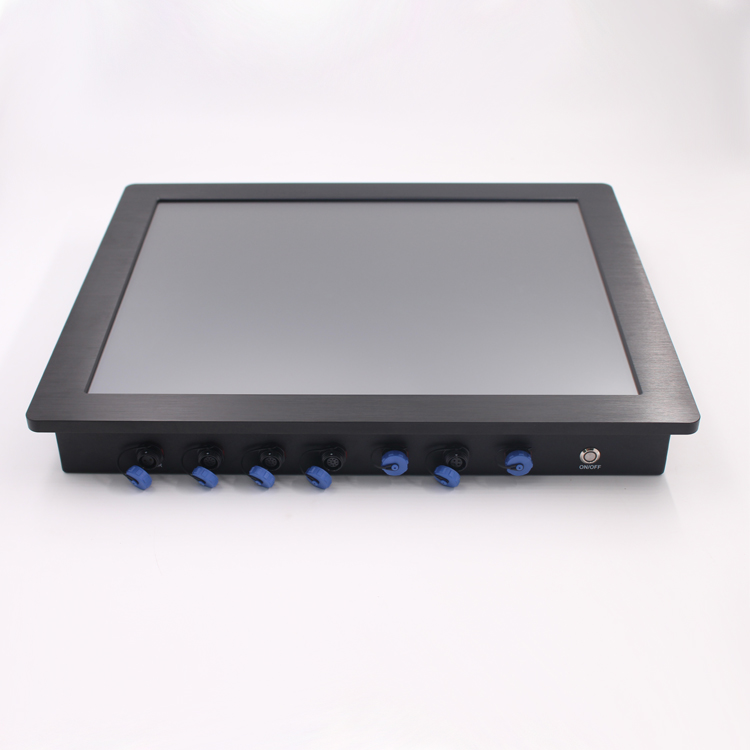

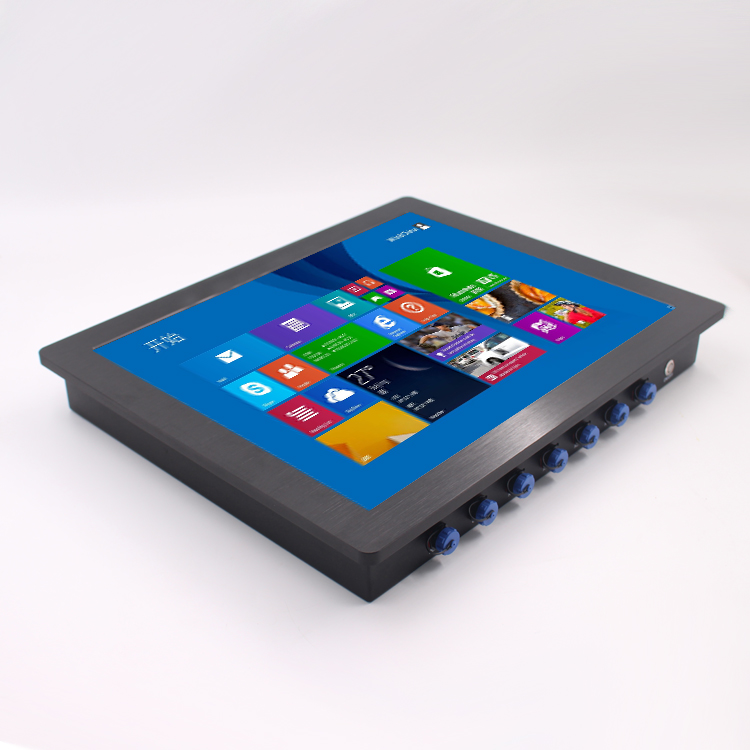

Detailed Images
Production Parameter
                                                                       Computer Configurations
CPU
Intel J1900/2.0Ghz
Memory
2GB to 16GB, DDR3
Built-in Storage
64GB / 128GB / 256GB / 1TB
Operation System
Window 7/10(trial version)
Power Supply
12V DC power
Operating Temperature
-20~70° C
                                                                                   LCD Panel Charateristics
Screen Size
19'' industrial grade Panel
Touchscreen Type(optional)
Capacitive Touch
Resoltuion
1280(H)*(RGB)*1024(V)
Aspect Ratio
4:3
High Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
700:1
                                                                                   I/O Interface
1-4x USB2.0(up to 6)
1-2xLAN(RJ45)
1-2 x COM(RS232/RS485/RS422)
                                                                                Functions
Full IP65/67/68
                                                                                  Other Information
Frame Material
Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft

VASA Mounting
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount

Color
Default balck,also can choose white,silvery or other colour
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Recommend Products
Customer Feedback
Customized Function
Packing & Shipping

1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
