Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of All in One Computers now. It better meets the market demands. Shenzhen Innoda Technology Co., Ltd. will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND156PCProducts Status:New
Processor Main Frequency:2.0GHzPanel Type:TFT
Warranty(Year):1-YearContrast Ratio:400:1
Graphics Card Type:Integrated CardOptical Drive Type:No CD ROM
Widescreen:NOInterface Type:usb
Color:BlackDisplay Type:LCD
Use:IndustrialResponse Time:6ms
Processor Brand:IntelDisplay Ratio:16:9
Display resolution:1920x1080Plugs Type:US, JP, CN, AU, UK, EU
Series:For BusinessHard Drive Type:SSD
Video Memory Type:With the main memoryPower:250 W
Operating System:Windows 10, Window 7/10( trial version)Feature:Touch Screen
Brightness:350 cd/mScreen Type:LCD
Processor Type:Intel CorePixel Pitch:0.276mm
Graphics Card Chipset:Integrated CardRAM Type:DDR3
Chipset Type:Intel H55HDD Rotation Speed:7200 Rpm
Vertical Viewing Angle:80°Mouse & Keyboard:NO
Processor Core:Dual CoreVideo Memory:4GB
Video Card:Intel HD graphicsAfter-sales Service:Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair, Others
Private Mold:YesSize of screen:15.6''
Resolution:1920*1080CPU:Intel core J4105
Touchscreen Type:Capacitive touchscreenIP Grade:Waerproof IP65/67/68
WIFI:OptionalInterface:USB/RJ45/COM
Client Logo:AcceptableProduct Name:15.6inch Capacitive Touch Industrial Panel PC 1920*1080 HD Full IP65

Product Description

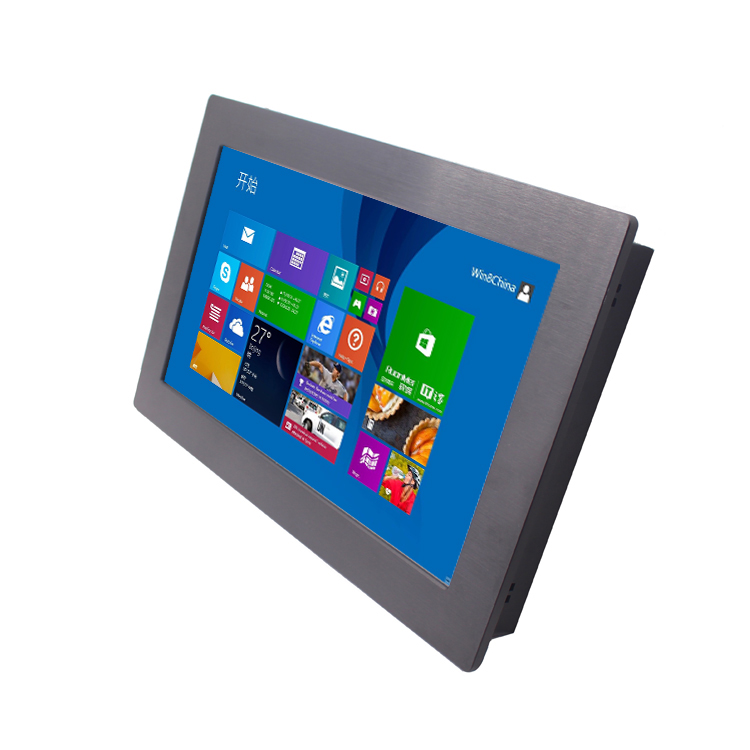

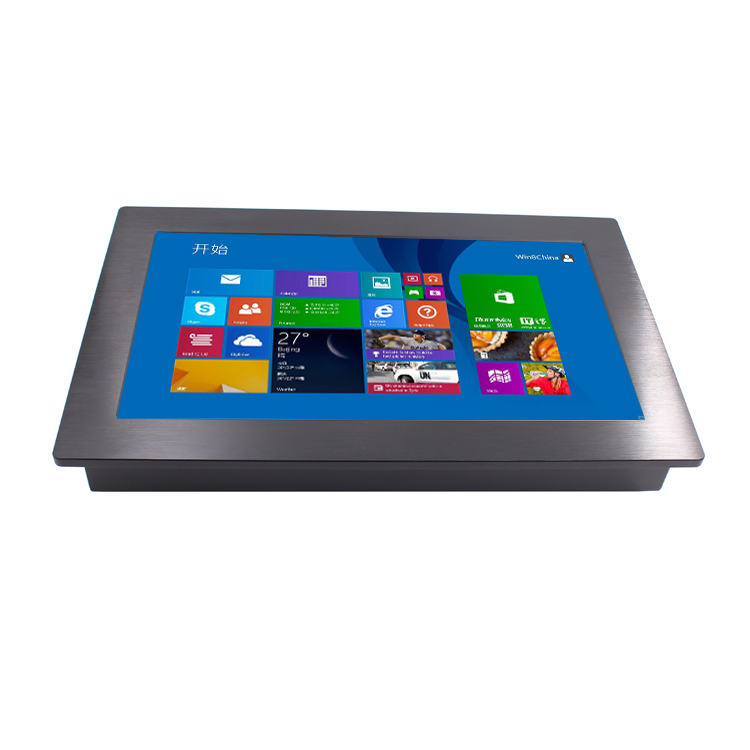

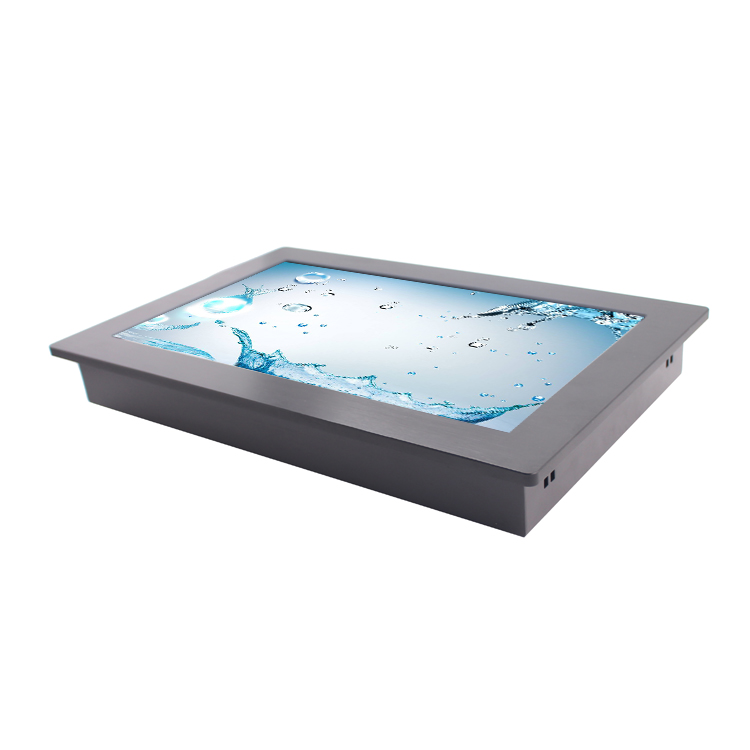

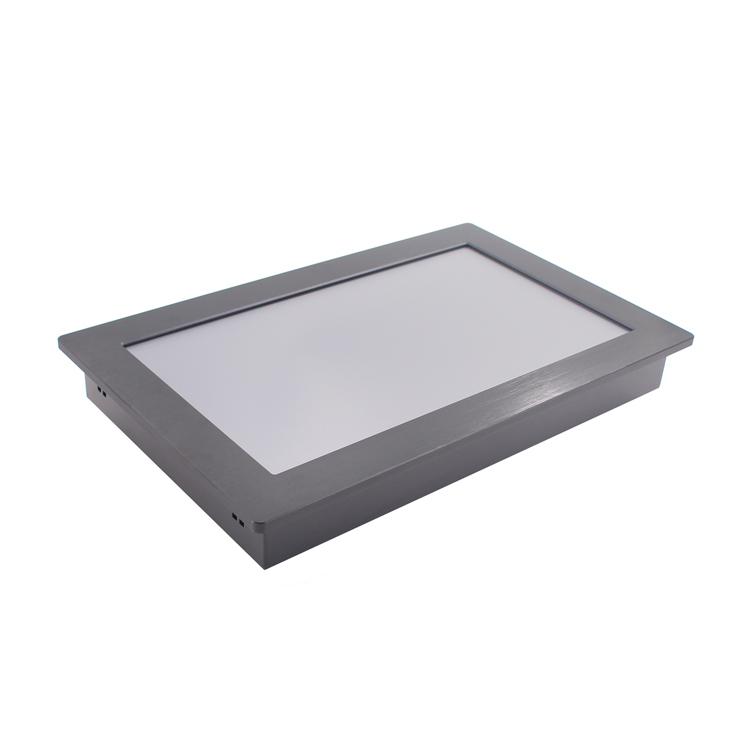

15.6inch Capacitive Touch Industrial Panel PC 1920*1080 HD Full IP65 Waterproof AIO Panel pc


Features

1. 7''-42'' size optional

2. CPU:Intel J4105

3. 1*RS232, 2*USB,1*RJ45

4. Waterproof IP65/67/68

5. ALuminum +Metal chassis

6. Embedded mount



Detailed Images
Production Parameter
                                                                       Computer Configurations
CPU
Intel J4105/1.5Ghz
Memory
2GB to 16GB, DDR3
Built-in Storage
64GB / 128GB / 256GB / 1TB
Operation System
Window 7/10(trial version)
Power Supply
12V DC power
Operating Temperature
-20~70° C
                                                                                   LCD Panel Charateristics
Screen Size
15.6'' lcd Panel
Touchscreen Type(optional)
Capacitive Touch
Resoltuion
1920(H)*(RGB)*1080(V)
Aspect Ratio
16:9
High Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
700:1

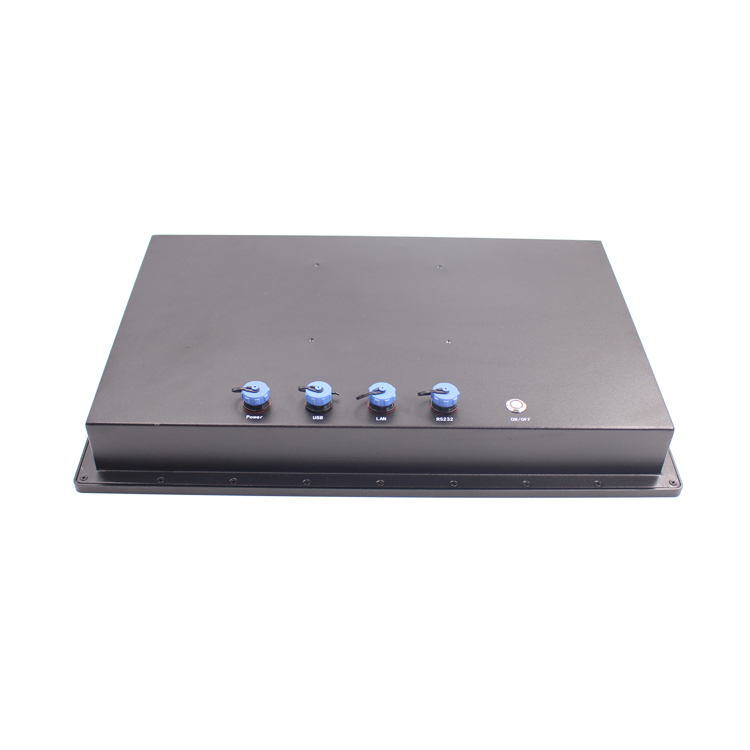

                                                                                   I/O Interface
1-4x USB2.0(up to 6)
1-2xLAN(RJ45)
1-2 x COM(RS232/RS485/RS422)
                                                                                Functions
Full IP65/67/68
                                                                                  Other Information
Frame Material
Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft

VASA Mounting
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount

Color
Default balck,also can choose white,silvery or other colour
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Recommend Products
Customer Feedback
Customized Function
Packing & Shipping

1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

Our Company

OEM/ODM is our strong points. Customized design is welcome.
