Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Shenzhen Innoda Technology Co., Ltd. is considered one of the leading suppliers of Industrial Metal plus rugged glass 10.1 touch screen windows10 Touch PC. High-end technologies helps us ensure Industrial Metal plus rugged glass 10.1 touch screen windows10 Touch PC quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of All in One Computers. After assessing the needs of customers and the market, we have successfully made Industrial Metal plus rugged glass 10.1 touch screen windows10 Touch PC have some wanderful advantages, all of which can help make it stand out in the market. Moreover, its appearance is highly emphasized as well. Our creative designers make the product unique in its appearance by keeping close up with the latest industry trends.
| Place of Origin: | Guangdong, China | Brand Name: | INNODAPC |
| Model Number: | IND238PC | Products Status: | New |
| Processor Main Frequency: | 2.0GHz | Panel Type: | TFT |
| Warranty(Year): | 1-Year | Contrast Ratio: | 400:1 |
| Graphics Card Type: | Integrated Card | Optical Drive Type: | No CD ROM |
| Widescreen: | NO | Interface Type: | RS232C, usb |
| Color: | Black | Display Type: | LCD |
| Use: | Industrial | Response Time: | 6ms |
| Processor Brand: | Intel | Display Ratio: | 16:9 |
| Display resolution: | 1280x800 | Plugs Type: | US, JP, CN, AU, UK, EU |
| Series: | For Business | Hard Drive Type: | SSD |
| Video Memory Type: | With the main memory | Power: | 250 W |
| Operating System: | Windows 10, Window 7/10( trial version) | Feature: | Touch Screen |
| Brightness: | 350 cd/m | Screen Type: | LCD |
| Processor Type: | Intel Core | Pixel Pitch: | 0.276mm |
| Graphics Card Chipset: | Integrated Card | RAM Type: | DDR3 |
| Chipset Type: | Intel H55 | HDD Rotation Speed: | 7200 Rpm |
| Vertical Viewing Angle: | 80° | Mouse & Keyboard: | NO |
| Processor Core: | Dual Core | Processor Series: | Intel Core I3 |
| Video Memory: | 4GB | Video Card: | Intel HD Graphics 4400 |
| After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair, Others | Private Mold: | Yes |
| Size of screen: | 10.1'' | Resolution: | 1280*800 |
| CPU: | Intel J1900/2.0Ghz | Touchscreen Type: | Capacitive touchscreen |
| IP Grade: | Waerproof IP65/67/68 | WIFI: | Yes, with waterproof antenna |
| Interface: | USB/RJ45/COM | Client Logo: | Acceptable |

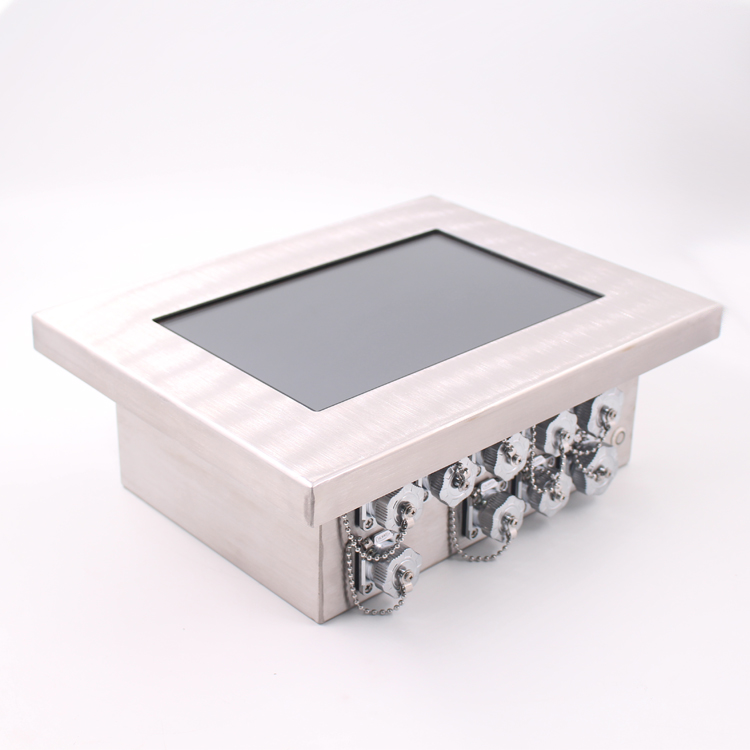

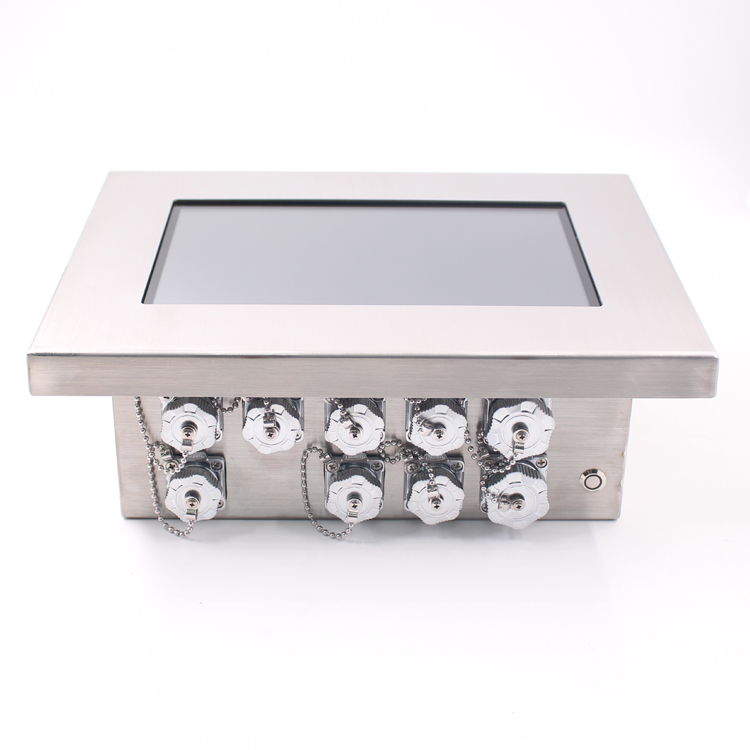

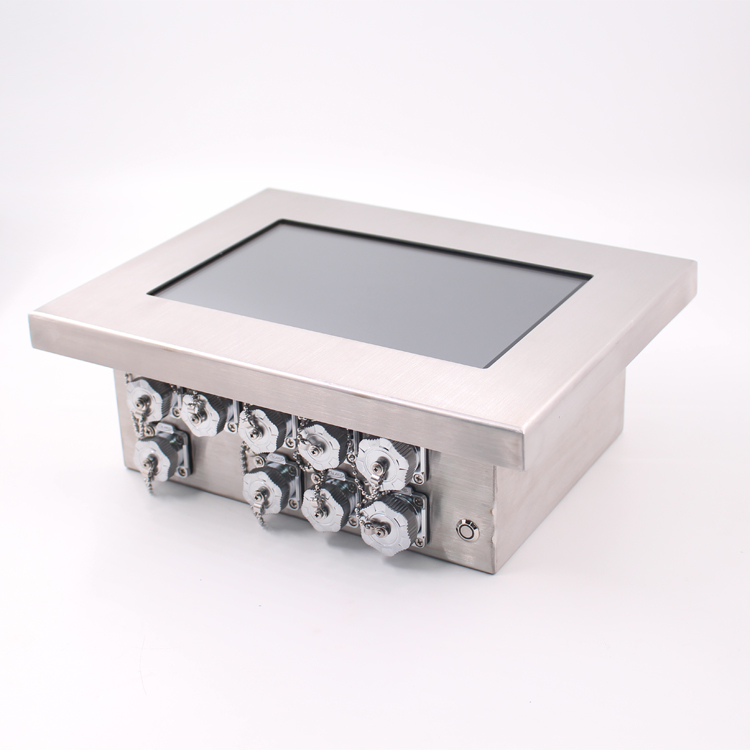

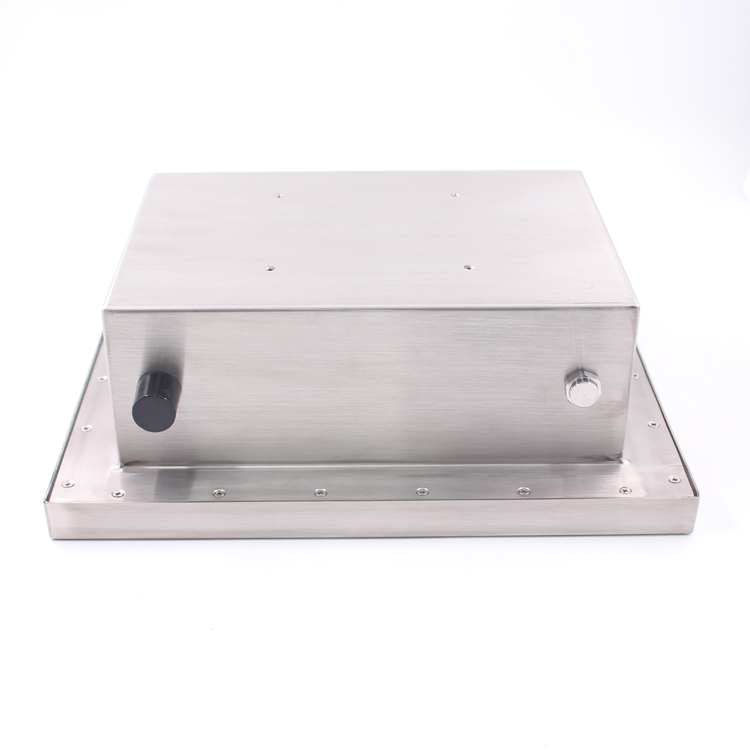

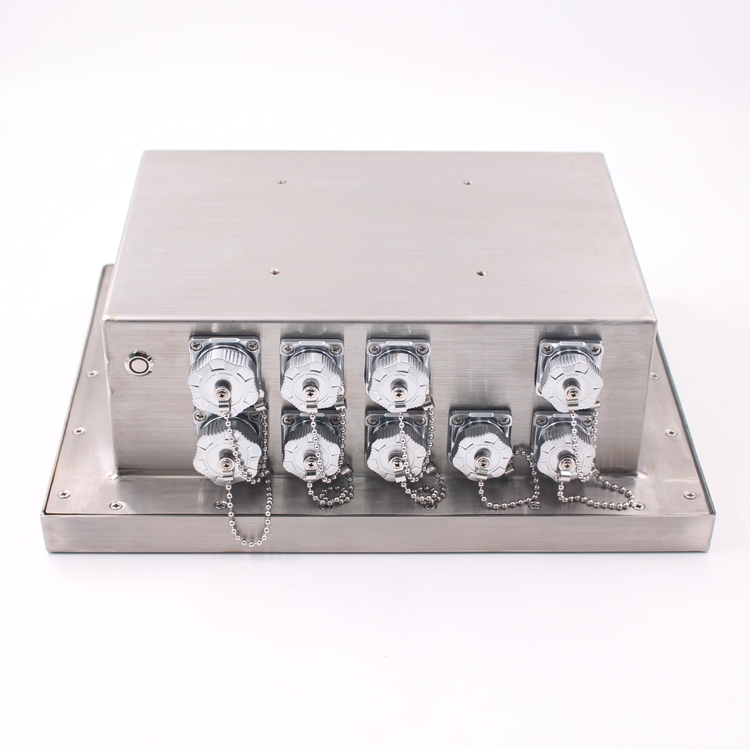

| Product Name: | Industrial Metal rugged 10.1 touch screen windows10 Touch PC |
1. 7''-42'' size optional
2. CPU:Intel J1900/2.0Ghz
3. 1*RS232, 1*RS422, 2*USB, 1*RJ45
4. Waterproof IP65/67/68
5. Stainless steel 304
Computer Configurations | ||||||
CPU | Intel J1900/2.0Ghz | |||||
Memory | 2GB to 16GB, DDR3 | |||||
Built-in Storage | 64GB / 128GB / 256GB / 1TB | |||||
Operation System | Window 7/10(trial version) | |||||
Power Supply | 12V DC power | |||||
Operating Temperature | -20~70° C | |||||
LCD Panel Charateristics | ||||||
Screen Size | 10.1'' industrial grade Panel | |||||
Touchscreen Type(optional) | Capacitive Touch | |||||
Resoltuion | 1280(H)*(RGB)*800(V) | |||||
Aspect Ratio | 16:9 | |||||
Brightness | 350cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 | |||||
I/O Interface | ||||||
1-4x USB2.0(up to 6) | 1-2xLAN(RJ45) | |||||
1-2 x COM(RS232/RS485/RS422) | ||||||
Functions | ||||||
Full IP65/67/68 | WIFI | |||||
Other Information | ||||||
Frame Material | Aluminum Alloy/Stainless Steel | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||
VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default balck,also can choose white,silvery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD | |||||
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
