Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability, the product is suitable for the field(s) of 15''. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Industrial Computer & Accessories,10.4/15/12 inch intel i3 i5 all in one industrial touch screen panel embedded pc is widely accepted by users. Shenzhen Innoda Technology Co., Ltd. intend to gather more industry talents because people's wisdom is driven source for us to advance forward. We plan to allocate a large amount of money for product development and technology upgrades. What's more, we aim to become an influential enterprise in the global market.

Products Status:StockType:Panel PC
Brand Name:INNODAPCPlace of Origin:Guangdong, China
LCD Panel:15inch Industrial Standard LCD panelCPU:J1900/2.0Ghz
RAM:2GB/4GB/8GB DDR3WIFI:Optional
Operating System:Linux/Ubuntu 14.04 LTS/Win 8/10Environmet Temperature:-30-80℃
Warranty:12 MonthsMaterial:Stainless Steel / Aluminum
Fan:FanlessProduct name:15inch Intel j1900 2.0GHz PCAP Touch all in one pc
Certification:ce, RoHS

10.4/15/12 inch intel i3 i5 all in one industrial touch screen panel embedded pc



 Follow link is our waterproof computer testing video,welcome to check it

https://youtu.be/tRaW1HTYbsw



Features

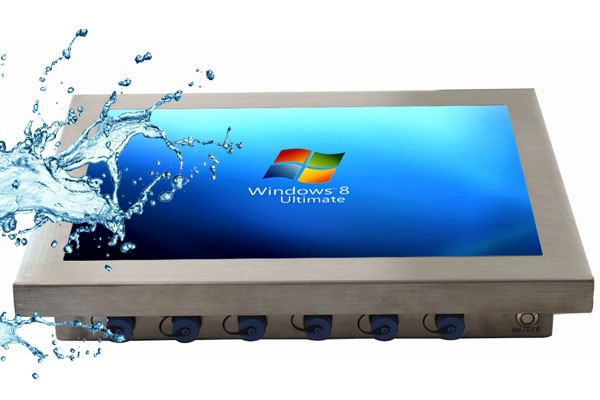

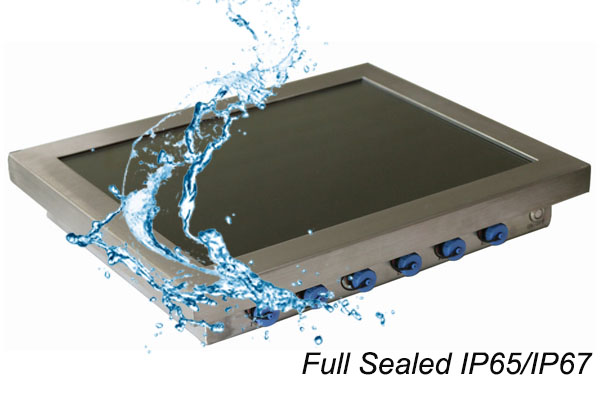

1.Waterproof design for industry application

2.Sensistive and fast response PCAP touch screen for optional

3.Muilttouch I/O ports with USB,LAN and COM Port.

4.Industrial fanless board,7x24hours of continuous work

5.Can do Customized design sunlight readable and waterproof function with 21000cd/m2-1500cd/m

Detailed Images



Noted, Sunlight Readable Computer Configuration can be customzied, so the price depends on the components and quantity.

Product Description
Computer Configurations
CPU Intel Celeron® Processor J1900 Dual Core 2.0GHz
Memory 2GB to Max. 8GB, DDR3
Storage 320GB to 1TB, 32GB to 128GB SSD
Operation System

Support Linux/Ubuntu 14.04 LTS/Windows 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 17'' LCD/LED Panel
Touchscreen Type(optional) 4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch
Resoltuion 1024(H)*(RGB)*768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 1000:1



I/O Interface
USB 4xUSB2.0
VGA ------
Serial Port(RS232) 2xRS232
HDMI -------
LAN(RJ45) 1xRJ45
Other Function(Optional)
WIFI 3G Module
GPIO Connector Phoenix Connector 8-36V wide range power supply
Bluetooth Webcam
Brightness Control in Manual and Auto  Watchdog Timer



Other Information
Frame Material Aluminum Alloy/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour
VASA Mounting 75*75 mm or 100*100 mm
Product Dimension(LxWxH) 360x288x57mm
Packing Dimension(LxWxH) 460x390x160mm
Weight 9KG
Customer Comments

Customized Function

Main Product

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

Application

Company Information

Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.



Pls feel free to contact us as below methods, we will response to you in time.

Contact: Sunny

Tel: 0086-0755-29108731

Skype:  sunnytech24

Mobile/WatsApp: 0086 13554782291
