Our employees are skilled at utilizing state-of-the-art technologies.In the application field(s) of All in One Computers, Waterproof Tablet 10.1-Inch Outdoor Display Industrial Touch Screen Panel Pc is widely used and highly recognized by users. After the Waterproof Tablet 10.1-Inch Outdoor Display Industrial Touch Screen Panel Pc was launched, we received good feedback, and our customers believed that this type of product could meet their own needs. Waterproof Tablet 10.1-Inch Outdoor Display Industrial Touch Screen Panel Pc is not only manufactured to draw the attention of people but also to bring them convenience and benefits. Designed by creative designers, Shenzhen Innoda Technology Co., Ltd. presents a style of aesthetics. In addition, it is excellent characterized thanks to the adopted high-quality raw materials and high-end technologies.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND101PCProducts Status:New
Processor Main Frequency:2.0GHzWarranty(Year):1-Year
Graphics Card Type:Integrated CardOptical Drive Type:No CD ROM
Widescreen:YesScreen Size:10.1"
Display Type:LCDUse:Industrial
Processor Brand:IntelDisplay resolution:1024x768
Plugs Type:US, JP, CN, AU, UK, EUSeries:For Business
Hard Drive Type:SSDVideo Memory Type:With the main memory
Power:OtherOperating System:Windows 10, Window 7/Window 8/10 Linux
Graphics Card Chipset:Integrated CardRAM Type:DDR3
Chipset Type:Intel H61HDD Rotation Speed:7200 Rpm
Mouse & Keyboard:NoProcessor Core:Quad Core
Video Memory:4GBVideo Card:Intel HD Graphics
After-sales Service:Call Center and on-line Technical Support, Free spare parts, Return and Replacement, RepairCertification:ce, RoHS
Dispaly Ratio:16:9Type:ALL-IN-ONE
Size:10.1'' industrial grade panelTouch screen:10-Point Capacitive Touch
CPU:Intel J1900/2.0GhzWaterproof grade:IP65/66/67
QR code scanner:Built-inWIFI:Optional
Interface:USB/COM/RJ45Color:Black/white/Slivery...optional
Name:15-Inch Panel Pc Stainless Industrial Panel Pc IP67

Waterproof Tablet 10.1-Inch Outdoor Display Industrial Touch Screen Panel Pc



1.10.1-inch Industrial waterproof industrial panel pc

2.Intel J1900-2.0Ghz Dual Core Processor,

3.Stainless steel frame

4.QR code reader built-in

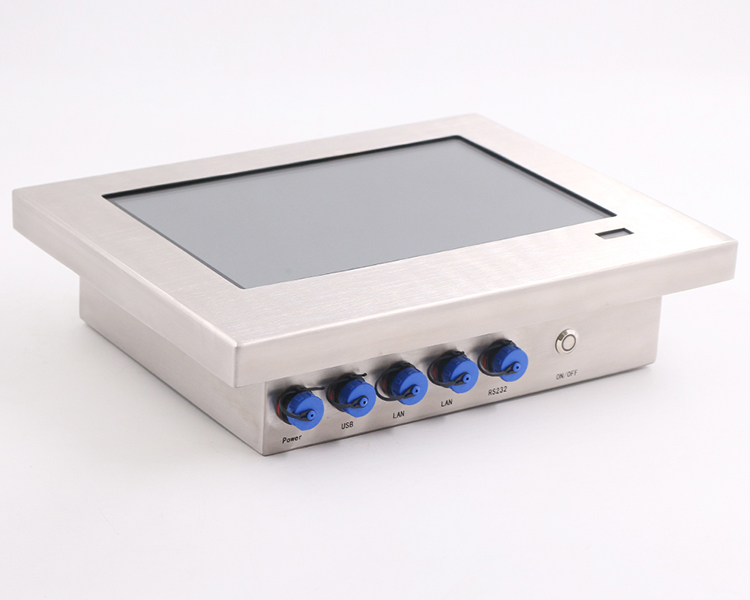

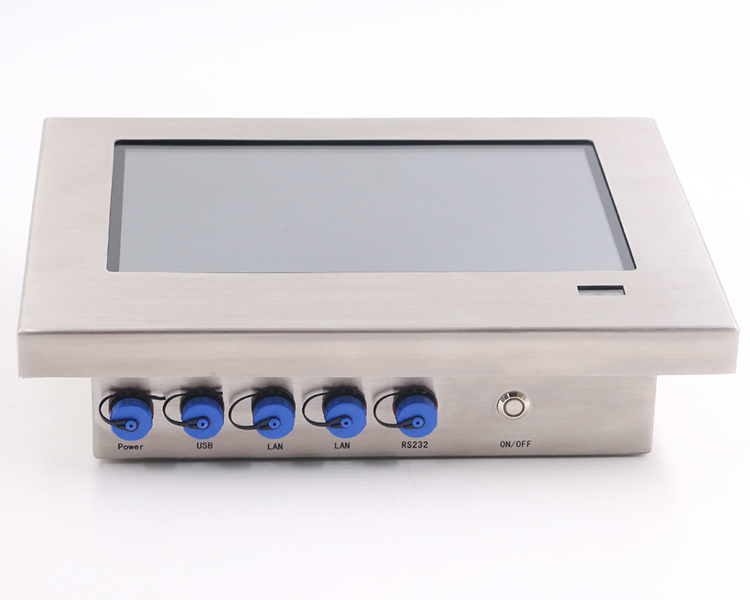

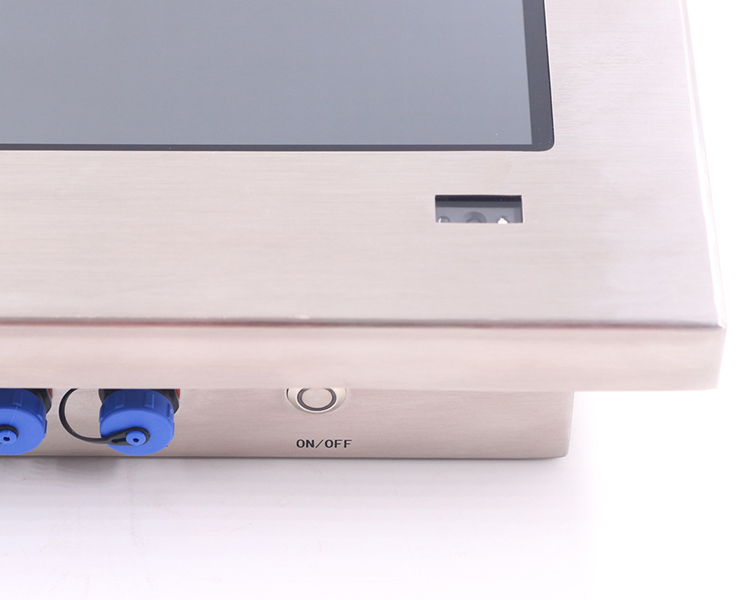

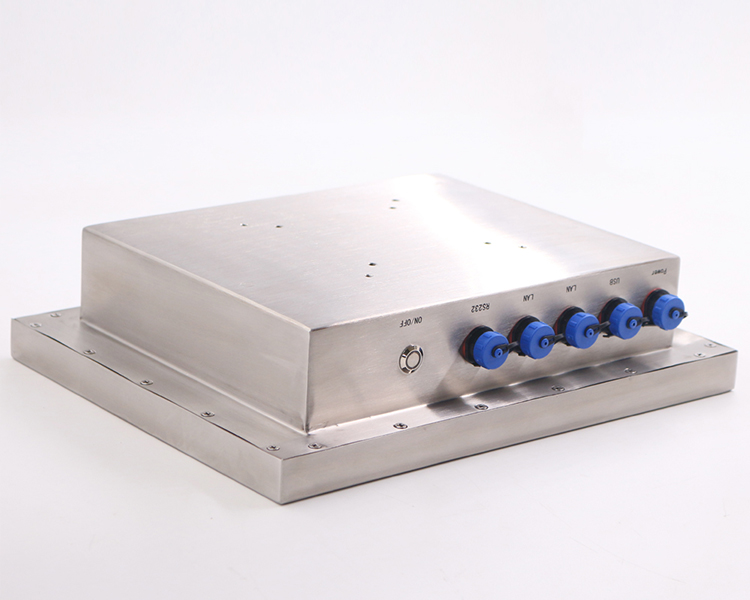

Detailed Images



Product Description
Computer Configurations
CPUIntel Celeron® Processor J1900 Quad Core 2.0GHz
Memory2GB DDR3(Max. 8GB)
Storage32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win7/8/10

Default with Win 7 OS Testing Version is preloaded.

CoolingFan / Fanless for optional
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size10.1'' LCD/LED Panel
Touchscreen TypeCapacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion1280(H)*(RGB)*800(V)
Aspect Ratio16:9
Brightness350cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio500:1



I/O Interface
USB2xUSB2.0
VGA-------
Serial Port(RS232)1-2xRS232
LAN(RJ45)1-2xRJ45
Other Function(Optional)
WIFI3G/4G Module
GPIO Connector8-36V wide range voltage
QR code scannerWebcam
Brightness Control in Manual and Auto RF/NFC Reader



Other Information
Frame MaterialMetal Case/Aluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm
Product Dimension(LxWxH)253x152.6x53.1mm
Packing Dimension(LxWxH)354x253x154mm
Weight5KG
Customer Comments

Customized Function

Main Product

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

Application

Company Information

Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
