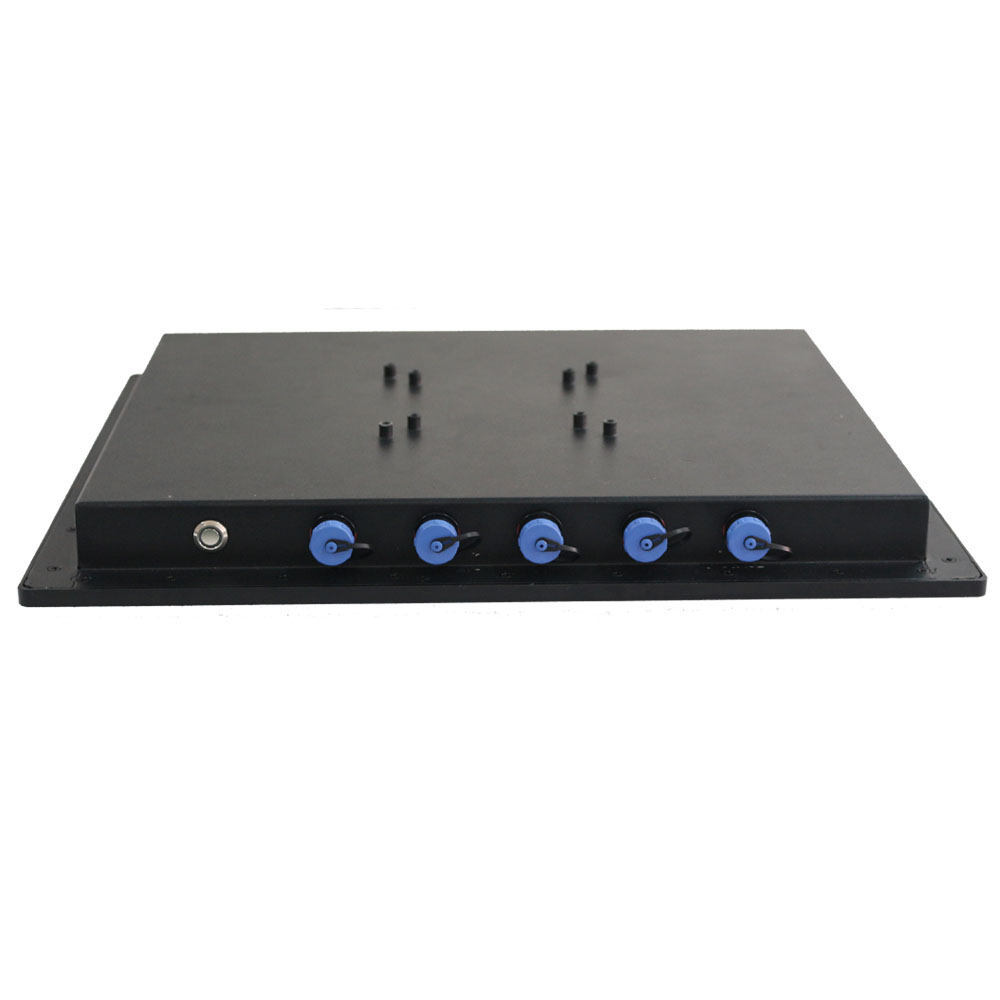

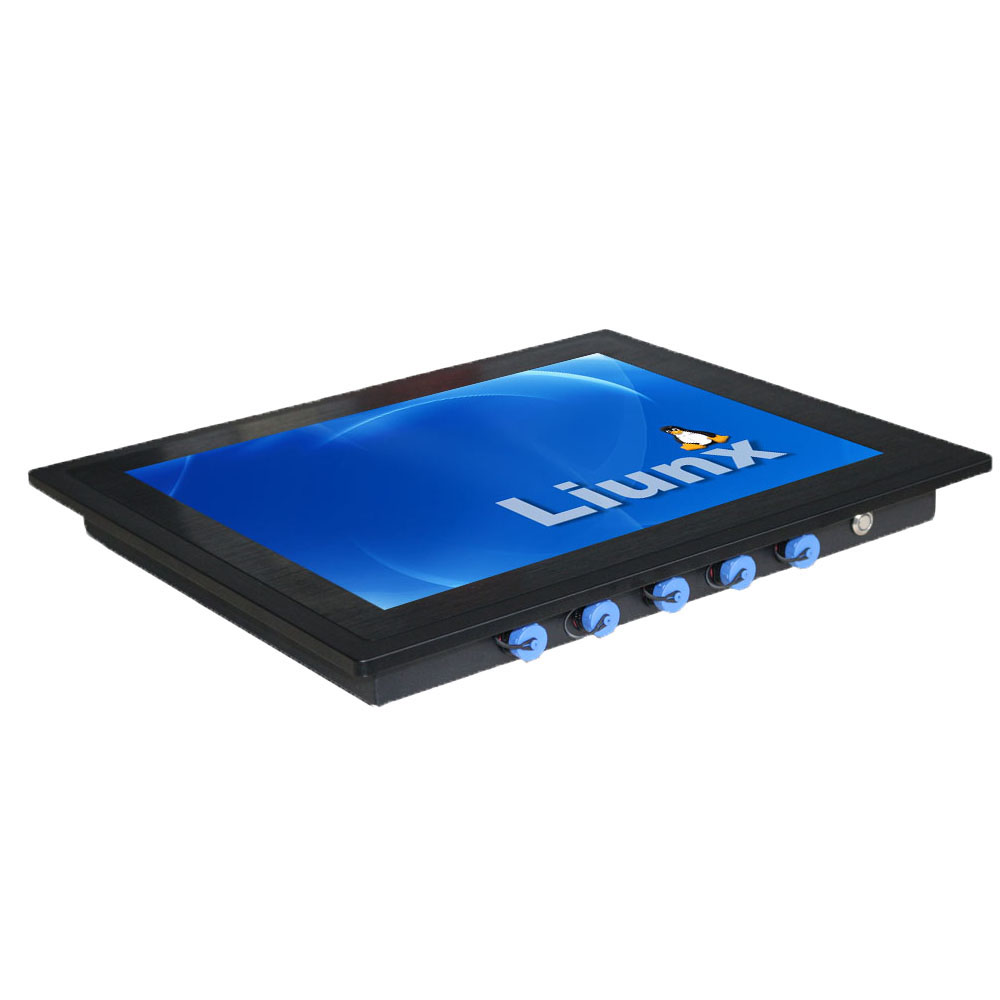

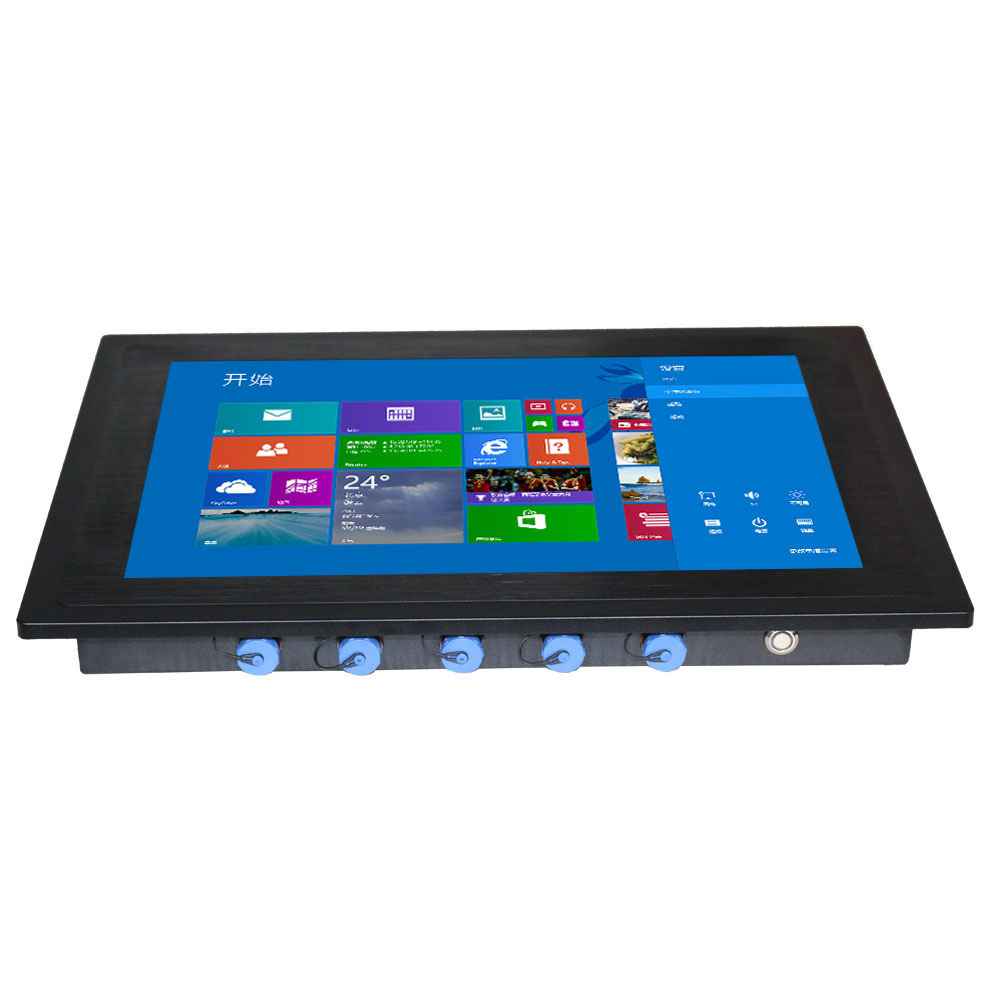

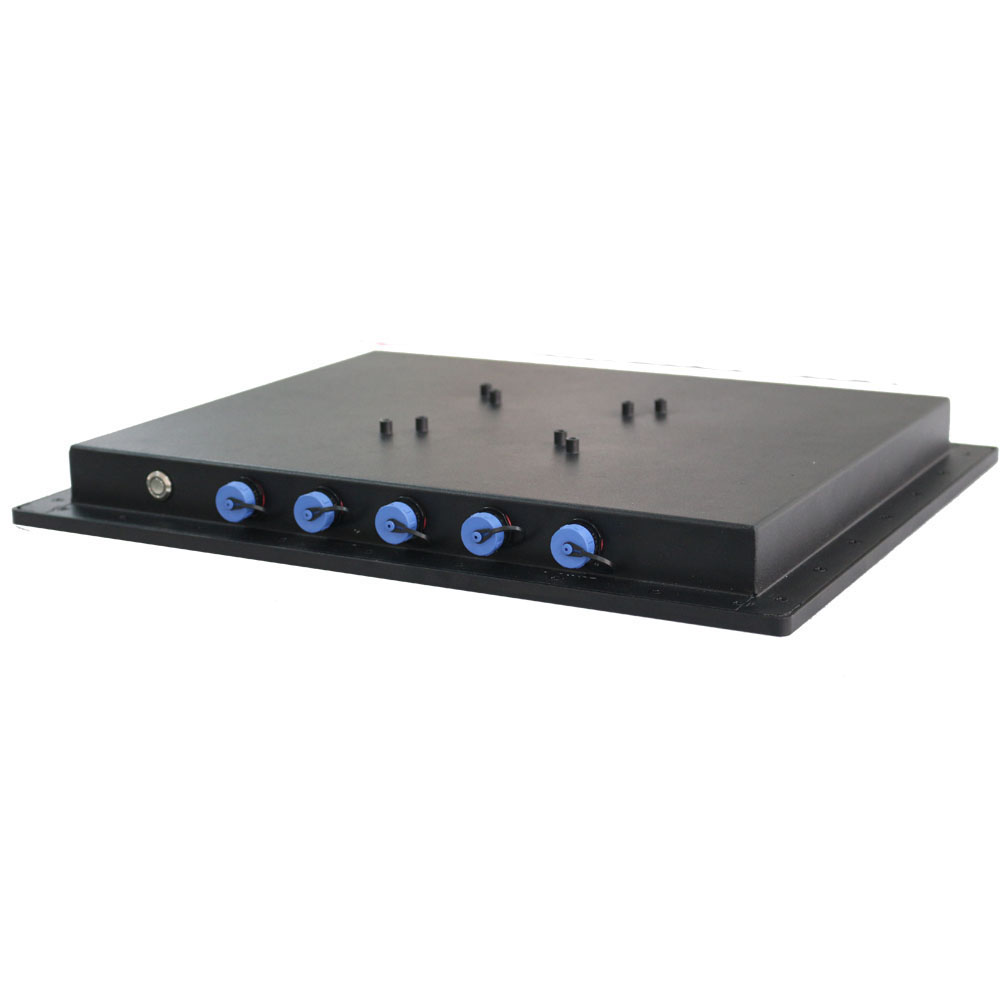

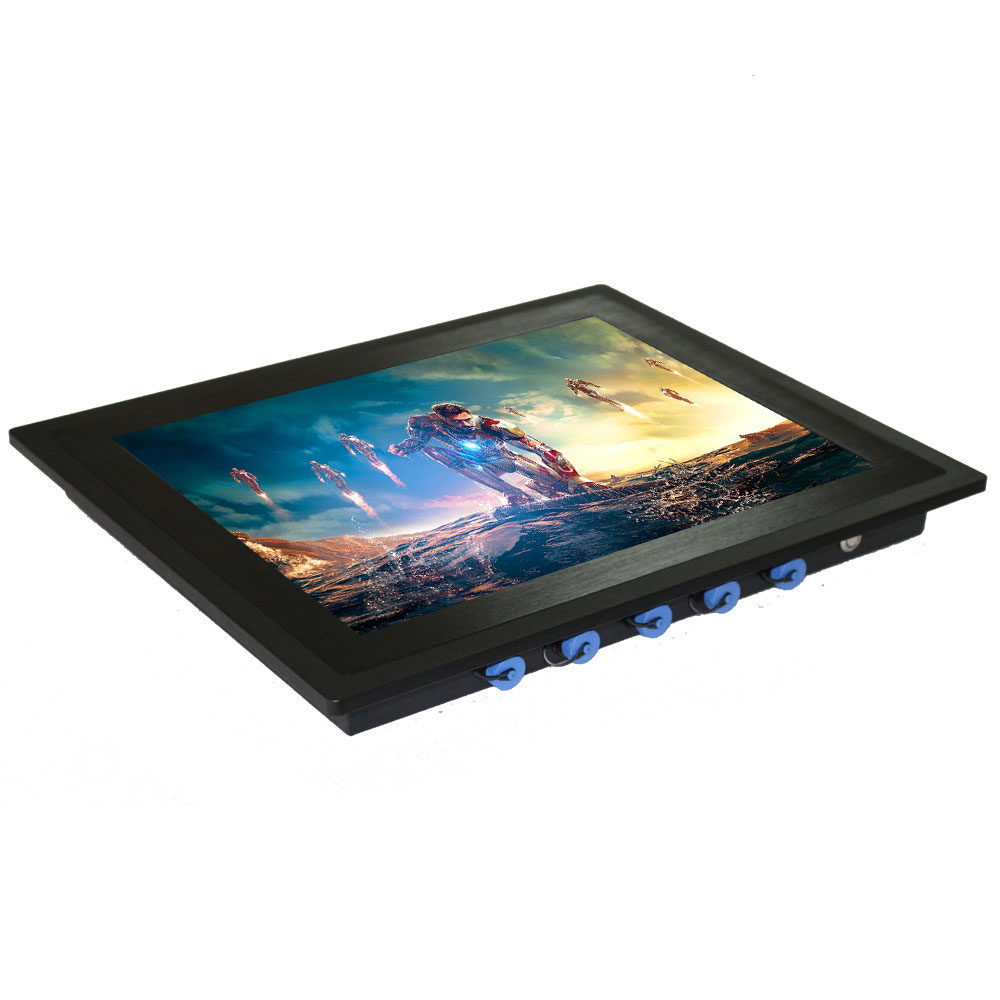

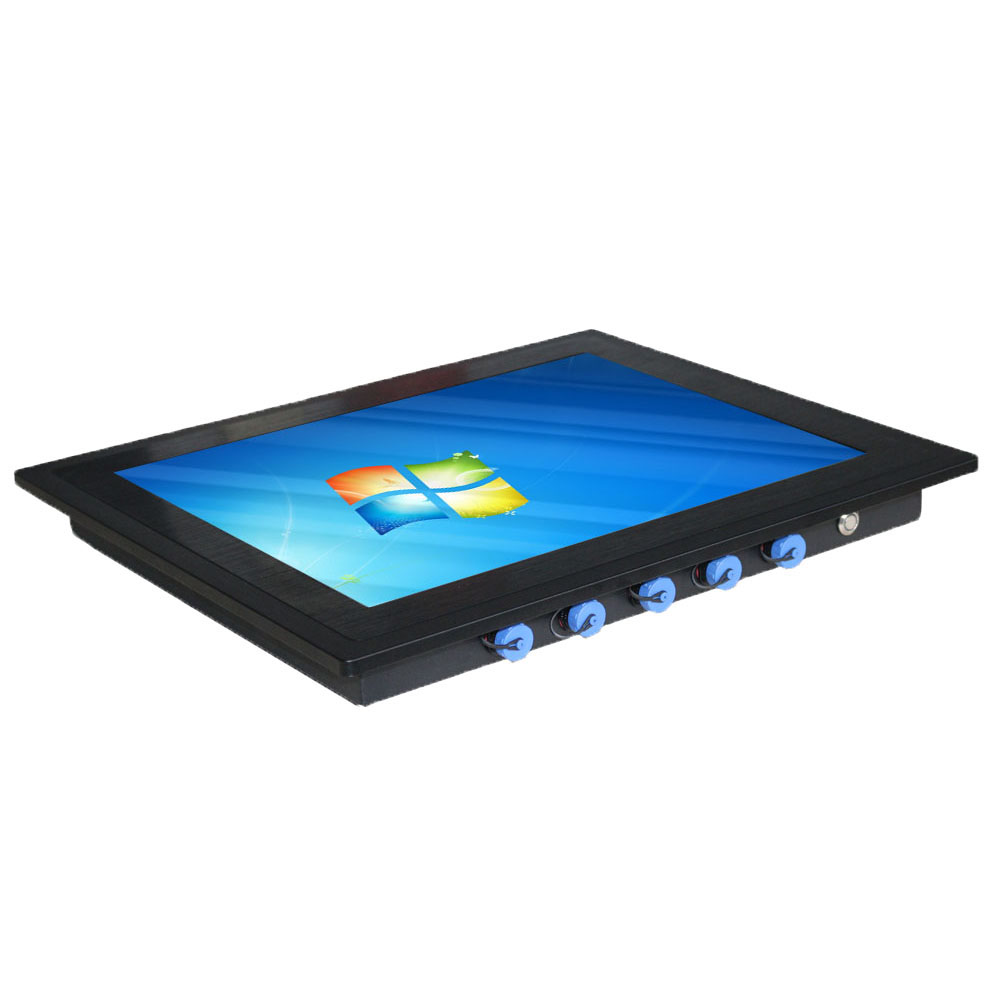

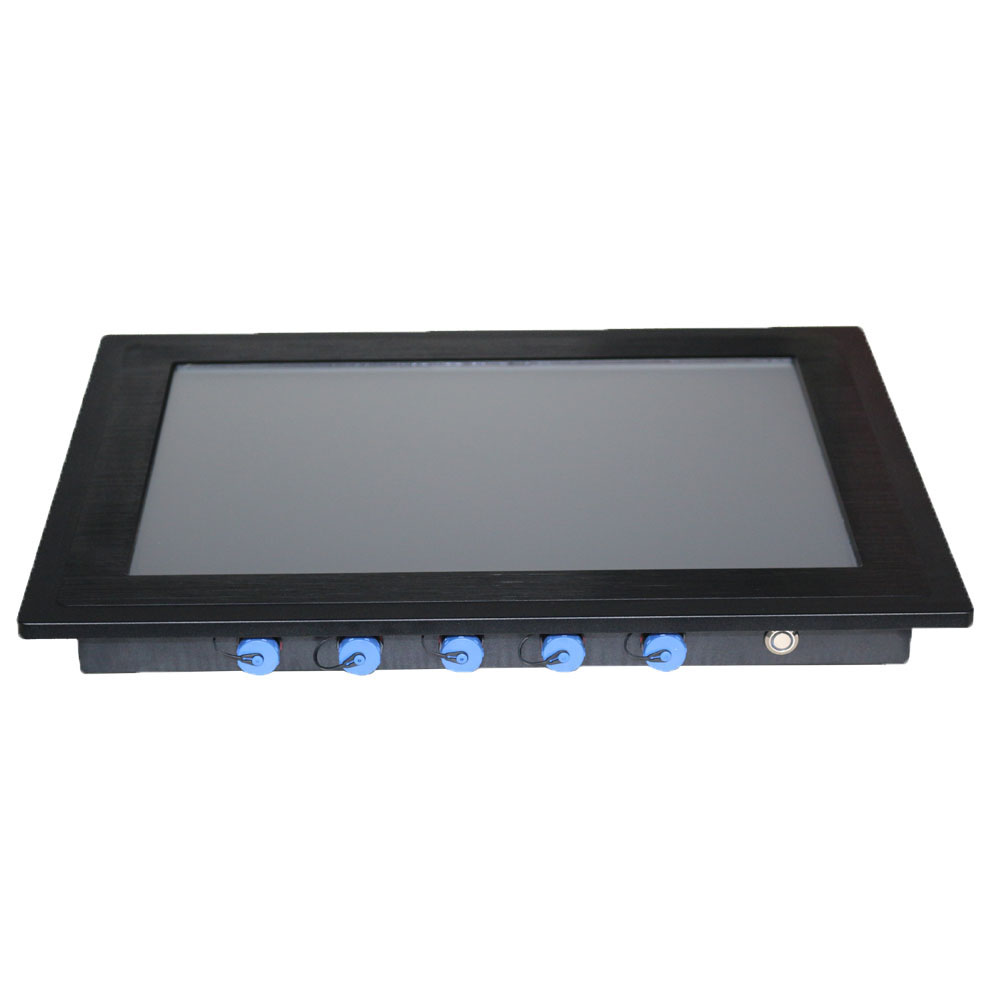

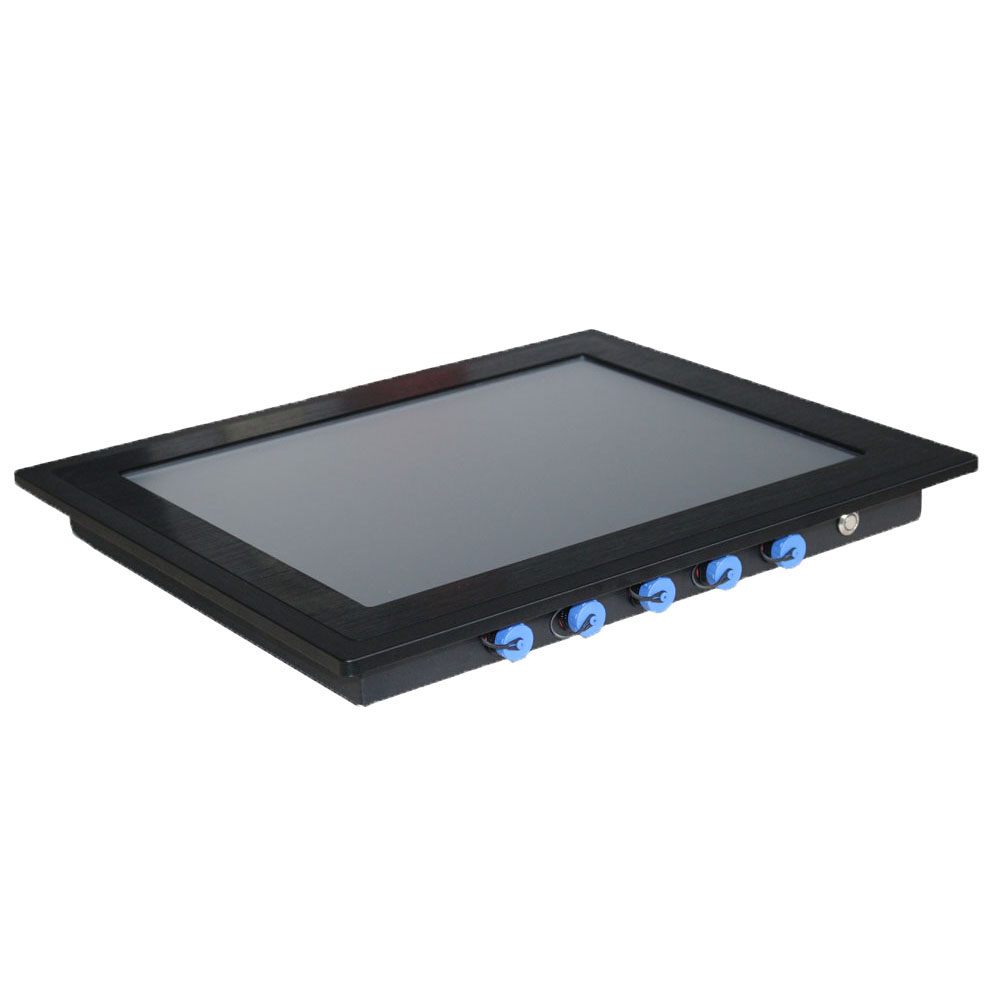

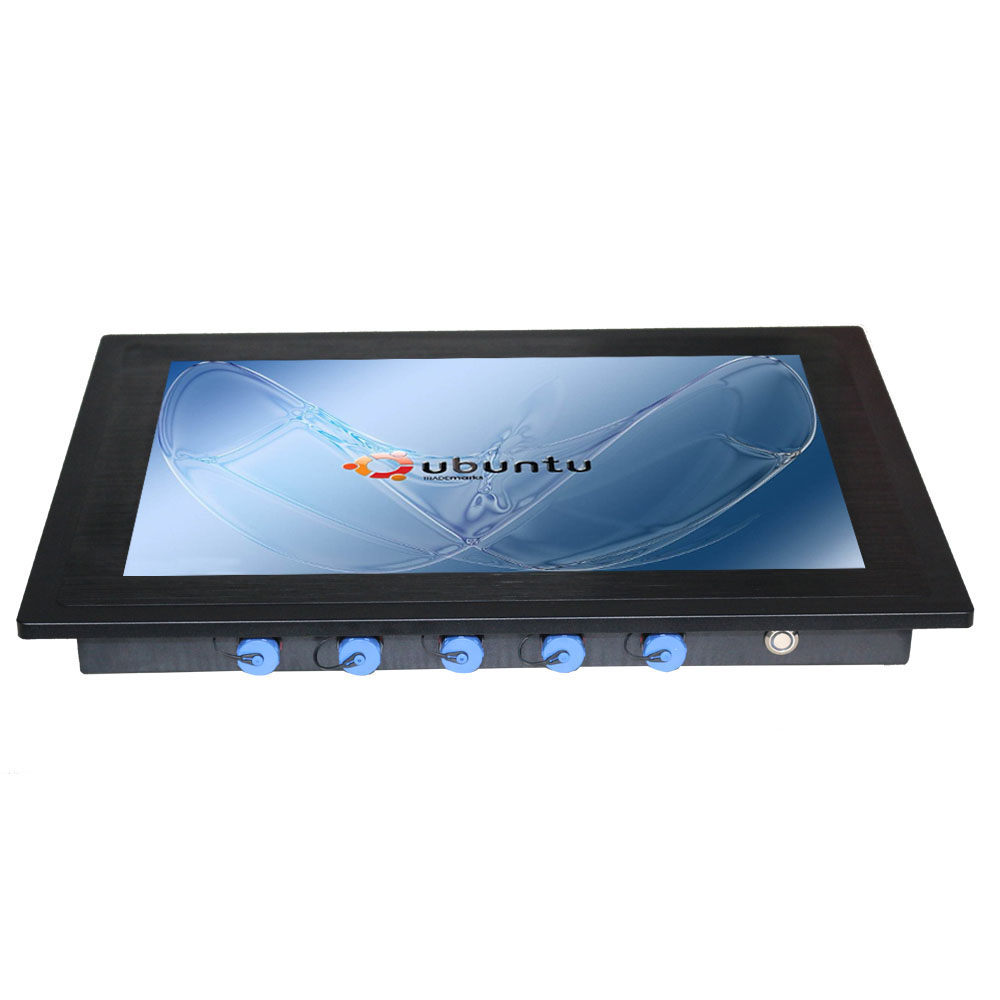

As an innovation-driven company,Shenzhen Innoda Technology Co., Ltd. has been devoted to product development for years. We are proud and excited as well to announce that we have successfully developed 15 inch waterproof all in one computer industrial touch screen panel pc with metal case Sealing ring connector. In recent years, we've updated technologies or higher-efficiency manufacturing of the product. Its application ranges have been expanded to the field(s) of Industrial Computer & Accessories. Get in touch with us - call, fill in our online form or connect via live chat, we are always happy to help.
| Products Status: | Stock | Type: | Panel PC |
| Brand Name: | INNODA | Place of Origin: | Guangdong, China |
| Certification: | ce, RoHS | Product name: | waterproof pc industrial control panel pc |
| Operating System: | win/linux | CPU: | J1900 |
| Memory: | 4GB | Storage: | 64G SSD |
| Interface: | UBS, VGA, HD, COM, LAN | Key Words: | industrial tablet pc |
| Sunlight readable: | Yes | Support customization: | Yes |
| Warranty: | 1year |
Computer Configurations | ||
CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz | |
4Memory | 4GB DDR3(Max. 8GB) | |
Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) | |
Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 | |
Cooling | Fan / Fanless for optional | |
Power Supply | 100V-240V,12V 7A AC Input,max 24W | |
Operating Temperature | -20~60° C (-4~140° F) | |
LCD Panel Charateristics | ||
Screen Size | 15'' LCD/LED Panel | |
Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | |
Resoltuion | 1024(H)*(RGB)*600(V) | |
Aspect Ratio | 4:3 | |
Brightness | 350cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 500:1 | |
I/O Interface(optinal) | ||
USB | 3xUSB2.0,1xUSB3.0 | |
VGA | 1xVGA | |
Serial Port(RS232) | 1-2xRS232 | |
LAN(RJ45) | 1-2xRJ45 | |
LVDS/EDP Output | Up to 1920*1200 | |
Audio Output | Left and Right Chanel Output,8R/5W Loudspeaker | |
Other Function(Optional) | ||
WIFI | 3G/4G Module | |
GPIO Connector | 8-36V wide range voltage | |
CanBus | Webcam | |
Brightness Control in Manual and Auto | RF/NFC Reader | |
Other Information | ||
Frame Material | Metal Case/Aluminum Alloy/Stainless Steel | |
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |
Color | Default balck,also can choose white,silvery or other colour | |
VASA Mounting | 75*75 mm or 100*100 mm(optional) | |
Product Dimension(LxWxH) | TBD | |
Packing Dimension(LxWxH) | TBD | |
Weight | 6KG | |
