It is Outdoor Aluminum Case Industrial Computer Waterproof Touch Pc IP67 features and appearance that differentiates it from other products in the market. We pay close attention to the selection of raw materials and the use of manufacturing technologies. In this way, the quality and performance of Shenzhen Innoda Technology Co., Ltd. can be better guaranteed. It is designed to cater to the changing demands and requisites of customers. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Shenzhen Innoda Technology Co., Ltd.. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing All in One Computers quality. We believe that our product with so many advantages can bring benefits to all customers.

Place of Origin:Guangdong, ChinaBrand Name:INNODAPC
Model Number:IND150PCProducts Status:Stock
Processor Main Frequency:2.0GHzGraphics Card Type:Integrated Card
Optical Drive Type:CD-ROMWidescreen:NO
Screen Size:15"Display Type:LCD
Processor Brand:IntelType:Barebone System
Power Supply:12V DCCPU:i5-4200U/1.6Ghz
Touchscreen Type:Capacivite touchEnvironmet Temperature:-25-75℃
Operating System:Linux/Ubuntu 14.04 LTS/Wins 7/8/10Warranty:1year
Material:Aluminum CaseColor:As you like
Logo:Your Logo is acceptableProduct name:Outdoor Aluminum Case Computer Waterproof Touch Pc IP67

Outdoor Aluminum Case Industrial Computer Waterproof Touch Pc IP67



 Follow link is our waterproof computer testing video,welcome to check it

https://youtu.be/tRaW1HTYbsw



Features

1.Sturdy and durable aluminum case

2.Sensistive and fast response PCAP touch screen

3.Fully sealed IP67 Design. USB,LAN and COM Port.

4.High performance -Industrial fanless board,7x24hours of continuous work

5.Customized design sunlight readable and fully sealed waterproof function

6.Waterproof Intercace and power adapter

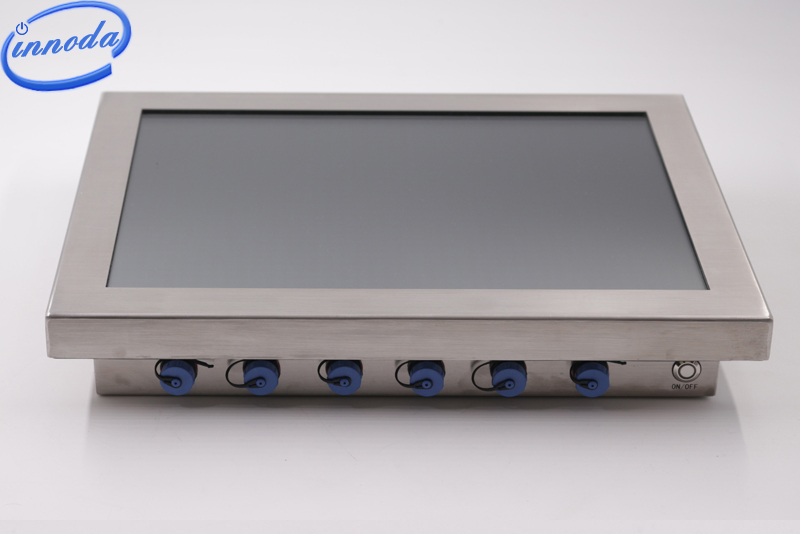

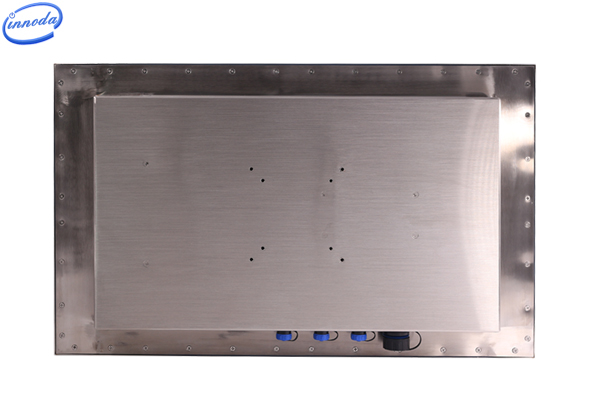

Detailed Images

Noted, Sunlight Readable Computer Configuration can be customzied, so the price depends on the components and quantity.

Product Description
Computer Configurations
CPUIntel Core I5-4200U/1.6GHz
Memory2GB to Max. 8GB, DDR3
Storage320GB to 1TB, 32GB to 128GB SSD
Operation System

Support Linux/Ubuntu 14.04 LTS/Wins 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

CoolingFan
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size15'' LCD/LED Panel
Touchscreen Type(optional)4 wire/5wire Resistive touch/Capacitive Touch/SAW Touch/IR Touch
Resoltuion1024(H)*(RGB)*768(V)
Aspect Ratio4:3
Brightness1000cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio700:1



I/O Interface
USB4xUSB2.0
VGA-----
Serial Port(RS232)2xRS232
HDMI-----
LAN(RJ45)1xRJ45
Other Function(Optional)
WIFI3G Module
GPIO ConnectorPhoenix Connector 8-36V wide range power supply
BluetoothWebcam
Brightness Control in Manual and Auto 2D Barcode Scanner



Other Information
Frame MaterialAluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm
Product Dimension(LxWxH)360.32x288.04x57mm
Packing Dimension(LxWxH)480x390x170mm
Weight9.5KG
Customized Function

Main Products
Application

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

FAQ

1.What is the MOQ?

---1pc sample is ok.



2. Could we have our onw design?

----Yes, ODM/OEM is acceptable. Just tell us your request of the product,our R&D team will try to meet your needs.



3. Can i have my brand name(logo) on the product?

----No problem, just send us your logo design and pay the cost.



4.What about the after-service?

----1 year warranty. If product have any problems, pls contact us, and take some photos,videos. It's better for our engineer to find the reason and solve it.



5.How to ship it to my country?

---Usually the goods will be ship by DHL/Fedex/UPS/TNT....and so on. 3-5 working days arrival.



6.How long is the delivery time?

-----10-15working days upon receive the payment.
