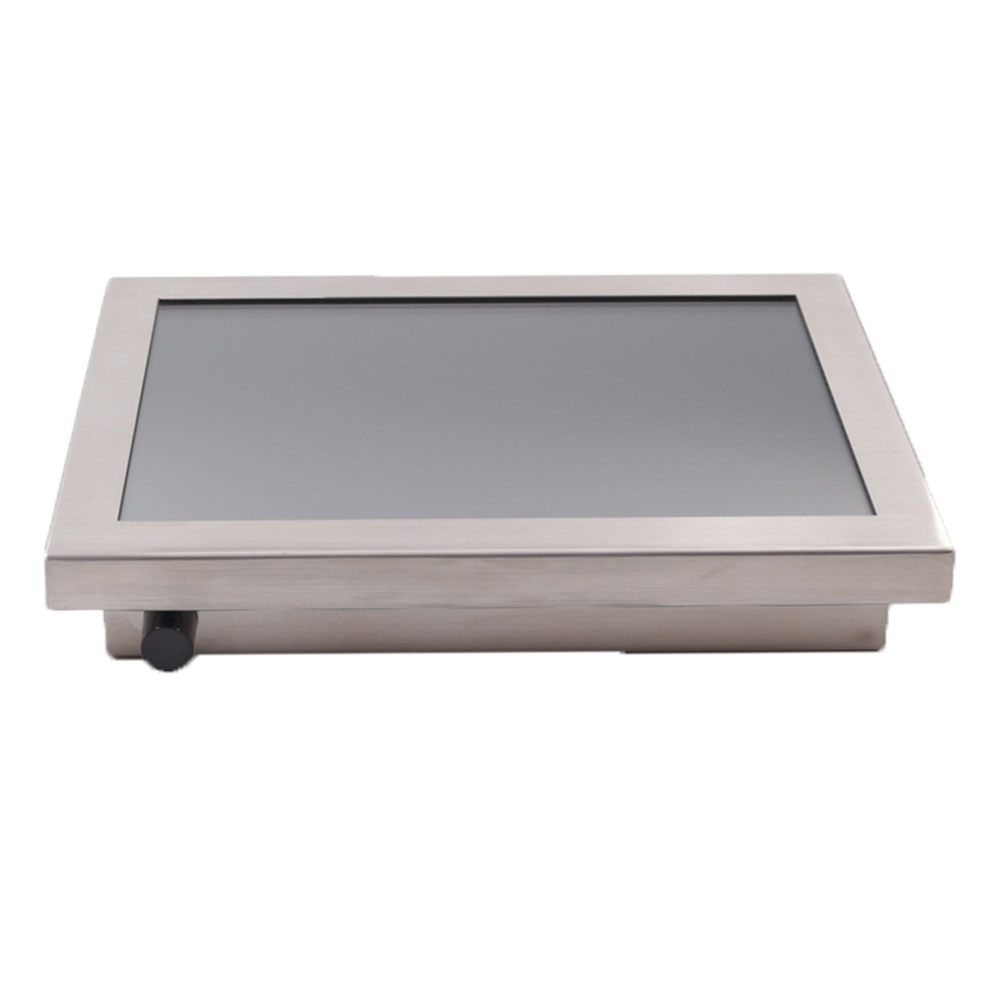

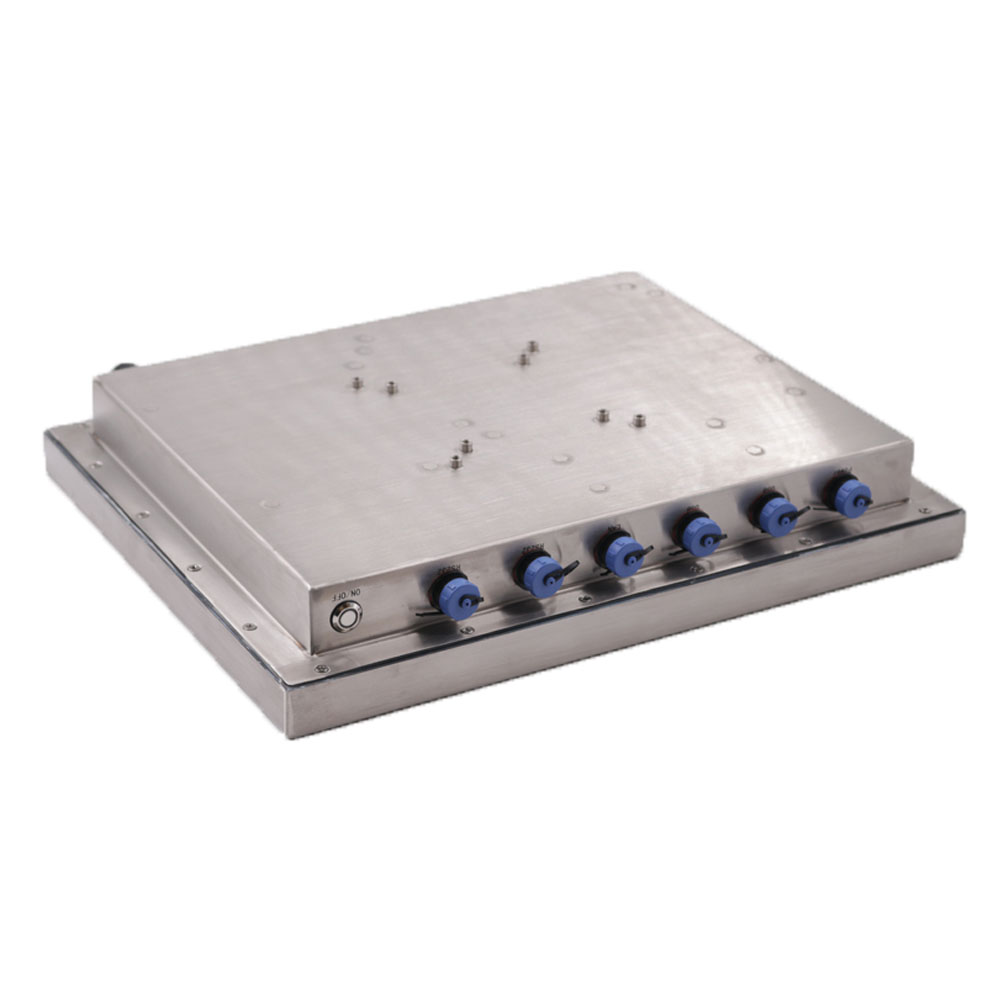

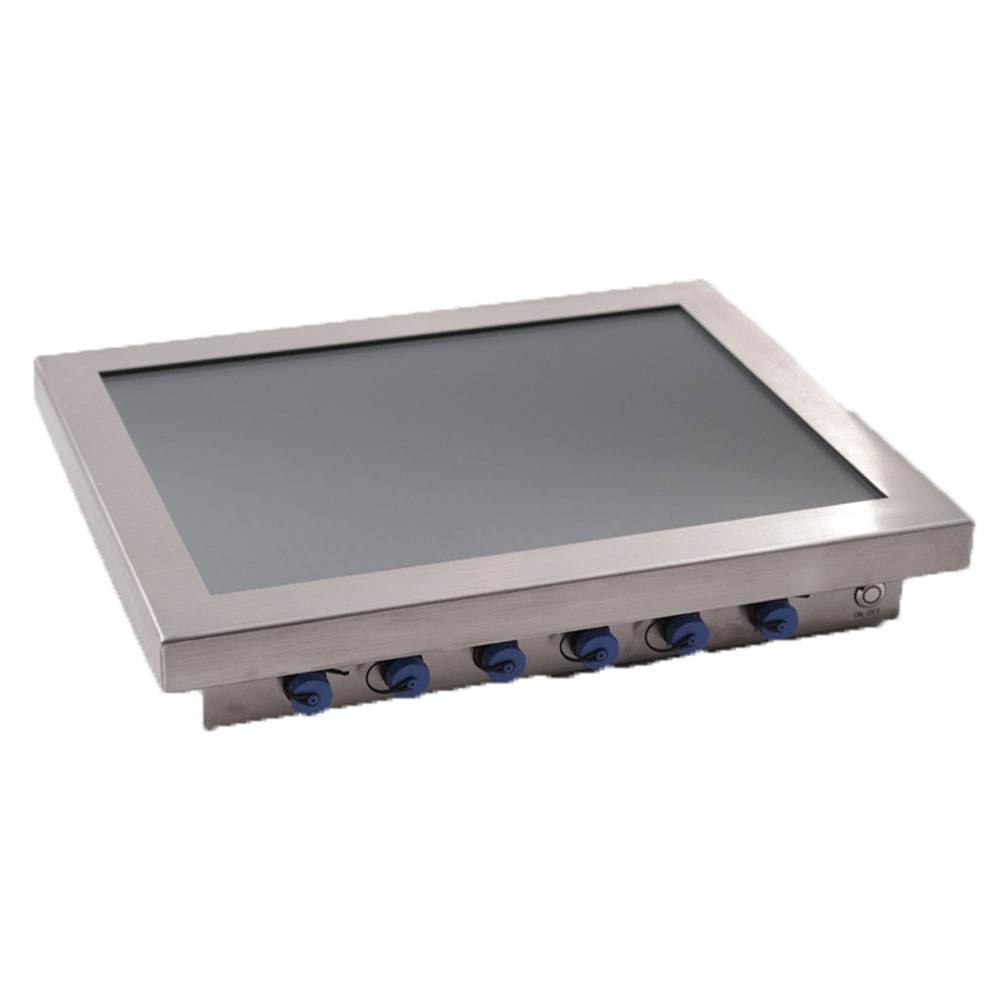

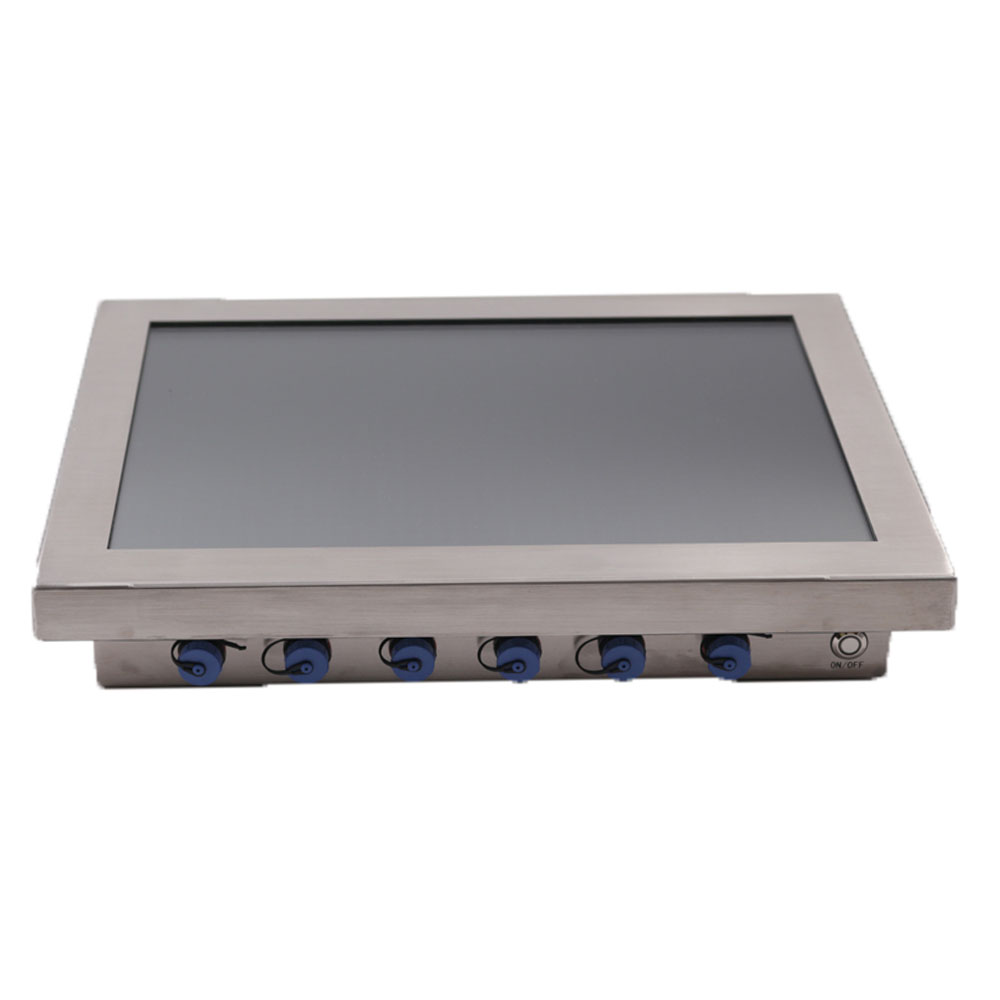

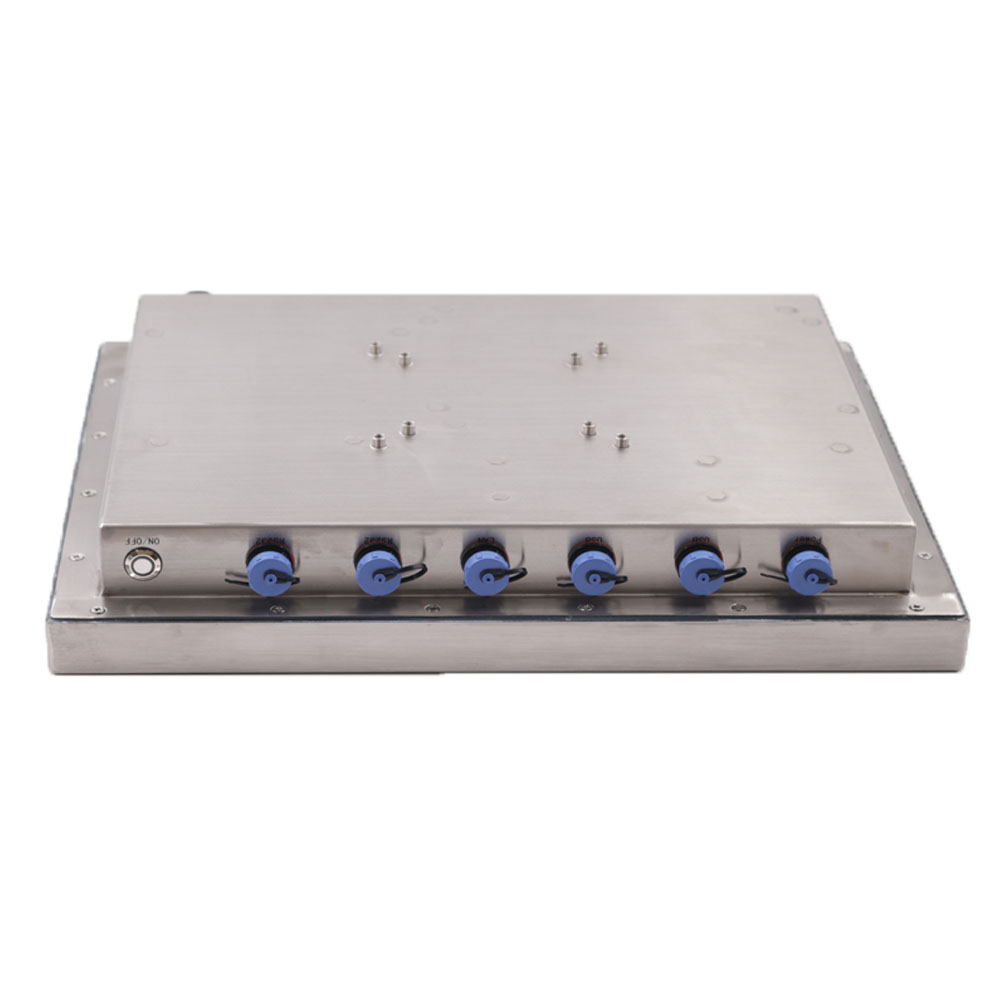

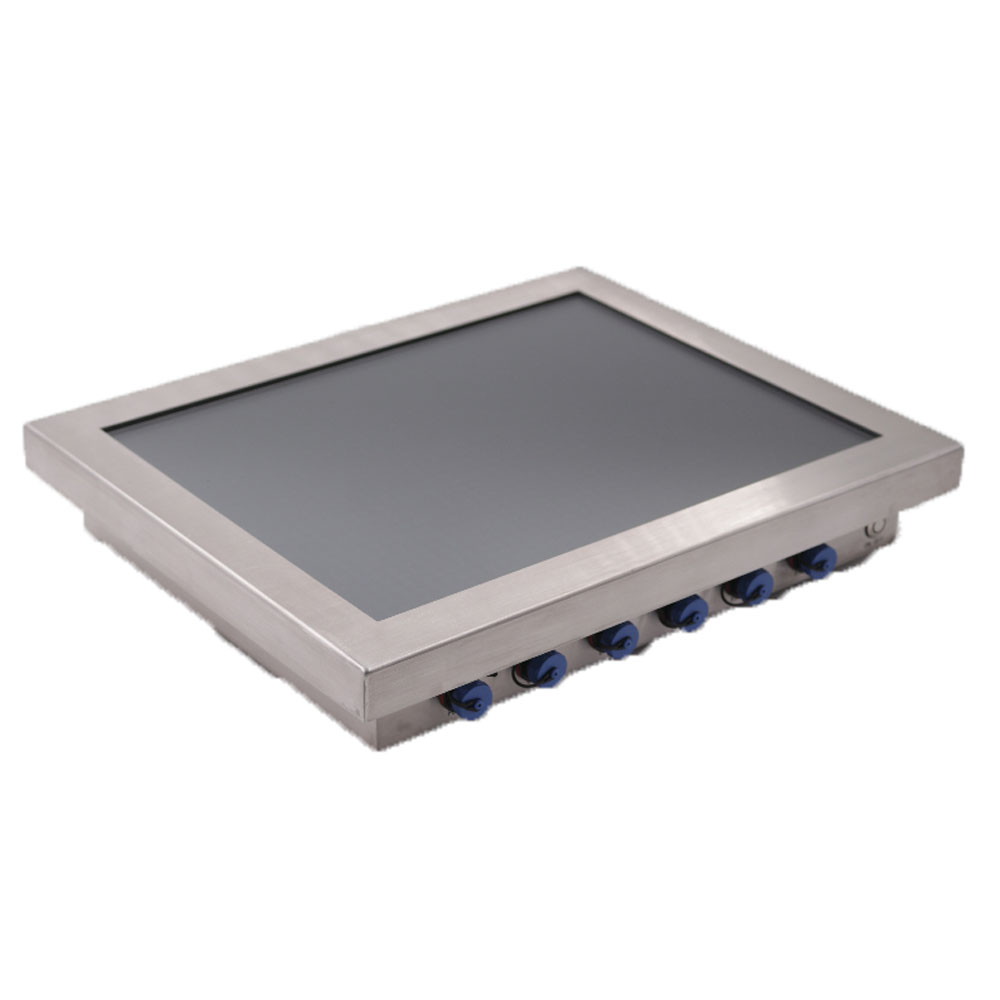

By fully understanding the product series and industry dynamics, Shenzhen Innoda Technology Co., Ltd. adapts ourselves to the development of products very quickly.12.1 inch ip67 waterproof single board tablet pc embedded industrial panel pc is our newest product and is expected to lead industry development. Technological innovation is the fundamental reason for Shenzhen Innoda Technology Co., Ltd. to achieve sustainable development. In the future, the company will expand business further.
Products Status: | Stock | Type: | Panel PC |
Brand Name: | INNODA | Place of Origin: | Guangdong, China |
Certification: | ce, RoHS | Product name: | 12.1inch metal shell embedded panel pc with ip67 |
Control Port: | UBS, VGA, HD, COM, LAN | Material: | Stainless Steel |
cooling: | heatsink | Key Words: | embedded panel pc |

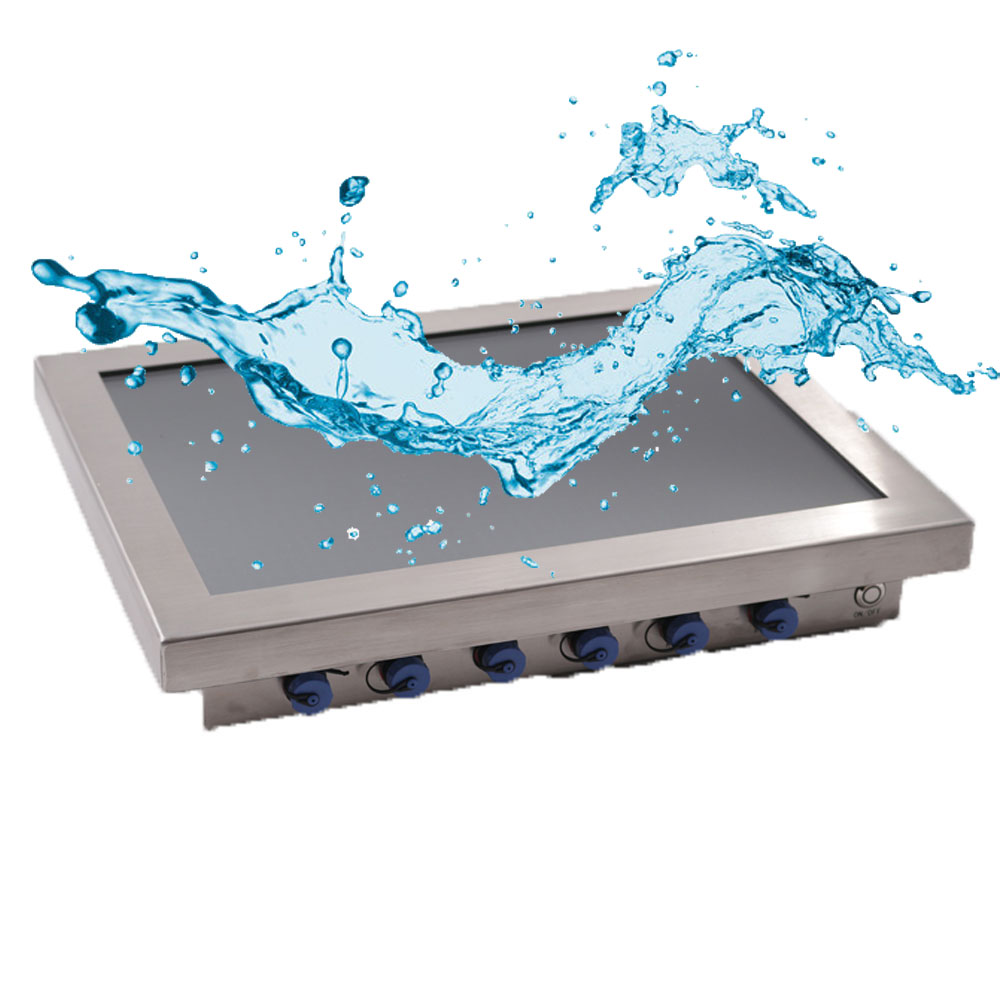

Feature: | Waterproof | Support customization: | Yes |
Sunlight readable: | Yes | Graphics Card Type: | Integrated Card |
Computer Configurations | ||
CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz | |
Memory | 2GB DDR3(Max. 8GB) | |
Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) | |
Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 | |
Cooling | Fan / Fanless for optional | |
Power Supply | 100V-240V,12V 7A AC Input,max 24W | |
Operating Temperature | -20~60° C (-4~140° F) |
LCD Panel Charateristics | ||
Screen Size | 12.1'' LCD/LED Panel | |
Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | |
Resoltuion | 1024(H)*(RGB)*600(V) | |
Aspect Ratio | 4:3 | |
Brightness | 350cd/m2 | |
View Angle | 80x80(H),80x80(V) | |
Contrast Ratio | 500:1 |
I/O Interface | ||
USB | 1-4xUSB | |
VGA | 1xVGA | |
Serial Port(RS232) | 1-2xRS232 | |
LAN(RJ45) | 1-2xRJ45 | |
WIFI | Integrated | |
LVDS/EDP Output | Up to 1920*1200 | |
Audio Output | Left and Right Chanel Output,8R/5W Loudspeaker |
Other Function(Optional) | ||
WIFI | 3G/4G Module | |
GPIO Connector | 8-36V wide range voltage | |
CanBus | Webcam | |
Brightness Control in Manual and Auto | RF/NFC Reader |
Other Information | ||
Frame Material | Metal Case/Aluminum Alloy/Stainless Steel | |
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |
Color | Default balck,also can choose white,silvery or other colour | |
VASA Mounting | 75*75 mm or 100*100 mm(optional) | |
Product Dimension(LxWxH) | TBD | |
Packing Dimension(LxWxH) | TBD | |
Weight | 6KG |
