After years of painstaking research, Shenzhen Innoda Technology Co., Ltd.’s technicians have successfully developed Innoda Factory Supply 15" IP65 industrial waterproof Rugged Fanless Panel PC. We pride ourselves on our personalized and efficient service. Shenzhen Innoda Technology Co., Ltd. will keep pace with the tide and focus on improving technologies, thereby creating and manufacturing products that better suit the needs of customers. We aim to lead the market trends one day.
| Place of Origin: | Guangdong, China | Brand Name: | INNODAPC |
| Model Number: | IND150PC-N28 | Products Status: | Stock |
| Processor Main Frequency: | 1.86GHz | Memory Capacity: | 2gb |
| Graphics Card Type: | Integrated Card | Optical Drive Type: | CD-ROM |
| Widescreen: | NO | Hard Drive Capacity: | 32G SSD |
| Screen Size: | 15", 15'' | Display Type: | LCD |
| Processor Brand: | Intel | Type: | Waterproof computer |
| Product Name: | rugged fanless panel pc | Touchscreen Type: | Capacitive touch |
| CPU: | N2800/1.86GHz | Memory: | 2GB/4GB/8GB |
| Storage: | 500G/1T HDD,32G-128G SSD | Operating System: | Linux/Ubuntu 14.04 LTS/Win7/8/10 |
| Material: | Aluminum | Logo: | Your Logo is acceptable |
| Fan: | No |

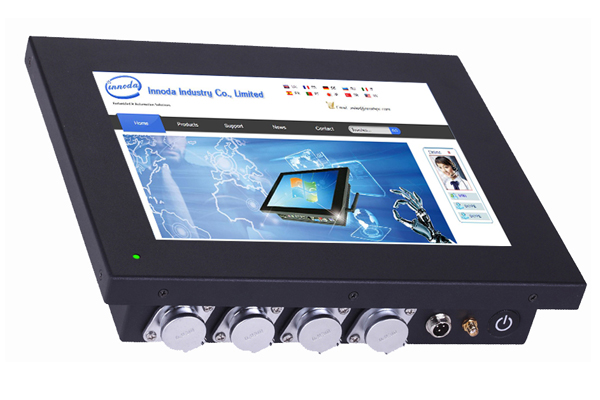

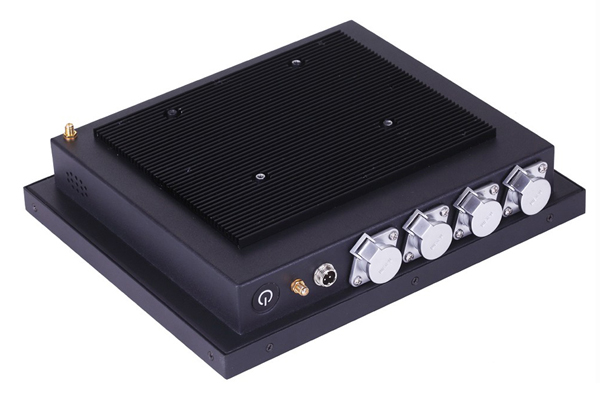

Innoda Factory Supply 15" IP65 industrial waterproof Rugged Fanless Panel PC
1.Sturdy and durable metal sheel
2.Sensistive and fast response touch function
3.High performance -Industrial fanless board,7x24hours of continuous work
4.Customized design sunlight readable and waterproof function
| Computer Configurations | |
| CPU | Intel Atom N2800/1.86GHz |
| Memory | 2GB DDR3(Max. 8GB) |
| Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 Default with Win 7 OS Testing Version is preloaded. |
| Cooling | Fan / Fanless for optional |
| Power Supply | 100V-240V,12V 7A AC Input,max 24W power consumption |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |
| I/O Interface | |
| USB | 3xUSB2.0,1xUSB3.0 |
| VGA | 1xVGA |
| Serial Port(RS232) | 1-2xRS232 |
| LAN(RJ45) | 1-2xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | TBD |
| Packing Dimension(LxWxH) | TBD |
| Weight | 6KG |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
