Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
Language
Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.
After a long period of exploration,Shenzhen Innoda Technology Co., Ltd. has launched 15 inch Win7/8/10 OS supported Intel I5 CPU industrial waterproof touch screen pc. And precisely because of the clear core selling point of 15 inch Win7/8/10 OS supported Intel I5 CPU industrial waterproof touch screen pc, not only does the product have a high reputation among customers, but also allows the product to have a high degree of intimacy among customers. Shenzhen Innoda Technology Co., Ltd. always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.
| Products Status: | Stock | Type: | Panel PC |
| Brand Name: | INNODAPC | Model Number: | IND150PC |
| Place of Origin: | Guangdong, China | CPU: | I5-4200U/1.6Ghz |
| Touchscreen Type: | Capacivite touch/Resistive/IR Touch | Environmet Temperature: | -25-75℃ |
| Operating System: | Linux/Ubuntu 14.04 LTS/Win 7/8/10 | Warranty: | 1year |
| Material: | Stainless Steel | Color: | Original Color/Black/White/Silver |
| Fan: | Fanless | Logo: | Logo printing for free |
| Product name: | 15inch industrial waterproof touch screen pc |

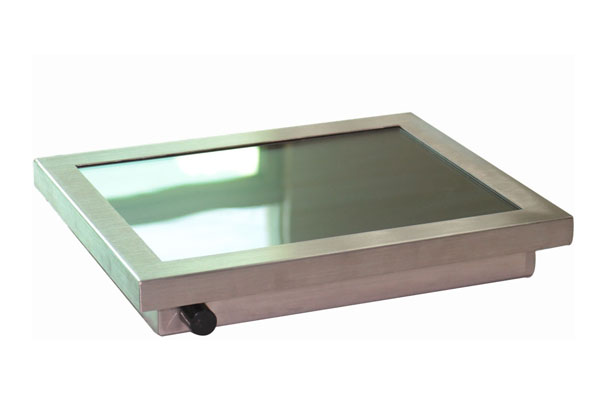

15 inch Win7/8/10 OS supported Intel I5 CPU industrial waterproof touch screen pc
Features
1.Brand New industrial LCD Panel
2. Stainless sheel 304
3. Sensistive and fast response PCAP touch screen
4. Fanless Design
5. High performance -Industrial fanless board,7x24hours of continuous work
6. Customized design sunlight readable and waterproof function
7. SS brushed case with rubber gaskets, center lower connected IP67 or greater I/O connectors, IP67 totally sealed,
8. rear 100 mm VESA mounting,
9. minus 20C to plus 70 degree C AIO operating temperature,
10. external IP67 power adapter with authentic UL Listing,
Follow link is our waterproof computer testing video,welcome to check it
https://youtu.be/tRaW1HTYbsw
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz |
| Memory | 2GB DDR3(Max. 8GB) |
| Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 Default with Win 7 OS Testing Version is preloaded. |
| Cooling | Fan / Fanless for optional |
| Power Supply | 100V-240V,12V 7A AC Input,max 24W power consumption |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |
| I/O Interface | |
| USB | 3xUSB2.0,1xUSB3.0 |
| VGA | 1xVGA |
| Serial Port(RS232) | 1-2xRS232 |
| LAN(RJ45) | 1-2xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | 360x288x57mm |
| Packing Dimension(LxWxH) | 460x388x160mm |
| Weight | 9KG |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
Contact: Sunny
Tel: 0086-0755-29108731
Skype: sunnytech24
Mobile/WatsApp: 0086 13554782291
Contact Us
Please Contact Us
Welcome to be our partner! Let us help you to create a world-class leading industrial panel pc brand.
