| Products Status: | Stock | Type: | Embedded Computer |
| Brand Name: | INNODAPC | Model Number: | IND121PC |
| Place of Origin: | Guangdong, China | CPU: | Intel J1900/2.0GHz |
| Voltage: | 12V DC | Touchscreen Type: | 4-wires resistive |
| Memory: | 2GB/4GB/8GB | Storage: | 32G-256G SSD |
| USB: | 2* USB 2.0 | Operating System: | Win7/8/10/linux |
| Key Words: | Industrial Pc,fanless computer,embedded panel pc | LAN: | Optional |
| Material: | Stainlss steel |

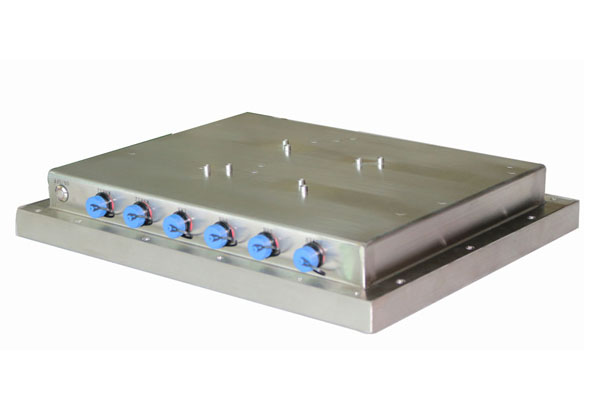

Waterproof IP65 12.1 Inch Rugged Computer with Intel N2800 Dual Core 2G Ram 32G Rom USB RJ45
Feature
1.Sturdy and durable metal sheel
2.Sensistive and fast response touch function
3.High performance -Industrial fanless board,7x24hours of continuous work
4.Customized design sunlight readable and waterproof function
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900 Quad Core 2.0GHz |
| Memory | 2GB DDR3(Max. 8GB) |
| Storage | 32G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10 Default with Win 7 OS Testing Version is preloaded. |
| Cooling | Fan / Fanless for optional |
| Power Supply | 100V-240V,12V 7A AC Input,max 24W power consumption |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 12.1'' LCD/LED Panel |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resoltuion | 1024(H)*(RGB)*768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500:1 |
| I/O Interface | |
| USB | 3xUSB2.0,1xUSB3.0 |
| VGA | 1xVGA |
| Serial Port(RS232) | 1-2xRS232 |
| LAN(RJ45) | 1-2xRJ45 |
| Other Function(Optional) | |
| WIFI | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | RF/NFC Reader |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm |
| Product Dimension(LxWxH) | TBD |
| Packing Dimension(LxWxH) | TBD |
| Weight | 6KG |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
