Since its establishment, Shenzhen Innoda Technology Co., Ltd. has always strengthened exchanges and cooperation with outstanding domestic and foreign companies. After IP67 Waterproof PC Monitor 15inch 17inch 19inch 22inch industrial touch screen all in one pc with capacitive touchscreen launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Shenzhen Innoda Technology Co., Ltd. firmly believe that we will satisfy the growing needs of every customer.

Products Status:StockType:Panel PC
Brand Name:INNODAPCModel Number:IND170PC
Place of Origin:Guangdong, ChinaCPU:J1900/2.0Ghz
RAM:2GB/4GB/8GB DDR3Voltage:12V DC
Operating System:Linux/Ubuntu 14.04 LTS/Win 7/8/10Environmet Temperature:-30-80℃
Warranty:12 MonthsMaterial:Stainless Steel / Aluminum
Fan:FanlessLogo:Your Logo is acceptable
Product name:IP67 Waterproof Computer for Industry Application

IP67 Waterproof PC Monitor 15inch 17inch 19inch 22inch industrial touch screen all in one pc with capacitive touchscreen



 Follow link is our waterproof computer testing video,welcome to check it

https://youtu.be/tRaW1HTYbsw



Features

1.Waterproof design for industry application

2.Sensistive and fast response PCAP touch screen for optional

3.Muilttouch I/O ports with USB,LAN and COM Port.

4.Industrial fanless board,7x24hours of continuous work

5.Can do Customized design sunlight readable and waterproof function with 21000cd/m2-1500cd/m

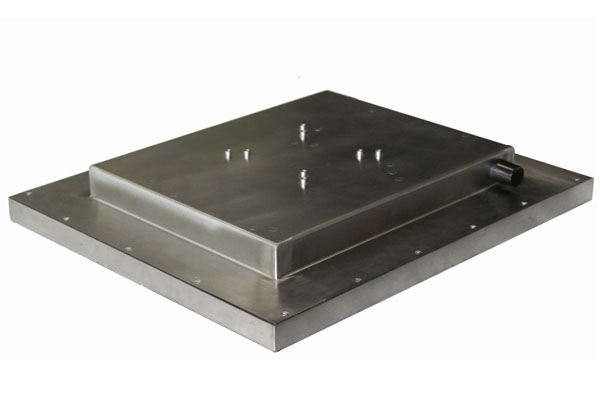

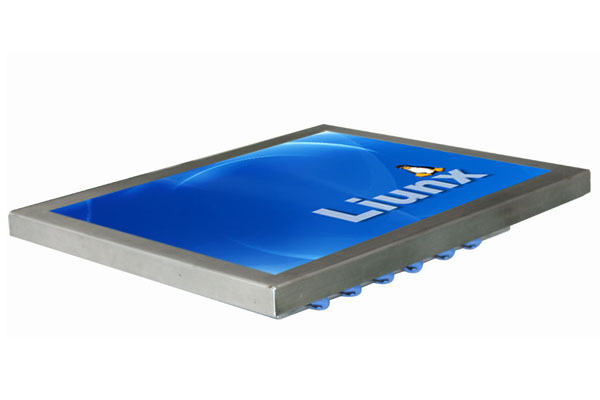

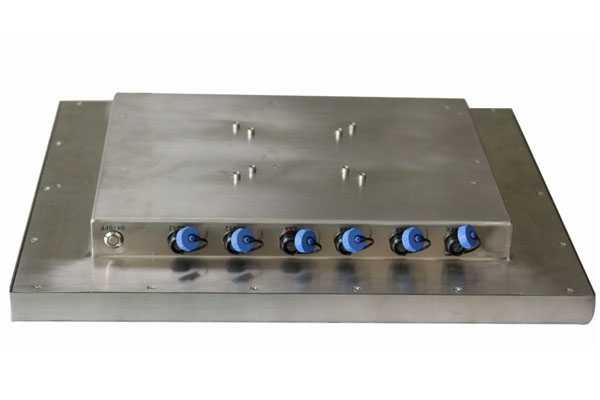

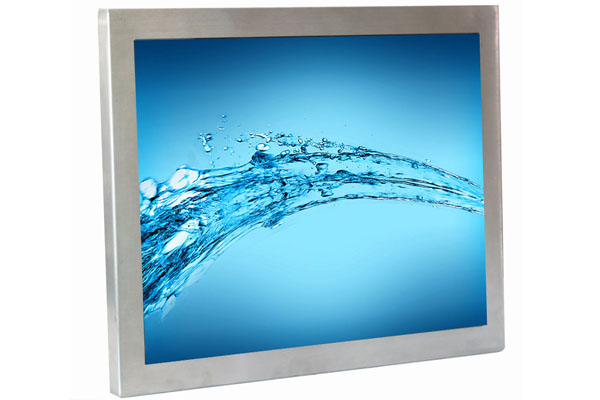

Detailed Images

Noted, Sunlight Readable Computer Configuration can be customzied, so the price depends on the components and quantity.

Product Description
Computer Configurations
CPUIntel Celeron® Processor J1900 Quad Core 2.0GHz
Memory2GB DDR3(Max. 8GB)
Storage32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win 7/8/10

Default with Win 7 OS Testing Version is preloaded.

CoolingFan / Fanless for optional
Power Supply100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature-20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size17'' LCD/LED Panel
Touchscreen TypeCapacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion1280(H)*(RGB)*1024(V)
Aspect Ratio4:3
Brightness350cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio500:1



I/O Interface
USB3xUSB2.0,1xUSB3.0
VGA1xVGA
Serial Port(RS232)1-2xRS232
LAN(RJ45)1-2xRJ45
Other Function(Optional)
WIFI3G/4G Module
GPIO Connector8-36V wide range voltage
CanBusWebcam
Brightness Control in Manual and Auto RF/NFC Reader



Other Information
Frame MaterialMetal Case/Aluminum Alloy/Stainless Steel
Sheel Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other colour
VASA Mounting75*75 mm or 100*100 mm

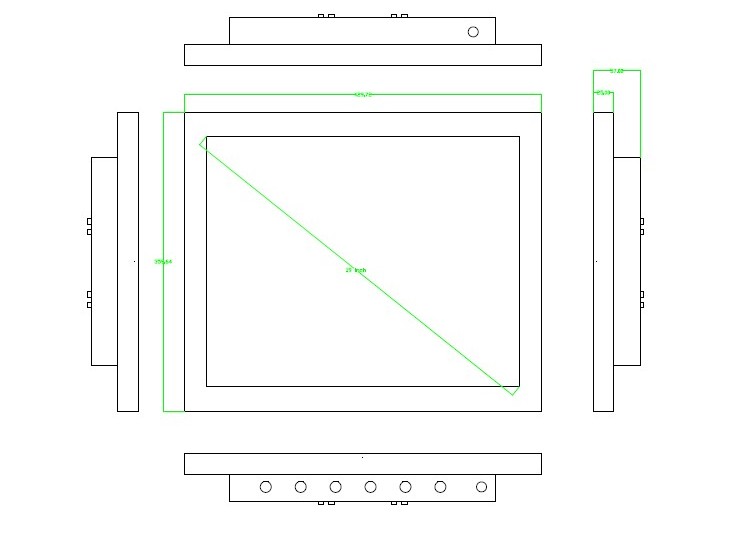

Product Dimension(LxWxH)430x360x57mm
Packing Dimension(LxWxH)530x460x160mm
Weight10KG



Customer Comments

Customized Function

Main Product

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

Application

Company Information

Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.
