Since 2014. Innoda is a professional waterproof industrial panel PC and touch screen monitor manufacturers.

Language
VR

Shenzhen Innoda Technology Co., Ltd. has been one of the industry leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. It is designed to meet the industry criterion. Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Shenzhen Innoda Technology Co., Ltd. firmly believe that we will satisfy the growing needs of every customer.

Products Status:StockType:Embedded Computer
Brand Name:InnodaPlace of Origin:Guangdong, China
Screen Size:10.1''Touchscreen Type:4-wires resistive
CPU:Intel J1900/1.9GHzMemory:2GB/4GB/8GB
Storage:320G-1TB HDD,32G-256G SSDUSB:2* USB 2.0
Operating System:Wins 7/8/10/linuxKey Words:Industrial Pc,fanless computer,embedded panel pc
LAN:OptionalMaterial:Aluminum
Certification:ce, RoHS

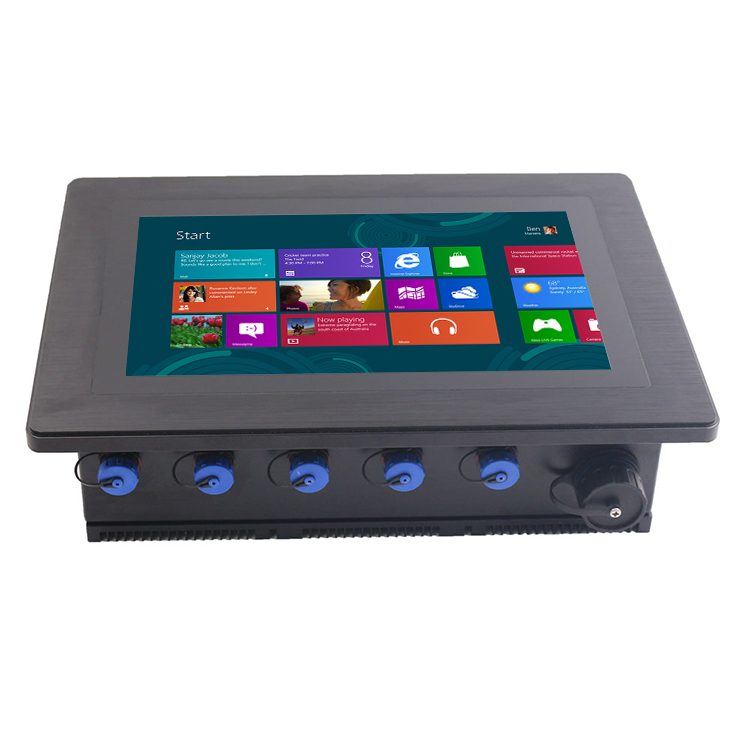

10.1 inch Waterproof  Fanless Industrial Resistive Touch Screen Panel Pc



 Feature

1.Sturdy and durable metal sheel

2.Sensistive and fast response touch function

3.High performance -Industrial fanless board,7x24hours of continuous work

4.Customized design sunlight readable and waterproof function

Detailed Images

10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc

Product Description
Computer Configurations
CPU Intel Celeron® Processor J1900 Quad Core 2.0GHz
Memory 2GB DDR3(Max. 8GB)
Storage 32G SSD(320GB to 1TB, 32GB to 128GB SSD option)
Operation System

Linux/Ubuntu 14.04 LTS/Win 7/8/10

Default with Windows 7 OS Testing Version is preloaded.

Cooling Fan / Fanless for optional
Power Supply 100V-240V,12V 7A AC Input,max 24W power consumption
Operating Temperature -20~60° C (-4~140° F)



LCD Panel Charateristics
Screen Size 10.1'' LCD/LED Panel
Touchscreen Type Capacitive Touch(4/5Resistive/IR/SAW option)
Resoltuion 1024(H)*(RGB)*600(V)
Aspect Ratio 16:9
Brightness 350cd/m2
View Angle 80x80(H),80x80(V)
Contrast Ratio 500:1



I/O Interface
USB 3xUSB2.0,1xUSB3.0
VGA 1xVGA
Serial Port(RS232) 1-2xRS232
LAN(RJ45) 1-2xRJ45
Other Function(Optional)
WIFI 3G/4G Module
GPIO Connector 8-36V wide range voltage
CanBus Webcam
Brightness Control in Manual and Auto  RF/NFC Reader



Other Information
Frame Material Metal Case/Aluminum Alloy/Stainless Steel
Sheel Process Technic Powder coated/Wire Drawing/CNC craft
Color Default balck,also can choose white,silvery or other colour
VASA Mounting 75*75 mm or 100*100 mm
Product Dimension(LxWxH) TBD
Packing Dimension(LxWxH) TBD
Weight 6KG



Customer Comments

10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc

Customized Function

Main Product

Packaging & Shipping

1. Security packing method with bubble foam

2. Carton box / Wooden plate / Honeycomb carton

3. Standard one piece in a box, 2 boxes in a carton.

4. All Product will be checked 5 times before shipped.

5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.

10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc

Company Information

10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc10.1 inch Waterproof Fanless Industrial Resistive Touch Screen Panel Pc

Shenzhen Innoda Technology Co.,Limited produce embedded computer, inudstrail panel pc, touchscreen computer,different type monitors and touch information kiosk. Engineers have at least 6 years experiance in all in one pc filed. OEM/ODM is our strong points. Customized design is welcome.



Pls feel free to contact us as below methods, we will response to you in time.

Contact: Sunny

Tel: 0086-0755-29108731

Skype:  sunnytech24

Mobile/WatsApp: 0086 13554782291
