Shenzhen Innoda Technology Co., Ltd. relying on years of technical accumulation and industry experience, organically combining traditional craftsmanship with modern technology, successfully developed 10inch Android Capacitive touch panel pc with OTG. Talents and technology are indispensable supporting factors for the 10inch Android Capacitive touch panel pc with OTG to be widely praised. Looking to the future, 10inch Android Capacitive touch panel pc with OTG will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.

Warranty(Year):1-YearScreen Size:10.1"
Scenarios:For ProfessionalFeature:Shockproof
charging interface:No charge portDrive Interface:usb
Private Mold:YesAfter-sales Service:Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair
Products Status:NewProcessor Manufacture:ROCKCHIP
Processor Type:Quad CoreProcessor Main Frequency:1.8Ghz
Memory Capacity:2gbTouch Screen Type:Capacitive Screen
Display resolution:1280x800Operating System:Android 7
Weight:2.5kgPlace of Origin:Guangdong, China
Brand Name:INNODAPCModel Number:IND101APC
Type:Tablet PCUse:Industrial
Network:wifiSize:8inch
Flat Panel pc CPu:RK3288Touch screen:Capacitive touchscreen
SD card slot:IntegratedOTG:Yes
WIFI:IntegratedLogo:Client logo acceptable
RS232:YesColor:As you want
Product Name:10inch Android Capacitive touch panel pc with OTG

Product Description







10inch Android Capacitive touch panel pc with OTG


Features

1. 10inch size

2.CPU:RK3288

3. I/O: USB, LAN, OTG, RS232

4.wifi

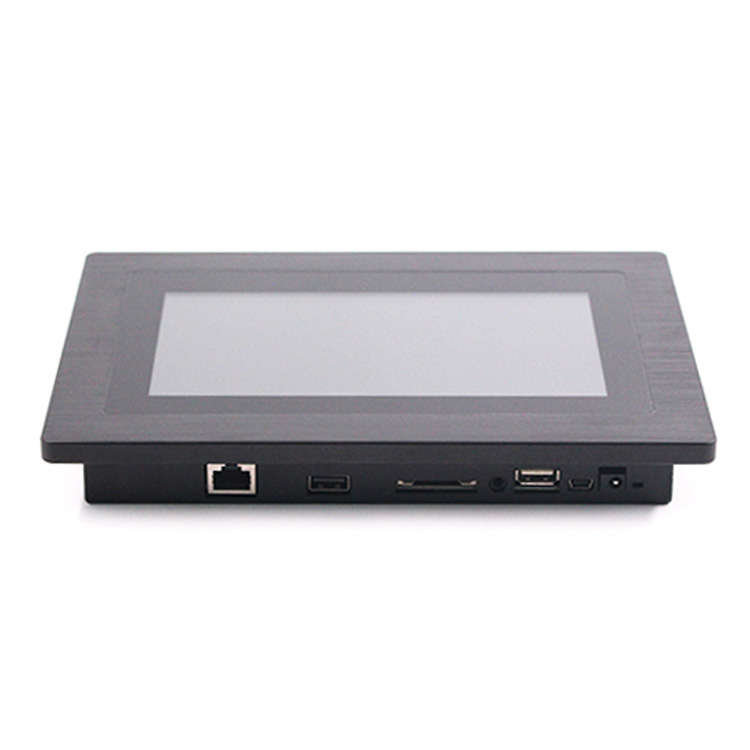

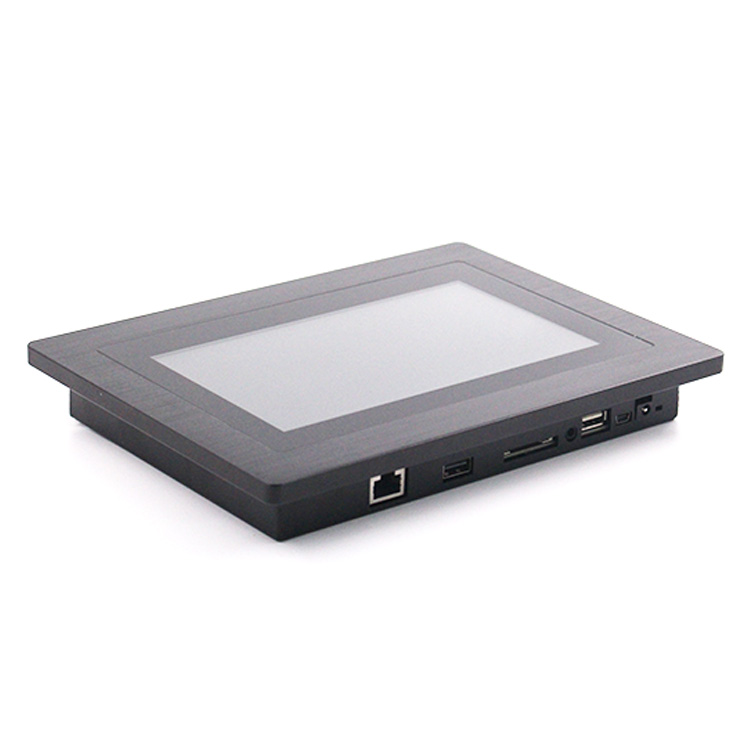

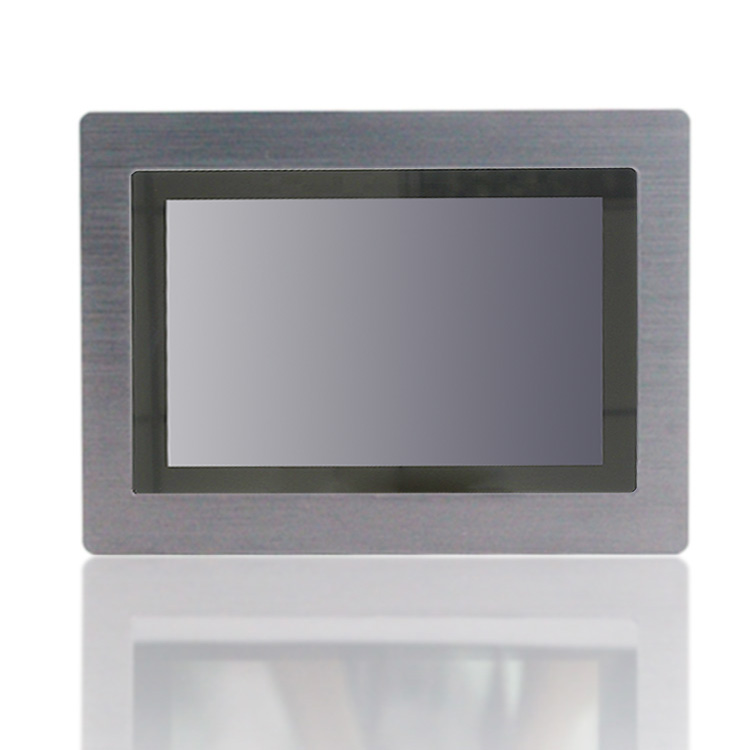

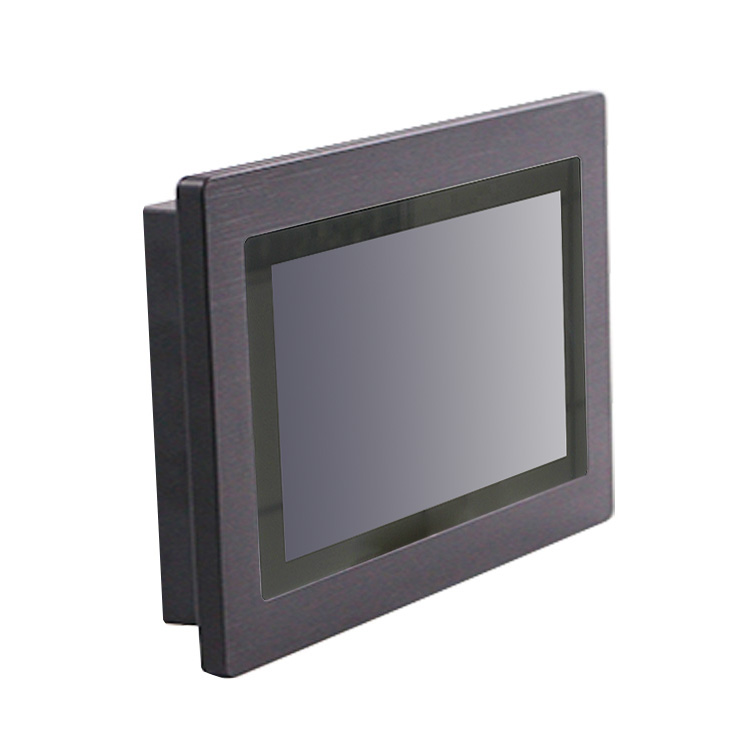

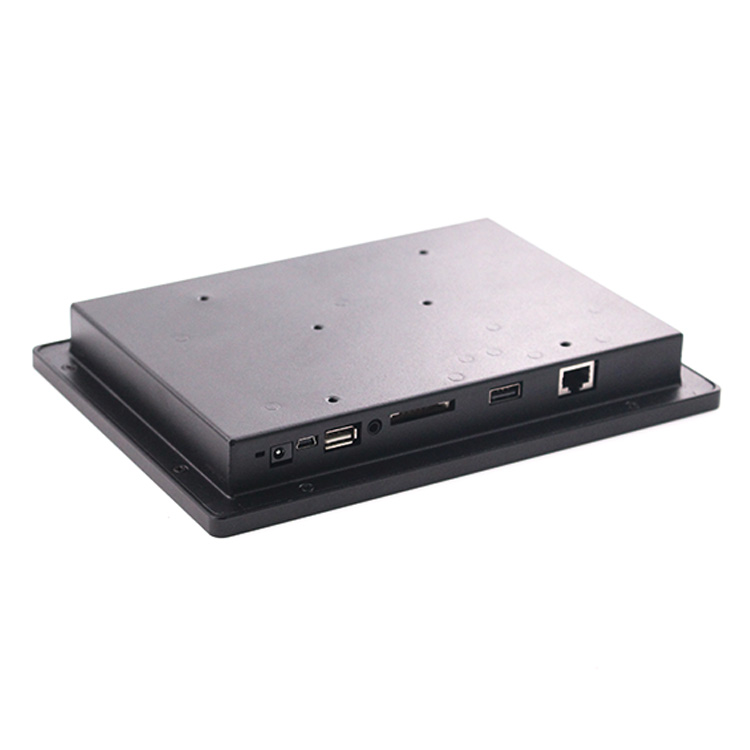

Detailed Images
Production Parameter
                                                                       Computer Configurations
CPU
RK3288
Memory
2GB
Built-in Storage
16GB
Operation System
Android 7.0
Power Supply
12V DC power
Operating Temperature
0~50° C
                                                                                   LCD Panel Charateristics
Screen Size
10.1'' industrial grade Panel
Touchscreen Type(optional)
Capacitive Touch
Resoltuion
1280(H)*(RGB)*800(V)
Aspect Ratio
16:9
High Brightness
350cd/m2
View Angle
80x80(H),80x80(V)
Contrast Ratio
700:1
                                                                                   I/O Interface
1 x USB2.0
1xLAN(RJ45)
RSR232
OTG
                                                                                Functions
WIFI
                                                                                  Other Information
Frame Material
Aluminum Alloy/Stainless Steel
Sheel Process Technic
Powder coated/Wire Drawing/CNC craft

VASA Mounting
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount

Color
Default balck,also can choose white,silvery or other colour
Product Dimension(LxWxH)
TBD
Packing Dimension(LxWxH)
TBD
Customer Feedback
Recommend Products
Customized Function
Packing & Shipping

1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
