1.17‘’ lcd panel
2. CPU:RK3288 / RK3399
3. FUll waterproof IP65

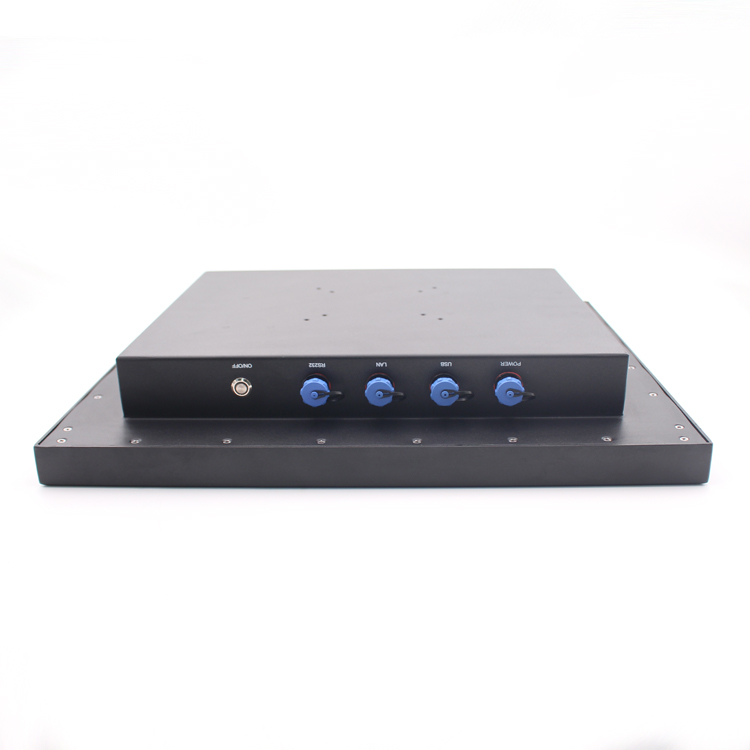

4. USB,RS232,RJ45 port with waterproof tight cap
5. Rj45 as PoE power supply
6.Android 6.0/7.0/8.0/9.0 OS
Poe Powered android touchscreen wall mount tablet pc with full IP65 launched by Shenzhen Innoda Technology Co., Ltd. has a clear positioning and is a product designed to solve industry pain points. Shenzhen Innoda Technology Co., Ltd. is dedicated to ensuring that you receive a top class service, every time. Shenzhen Innoda Technology Co., Ltd. with high quality and good reputation, it has won a good reputation in the industry.
Warranty(Year): | 1-Year | Screen Size: | 17" |
Scenarios: | For Industrial | Feature: | Waterproof, Shockproof, Drop resistance, Anti-Dust |
charging interface: | NO | Drive Interface: | usb |
Private Mold: | Yes | After-sales Service: | Call Center and on-line Technical Support, Free spare parts, Return and Replacement, Repair, Others |
Products Status: | New | Processor Manufacture: | ROCKCHIP |
Processor Type: | Octa Core | Processor Main Frequency: | 1.8 GHz |
Memory Capacity: | 2gb | Touch Screen Type: | Capacitive Screen |
Display resolution: | 1280x1024 | Operating System: | Android 7.0, Android 6.0/7.0/8.0/9.0 |
Weight: | 3kg | Place of Origin: | Guangdong, China |
Brand Name: | INNODAPC | Model Number: | IND170APC |
Type: | Tablet PC | Use: | Industrial |
Network: | wifi, GSM, 4g, 3G | Size: | 17-inch |
Brightness: | 250cd/m2 | CPU: | RK3399 |
Touchscreen Type: | Capacitive touchscreen | Working Voltage: | 12V DC |
WIFI: | Integrated | Interface: | USB, RS232 |
Keywords: | rugged tablet pc | Product Name: | Flat IP65 Outdoor Waterproof Android Rugged Tablet Pc With Poe RS232 |
1.17‘’ lcd panel
2. CPU:RK3288 / RK3399
3. FUll waterproof IP65
4. USB,RS232,RJ45 port with waterproof tight cap
5. Rj45 as PoE power supply
6.Android 6.0/7.0/8.0/9.0 OS
Computer Configurations | ||||||
CPU | RK3288/ RK3399 | |||||
Memory | 2GB to 4GB | |||||
Built-in Storage | 8GB/16GB/32G EMMC | |||||
Operation System | Android 6.0/7.0/8.0 | |||||
Power Supply | 12V DC power | |||||
Operating Temperature | -20~70° C |
LCD Panel Charateristics | ||||||
Screen Size | 17'' lcd Panel | |||||
Touchscreen Type(optional) | Resistive touch/Capacitive Touch/SAW Touch/IR Touch | |||||
Resoltuion | 1280(H)*(RGB)*1024(V) | |||||
Aspect Ratio | 4:3 | |||||
High Brightness | 250cd/m2 | |||||
View Angle | 80x80(H),80x80(V) | |||||
Contrast Ratio | 700:1 |
I/O Interface | ||||||
USB | LAN | |||||
RS232 | ||||||
Functions | ||||||
Full IP66 | PoE |
Other Information | ||||||
Frame Material | Metal case | |||||
Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | |||||
VASA Mounting | 75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount | |||||
Color | Default balck,also can choose white,silvery or other colour | |||||
Product Dimension(LxWxH) | TBD | |||||
Packing Dimension(LxWxH) | TBD |
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference.
OEM/ODM is our strong points. Customized design is welcome.
Pls feel free to contact us as below methods, we will response to you in time.
